Input Shaft / Drum OVERDRIVE Clutch FORD 6R140 [total height 467 mm, 32 splines, 7 friction plates]

• Overall height - 467 mm;
• Number of splines - 32 pcs;
• The outer diameter of the splined part is 32.90 mm;
• External diameters of the working parts of the shaft - 39 mm | 40.50 mm | 26mm;
• Height from the piston to the retaining ring (inner side of the drum) - 33 mm;
• The number of teeth of the ring gear - 95 pieces;
• The outer diameter of the ring gear is 154.40 mm;

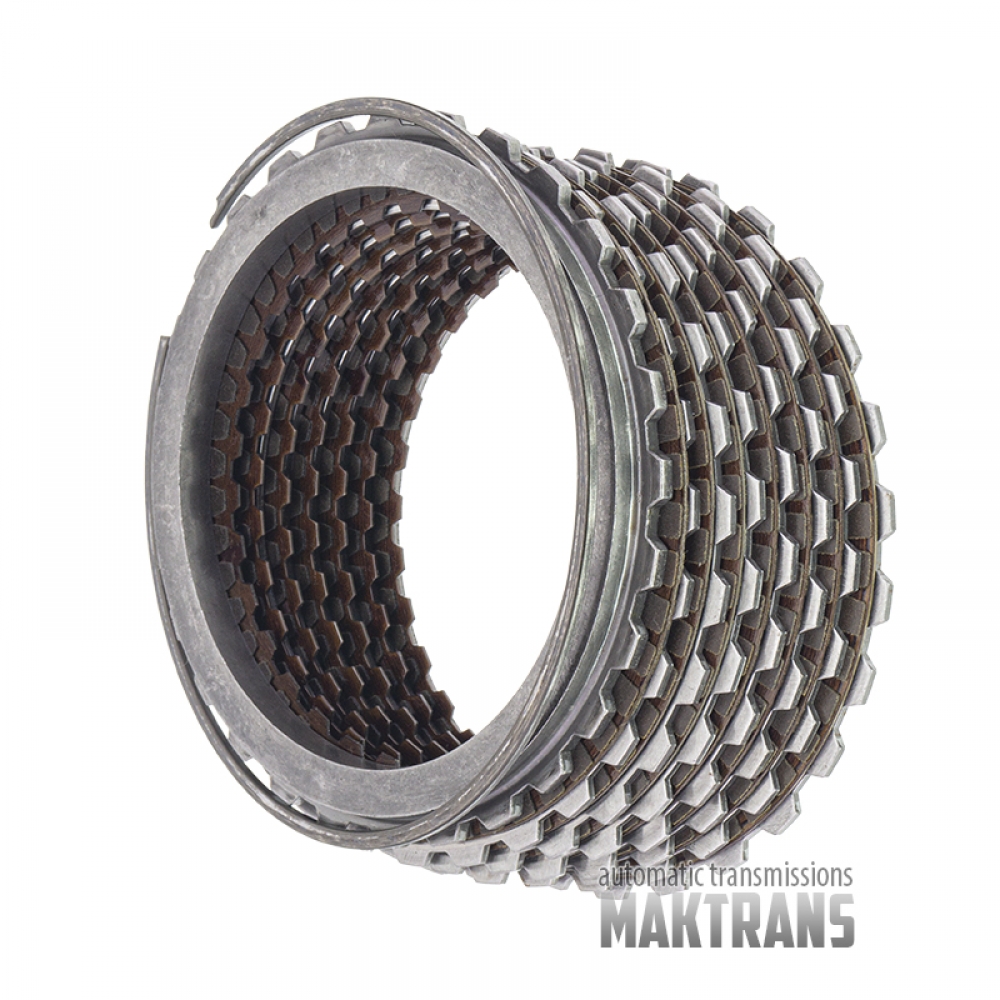

Friction and steel plate kit OVERDRIVE Clutch :

• The total thickness of the kit is 31.40 mm;

Thrust plate:

• • Thickness - 8.75 mm / 3.25 mm;
• • Inner diameter – 119.25 mm;
• • Number of teeth - 28 pcs;
• • The number of plates in the set - 1 pc;

Steel plate:

• • Thickness - 2 mm;
• • Inner diameter - 119.25 mm;
• • Number of teeth - 28 pcs;
• • Number of plates in the set - 7 pcs;

Friction plate:

• • Thickness - 1.95mm;
• • Outer diameter - 145.60 mm;
• • Number of teeth - 32 pcs;
• • Number of plates in the set - 7 pcs;
