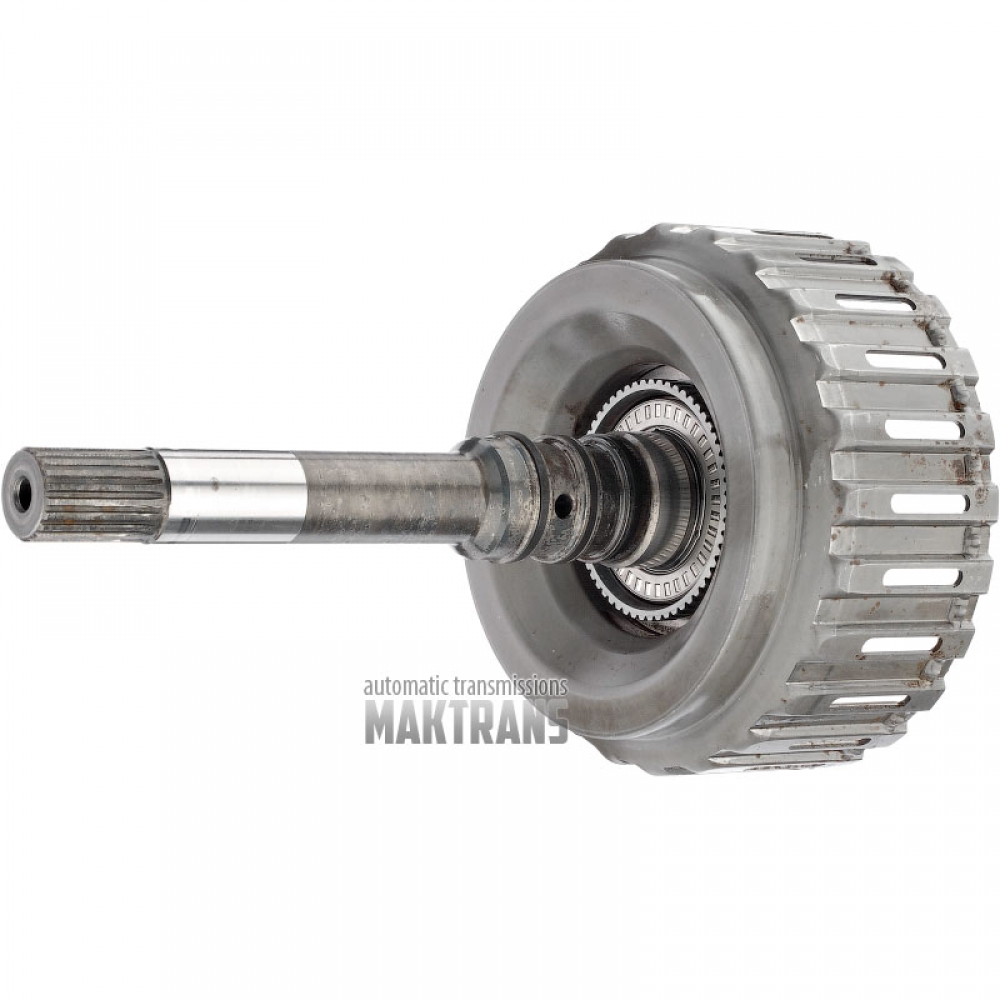

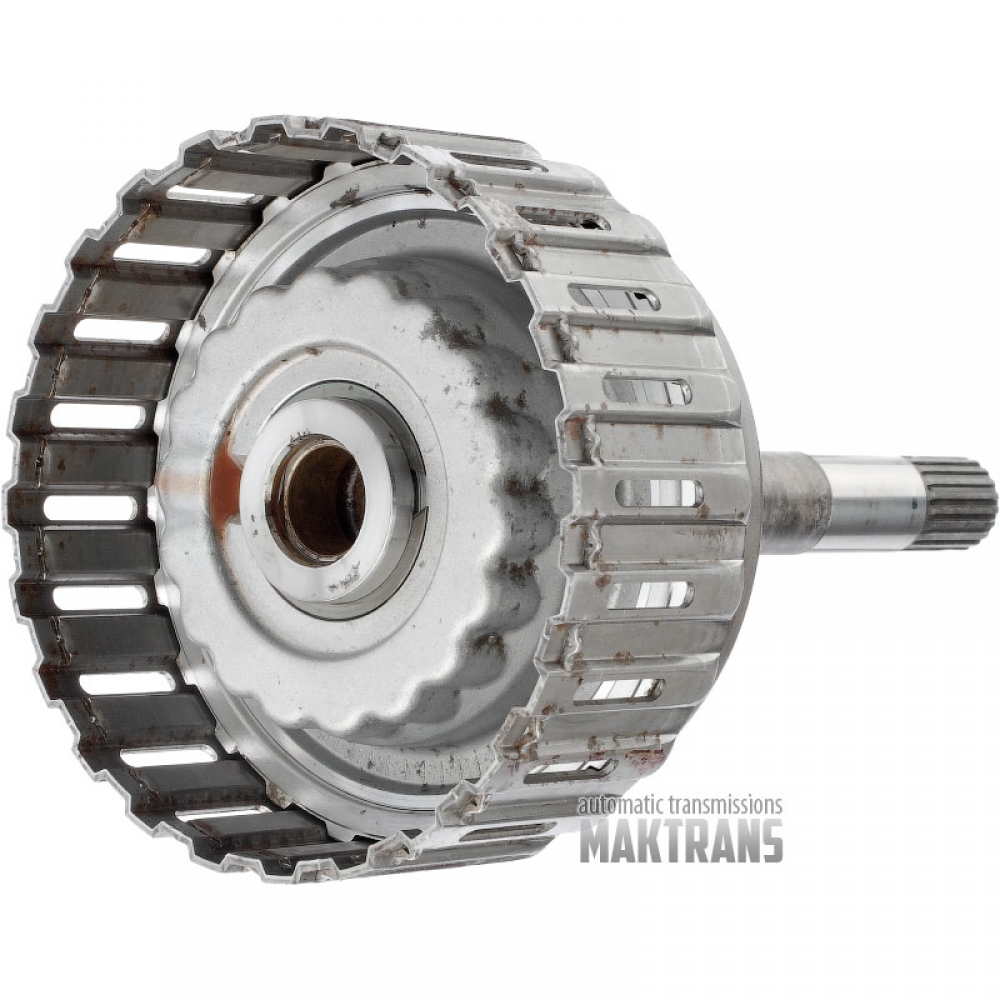

Input shaft and Forward Clutch drum TOYOTA AC60E AC60F [empty, without plates, total height 232 mm (20 plates), Forward Clutch drum for 5 friction plates]

• Overall height - 232 mm;
• Number of splines on the shaft - 20 pcs.;
• The length of the spline part is 30 mm;
• The number of splines for the Direct Clutch drum (at the base) is 57 pcs.;
• Diameters of the working parts of the shaft - 22.15 mm / 34.10 mm;
• The diameter of the seats of teflon rings is 31.50 mm;
• Drum outer diameter - 139.15 mm;
• The total height of the drum is 70 mm;
• The height from the piston to the retaining ring (on the inside of the drum) is 30 mm;

Input shaft and Forward Clutch drum TOYOTA AC60E AC60F [empty, without discs, total height 232 mm (20 splines), Forward Clutch drum for 5 friction discs]
