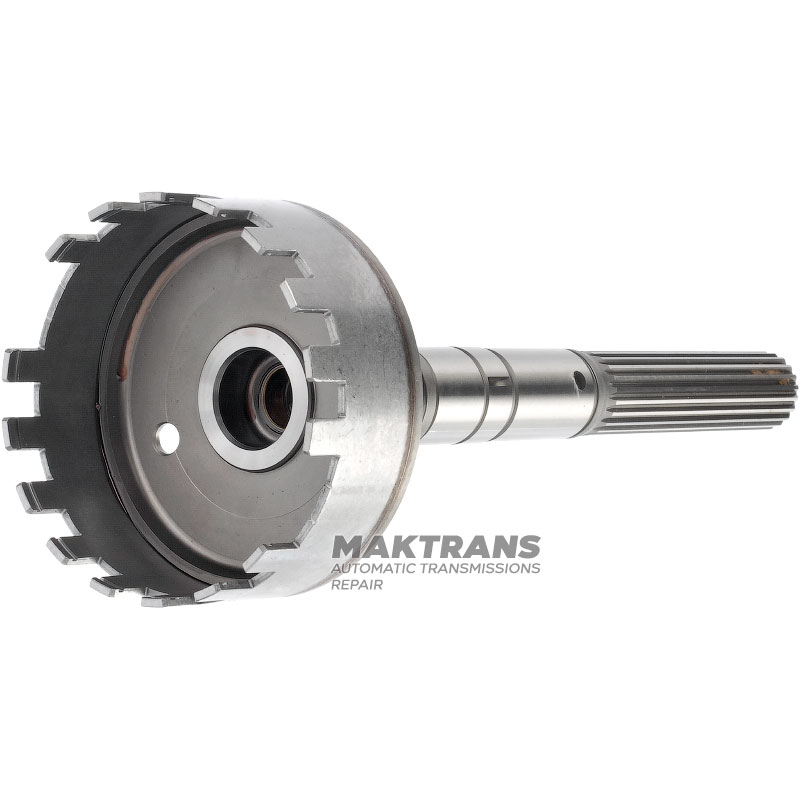

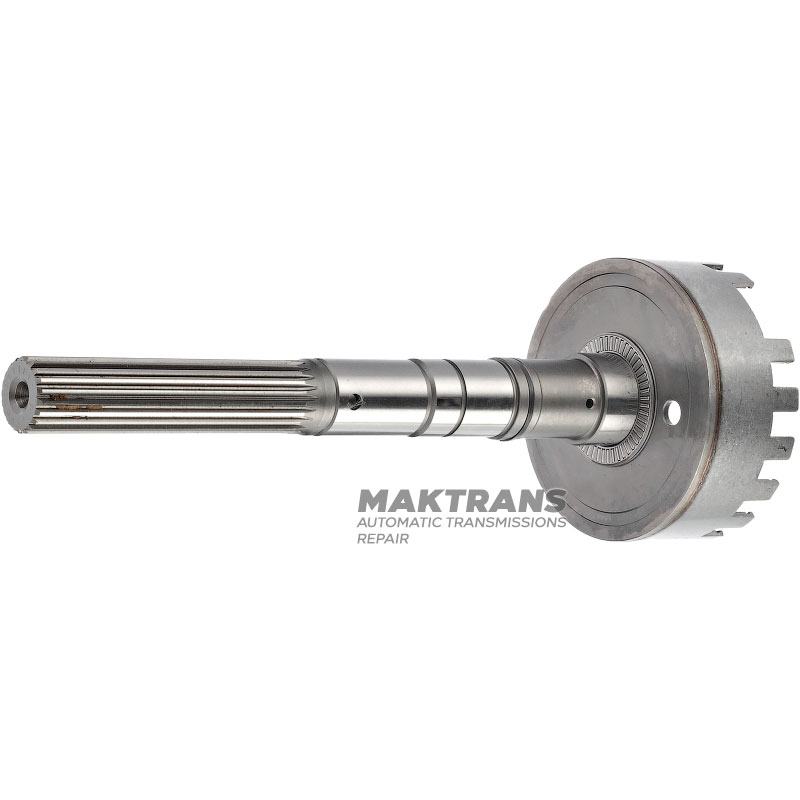

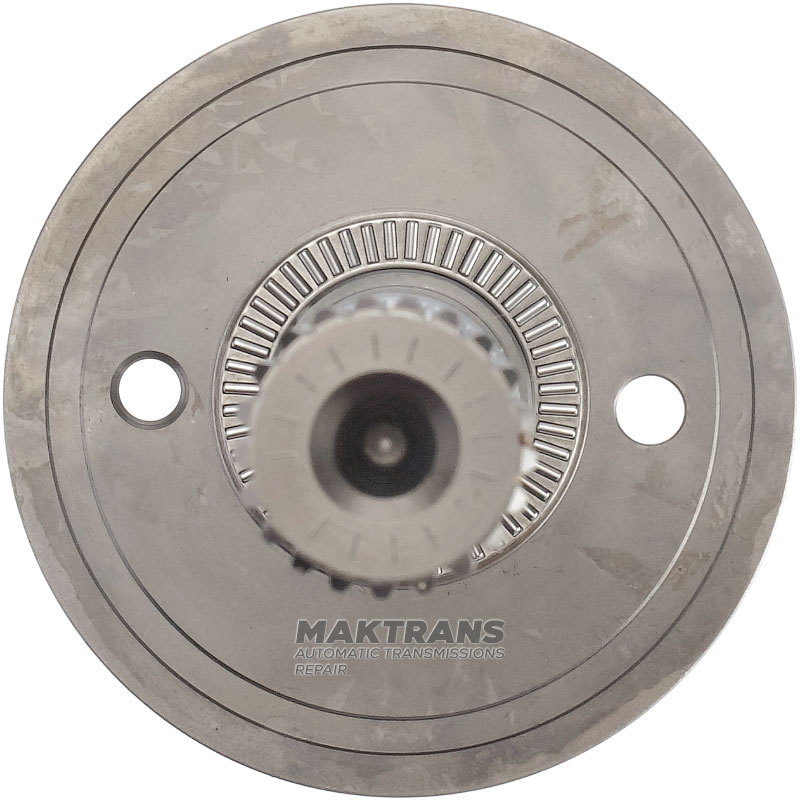

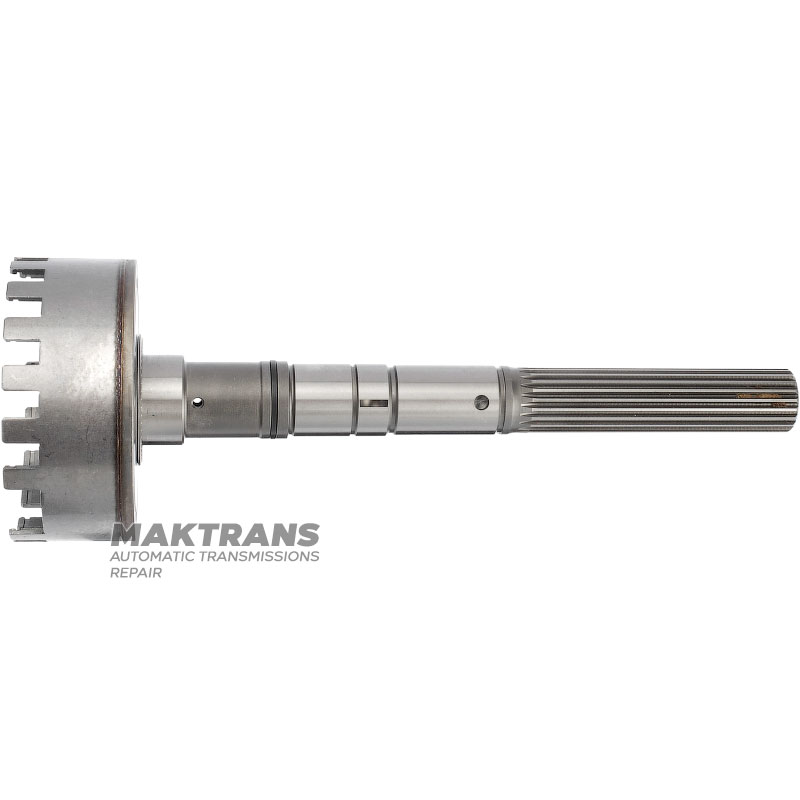

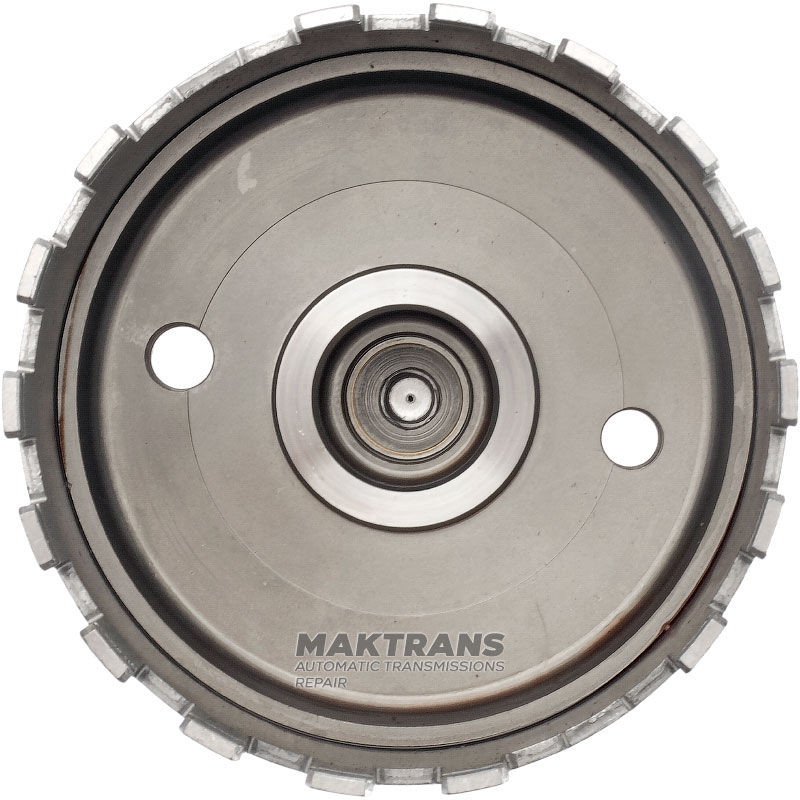

Output shaft Aisin Warner 03-70LS / 03-72LS / (shaft length 282 mm, number of splines on the shaft 21 pcs (outer Ø of the spline part 27.80 mm)

• Total height - 332 mm;
• The outer diameter of the shell (drum) is 117.45 mm;
• Shell height - 50.23 mm;
• Shaft length - 289 mm;
• Number of splines on the shaft - 21 pcs.;
• The outer diameter of the spline part is 27.80 mm;
• The length of the spline part is 121 mm;

Outer diameters of the working parts of the shaft

• 29.90 mm;
• 30.95 mm;
• 38 mm;
