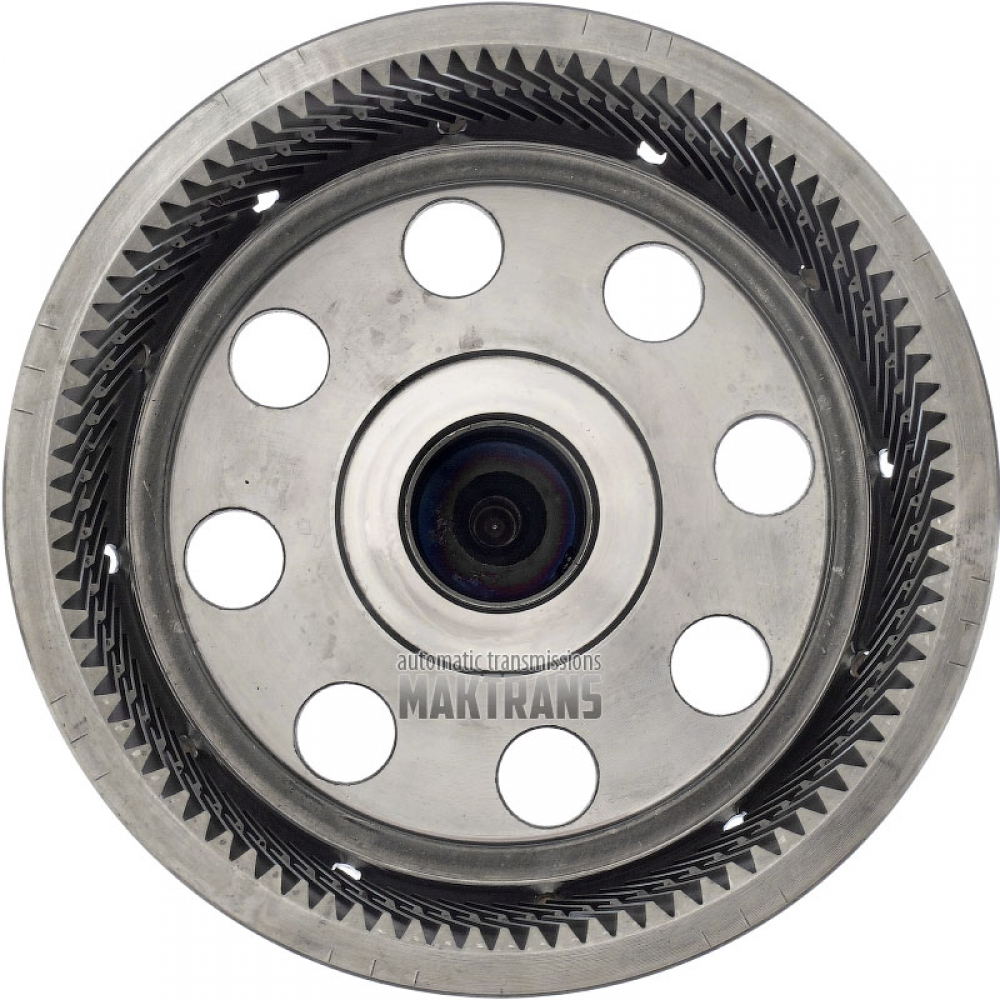

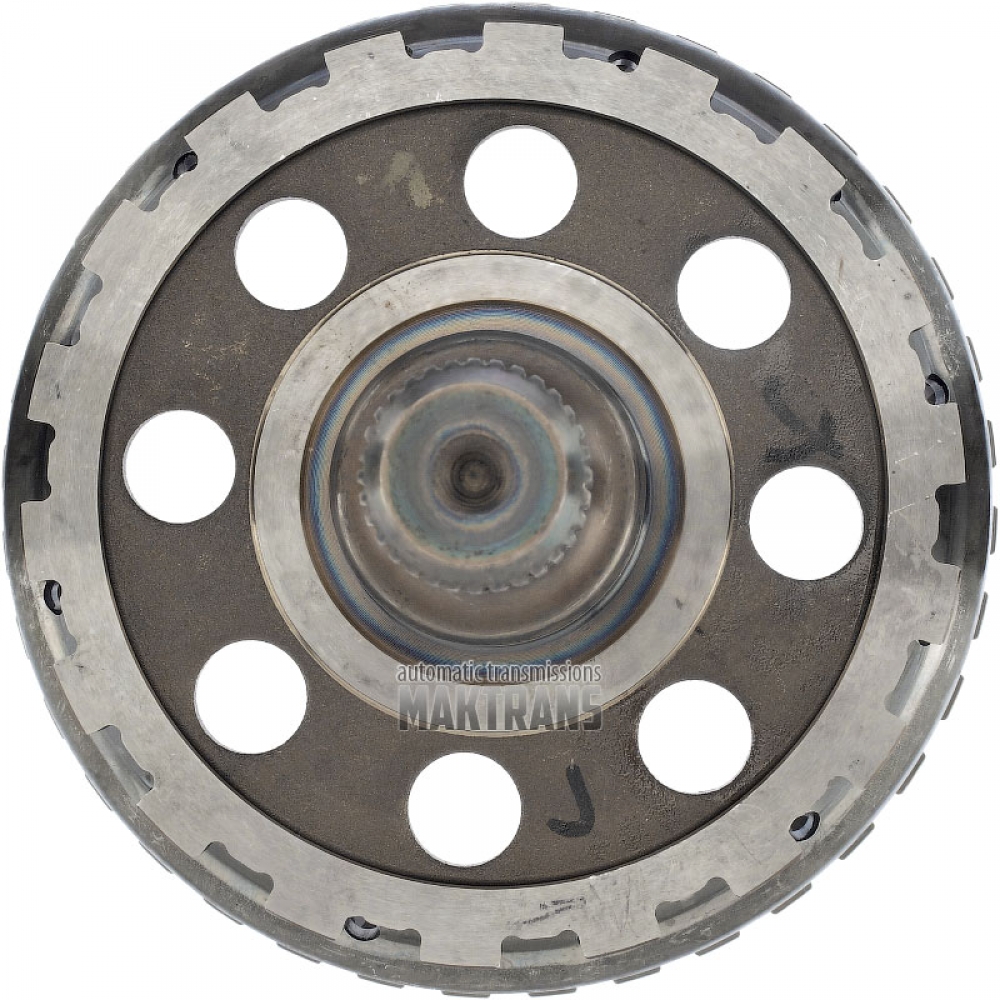

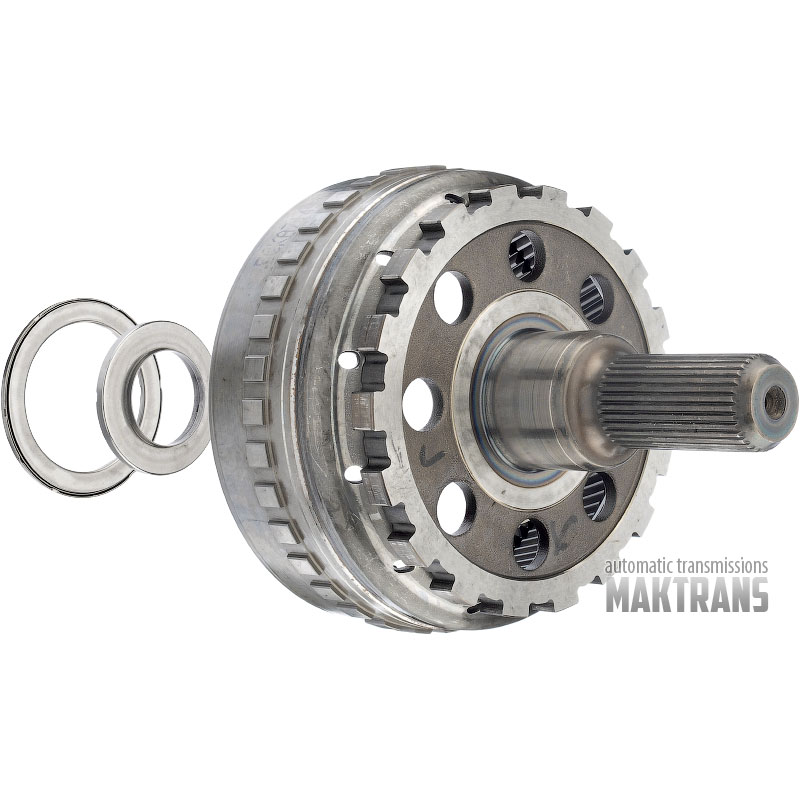

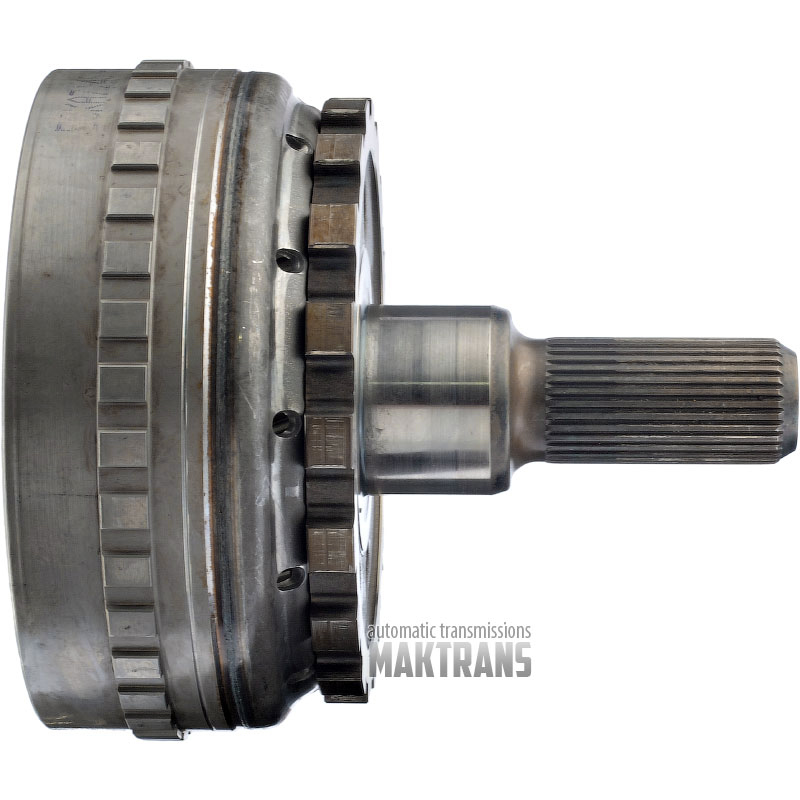

Output shaft / rear planetary ring gear GM 6L80 / [total height 202 mm, 32 splines (ext. Ø 34.70 mm)]

• Total height - 202 mm;
• Output shaft height - 117 mm;
• Number of splines - 32 pcs.;
• The outer diameter of the spline part is 34.70 mm;
• The outer diameter of the working part of the shaft is 52.35 mm;
• The number of teeth on the parking gear is 18 pcs.;
• The outer diameter of the parking gear is 165 mm;
• The outer diameter of the ring gear is 180.65 mm;
• The number of teeth of the output speed sensor is 36 pcs.;
• The number of teeth on the ring gear is 92 teeth;

Needle bearings:

Front:

• Outer diameter - 63.30 mm;
• Inner diameter - 38.40 mm;
• Total height - 8.35 mm;
• Thickness - 5.10 mm;

Rear:

• Outer diameter - 85.65 mm;
• Inner diameter - 63.40 mm;
• Thickness - 3.85 mm;

Tags: 24264189
