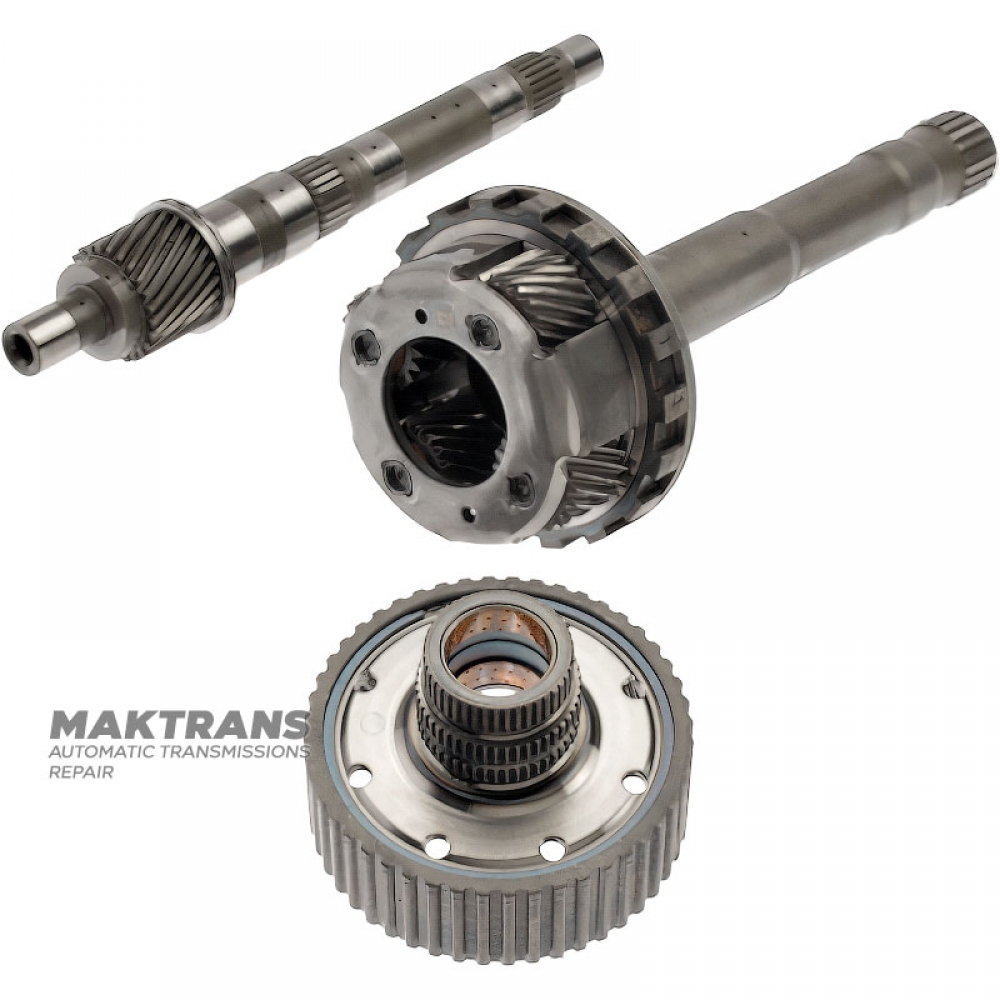

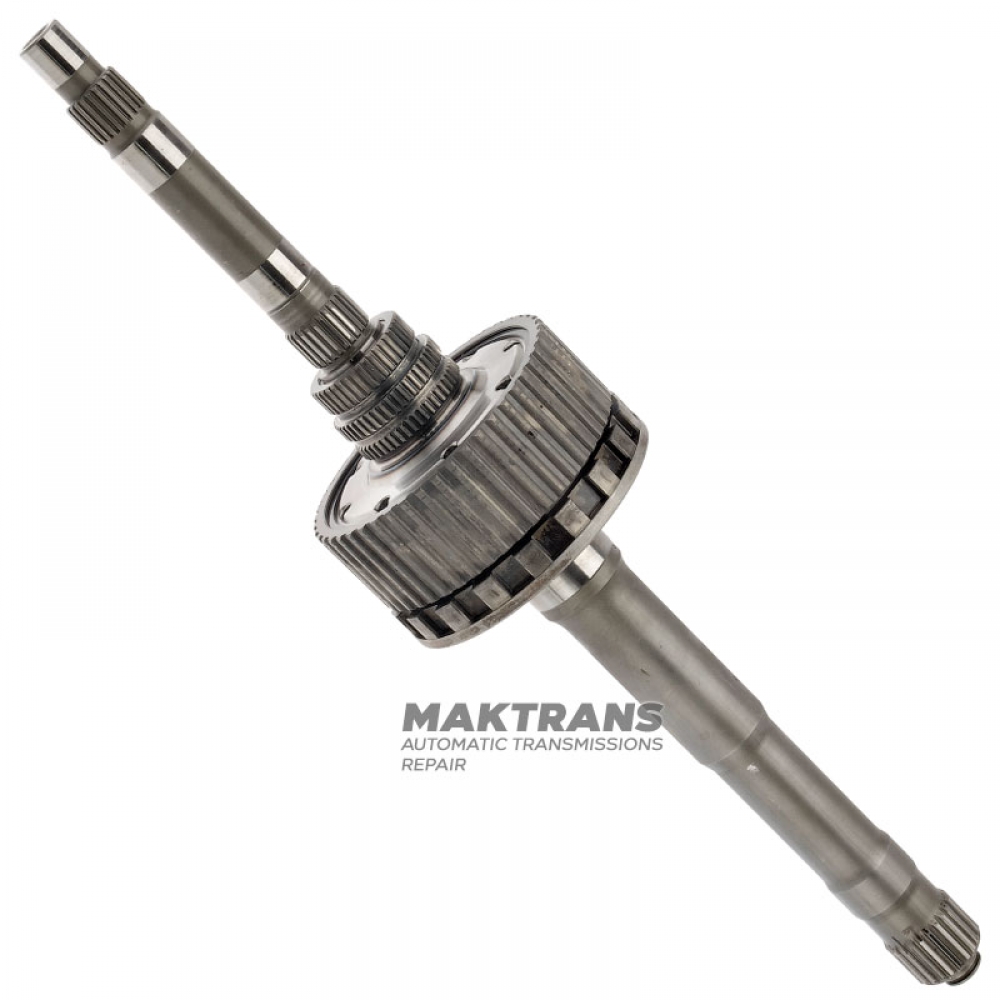

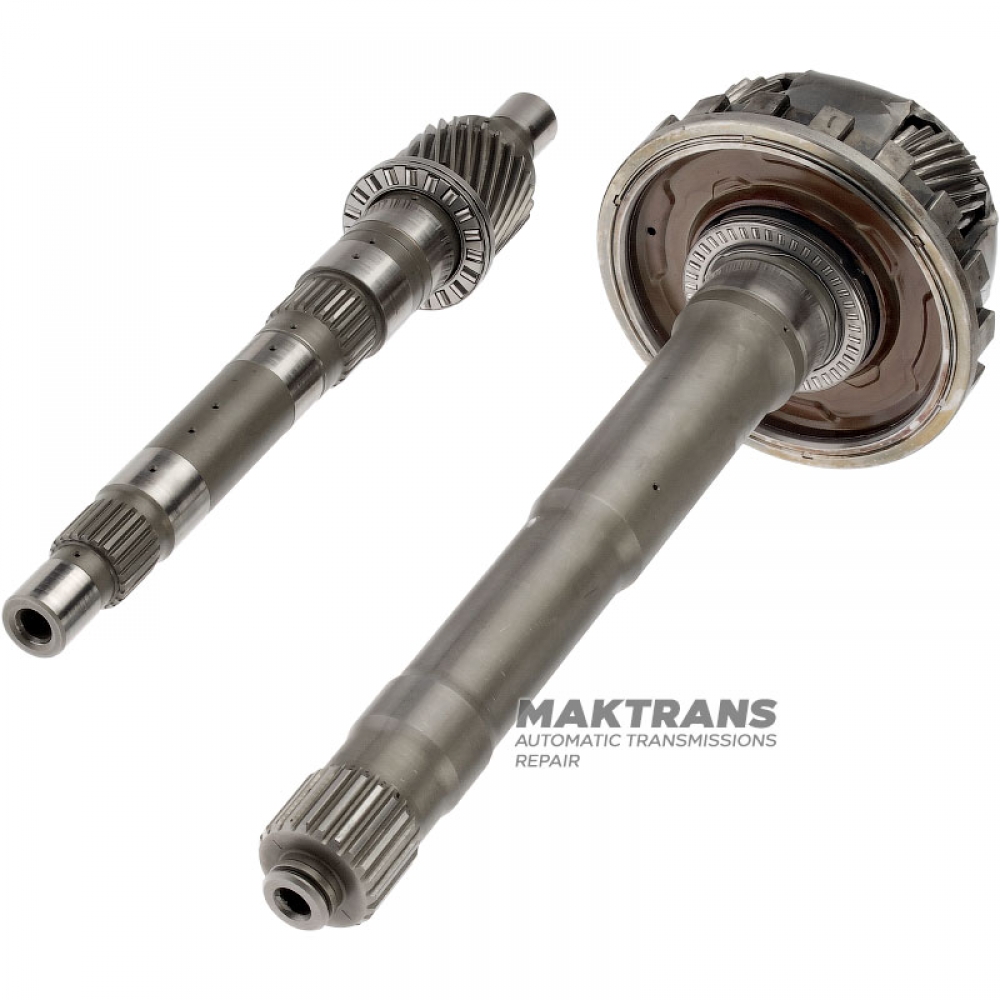

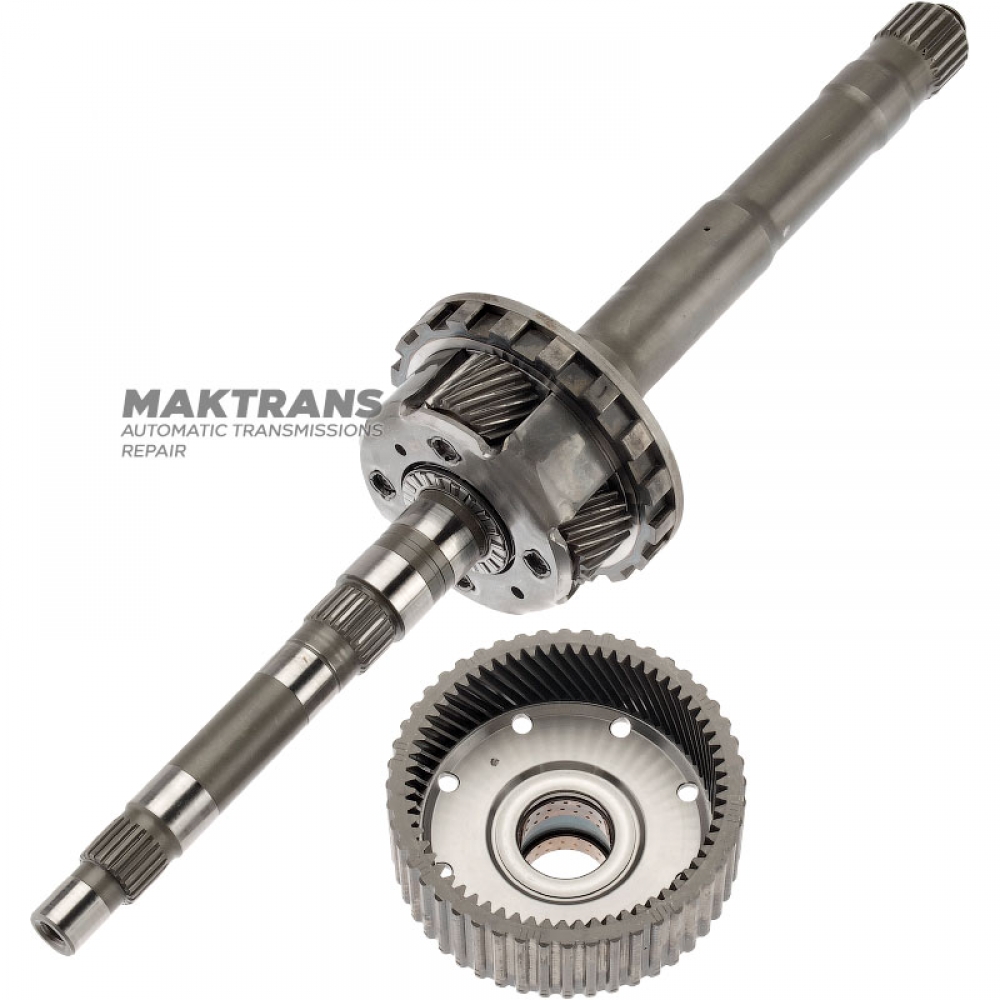

Output shaft TOYOTA / LEXUS A760H (4WD) LEXUS IS250, IS350 — output shaft length 271 mm, 22 splines (outer Ø 34.80 mm)

Planetary gear with output shaft:

• Overall height - 328 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 19 pcs.;
• Satellite outer diameter - 35.40 mm;
• Number of teeth on the parking gear - 18 pcs.;
• Parking gear outer diameter: 123.95 mm;

Output shaft:

• Shaft length from base - 271 mm;
• The diameter of the working part at the base of the shaft is 41.50 mm;
• Number of splines on the shaft - 22 pcs.;
  The outer diameter of the splined part is 34.80 mm;
• Length of splined part 27 mm;

Sun gear (with shaft):

• Total shaft length - 296 mm;
• Number of teeth on the sun gear - 25 pcs.;
• Sun gear outer diameter: 43.80 mm;

Number of splines on shaft:

• 23 slots - outer Ø 24.60 mm;
• 27 splines - outer Ø 29.20 mm;

Outer diameters of the working parts of the shaft:

• 20mm (sun gear side);
• 32.08 mm — x2;
• 25.95 mm — x2;
• 20 mm;

Ring gear:

• Overall height - 83.50 mm;
• Height of ring gear (without spline flange) - 41.63 mm;
• Ring gear outer diameter: 122.50 mm;
• Number of teeth on the ring gear - 63 pcs.;
• Inner diameter of bushings - 32.20 mm;

Number of splines on the neck:

• 43 slots - outer Ø 46.05 mm;
• 48 splines - outer Ø 51.25 mm;
