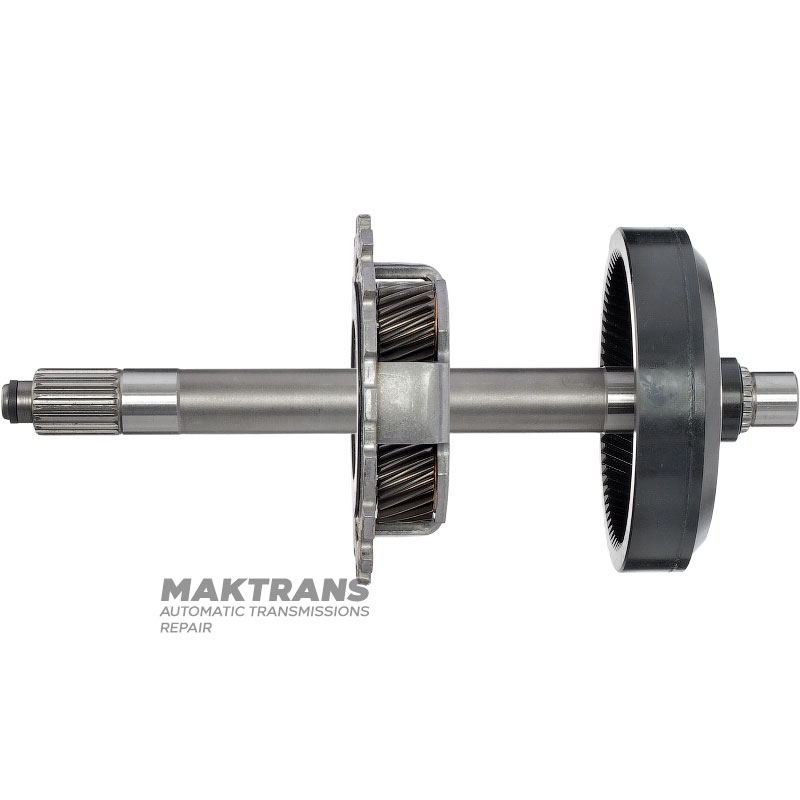

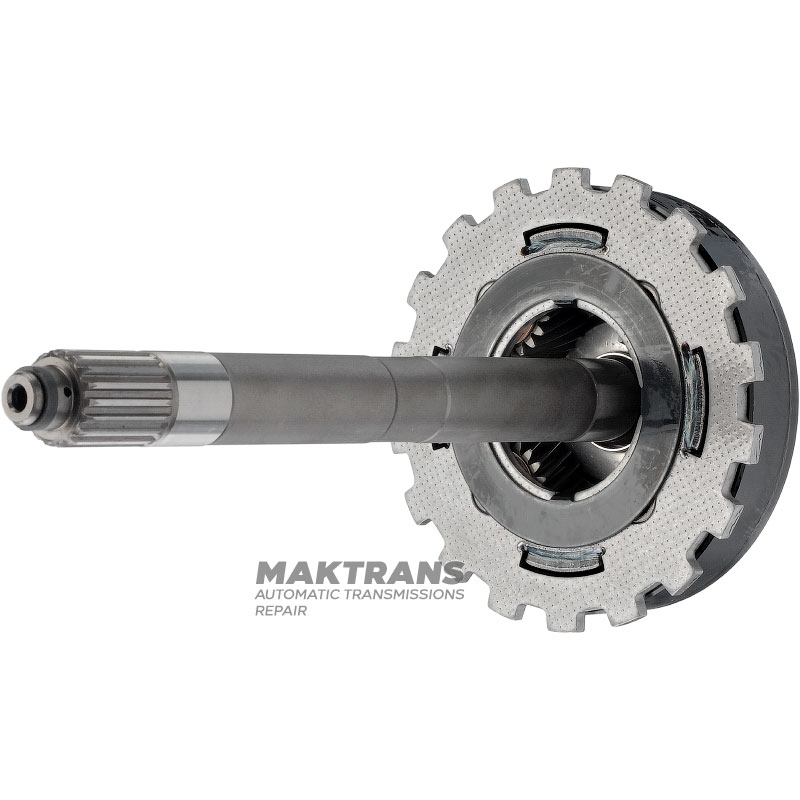

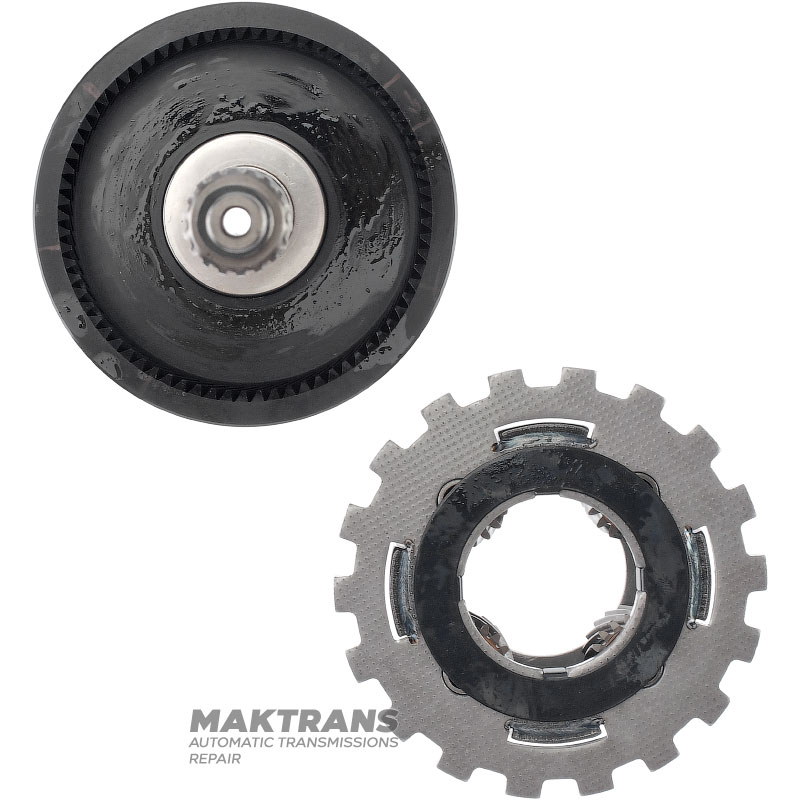

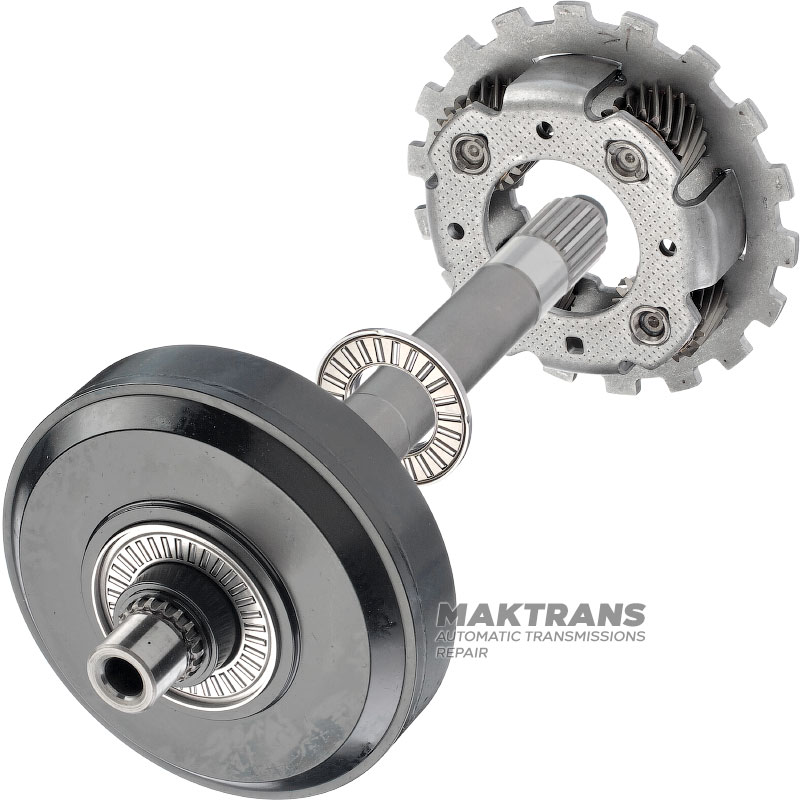

Rear planet Aisin Warner 03-70LS / 03-72LS / (4 satellites (20 teeth, outer Ø 28.05 mm), ring gear 73 teeth)

Shaft:

• Total height - 251 mm;

Number of splines on the shaft:

• 18 splines - ext. Ø 21.35 mm;

The outer diameter of the working parts of the shaft is 21.45 mm;

Ring gear:

• Number of teeth - 73 pcs.;

Outer diameter - 109.50 mm;

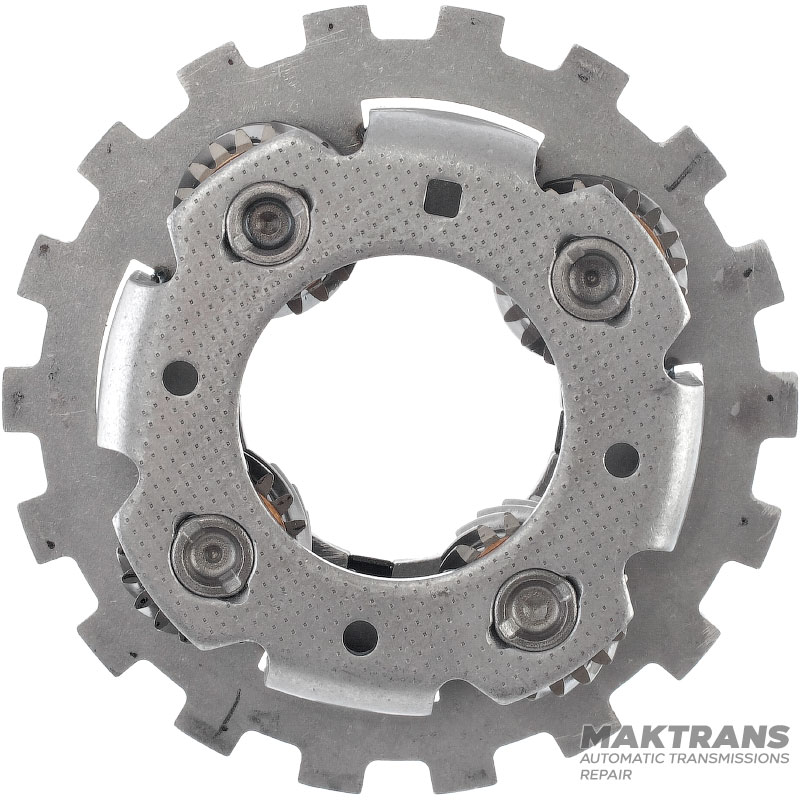

Planet:

• Overall height - 27.20 mm;
• Inner diameter of the case - 46.65 mm;
• The number of teeth on the ring gear is 18 pcs.;
• Outer diameter along the gear ring - 118 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 20 pcs.;
• The outer diameter of the satellite is 28.05 mm;
