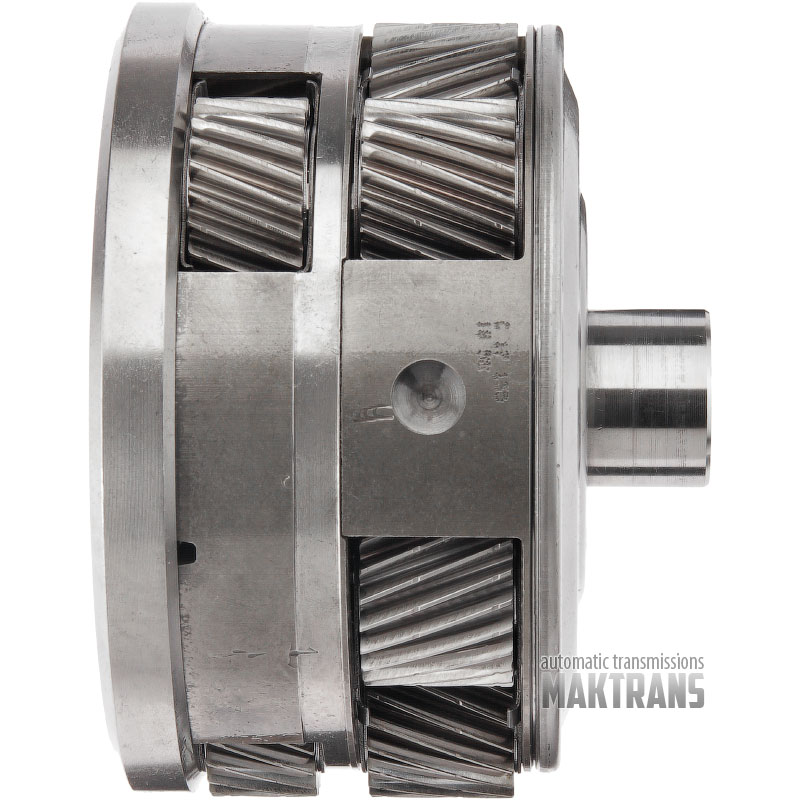

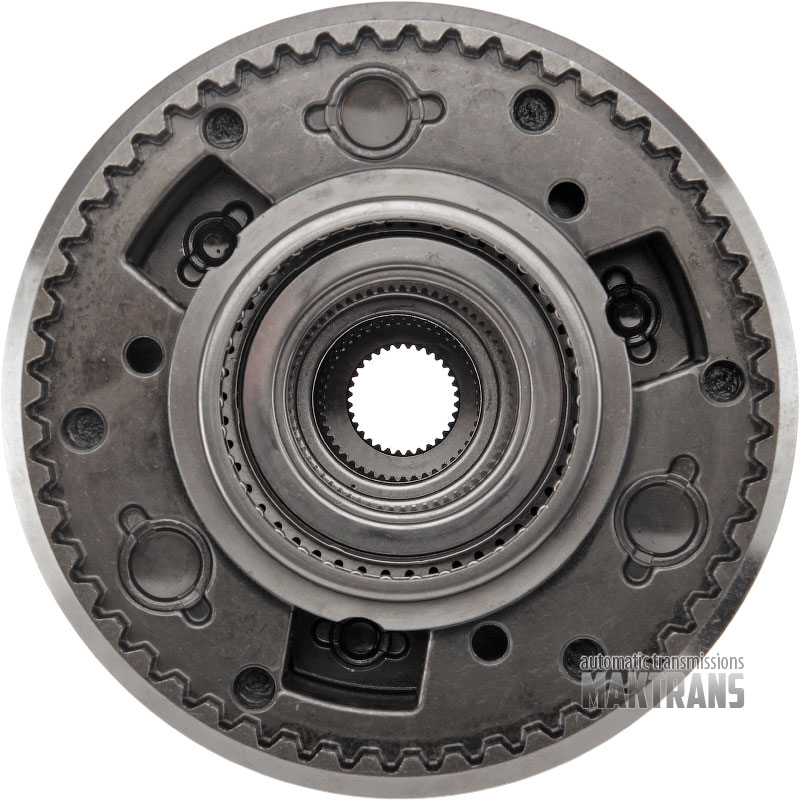

Rear planet GM 6L80 6L90 24224747

• Total height - 118 mm;
• The number of splines on the inner rear side is 32 pcs.;
• The outer diameter of the neck on the back is 36.30 mm;
• Neck height - 26 mm;
• Outer diameter of the case (edge on the front) - 160.60 mm;

Thrust roller bearing (mounted on the inner front of the planetary gear):

• Width - 8.55 mm;
• Outer diameter - 81.20 mm;
• Bearing marking - NTN 24224853;

• Number of teeth - 24 pcs.;
• Number of satellites - 3 pcs.;
• The outer diameter of the satellite is 44.90 mm;
• Front sun gear:
• Number of teeth - 46 pcs.;
• Outer diameter - 79.20 mm;
• Gear width - 24.50 mm;
• The number of plines on the internal side 62 pcs.;

Internal planetary gears (sun gear pinions):

• Number of satellites - 3 pcs.;
• Number of teeth - 26 pcs.;

Rear sun gear:

• Number of teeth - 35 pcs.;
• Outer diameter - 63.35 mm;
• Gear width - 32.30 mm;
• The number of splines on the inside is 46 pcs.;

External satellites (ring gear pinions):

• Number of teeth - 24 pcs.;
• Number of satellites - 3 pcs.;
