Rear planetary gear, output shaft 2WD AB60E, AB60F - 4 satellites (20 teeth), output shaft length 238 mm (spline length 143 mm)

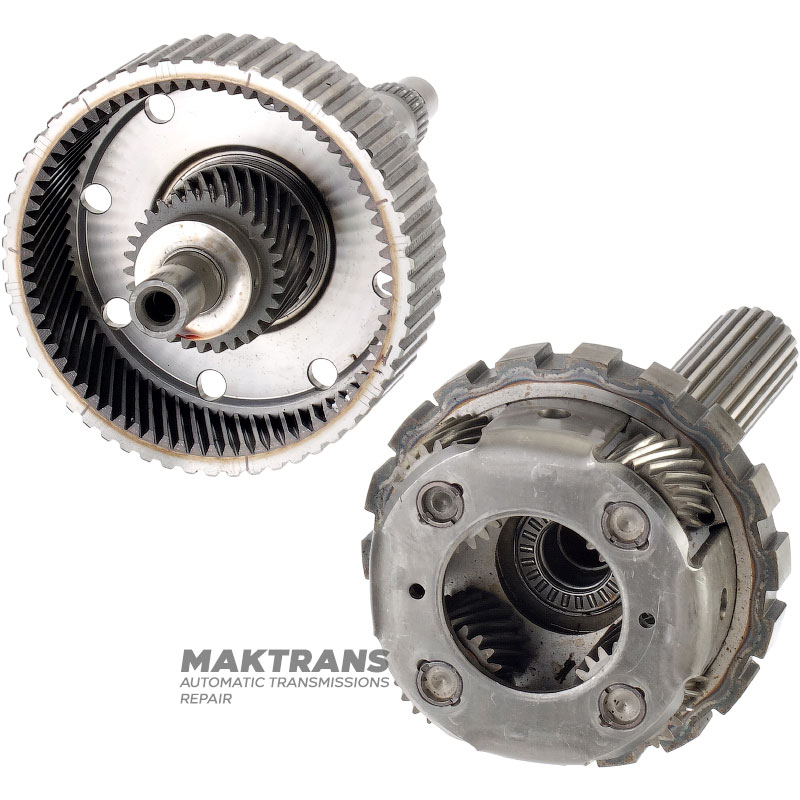

Planetary gear with output shaft:

• Overall height - 299 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 20 pcs.;
• Satellite outer diameter - 38.35 mm;
• Number of teeth on the parking gear - 18 pcs.;
• Parking gear outer diameter: 143.95 mm;

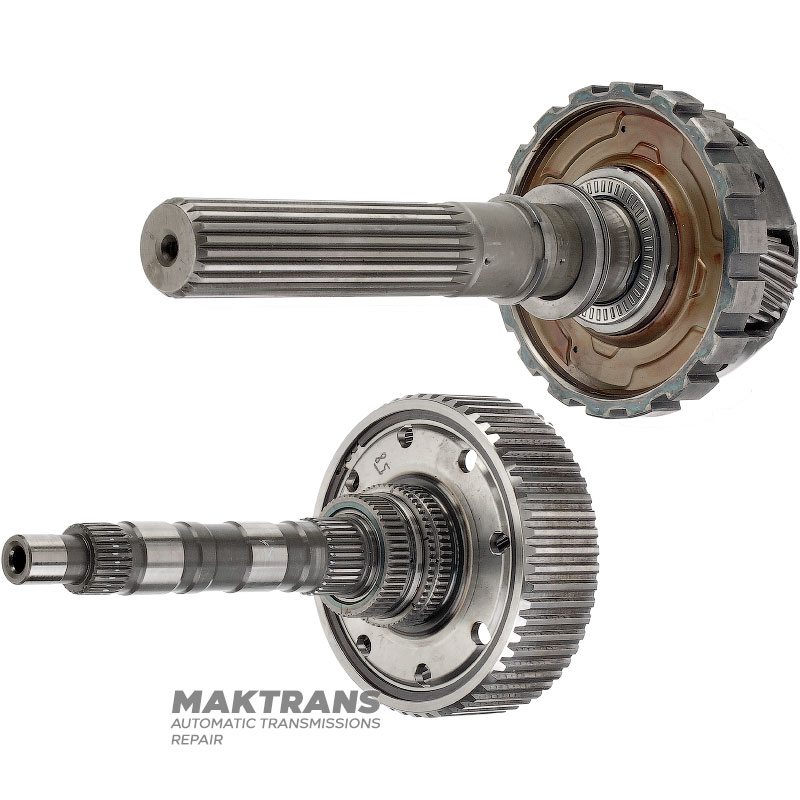

Output shaft:

• Shaft length from base - 238 mm;
• The diameter of the working part at the base of the shaft is 41.50 mm;
• Number of splines on the shaft - 22 pcs.;
• The outer diameter of the splined part is 38 mm;
• Length of splined part - 143 mm ;

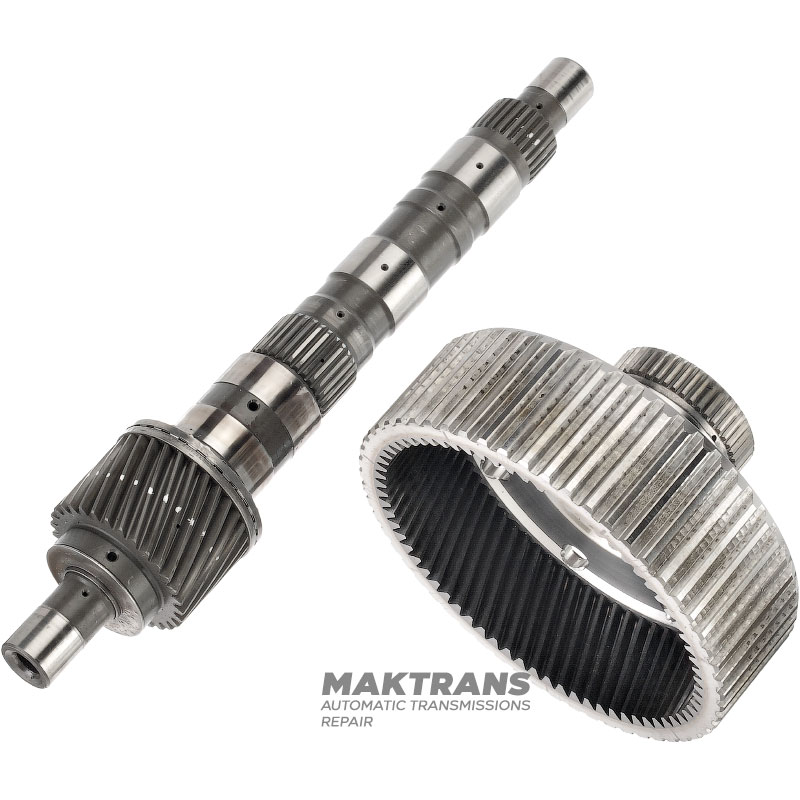

Sun gear (with shaft):

• Total shaft length - 305 mm;
• Number of teeth on the sun gear - 30 pcs.;
• Sun gear outer diameter: 55.60 mm;

Number of splines on shaft:

• 27 splines - outer Ø 29.10 mm;
• 31 splines - outer Ø 33.45 mm;

Outer diameters of the working parts of the shaft:

• 20mm (sun gear side);
• 36.45 mm — x2;
• 30.15 mm — x2;
• 20 mm;

Ring gear:

• Overall height - 83.50 mm;
• Ring gear width (excluding spline flange) - 44.85 mm;
• Ring gear outer diameter: 142.50 mm;
• Number of teeth on the ring gear - 70 pcs.;
• Inner diameter of bearings - 36.65 mm;
• Needle bearing marking - DB-78340;

Number of splines on the neck:

• 49 slots - outer Ø 53.15 mm;
• 58 splines - outer Ø 62.45 mm;

• 357600W010, 3576060130, 357130C020, 3571360070
• Lexus GX470 (V8 4.6L), LX570 (V8 5.7L)
• Toyota Landcruiser (5.7L), Sequoia (5.7L), Tundra (4.6L, 5.7L)
