Main Specifications
Condition (used, new):
NEW
Type:
overhaul kit
If you order more than 22 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 22 pcs. |
![]() ![]() |
| Ukraine | 148 pcs. |
![]() ![]() |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (8)

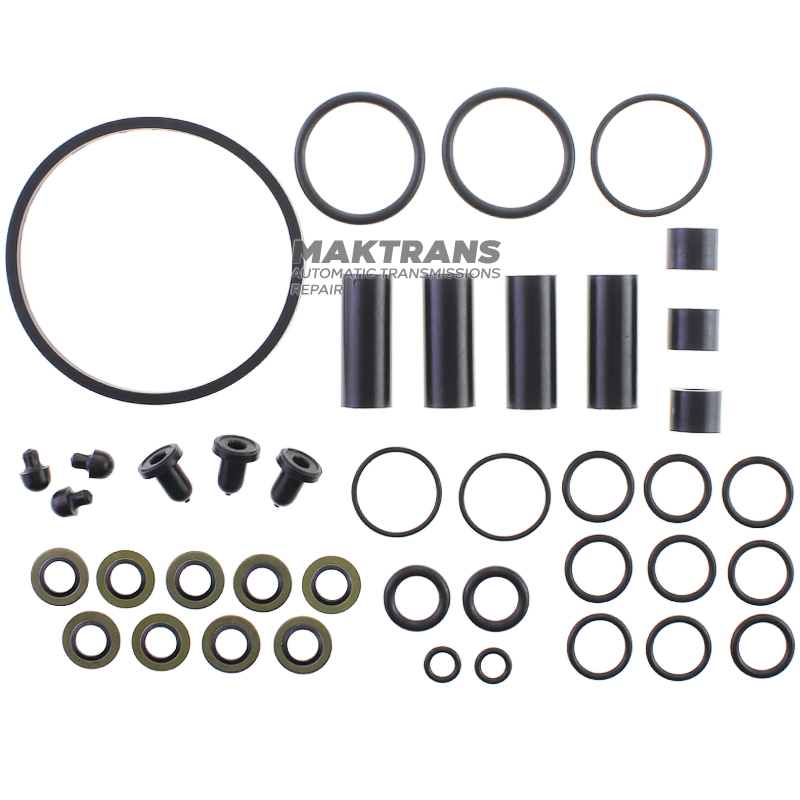

Gasket kit Audi VW AWD 5HP19FLA A-OHK-5HP19FLA
Gaskets

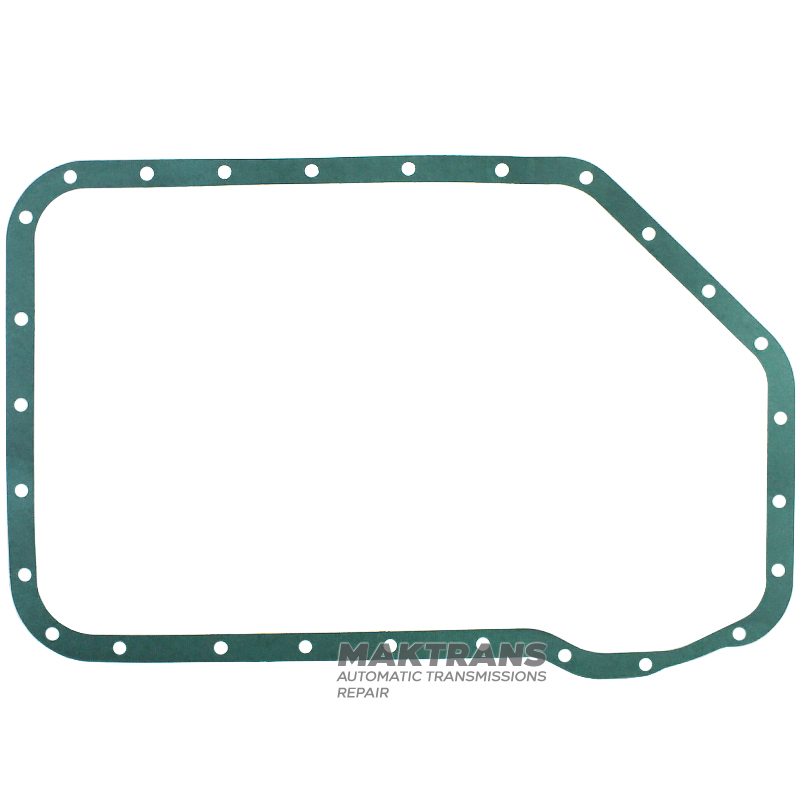

- Paper oil pan gasket 27 bolts ZF 5HP19FLA 95-up 1056303031 01V321371 1 pc.

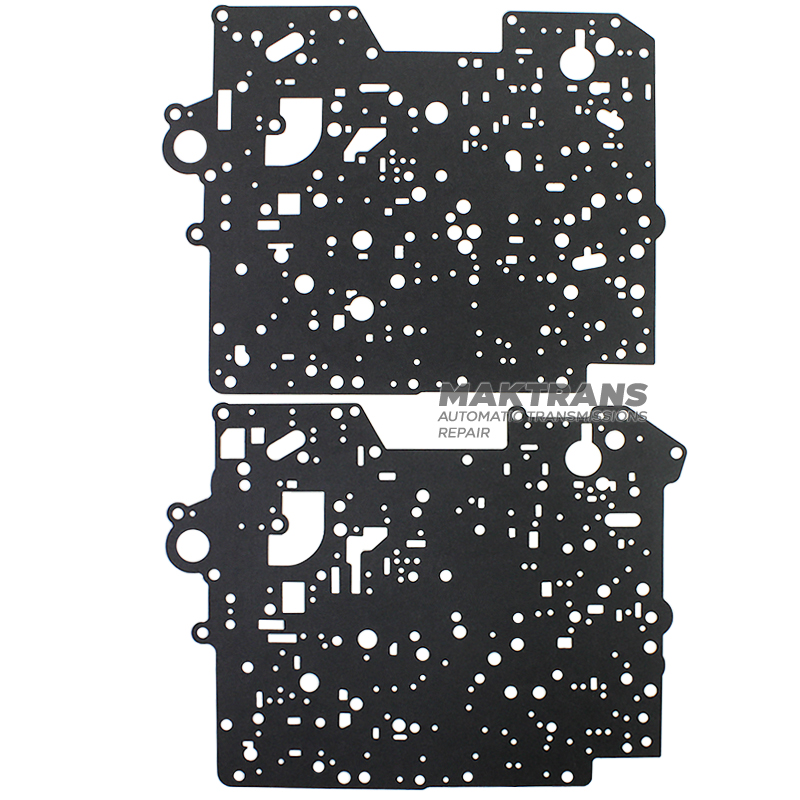

- Main ZF 5HP19FL 95-04 Old Style Paper Valve Body Gasket 1060327069 1 pc.
- New model hydraulic unit paper gasket with yellow solenoid regulator MAIN automatic transmission ZF 5HP19FLA 95-04 1060327090 1 pc.

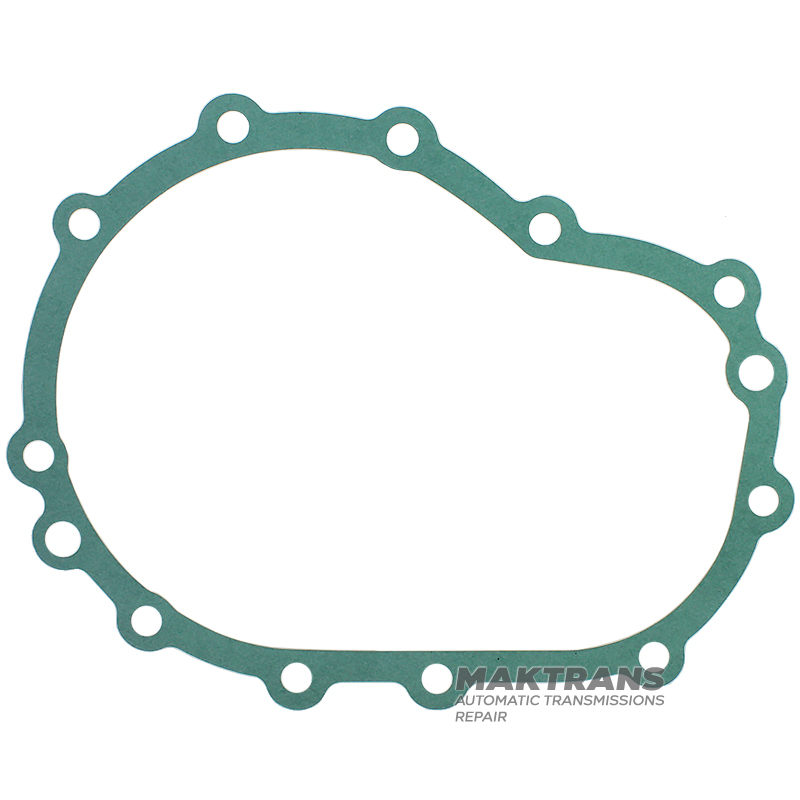

- Transfer case paper gasket ZF 5HP19FLA rear cover ZF 5HP24A 97-up 13 holes 1058336021 1pc

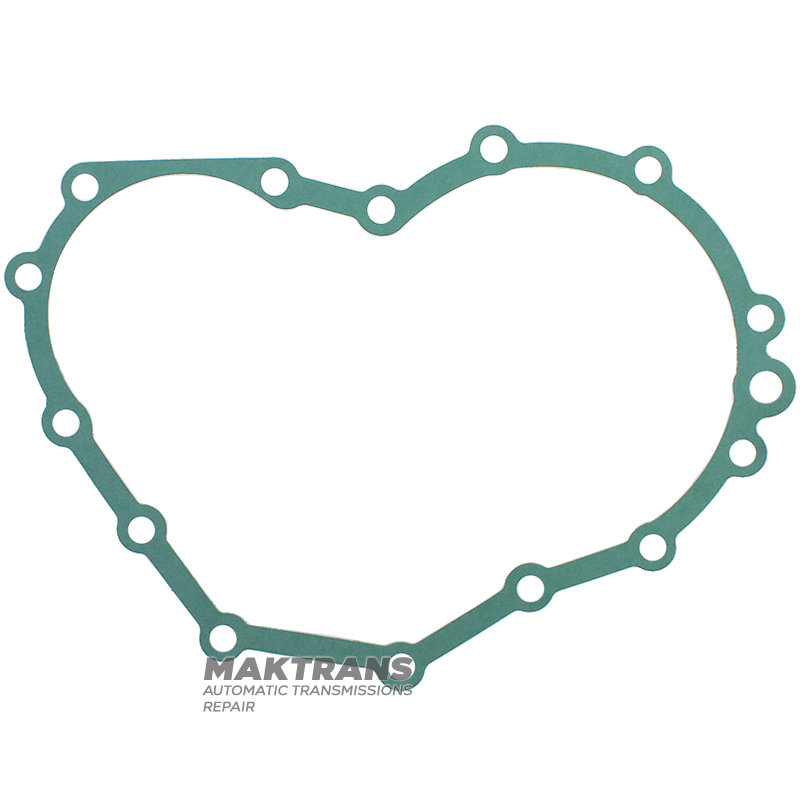

- Paper gasket for the rear cover, 15 bolts, ZF 5HP19FLA 97-up, 1056337013, 01V321381, 1 piece
Seals

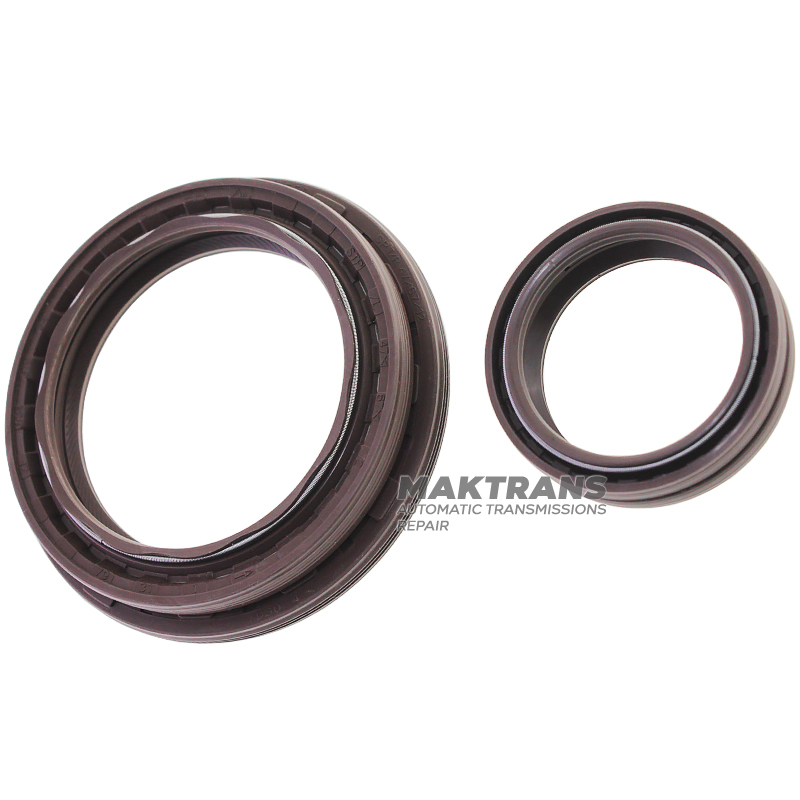

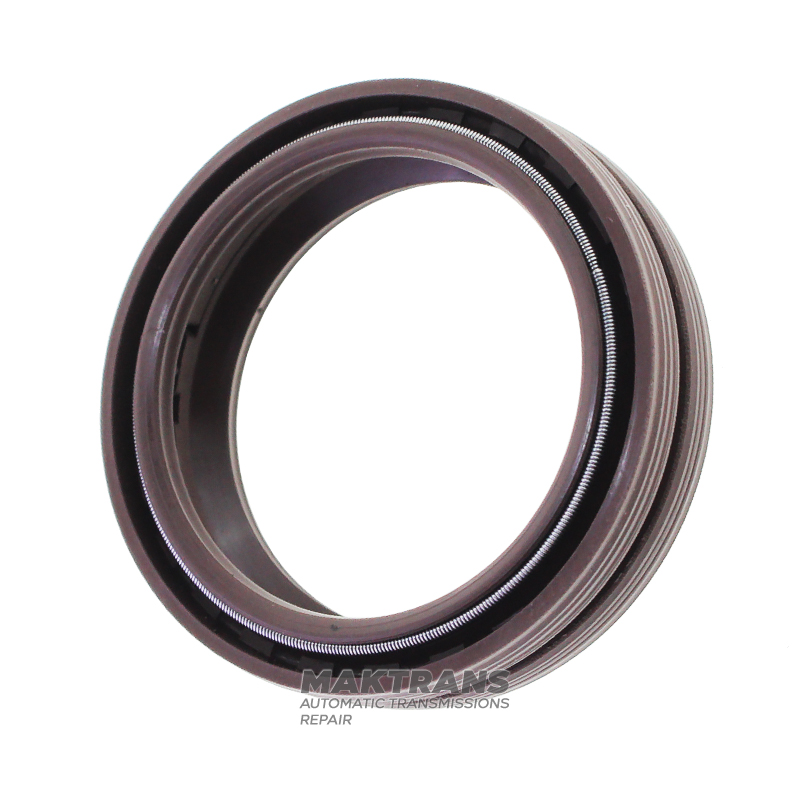

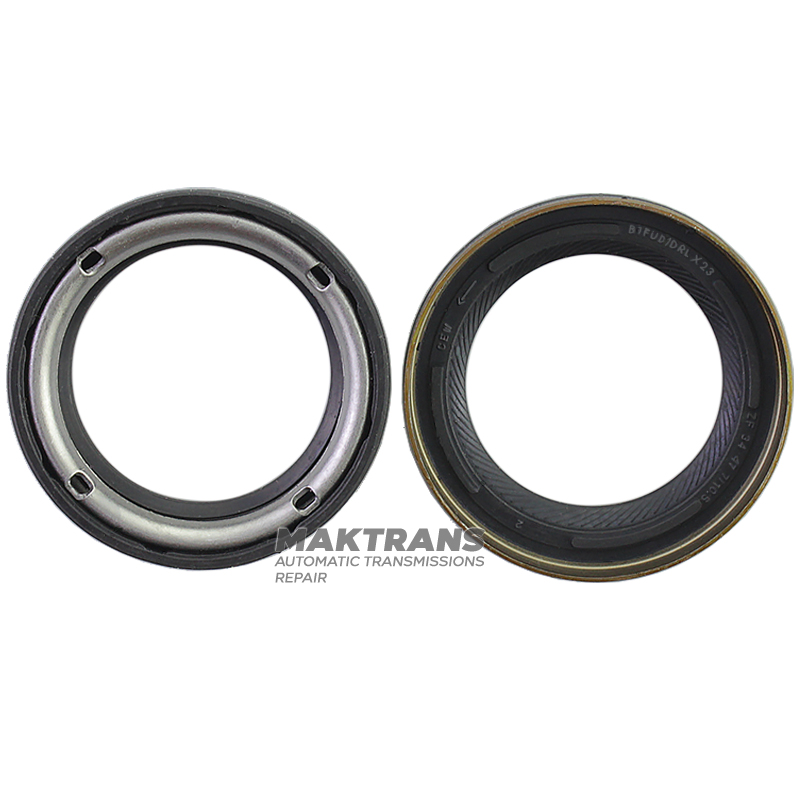

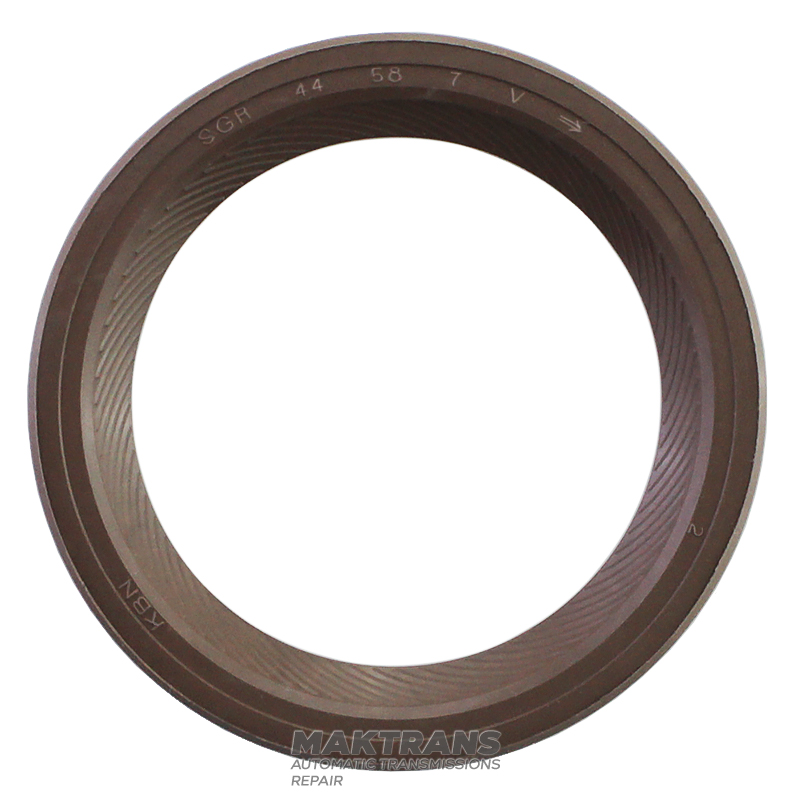

- Automatic transmission pump seal ZF 4HP20 ZF 5HP19 5HP19FLA ZF 4HP18FL, ZF 4HP18FLA, ZF 4HP18Q 97-up O-PPS-XHPXX-01 24201423382 44x58x7 1 piece

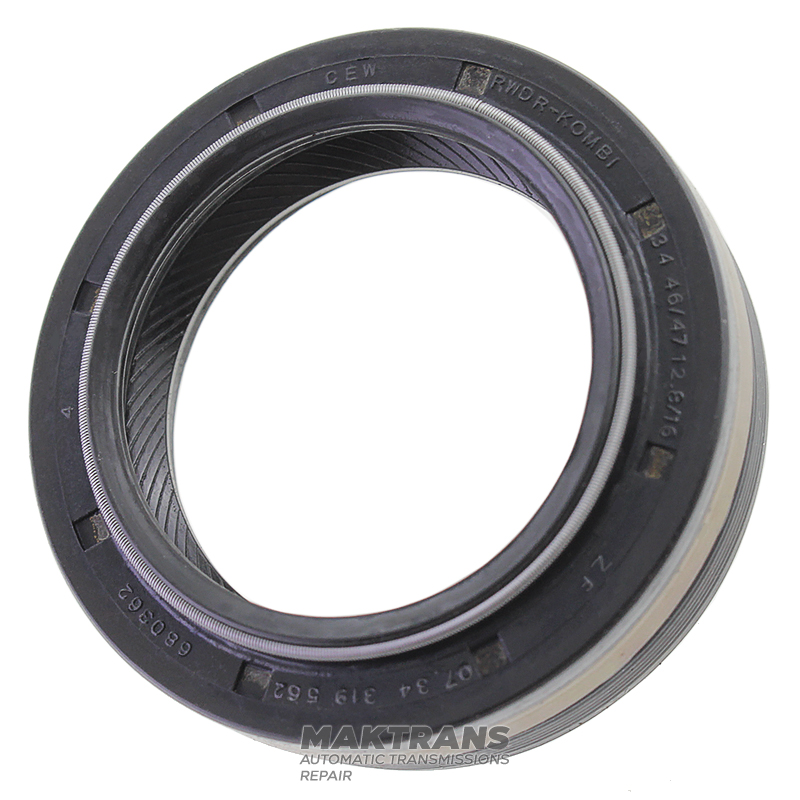

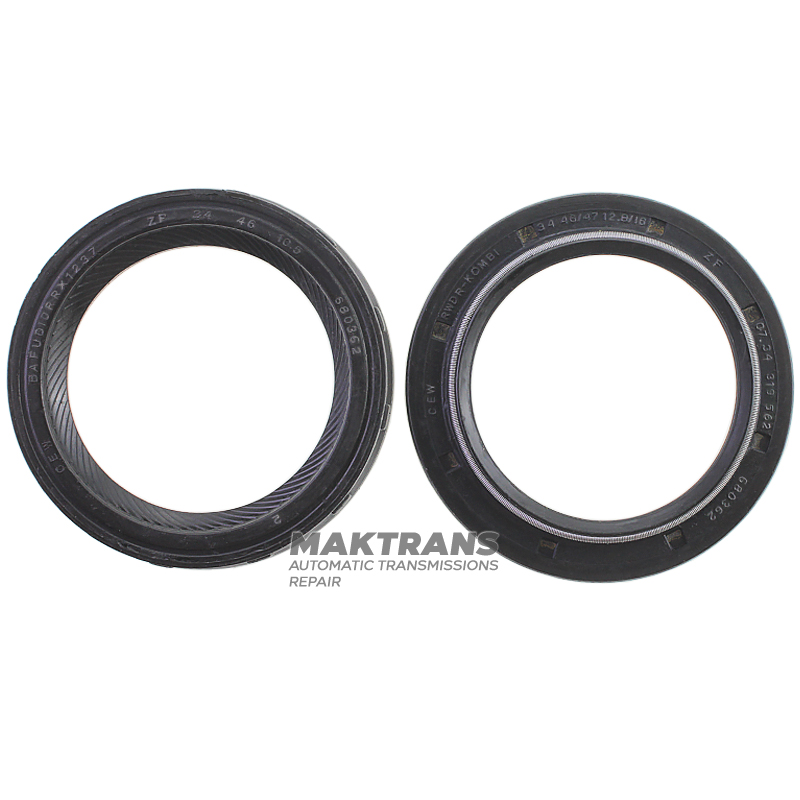

- Left differential oil seal ZF 5HP19FLA 95-04 0750111399 01V409529 0734319562 34x46/47x12.8/15 1pc

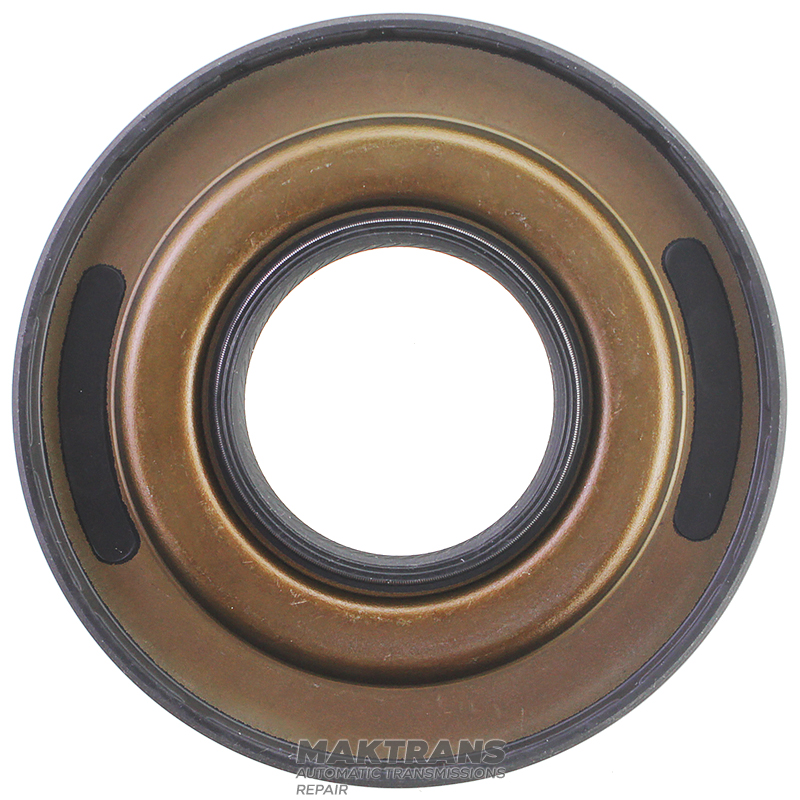

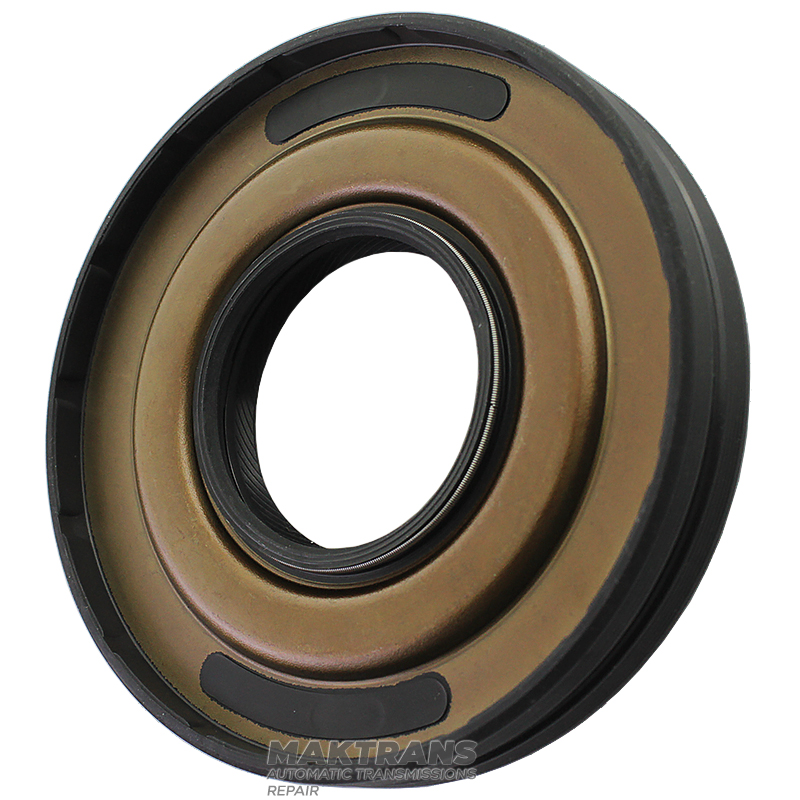

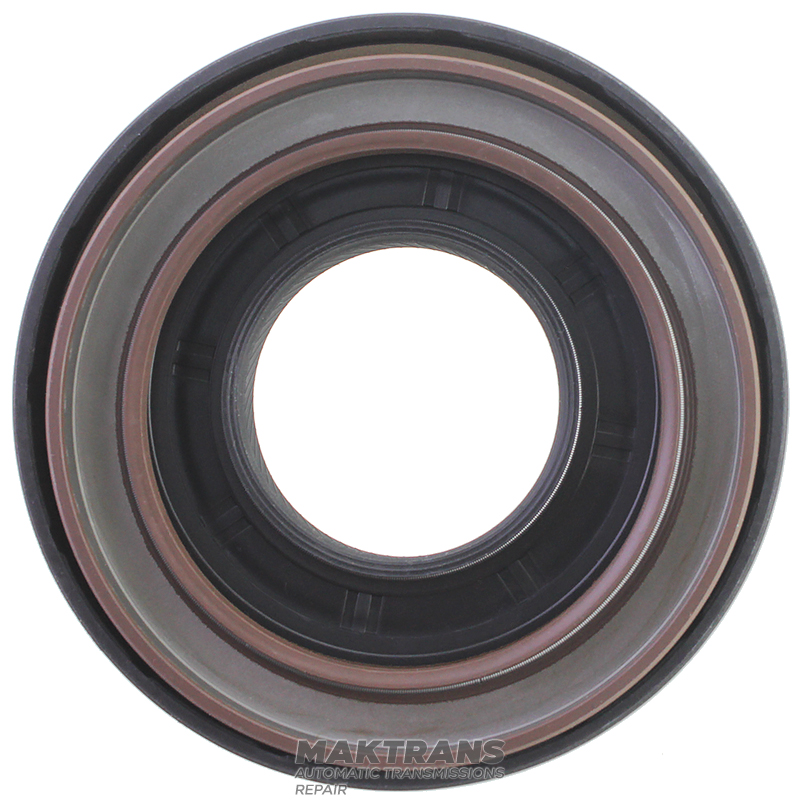

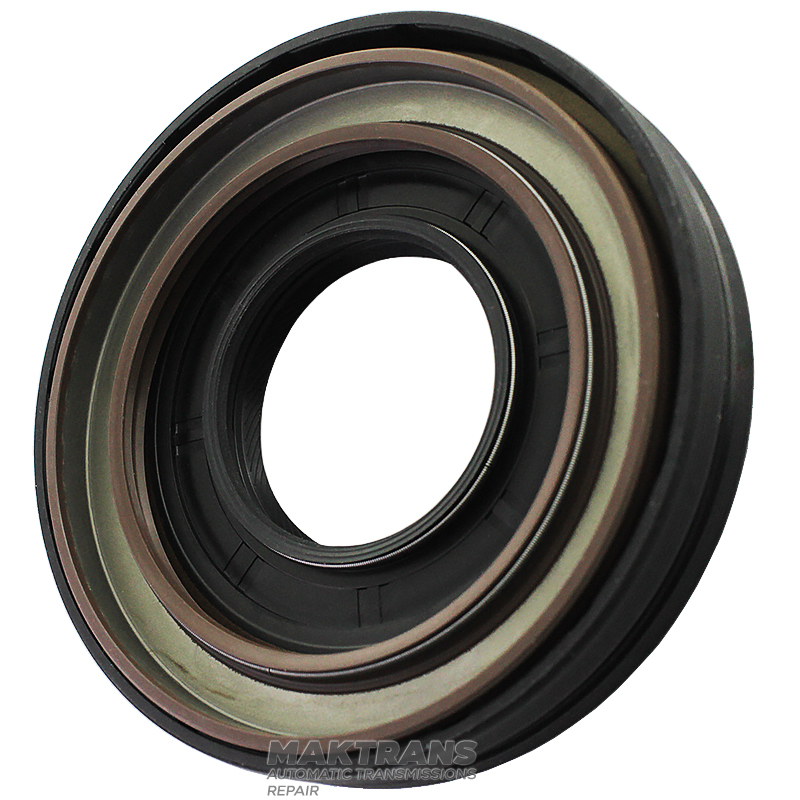

- Differential shaft seal 5HP19FLA ZF 5HP24A 6HP19A 97-up 0734319529 01L409399A 37x88x15 1pc

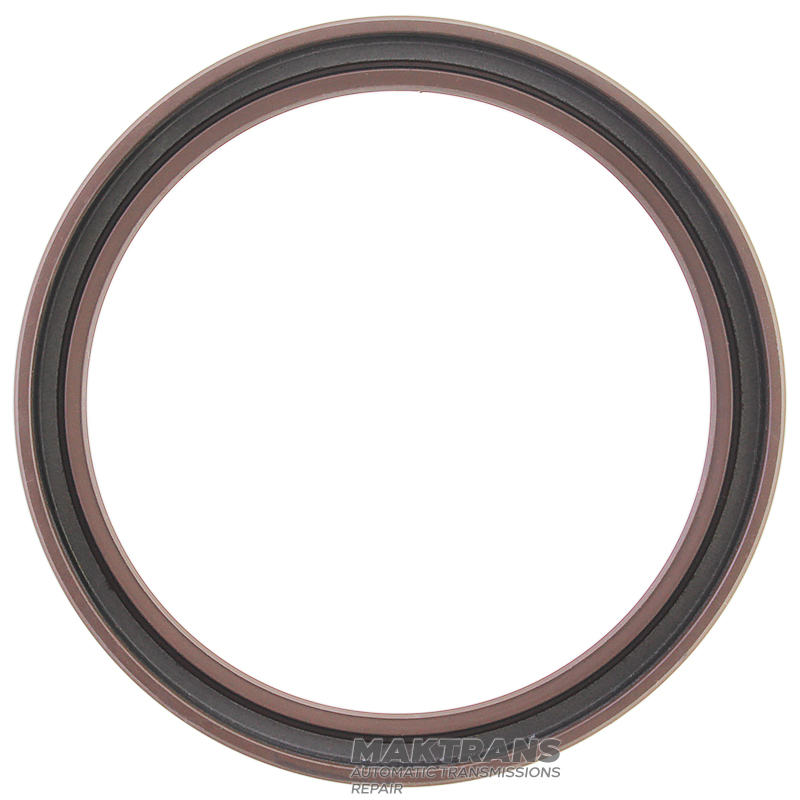

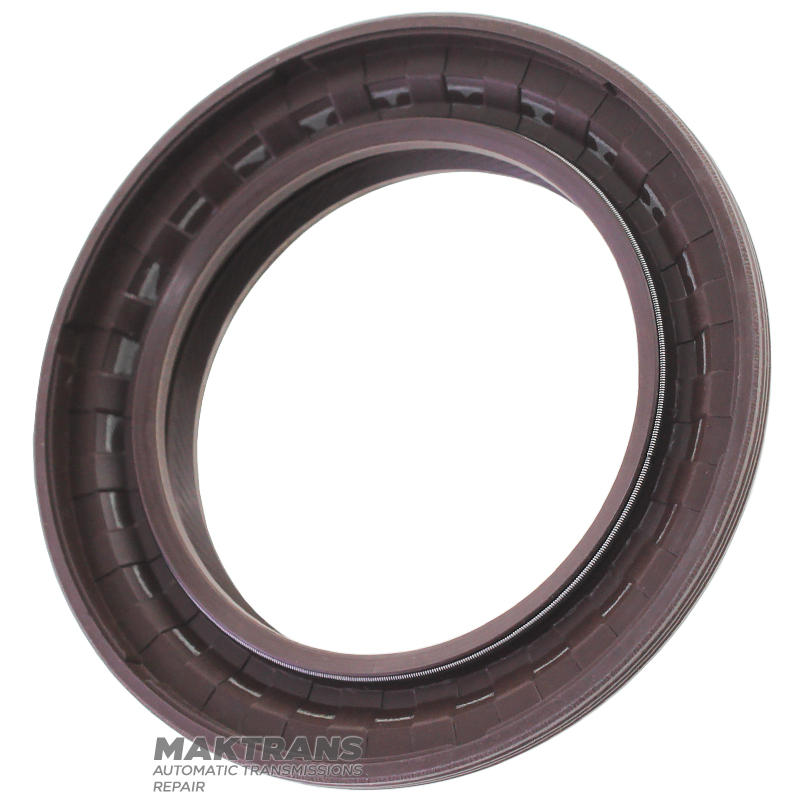

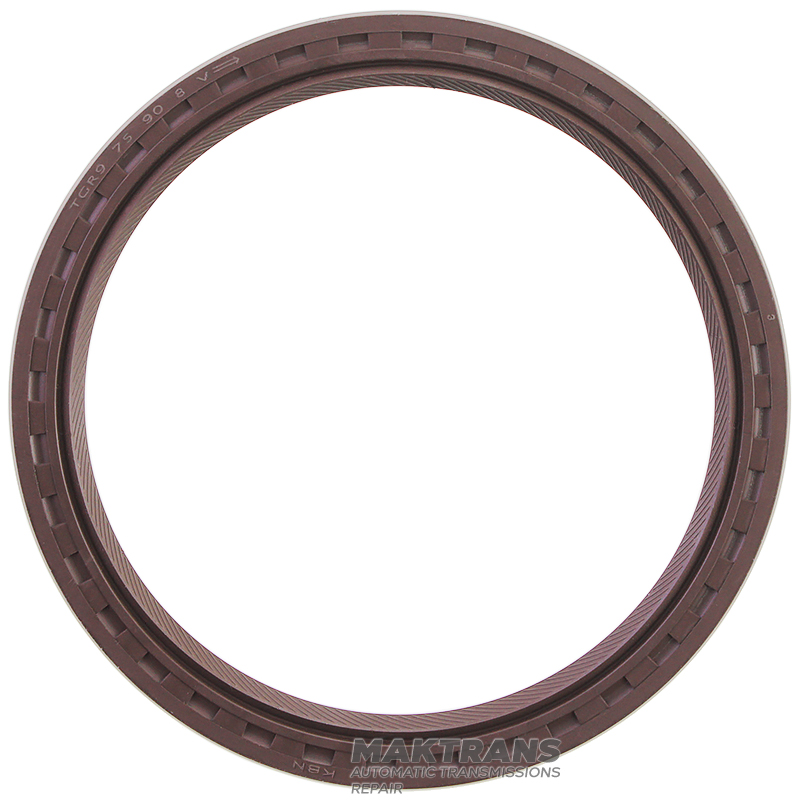

- Right axle shaft seal ZF 5HP19FLA ZF 5HP24A 97-up 0734310342 01V409399 75x90x8mm 1pc

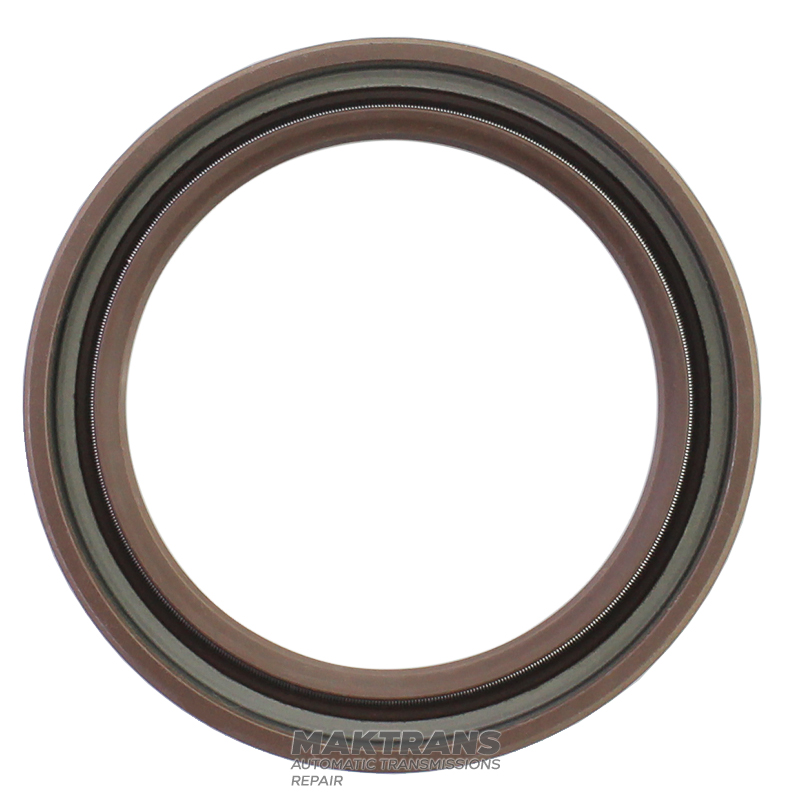

- Left axle shaft seal ZF 5HP19FLA ZF 5HP24A 97-up 0734319419 018409399A 60x80x7mm 1pc

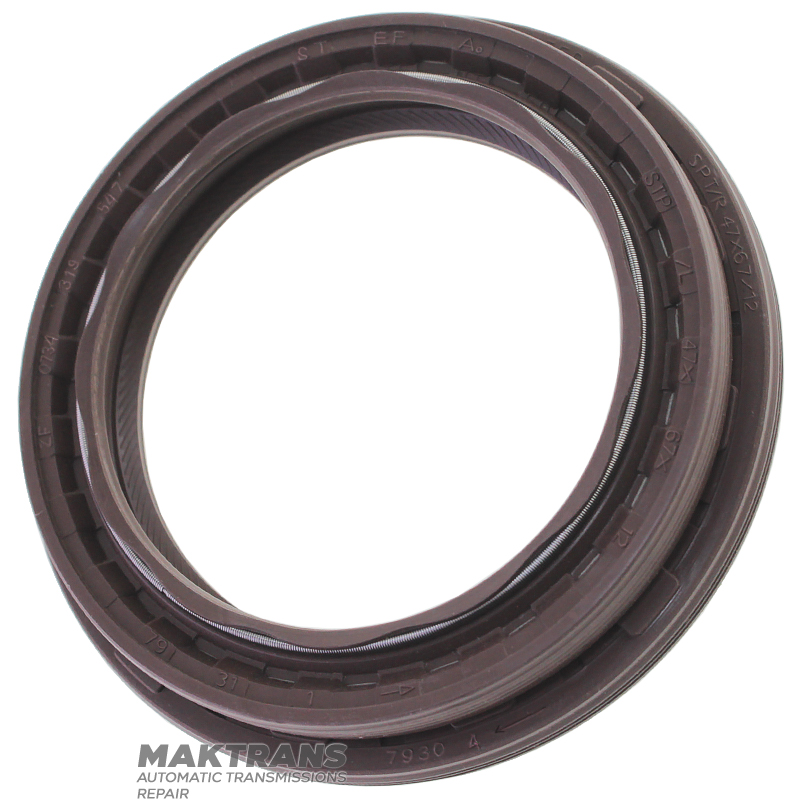

- Transfer case oil seal between the gearbox and the transfer case ZF 5HP19FLA ZF 5HP24A 0734319547 01V409400A 47x61/67x4/11/12 1pc
- Transfer case oil seal ZF 5HP19FLA ZF 5HP24 ZF 5HP24A 95-up 0734319604 01V409400B 29x38x10 1pc
- Selector oil seal ZF P19 0734319801 0750110062 01033982B 1339707 94339701803 10x18x5 1pc
Rings

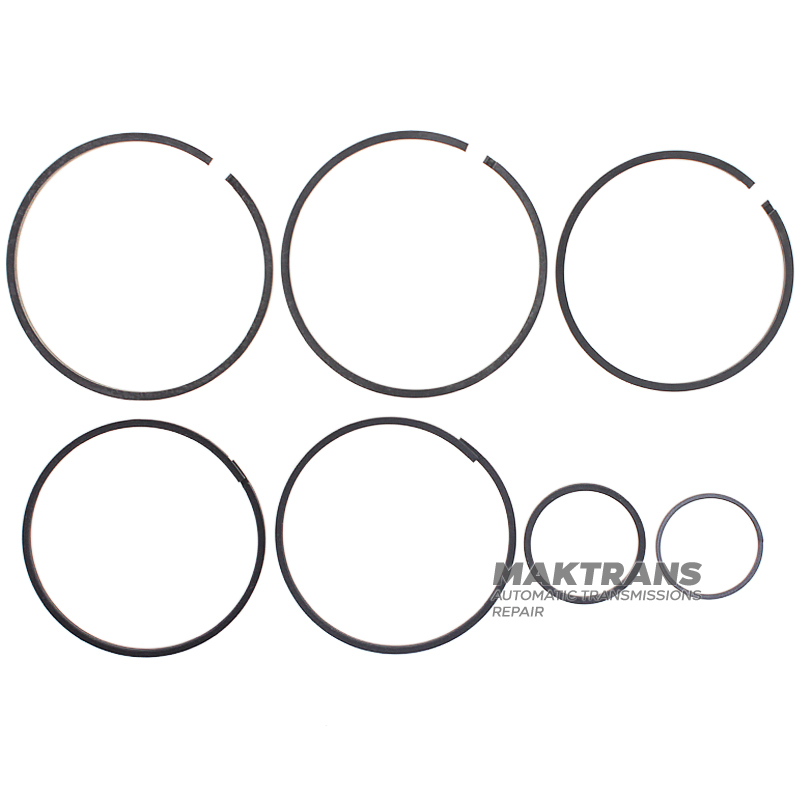

- Set of cast iron and Teflon rings ZF 5HP19, ZF 5HP19FLA 0734401158 0734401213 0734317205 0734317190 0734317256 1 set

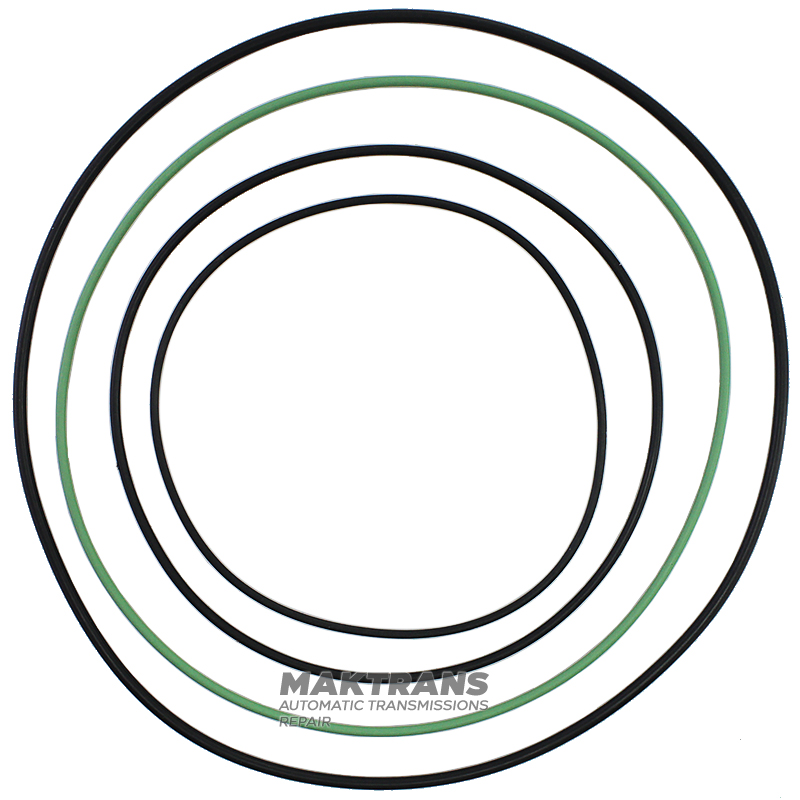

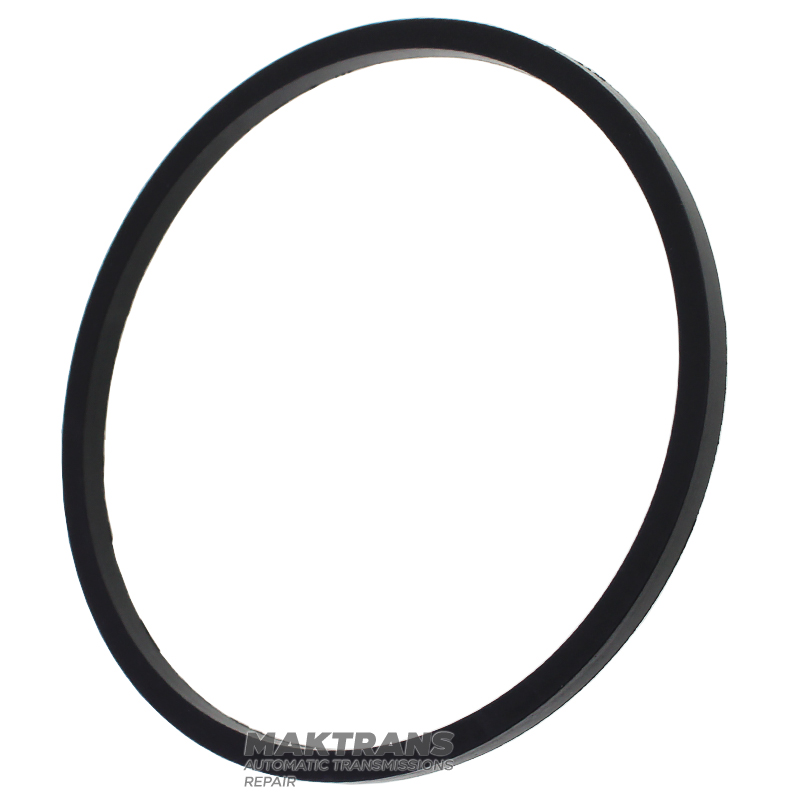

- Rubber pump ring for automatic transmission ZF 4HP18 4HP24A ZF 6HP19X ZF 6HP19A ZF 6HP28X ZF 6HP32 rear cover ring ZF 5HP18 91-up 0734313083 24 201217321 JLM10409 TYX500030 0B6409133 1 pc
- Rubber pump ring ZF 5HP19 ZF 5HP19FLA ZF 5HP24 ZF 5HP24A 97-up 0734313178 24311422806 99639706300 A-ORG-101865 1 pc
- Rubber ring for pump plate ZF 5HP19FLA 5HP24 95-up 0734313162 G-ORG-144560 1 pc.
- Differential cover ring ZF5HP19FLA ZF5HP24A 0734313155 01V409133A 1 pc
- Rubber ring for left axle shaft ZF 5HP19FLA ZF 5HP24A 95-04 0734317262 01V409133 68x72x3.4 1 pc
- Sealing ring for plug ZF 4HP20 5HP18 5HP19 5HP19FL 5HP19HL 5HP24 5HP30 6HP26 6HP32A 0501209253 27x32 mm 2 pcs

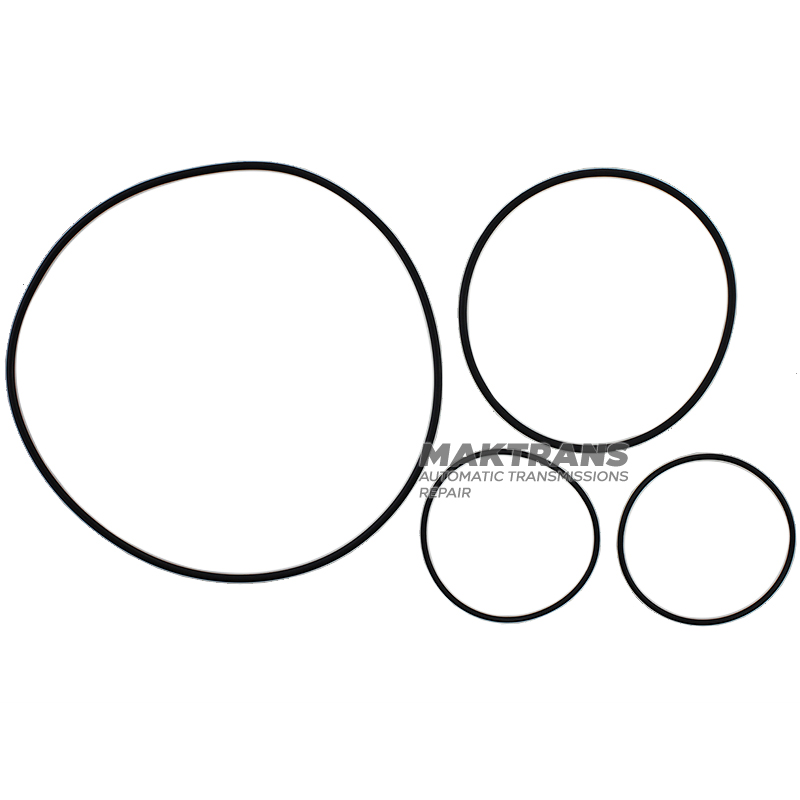

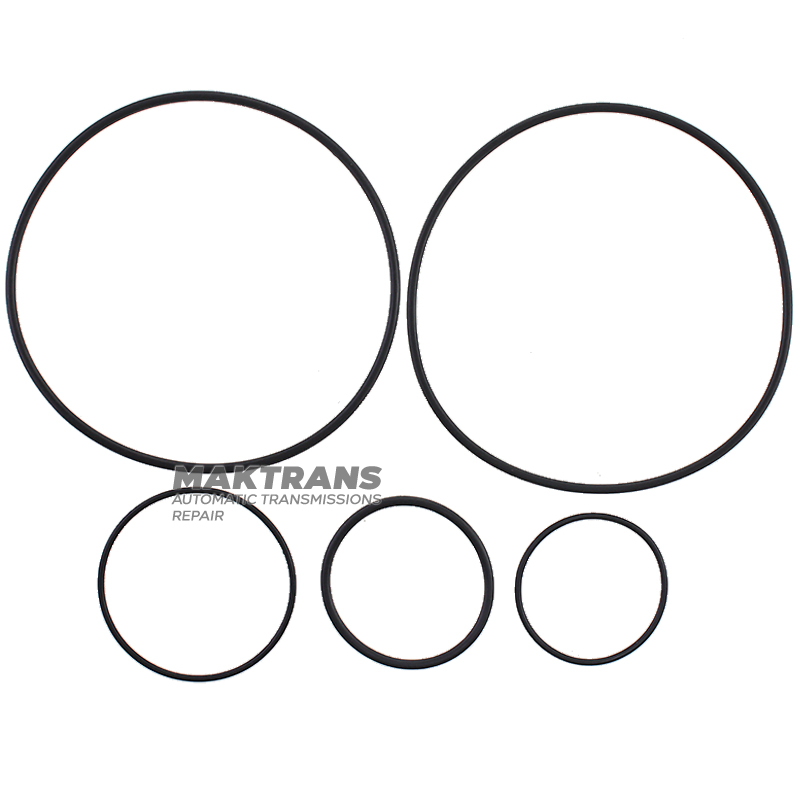

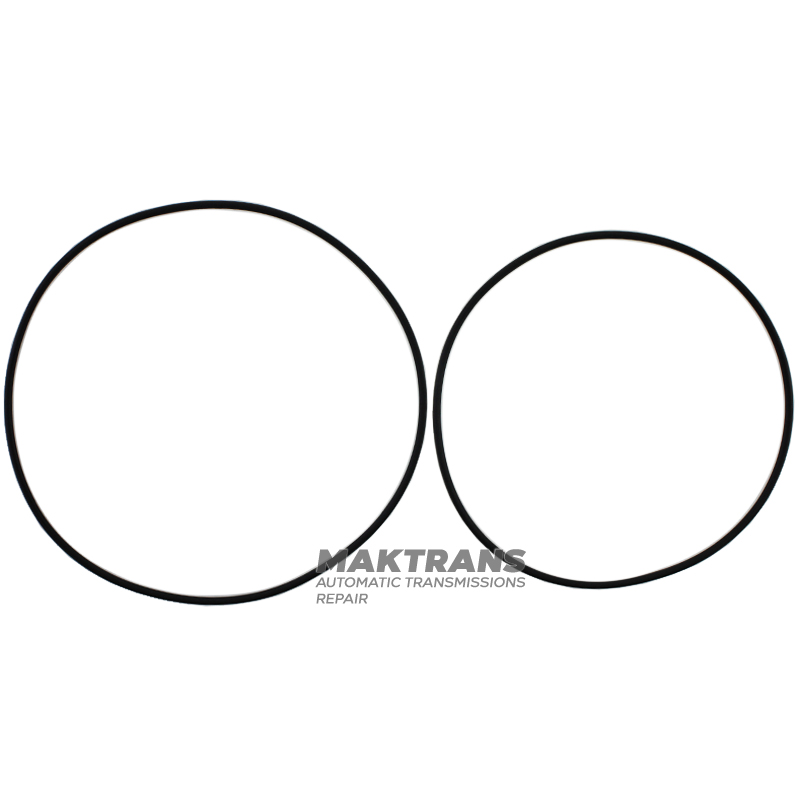

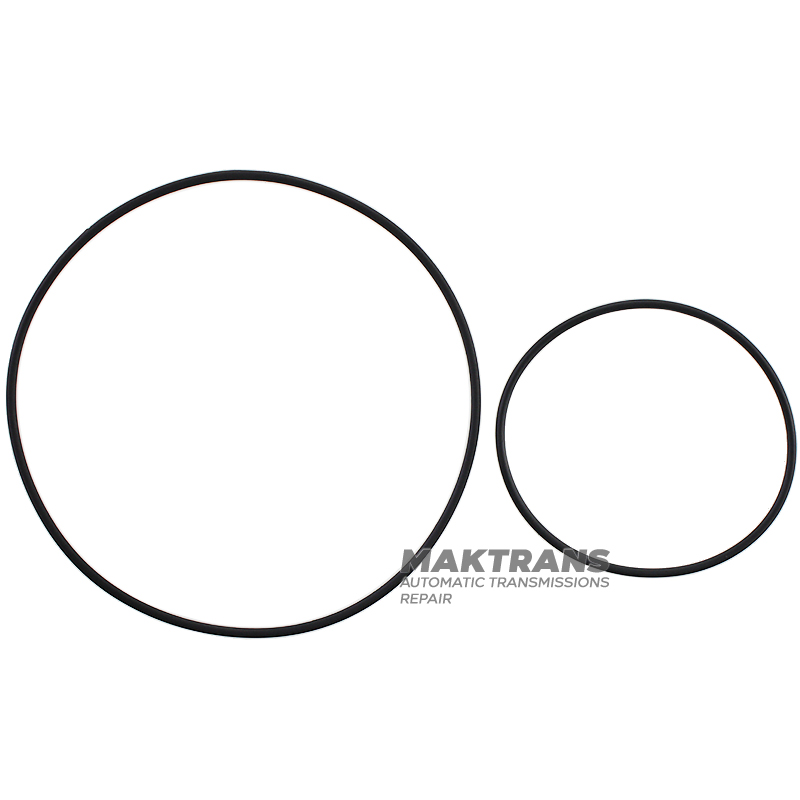

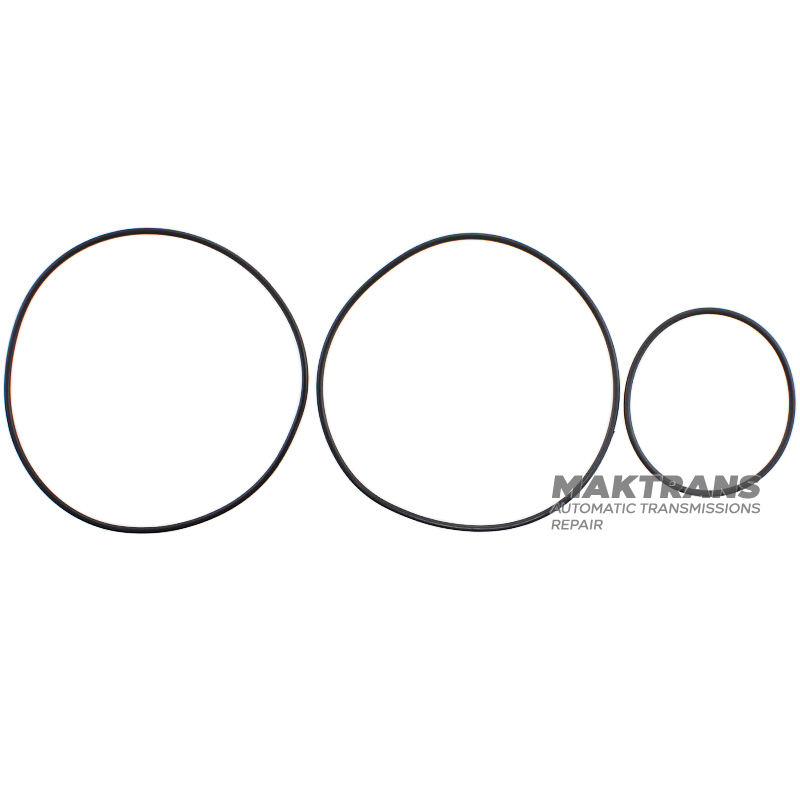

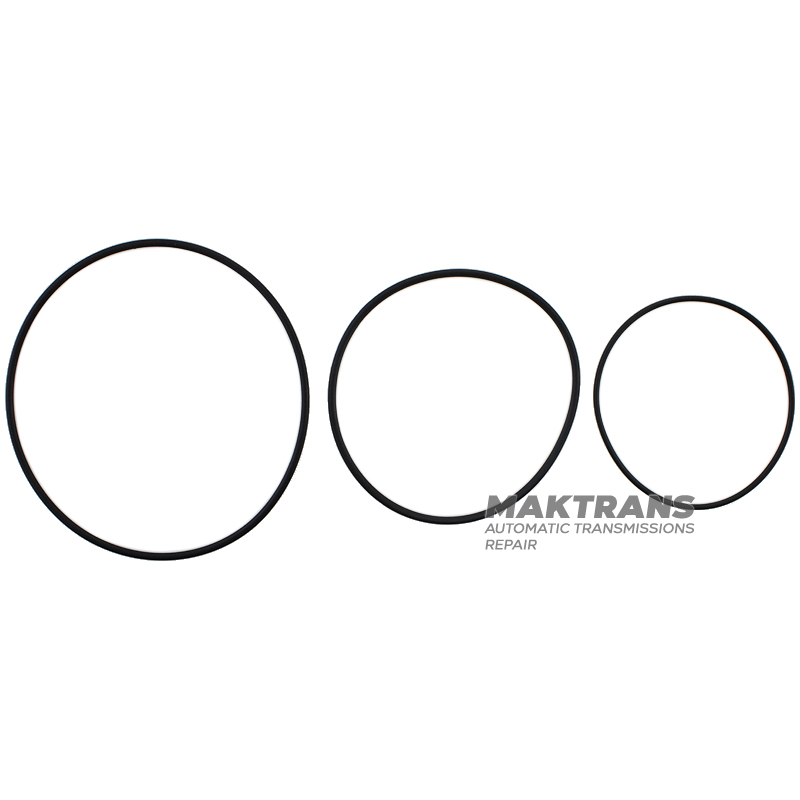

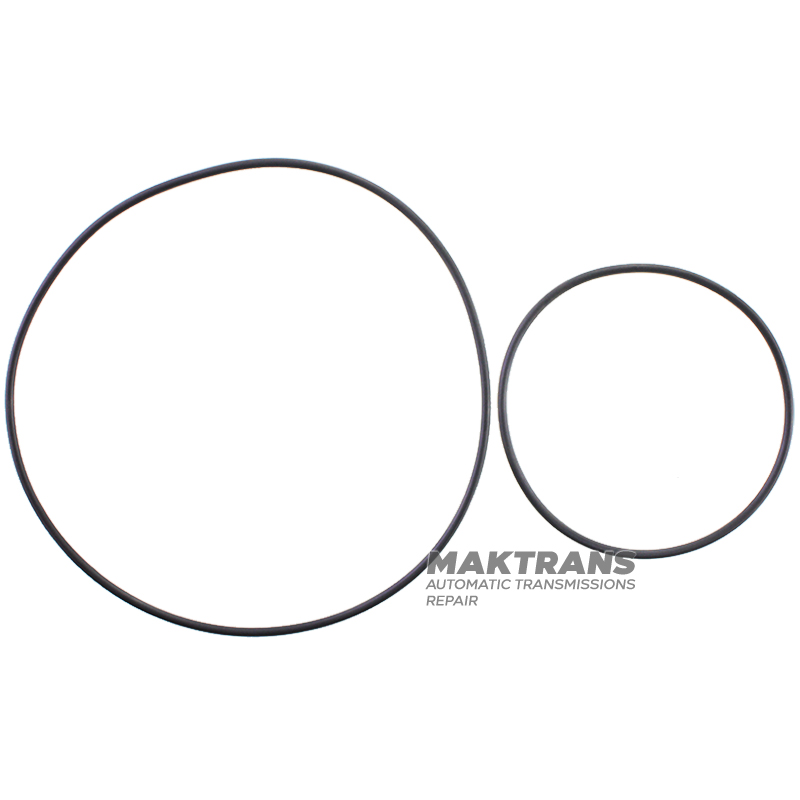

- Set of rubber rings "A" (Forward) clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings "B" (Direct) - clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings "C" (Interm/Overrun) clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings "D" (Low/Reverse) clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings "E" (3-4) clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings F (Overdrive/Fifth) clutch 5HP19 5HP19FLA 1 set
- Set of rubber rings G (Overrun/Fifth) clutch 5HP19 5HP19FLA 1 set
- Rubber ring for solenoid 5HP19 6 pcs.
- Cooling nipple ring ZF 5HP19FLA 97-up N90666001 N90666003 11.5x17mm 2 pcs
Other seals
- Old-style hydraulic unit accumulator ZF 4HP20 5HP19 5HP24 A0099973381 0501314645 3 pcs.
- Set of rubber washers for oil pump hub bolts ZF 5HP19 5HP19FL 5HP19FLA 5HP19HL 5HP19HLA 9 pcs.
- Set of low-flow rubber tubes for the ZF 5HP19 hydraulic unit - 8 tubes in a set (5 pcs. - 32.75 mm, 3 pcs. - 10.35 mm) 1 set

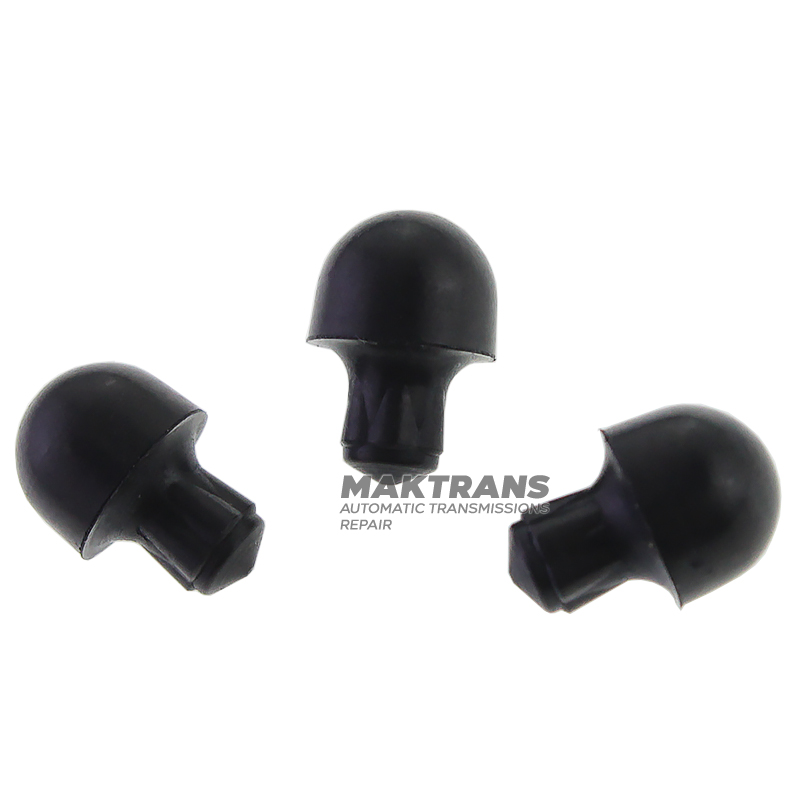

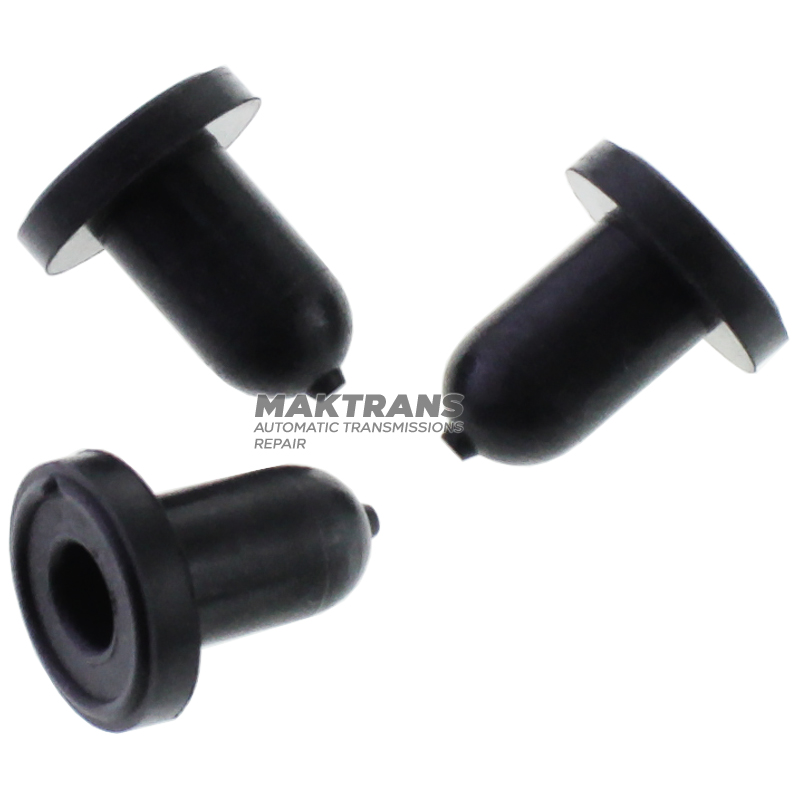

- Set of rubber dampers for hydraulic accumulators of the 5HP19 95-up hydraulic unit (3 pcs.)
- Seals and other rubber ring set 5HP19 1 set
