€269.10
Shipping to United States from €87.8
Main Specifications
Condition (used, new):
used and inspected
If you order more than 3 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Poland | 3 pcs. |
  |
| Ukraine | 30 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (1)
- Gearbox works better with (2)

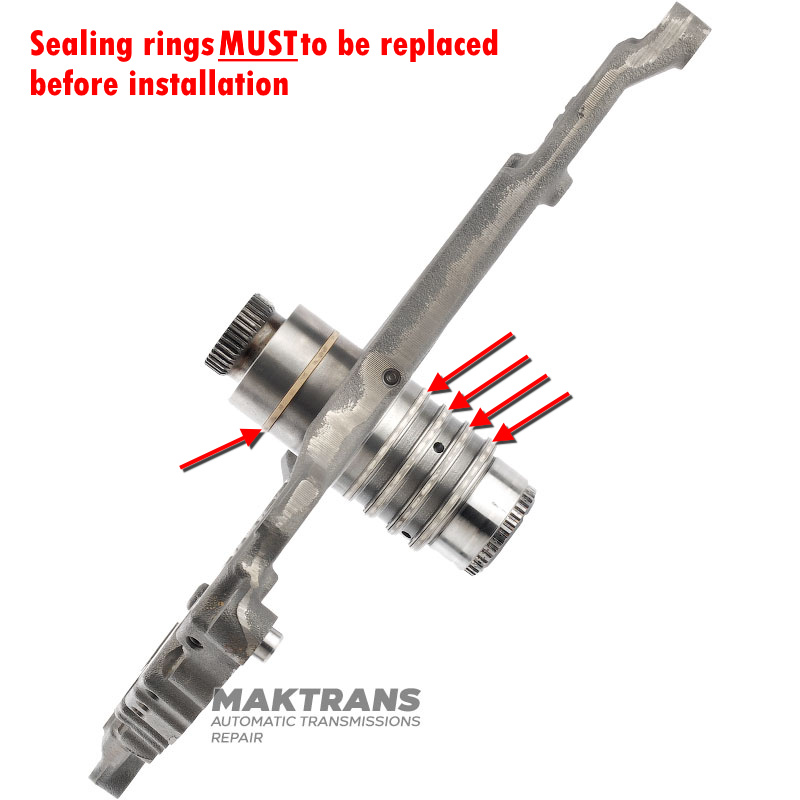

Please note that the Teflon rings are worn and must be replaced with new ones before installing the hub on the transmission.
If this is not done, the C3/C4 Clutch drum will burn out.
If this is not done, the C3/C4 Clutch drum will burn out.
Oil pump hub AWF8G30 [G263] 8GB020
- Total hub height - 120 mm;
- Number of hub mounting holes - 7 pcs;
Front hub:
- Number of splines - 38 pcs;
- Outer diameter of spline part - 30.90 mm;
- Teflon rings - there is 1 compression Teflon ring on the front side of the hub;
- The outer diameter of the working part of the hub is 42.50 mm;
Rear of the hub:
- Outer diameter of the working part of the hub [rear part] - 40 mm;
- Number of splines on the rear part of the hub - 37 pcs;
- Spline diameter - 37.25 mm;
- Number of Teflon rings - there are 4 compression Teflon rings on the rear part of the hub | outer diameter of the Teflon ring seat - 47 mm;
