Friction and steel plate kit D Clutch FORD 10R80 total pack thickness 27.80 mm / 25.60 mm JL3P-AB

Friction and steel plate kit D Clutch FORD 10R80 | total pack thickness 27.80 mm / 25.60 mm
The mechanics of the F Clutch is as follows:

The No.3 planetary gear is located in the CDF clutch drum. No.3 planetary gear is connected to D clutch. When the D Clutch is engaged, activated by the SS4[SSD] solenoid, the No.3 planetary gear comes into contact with the No.2 ring gear.
​

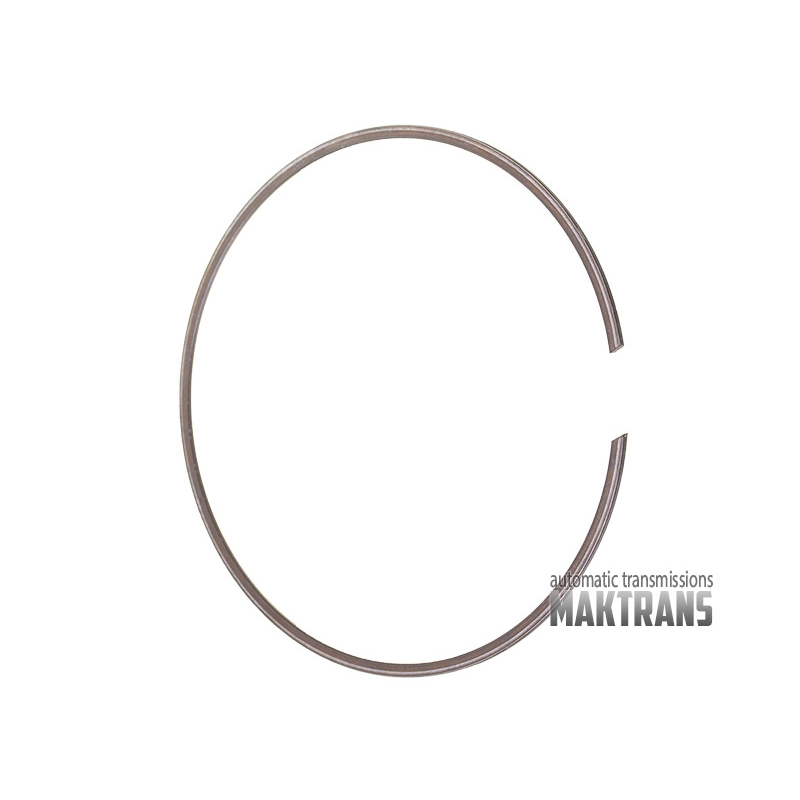

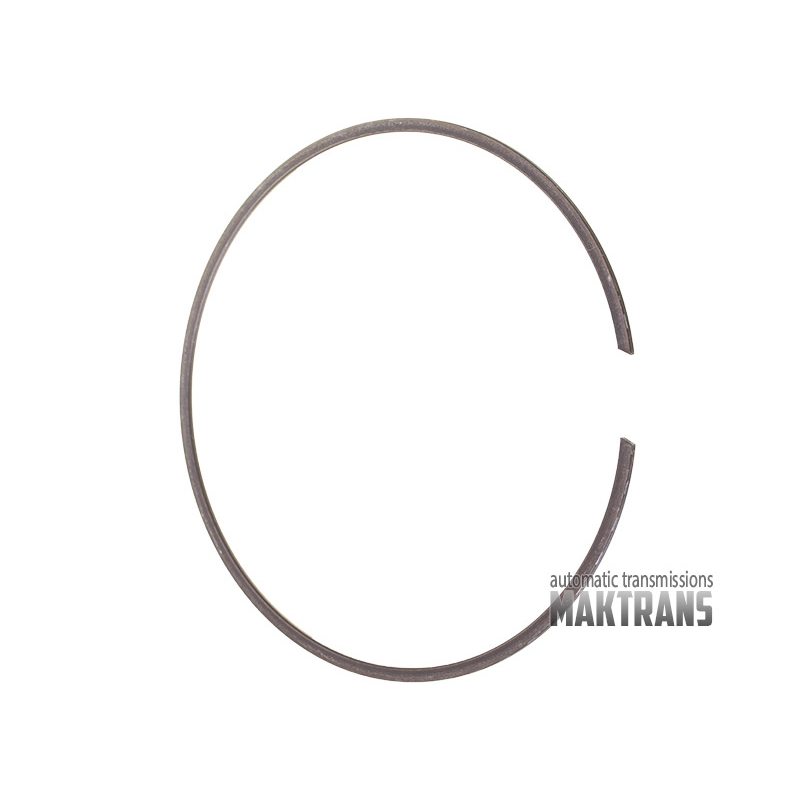

Physical parameters of D Clutch components:

• Total thickness of the set [with thrust plate] - 27.80 mm - high side | 25.60 mm - low side
• The total thickness of the kit [without thrust plate] - 19.60 mm;

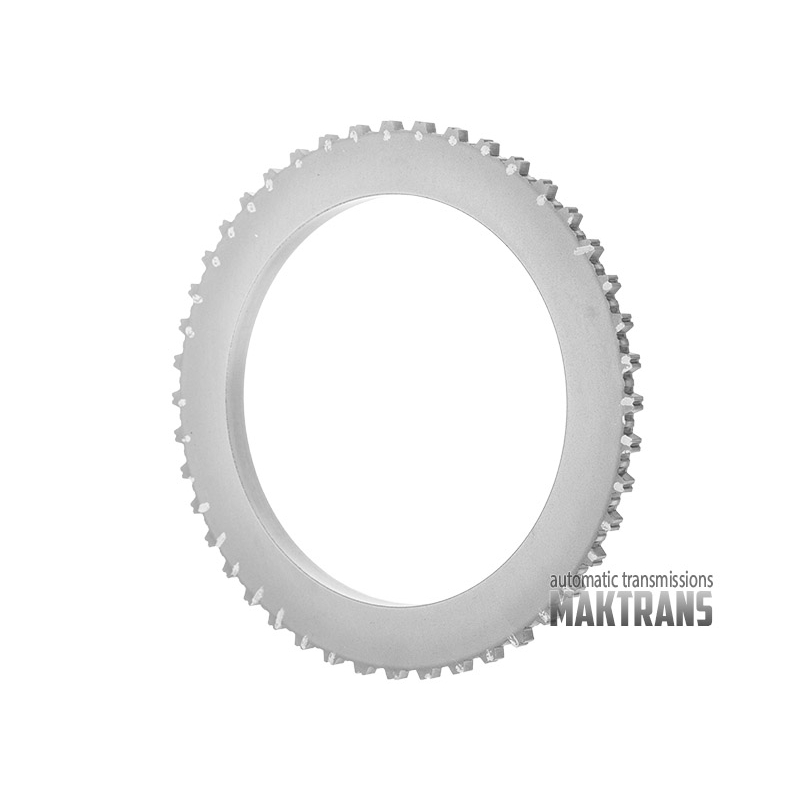

Thrust plate [No. 2 in the diagram]:

• Number of teeth - 44 pieces;
• Inner diameter - 105.50 mm;
• Thickness - 8.10 mm - high side | 5.70 mm on the low side;
• Kit plate quantity - 1 piece;

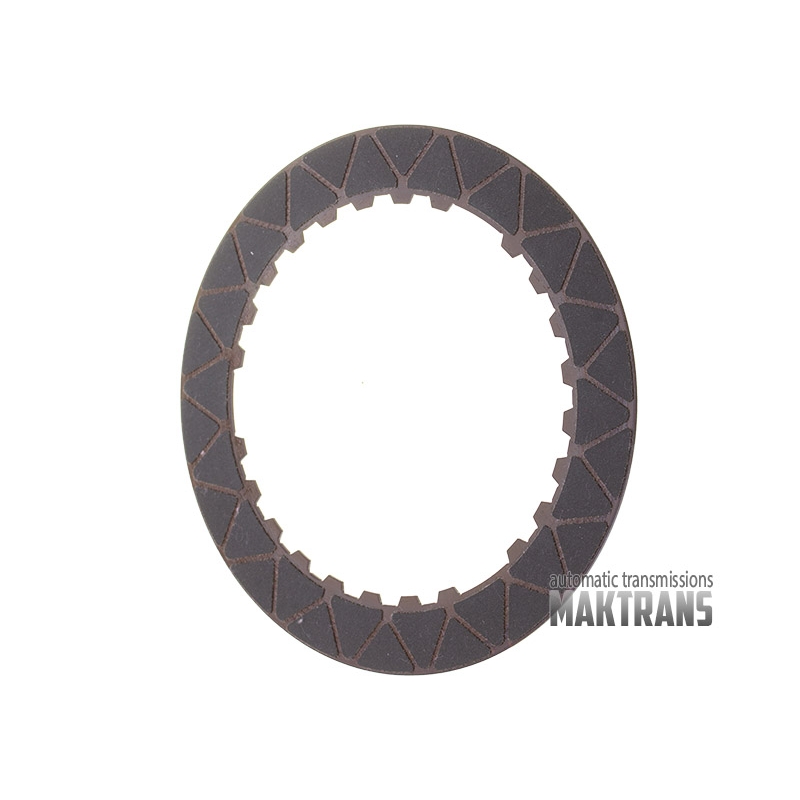

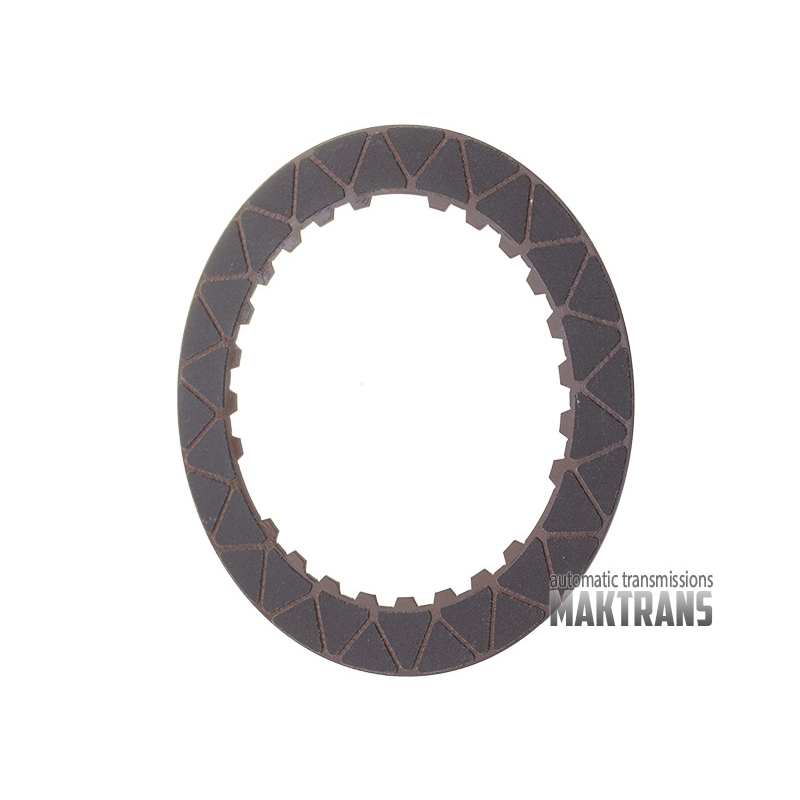

Friction plate [No. 4 in the diagram]:

• Number of teeth - 24 pcs;
• Outer diameter - 137.95 mm;
• Thickness - 1.55mm;
• Kit plate quantity - 6 pcs;

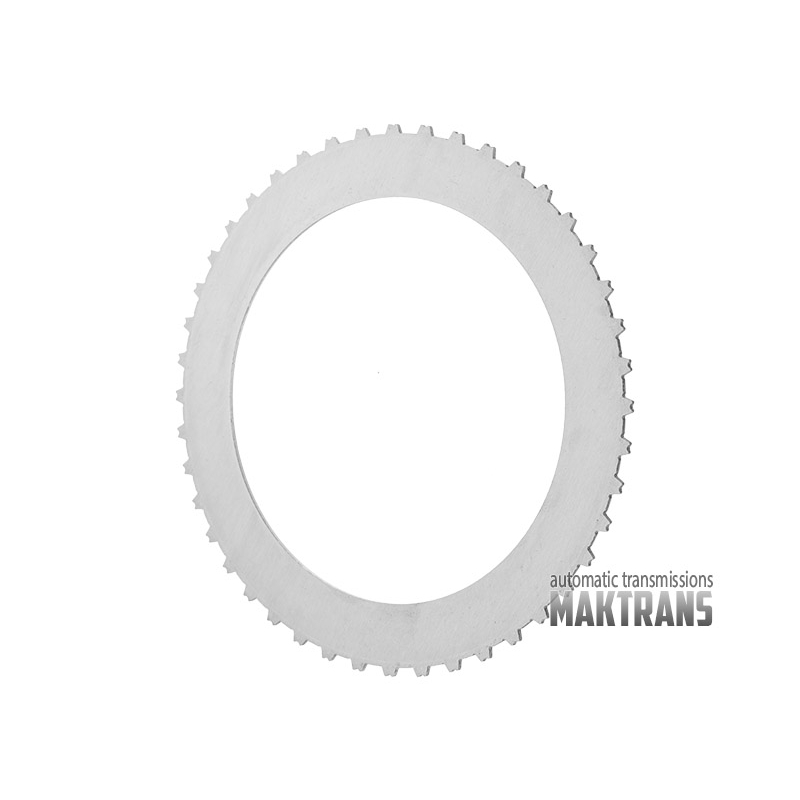

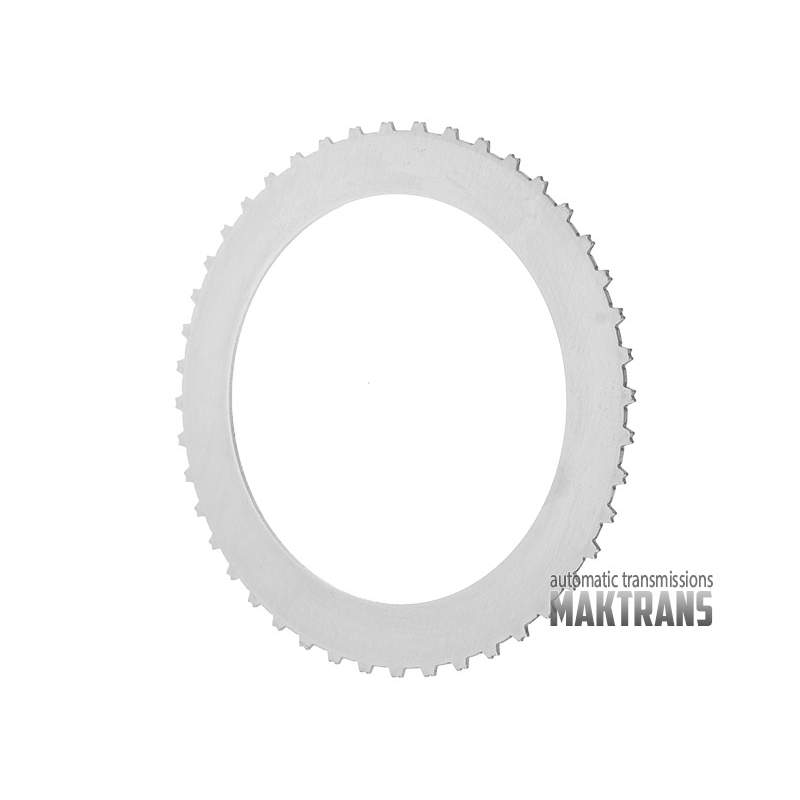

Steel plate [No. 3 in the diagram]:

• Number of teeth - 44 pcs;
• Inner diameter - 105.55 mm;
• Thickness - 1.70 mm;
• Kit plate quantity - 6 pcs;
