Additional filtration kit JF016E JF017E RE0F10D RE0F10F F1CJC W1CJC FR8 FK0 | Type.3 SPX

Complete filtration solution JF016E,JF018E and JF017E. Does not require changes to original components. The automatic transmission is quickly installed INSTEAD of the standard HEAT EXCHANGER , serviced and removed. An external filter is installed after a major overhaul, a complete oil change, or the detection of chips in the system; it prevents wear products washed with new oil from entering the valve body and solenoids.
The automatic transmission main filter wear products up to 10 microns , such as corrosive material, adhesive joints of friction discs, small chips from clutches and locking clutches. An external filter is installed after a major overhaul, a complete oil change, or detection of chips in the system; it prevents wear products washed with new oil from entering the valve body and solenoids.

1. Why install temporary filtering? Cleaning oil from chips
2. Why are there shavings in the oil, I just changed the oil? Chips tend to stick to aluminum parts and are washed off with new oil.
3. How long should you drive with filtration? 30-50 km and remove it

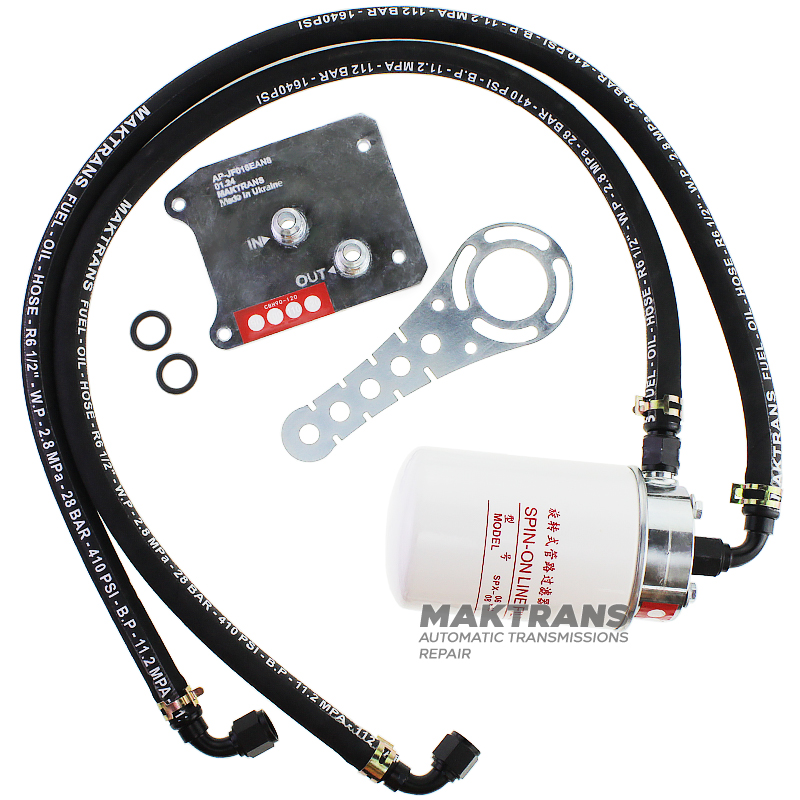

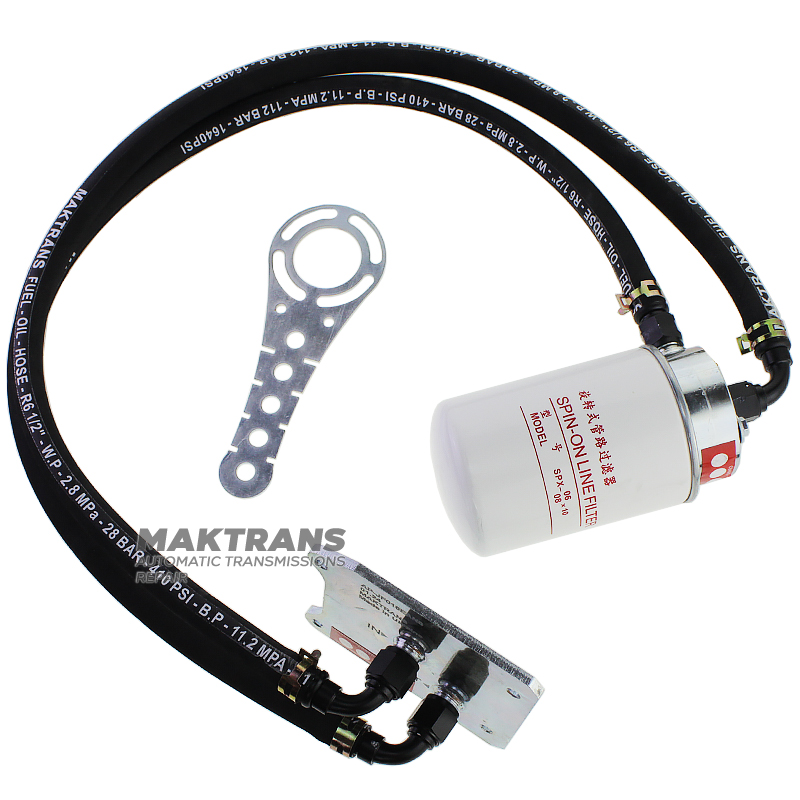

The kit includes:

Adapter JF016E JF017 1 piece

Main filter up to 10 microns 1 pc.

Additional filter adapter AP-D79-SPX-AN8 1 pc.

Fitting 90° AN8 1 piece

Fitting Straight AN8 1 piece

Spring clamp D 18-20 mm 4 pcs

Oil resistant hose D13 2 meters

Bracket for mounting additional filtration 1 pc.
