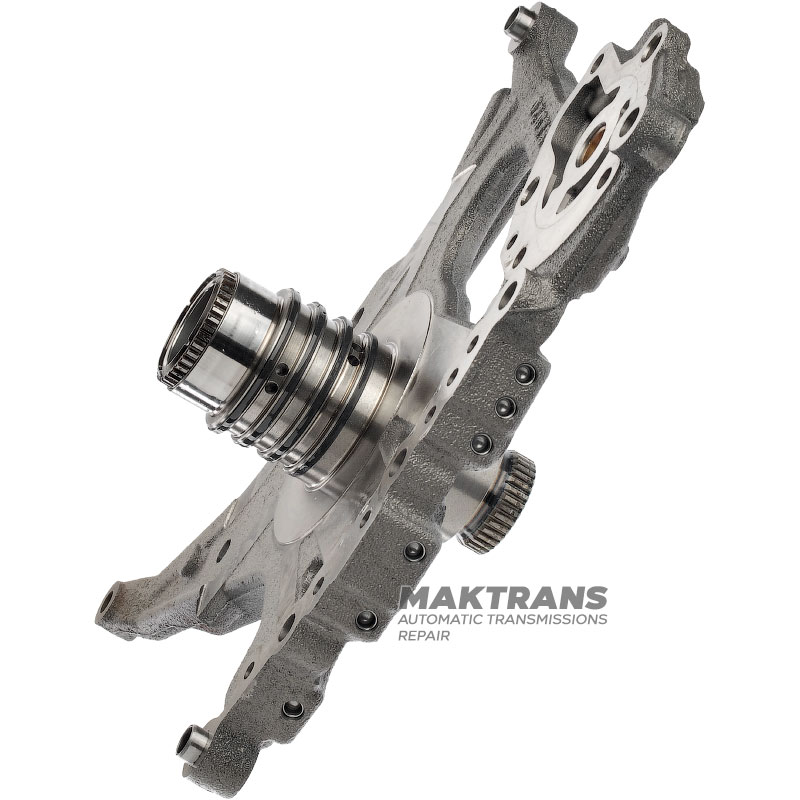

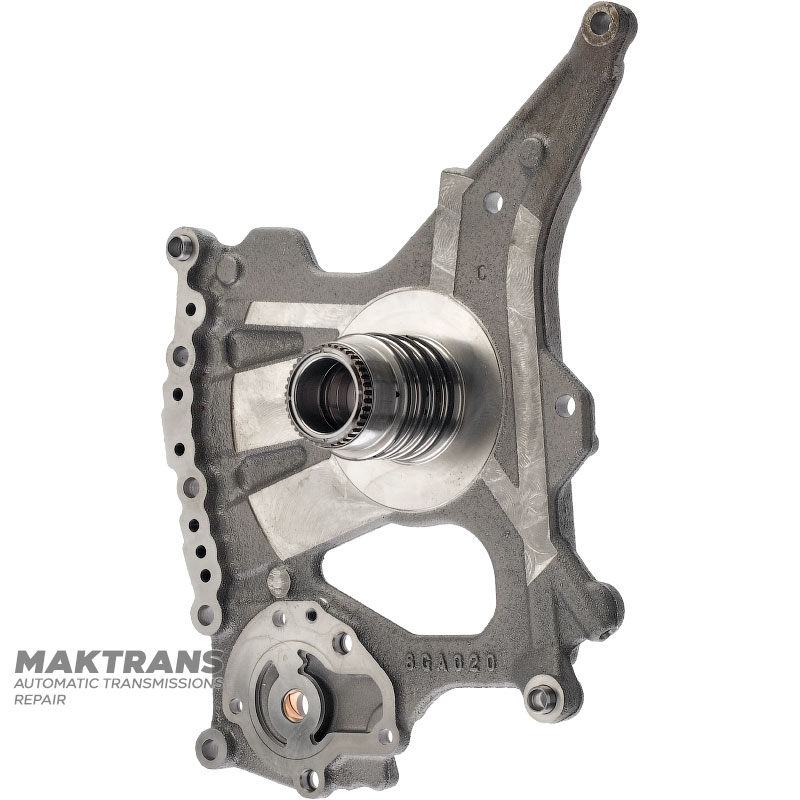

Oil pump hub AISIN WARNER AWF8G45 - for Changan, PEUGEOT Stellantis

• Total stator height - 119 mm;

Front side:

• Height - 47 mm;
• Inner diameter - 25 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the splined part is 34.65 mm;

Rear Side (C3/C4 Clutch Drum Hub):

• Height - 60 mm;
• Number of sealing rings - 4 pcs.;
• Outer diameter over sealing rings - 50.05 mm;
• The outer diameter of the working part of the bearing is 43.10 mm;
• Number of splines - 40 pcs.;
