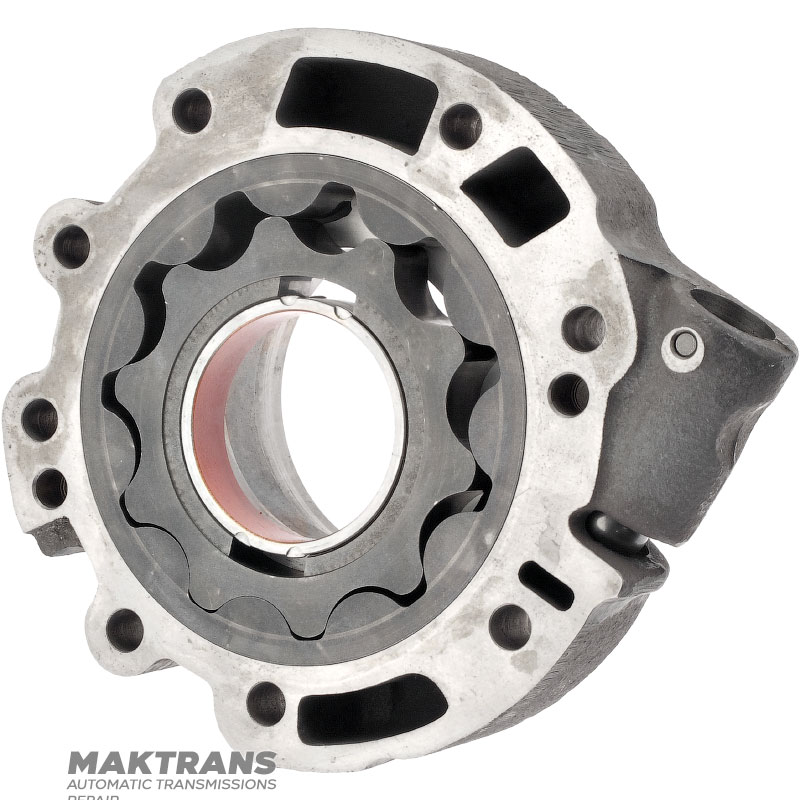

ALLISON 3000 Series Oil Pump, MD3060 (for PTO transmissions) — 29553198

PTO - Power Take-Off (power take-off gearbox).
This pump is used on transmissions with an installed power take-off gearbox.
The pump does not have a rubber sealing ring on the outside, a seal and a bushing on the inside of the housing.


Oil pump housing:

• Overall height - 65 mm;
• Outer diameter of the neck - 117.40 mm;
• Inner diameter - 87.85 mm / 78.70 mm;

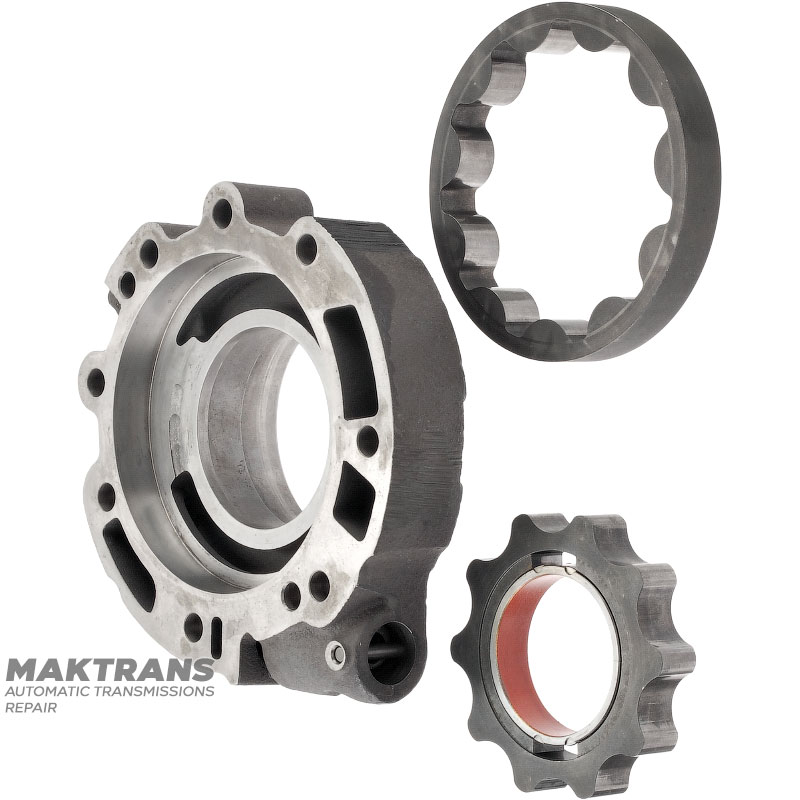

Oil pump gears:


Pinion:

• Thickness - 17.85 mm;
• Number of teeth - 10 pcs.;
• Inner diameter of the sleeve - 57.20 mm;

Driven gear:

• Thickness - 17.85 mm;
• Number of teeth - 11 pcs.;
• The outer diameter of the gear is 127 mm;
