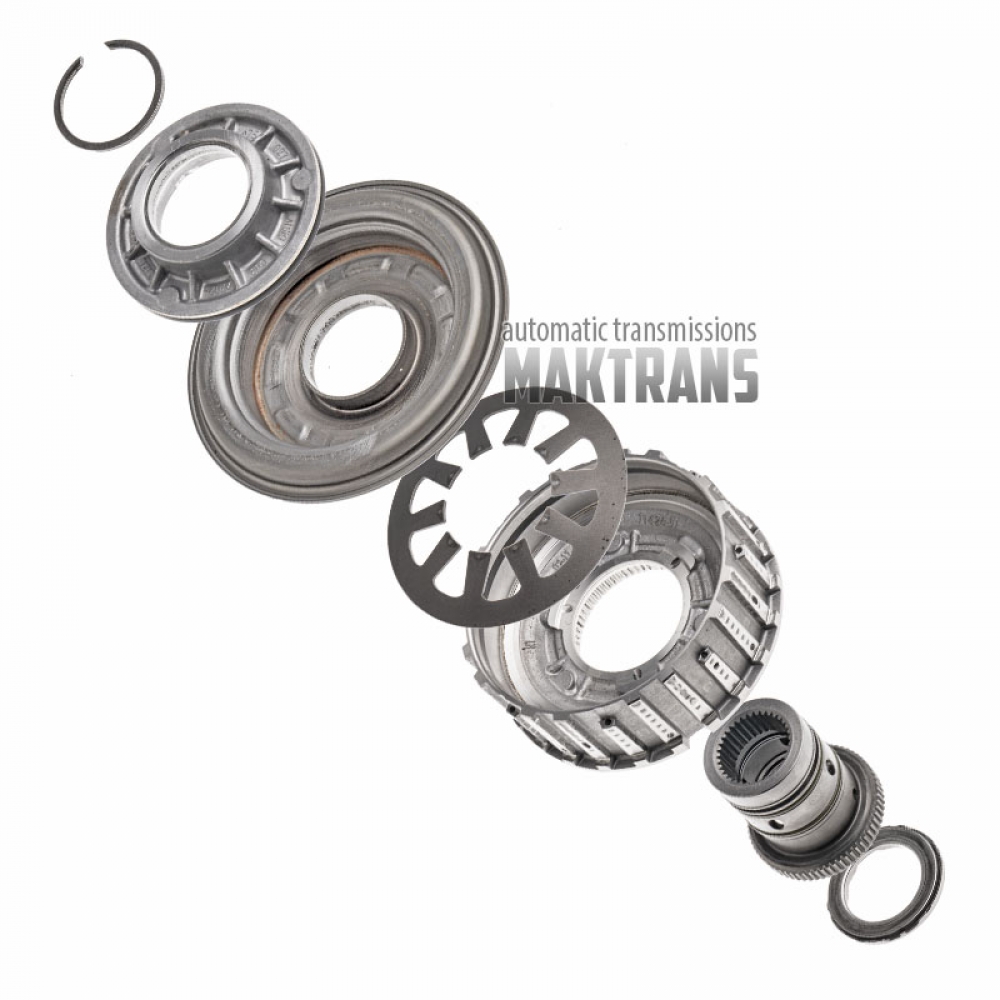

Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]

Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]
Drum (without plate kit) С Clutch ZF 8HP45 09-up 1090475031 1090475027 [for 6 friction plates]

Worldwide Shipping 🌎

  • Brand: ZF
  • Product Code: 8HP45-DC-6FD
    Product model copied to clipboard
  • Sold: 1
  • Weight (kg): 1.5
  • Availability: Out Of Stock
$69.90
Main Specifications
Condition (used, new): used and inspected
Type: C Clutch drum
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)

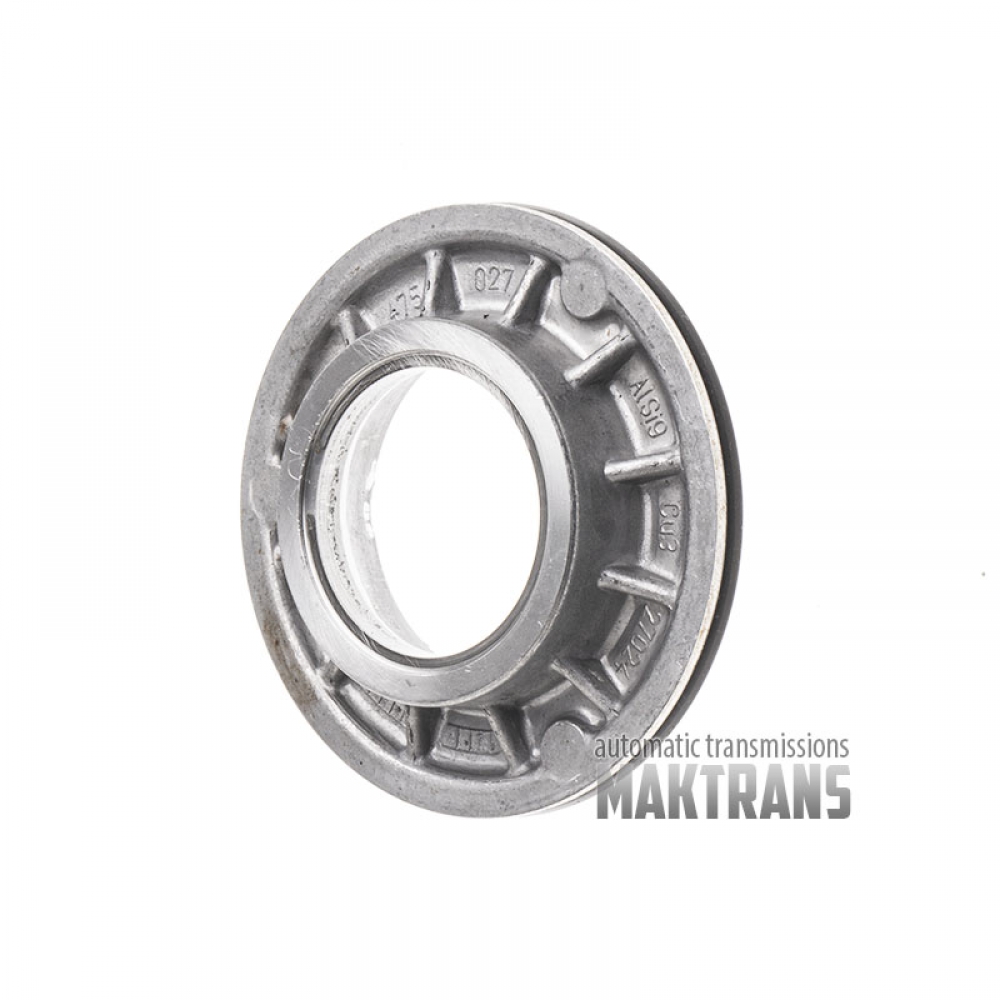

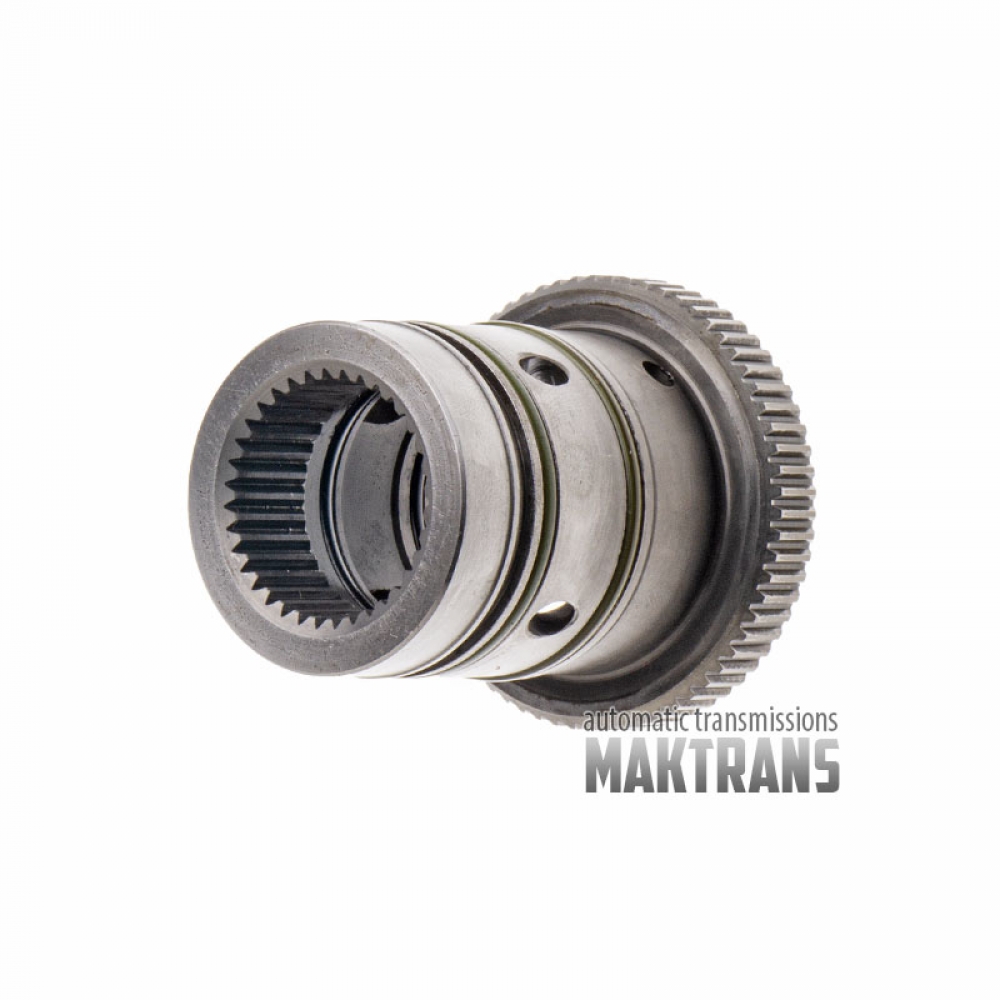

Stator:

  • Overall height - 60.50 mm;
  • Outer diameter of the hub - 41 mm;
  • Number of splines (outer part) - 66 pcs. at Ø 54.75 mm;
  • Number of splines (inner part) - 35 pcs;

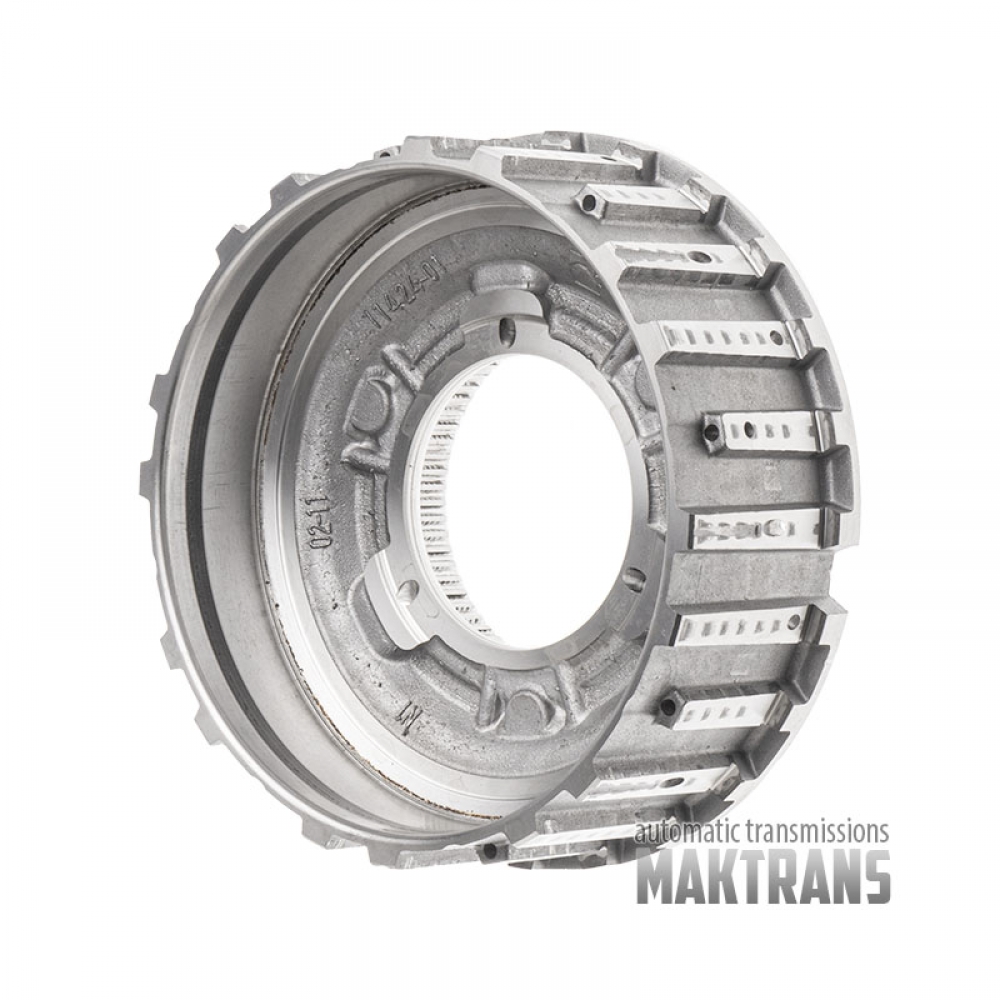

Aluminum drum:

  • Total height - 43.25 mm;
  • Outer diameter - 117 mm / 111.85 mm;
  • Number of splines on the inner part - 66 pcs;

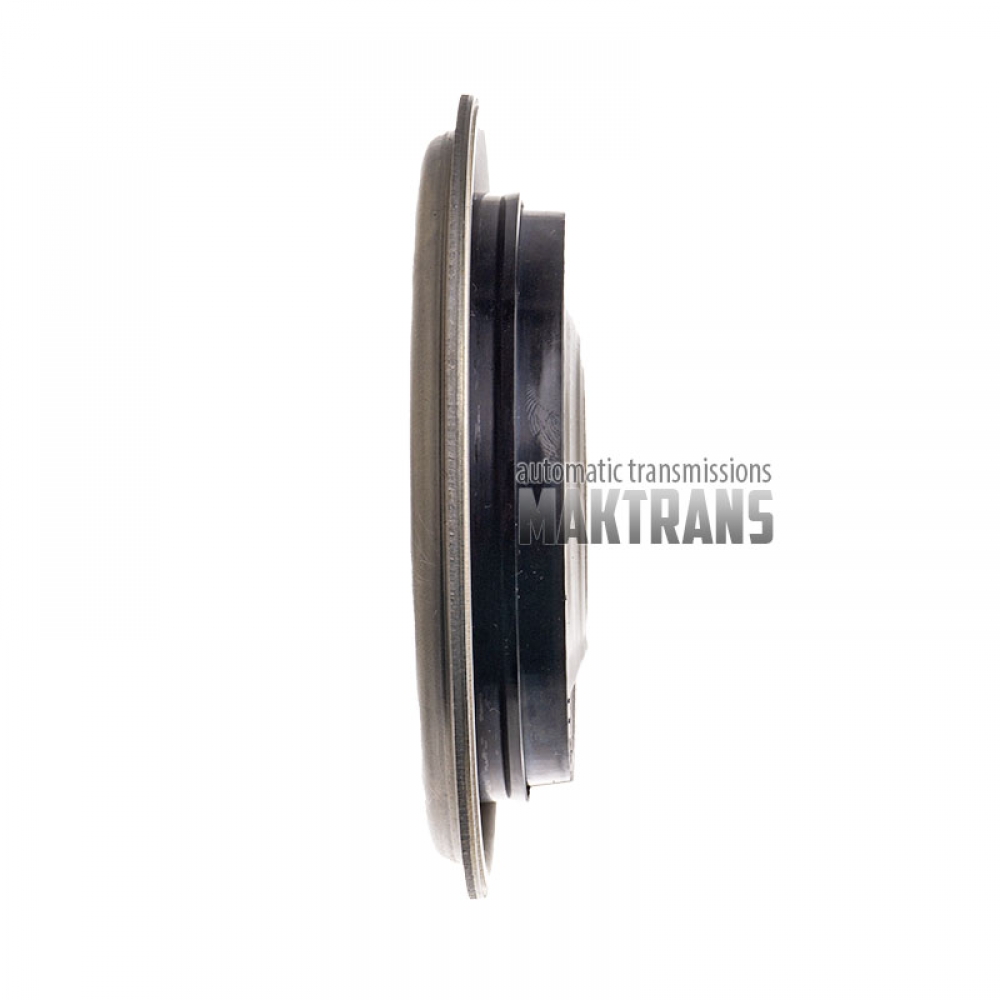

Rubberized piston:

  • Total height - 26 mm;
  • Inner diameter - 42.25 mm;
  • Outer diameter - 132.75 mm;
  • Diameter of rubberized part - 100.85 mm;

Aluminum piston:

  • Overall height - 20 mm;
  • Outer diameter - 88.70 mm;
  • Inner diameter - 41.25 mm;

Return spring:

  • Outer diameter - 100.35 mm;
