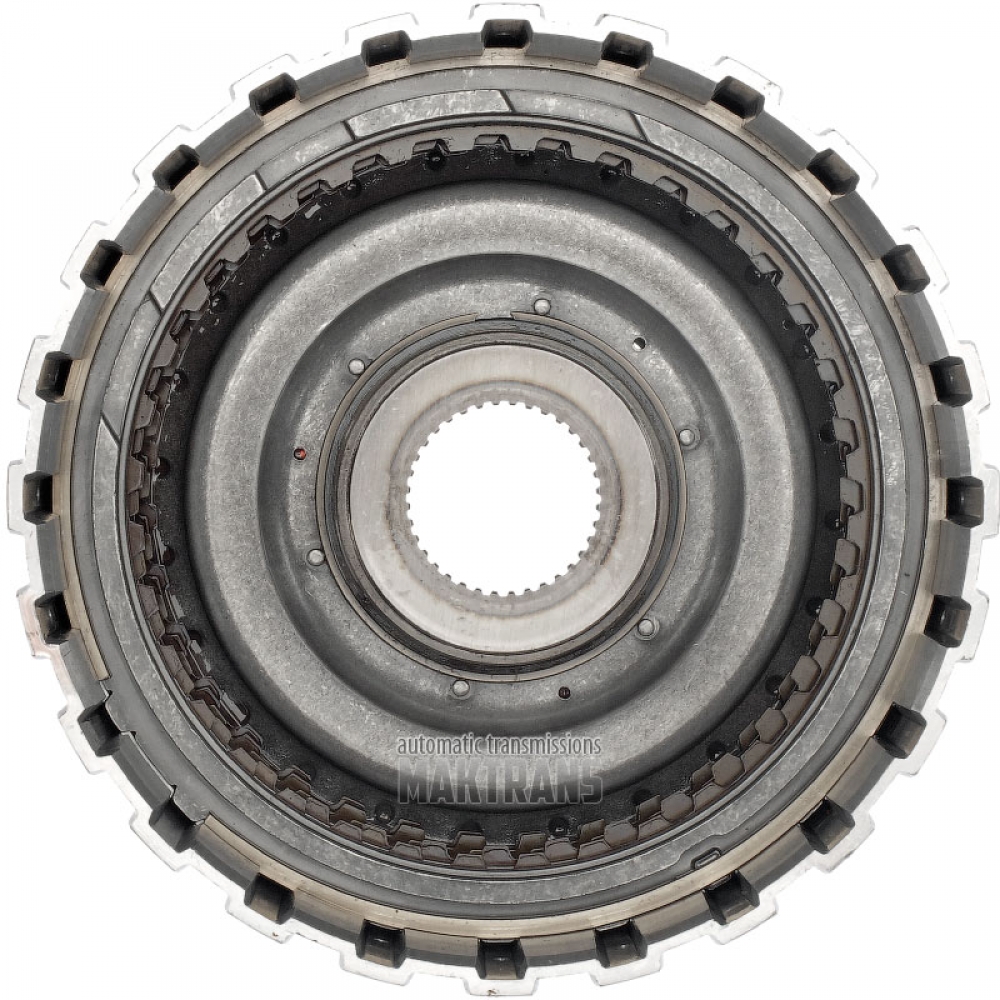

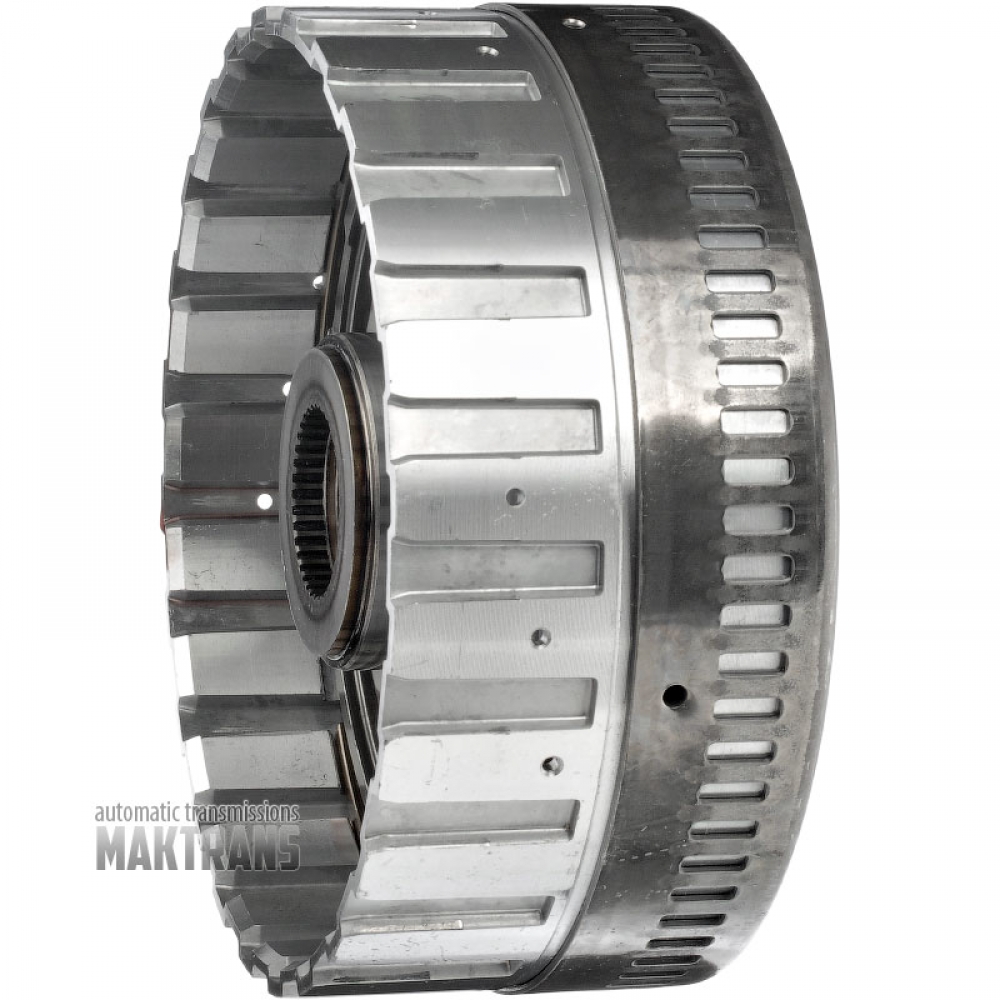

Clutch drum 1-3-5-6-7 Clutch GM 8L45 / 24286930 [5 friction plates, total set thickness 24.90 mm]

• The total height of the drum is 85 mm;
• Drum outer diameter - 188.45 mm;
• The number of splines on the internal side 36 pcs.;
• Height from piston to retaining ring - 24 mm;

Friction and steel plate kit 1-3-5-6-7 Clutch:

• The total thickness of the set is 24.90 mm;

Thrust plate:

• Thickness - 7.55 mm / 4.60 mm;
• Inner diameter - 146.45 mm;
• Number of teeth - 22 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 1.80 mm;
• Outer diameter - 168.40 mm;
• Number of teeth - 36 pcs.;
• Number of plates - 5 pcs.;

Steel plate:

• Thickness - 2.25 mm;
• Inner diameter - 146.45 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 5 pcs.;
