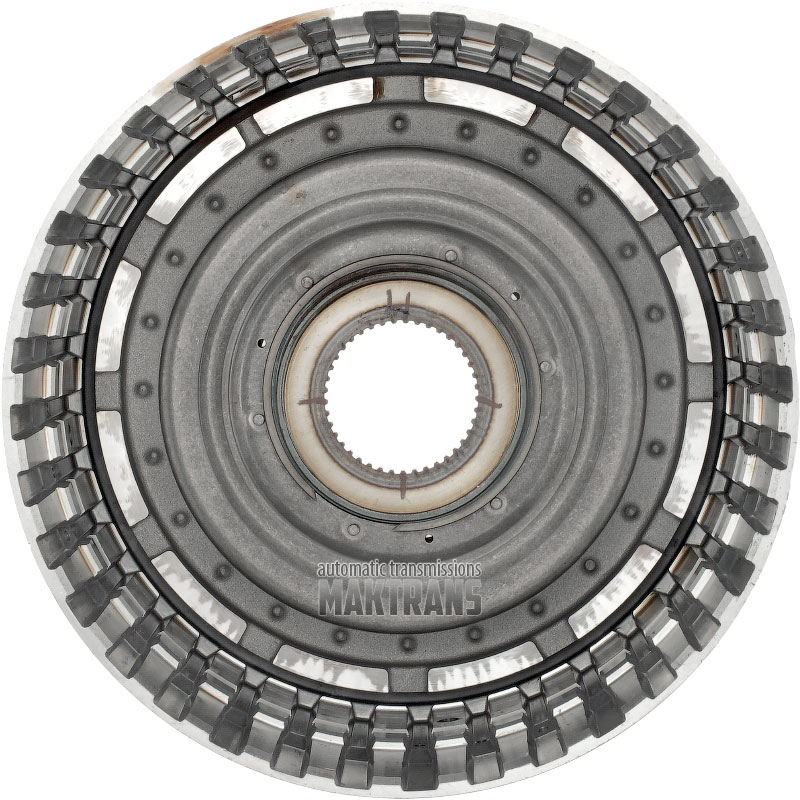

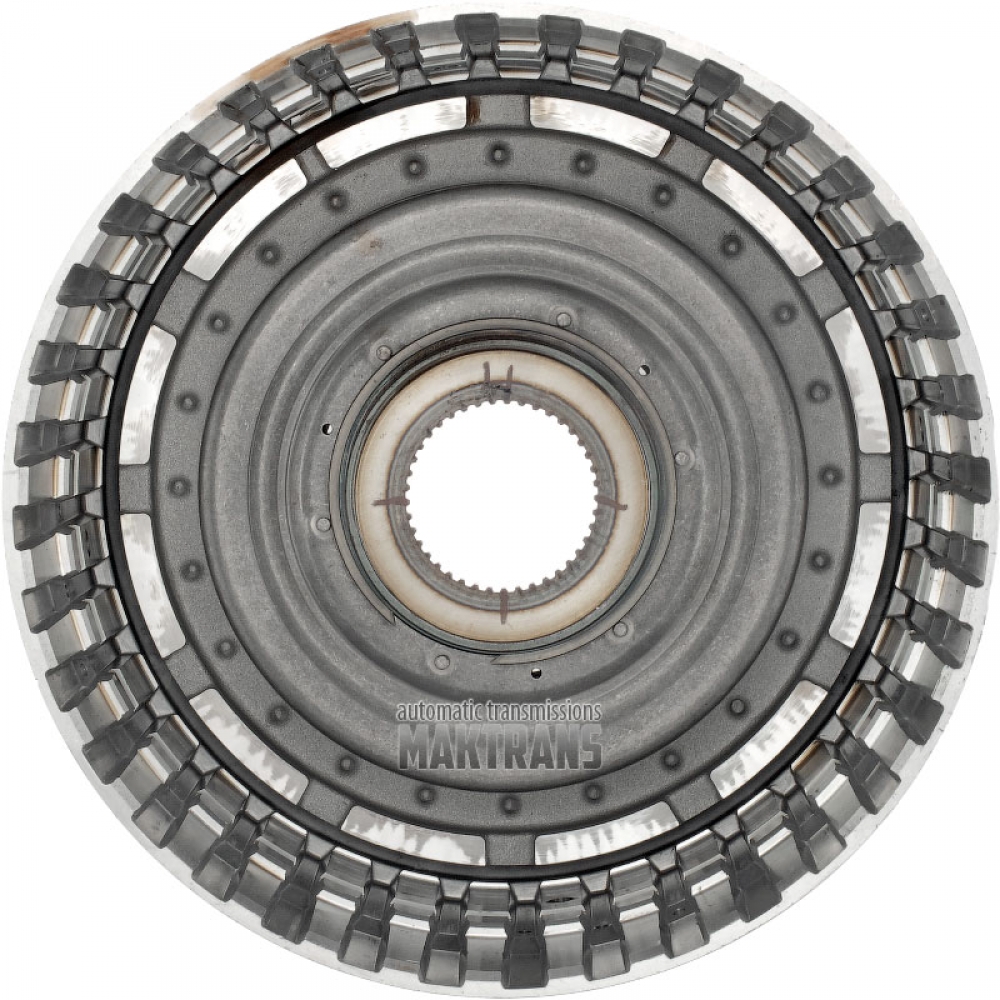

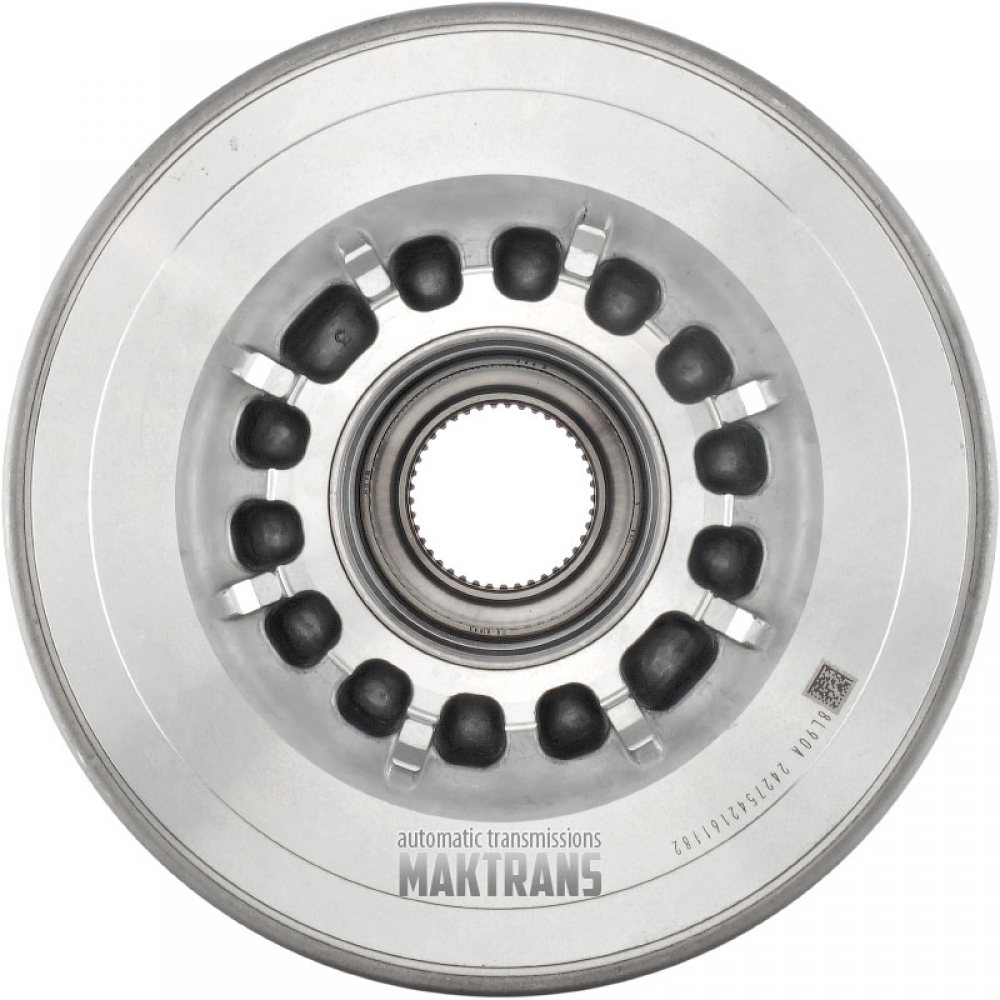

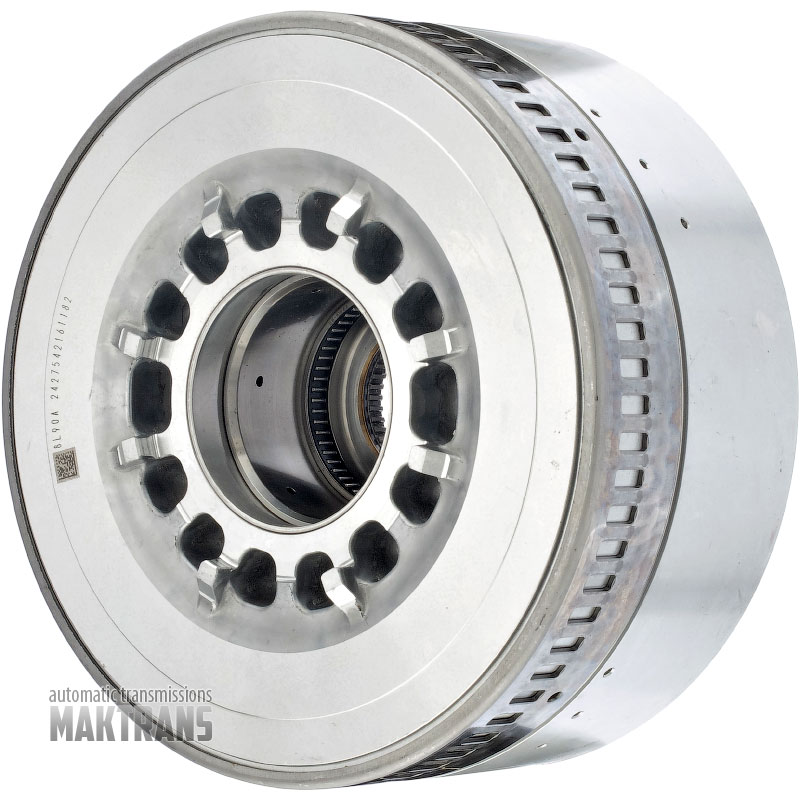

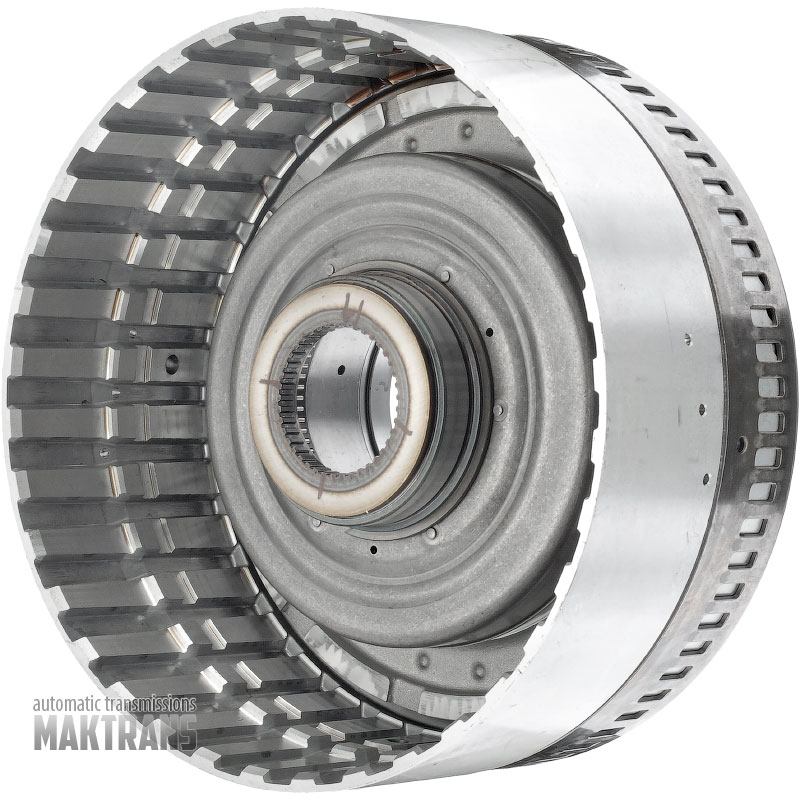

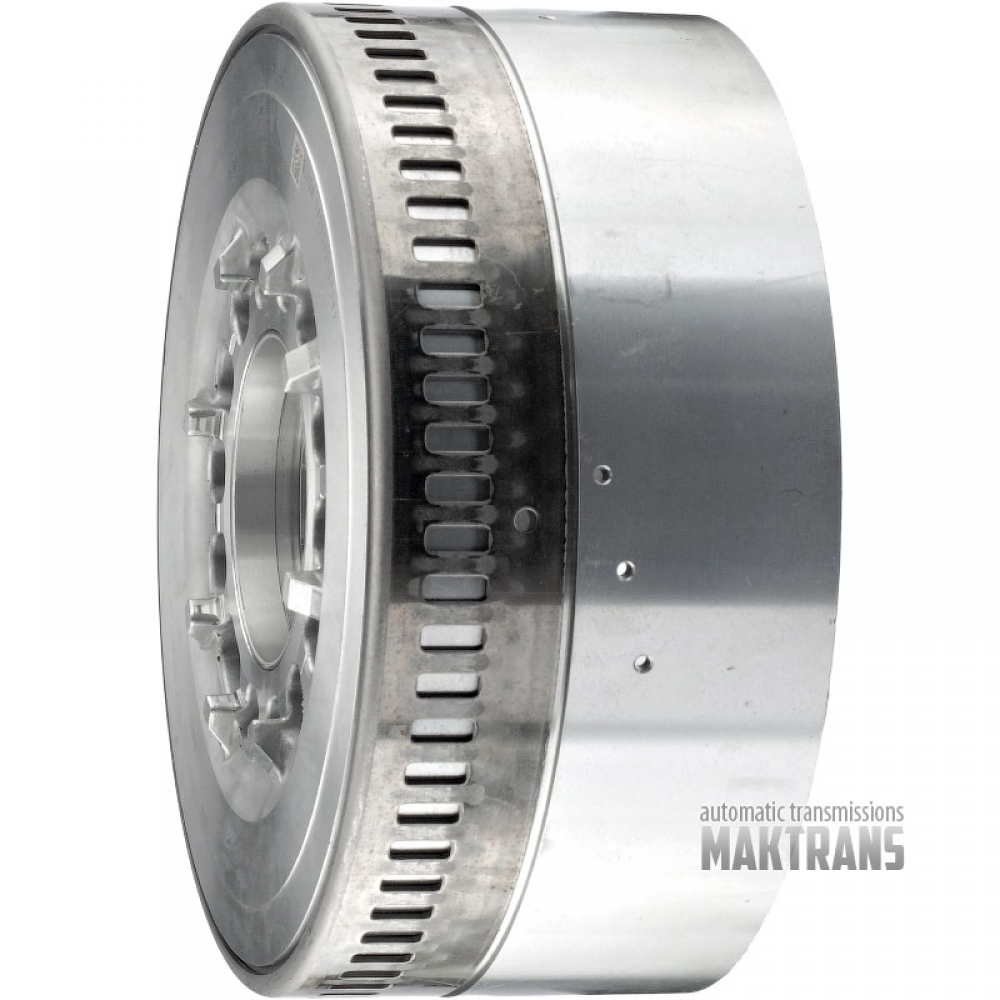

Clutch drum 1-3-5-6-7 Clutch GM 8L90 / 24286931 [4 friction plates, total set thickness 24.85 mm]

• The total height of the drum is 98 mm;
• Drum outer diameter - 212.25 mm;
• The number of splines on the internal side 36 pcs.;
• Height from piston to retaining ring - 24 mm;

Steel and friction plate kit 1-3-5-6-7 Clutch:

• The total thickness of the set is 24.85 mm;

Thrust plate:

• Thickness - 11 mm / 6.45 mm;
• Inner diameter - 159.65 mm;
• Number of teeth - 30 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 1.80 mm;
• Outer diameter - 191.45 mm;
• Number of teeth - 42 pcs.;
• Number of plates - 4 pcs.;

Steel plate:

• Thickness - 2.75 mm;
• Inner diameter - 146.45 mm;
• Number of teeth - 36 pcs.;
• Number of plates - 4 pcs.;
