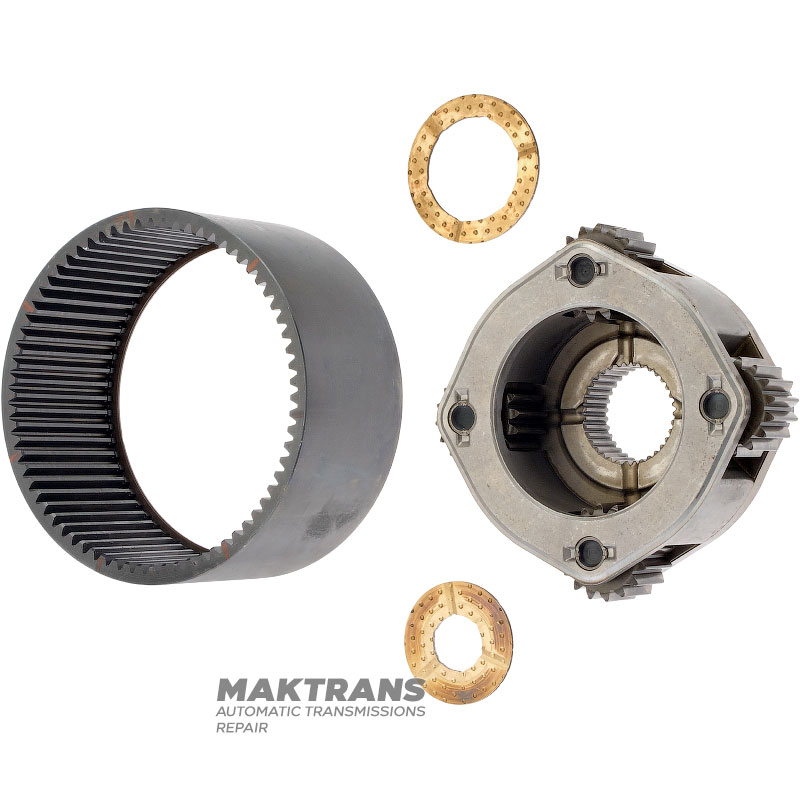

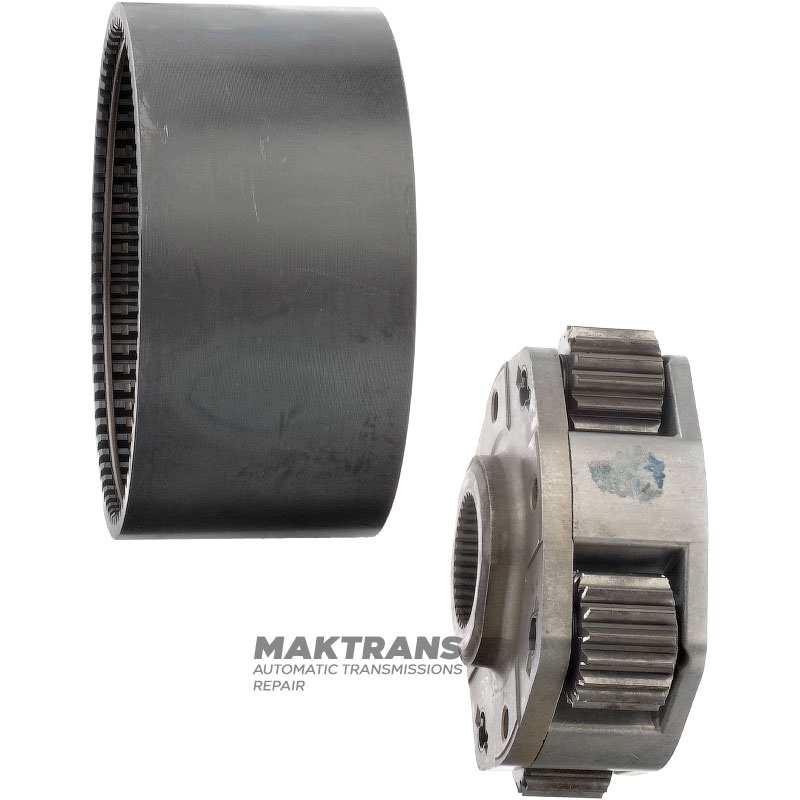

BorgWarner BW4404 Transfer Case Planetary Gear - 4 Pinions (16 Teeth, Outer Diameter 34.65mm), F77A-7A195-VA, 44-04-000-005 (95-01 Ford Explorer)

Planetary gear:

• Total height - 53 pcs.;
• Number of splines (on the inner side) - 35 pcs.;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 16 pcs.;
• The outer diameter of the satellites is 34.65 mm;

Ring gear:

• Overall height - 68.65 mm;
• Number of teeth - 70 pcs.;
• Outer diameter - 141.75 mm;

Sliding washers:

№1

• Thickness - 1.60 mm;
• Outer diameter - 47 mm;
• Inner diameter - 21 mm;
• Number of washers in the set - 1 pc.;

№2

• Thickness - 1.60 mm;
• Outer diameter - 56.50 mm;
• Inner diameter - 39 mm;
• Number of washers in the set - 1 pc.;

Tags: 1372 162 001, 1900 193 006, 4472 659 003, 1372-162-001, 1900-193-006, 4472-659-003
