C3 Clutch Drum Toyota / Lexus AJA0E, AJA0F - 6 friction discs, 3564060010, 3561760080

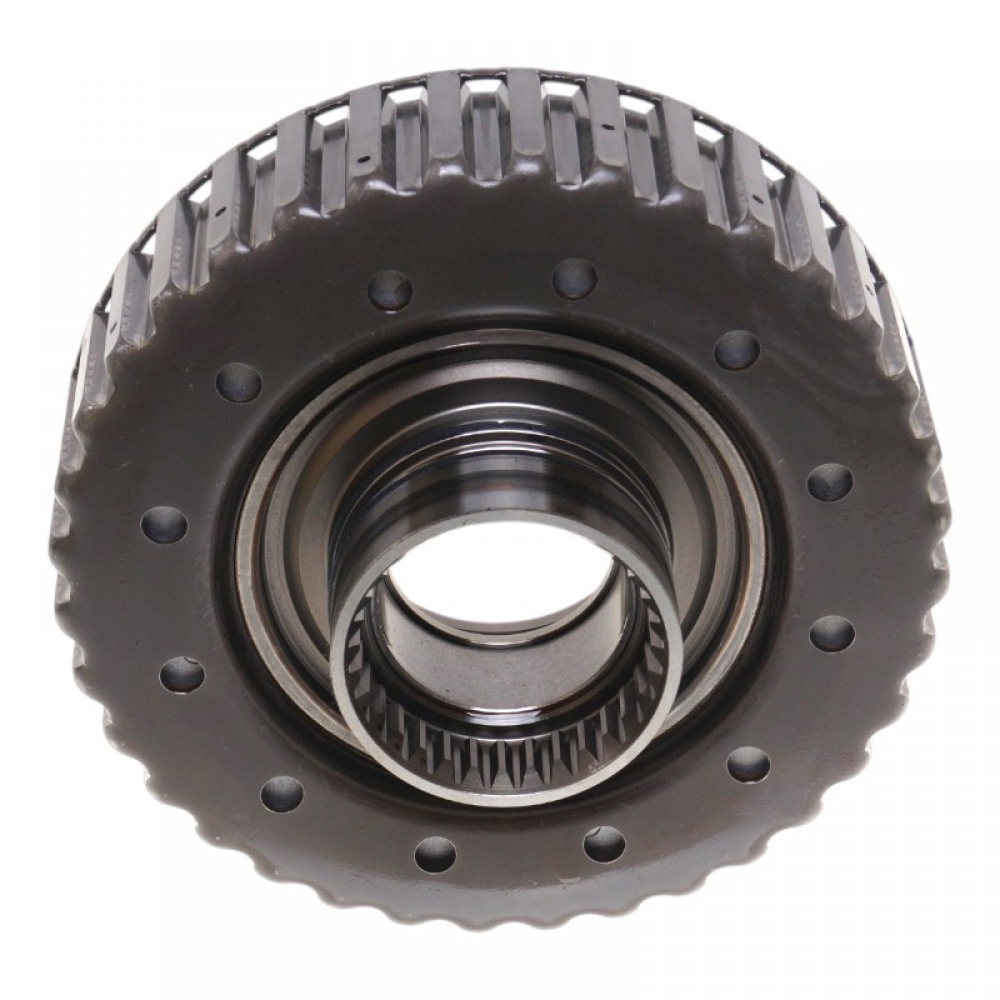

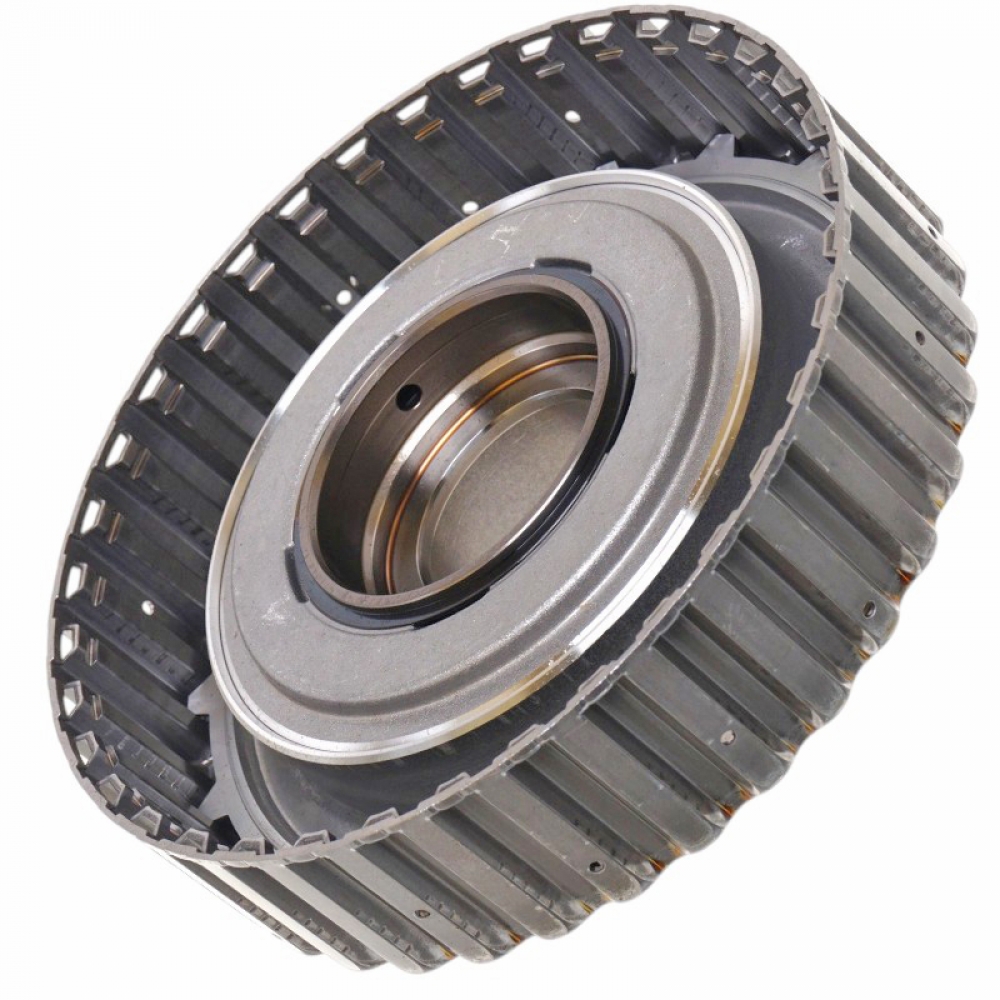

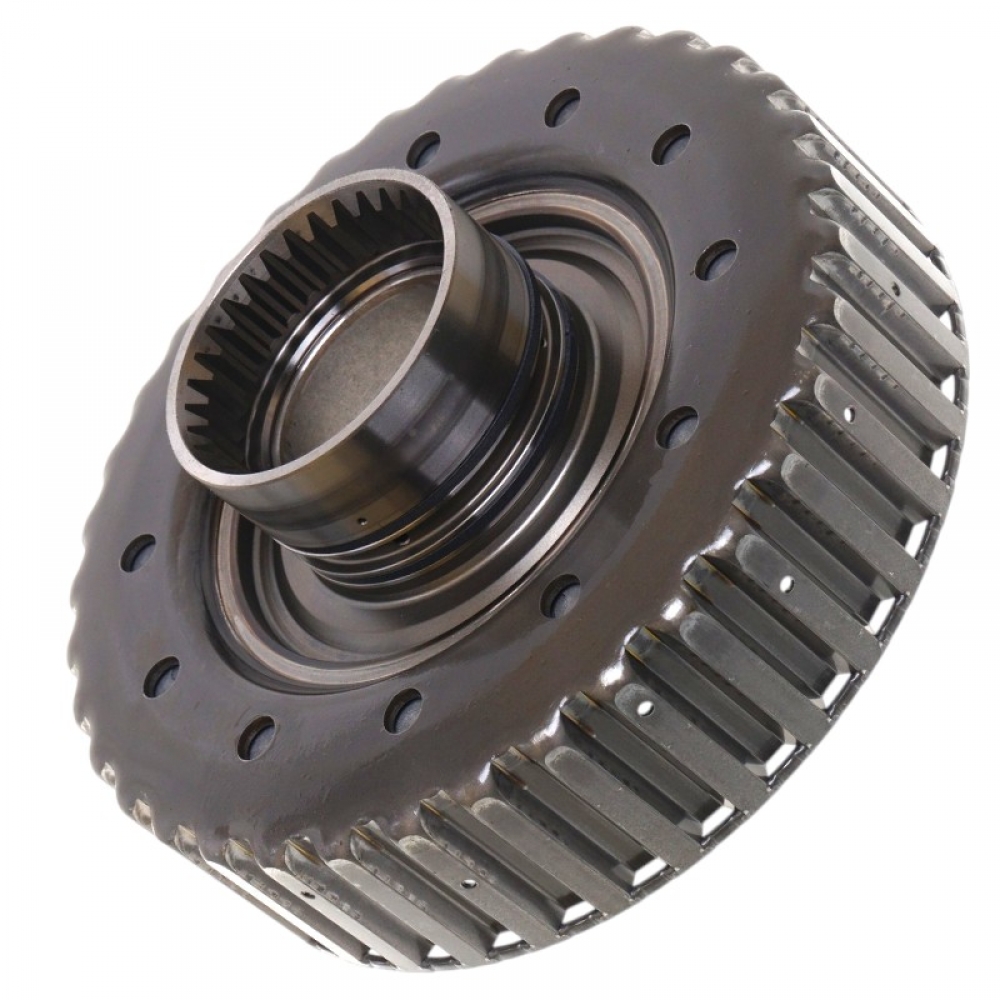

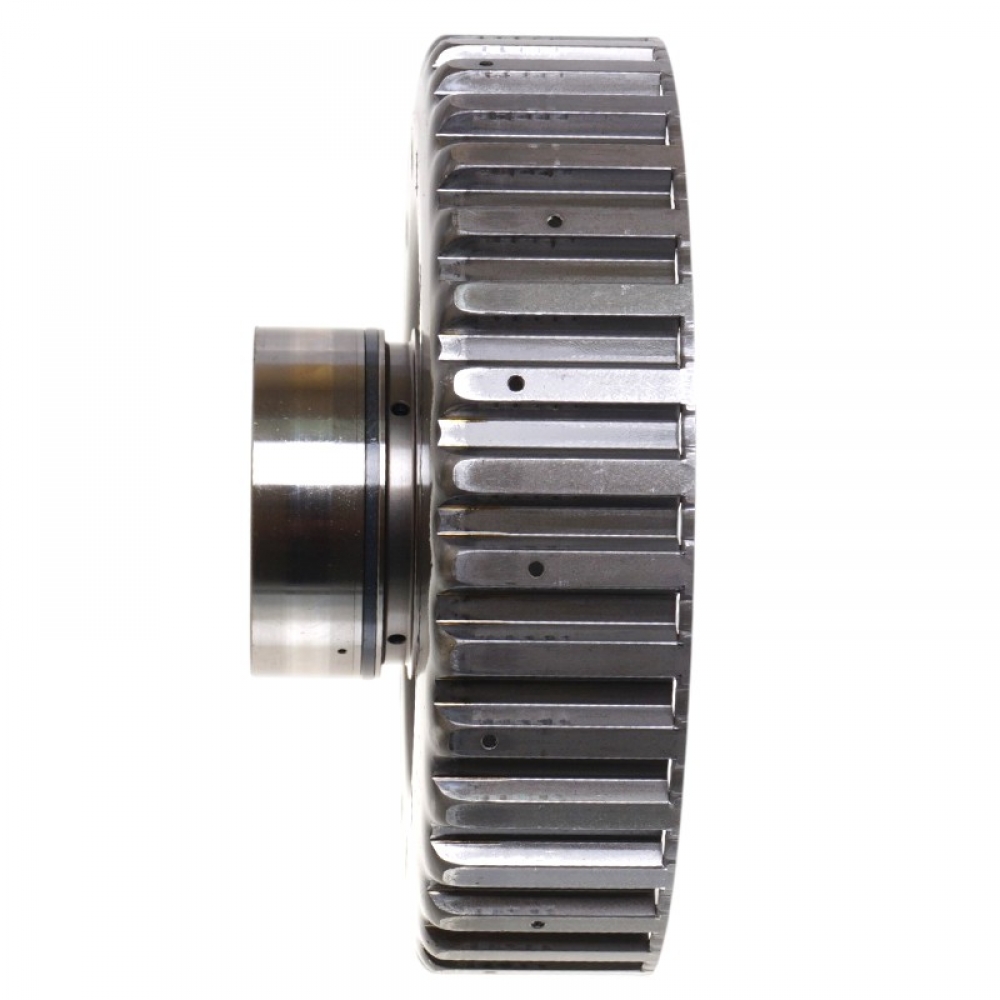

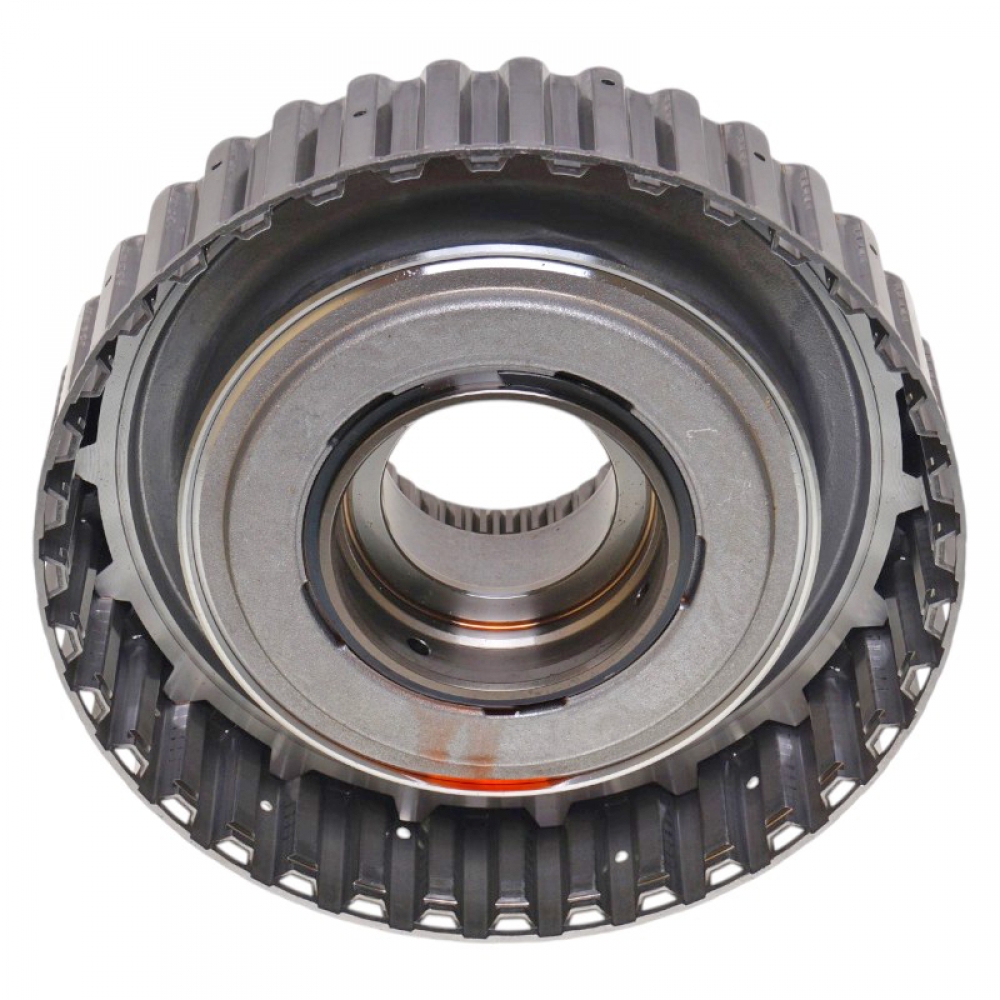

C3 Clutch Drum:

• Overall height - 76 mm;
• Neck height - 40 mm;
• Neck outer diameter - 67.15 mm;
• Number of splines on the inner side - 32 pcs.;
• Drum outer diameter - 178.75 mm;
• Drum height - 46 mm;

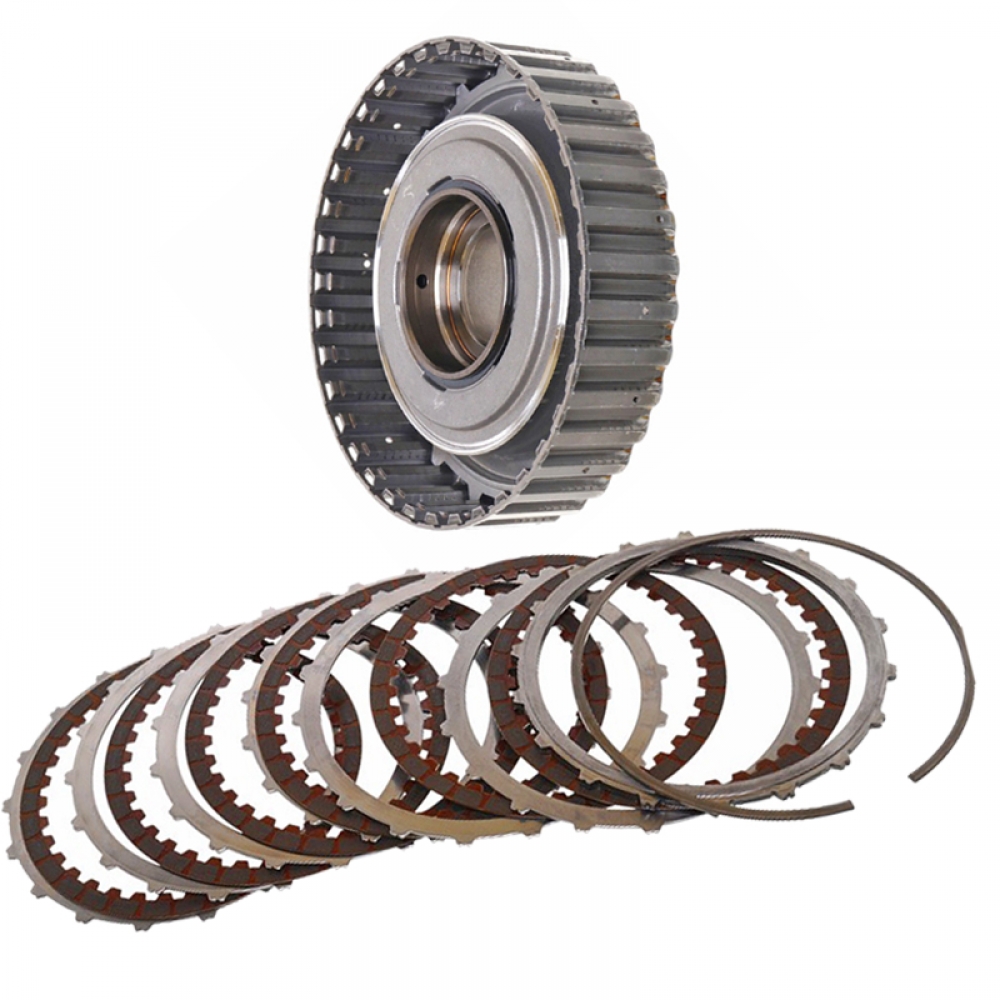

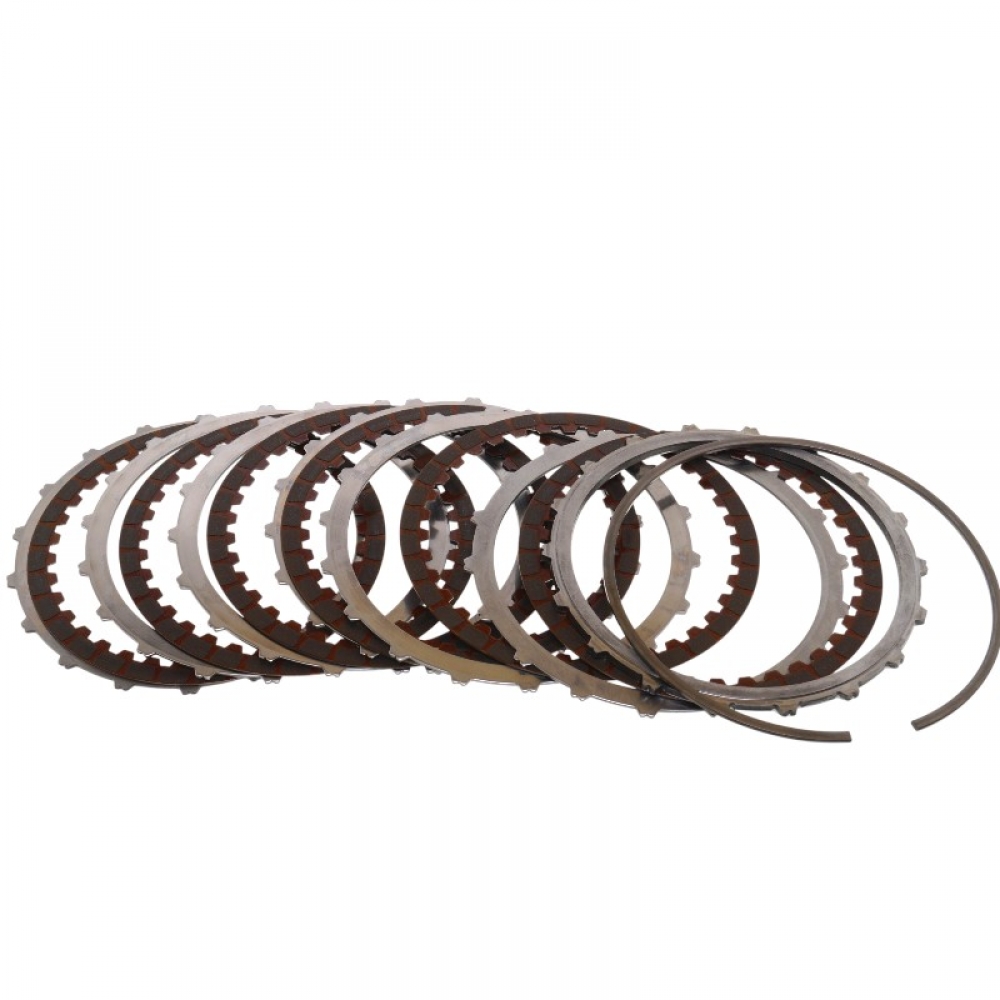

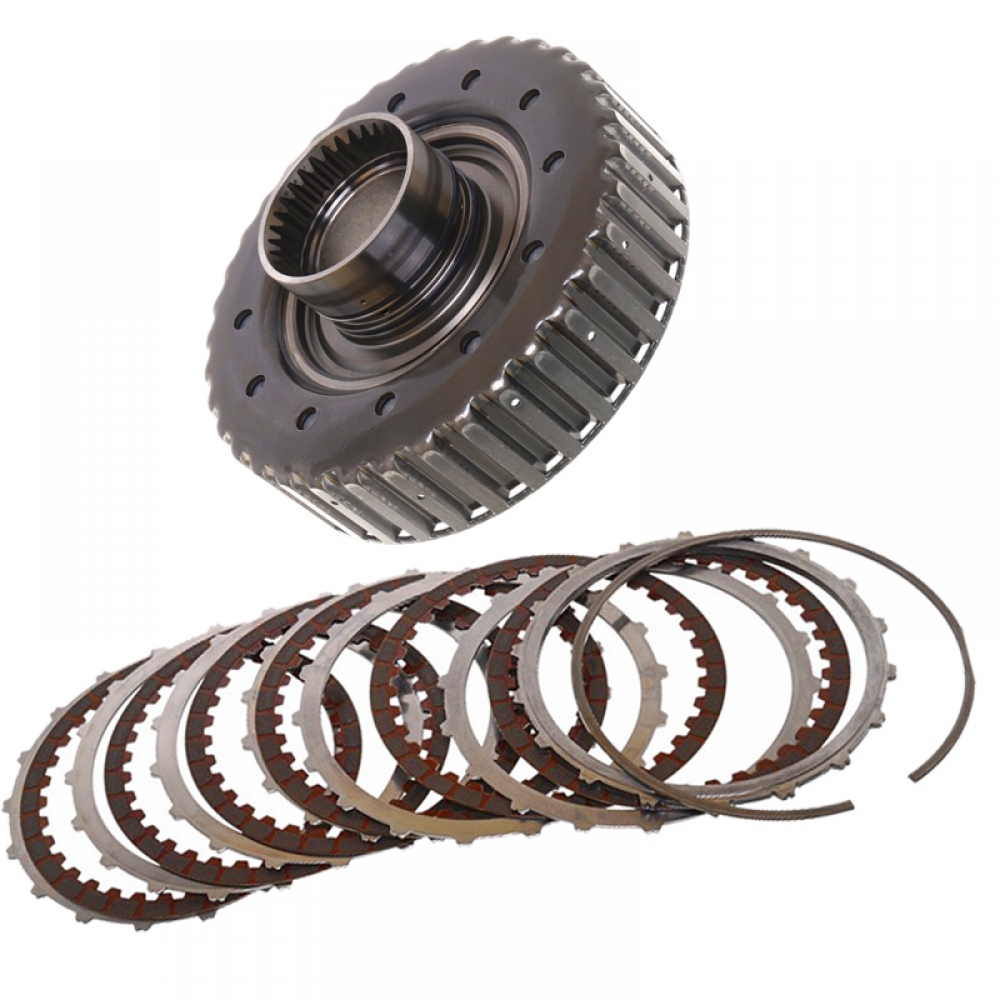

C3 Clutch Steel and Friction Disc Set:

• Total thickness of the set - 27.50 (26.60) mm;

Support disk:

• Thickness - 5 mm;
• Inner diameter - 146.20 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 163.30 pcs.;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 2.03 mm;
• Inner diameter - 146.20 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 6 pcs.;
