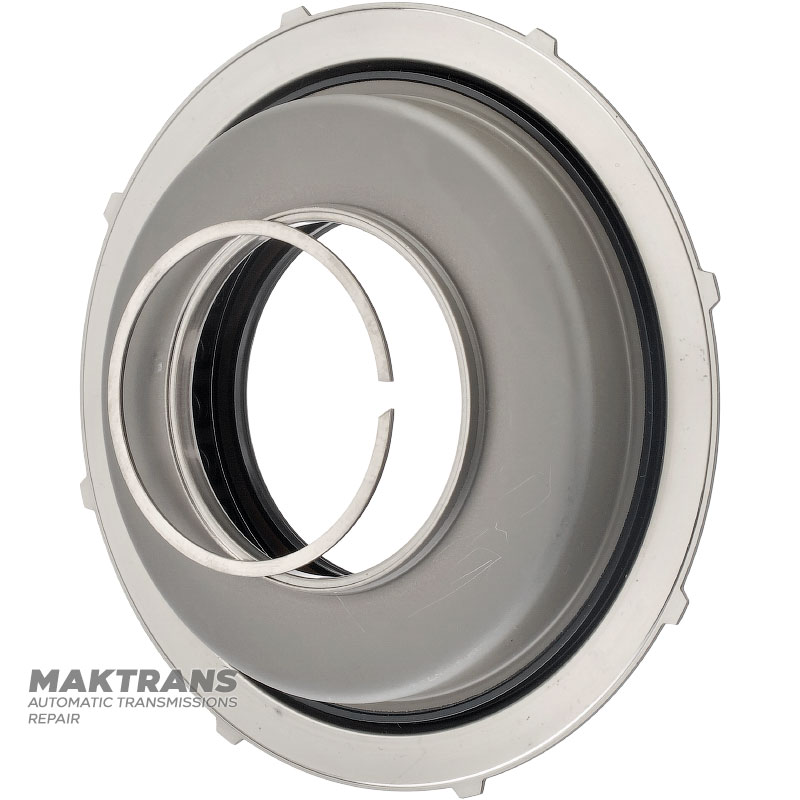

C4 Clutch Piston Aisin Warner AWF8G45 - Includes Return Spring

Piston:

• Overall height - 13.50 mm;
• Outer diameter - 135.80 mm;
• Inner diameter - 63.50 mm;
• Number of teeth on the outer side - 8 pcs.;
• Piston marking - BPS115A1;

Return spring:

• Height - 20.21 mm;
• Outer diameter - 99.35 mm;
• Inner diameter - 76.35 mm;

Return spring cover (retainer):

• Overall height - 22.50 mm;
• Outer diameter - 112.70 mm;
• Inner diameter - 59.90 mm;
• Piston marking - BPS112A1;
