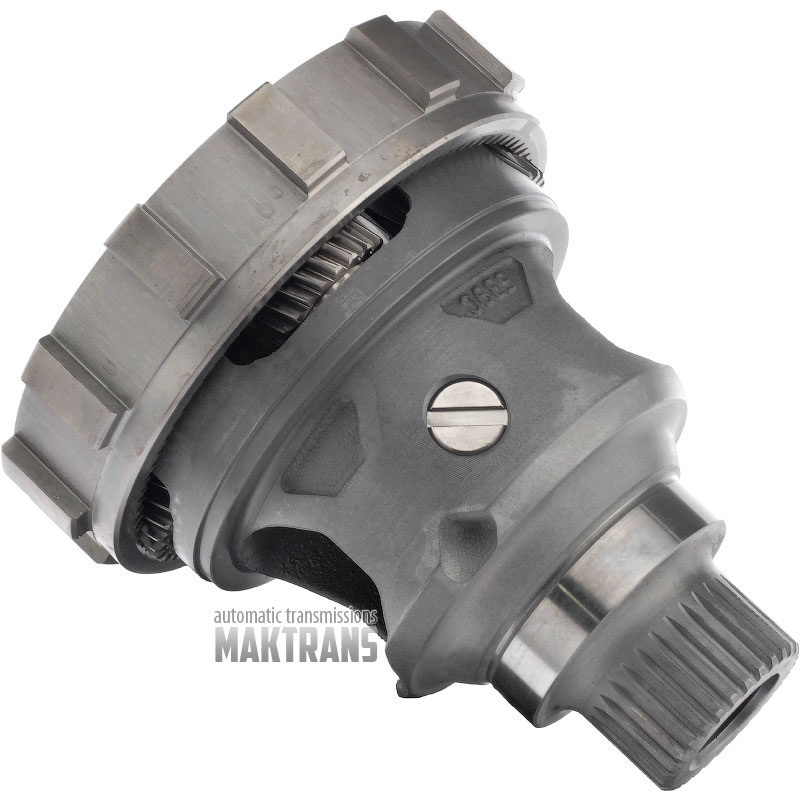

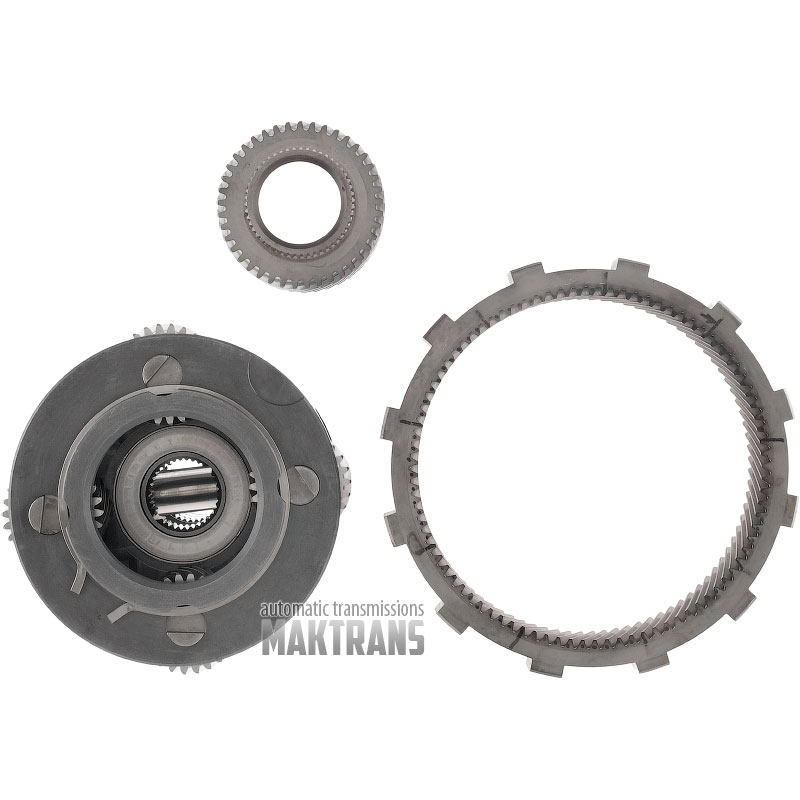

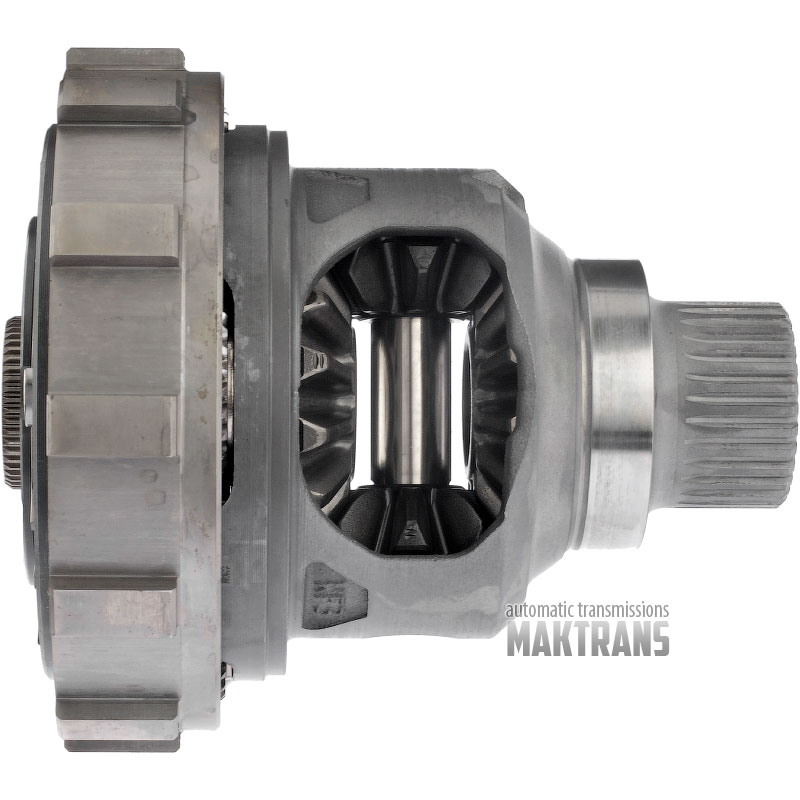

Differential 4WD FORD 8F35 JM5P-7F465-GH / [4 satellites (24 teeth on the satellite), sun gear 41 teeth (Ø 59.60 mm)]

Differential:

• Total height - 166 mm;
• The number of splines for the transfer case is 30 pcs.;
• The outer diameter of the spline part for the transfer case is 45.90 mm;
• Inner diameter for the axle shaft - 27 mm;
• The outer diameter of the satellite housing is 121.95 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 24 pcs.;

Sun gear:

• Overall height -
• Number of teeth - 41 pcs.;
• Gear outer diameter - 59.60 mm;
• Gear width - 34.55 mm;
• Inner diameter - 28.55 mm;
• Number of splines - 50 pcs.;
• The outer diameter of the spline part is 38.05 mm;

Ring gear:

• Gear width - 34.45 mm;
• The number of teeth on the gear is 89 mm;
• Number of teeth on the outside - 12 pcs.;
