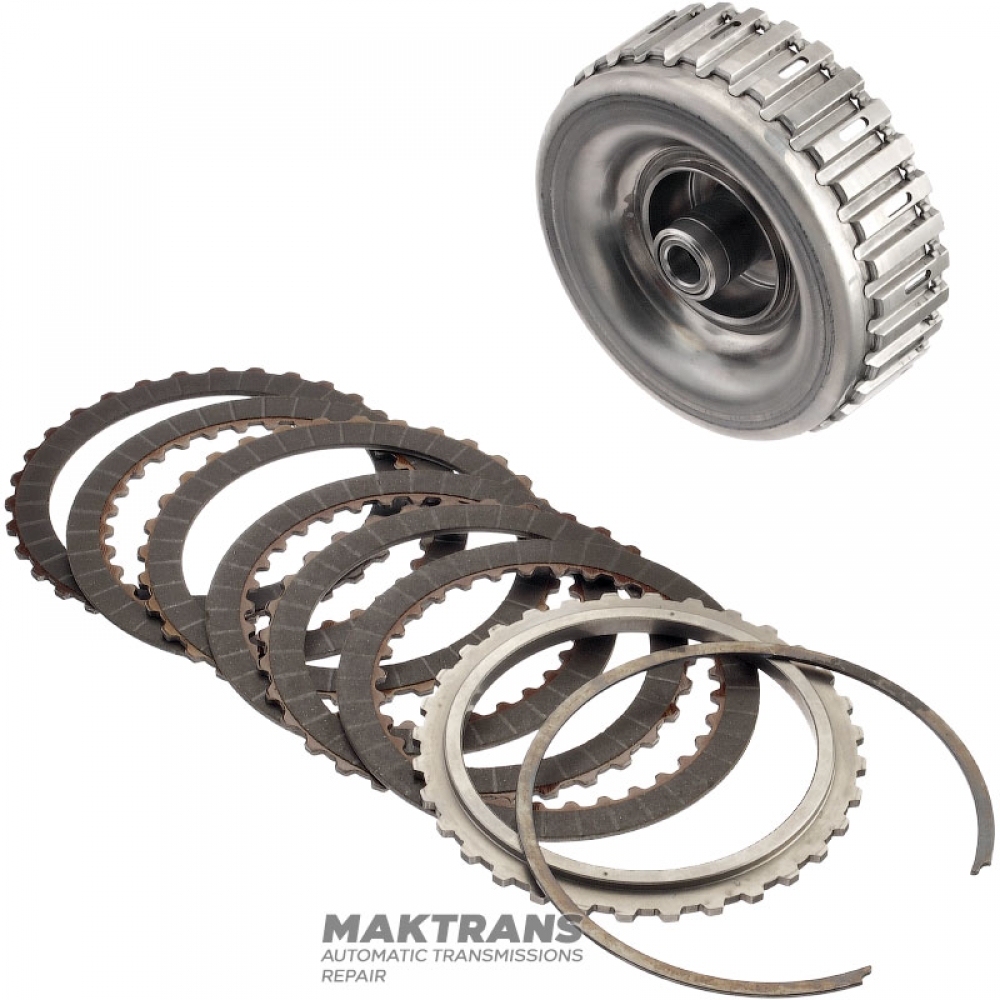

DIRECT 3-4 Clutch Drum Assembly 4F27E, FN4AEL, FNR5, FS5AEL 99-up - 6 single-sided friction discs (total thickness of the kit 18.20 mm (21.15 mm))

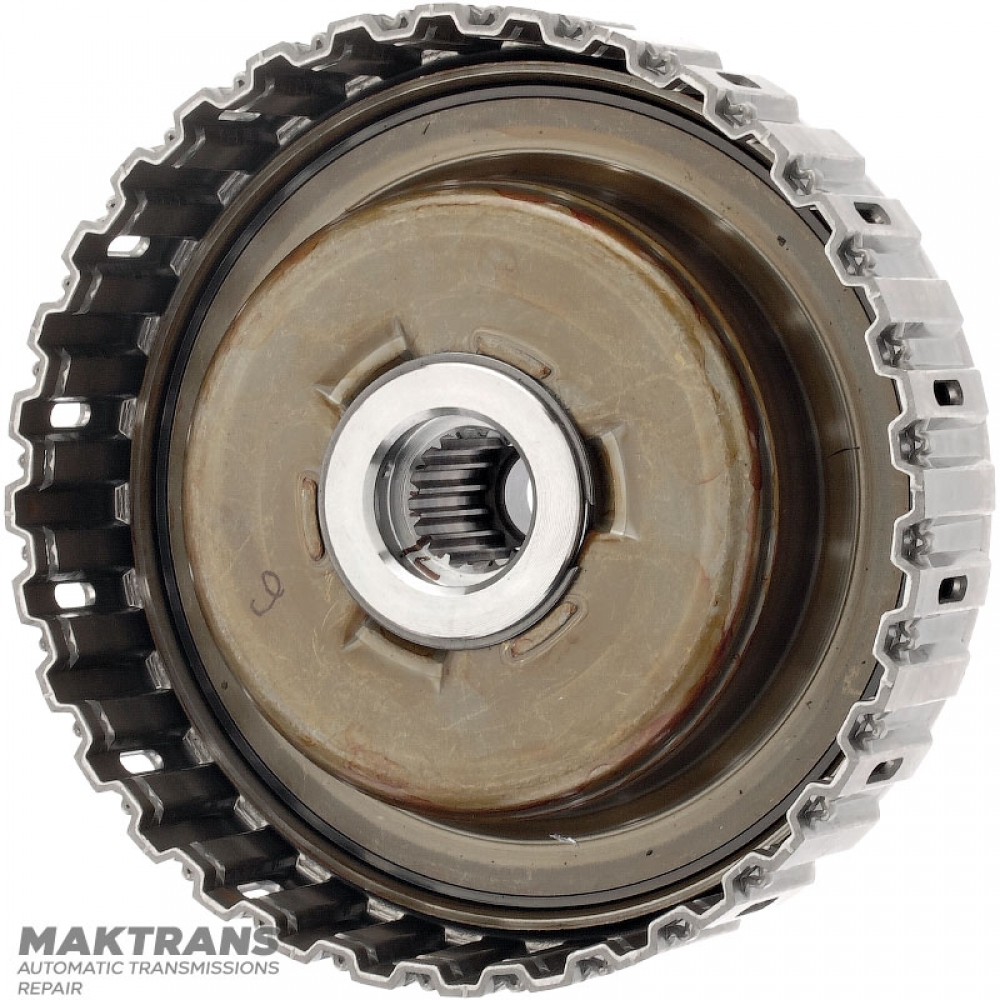

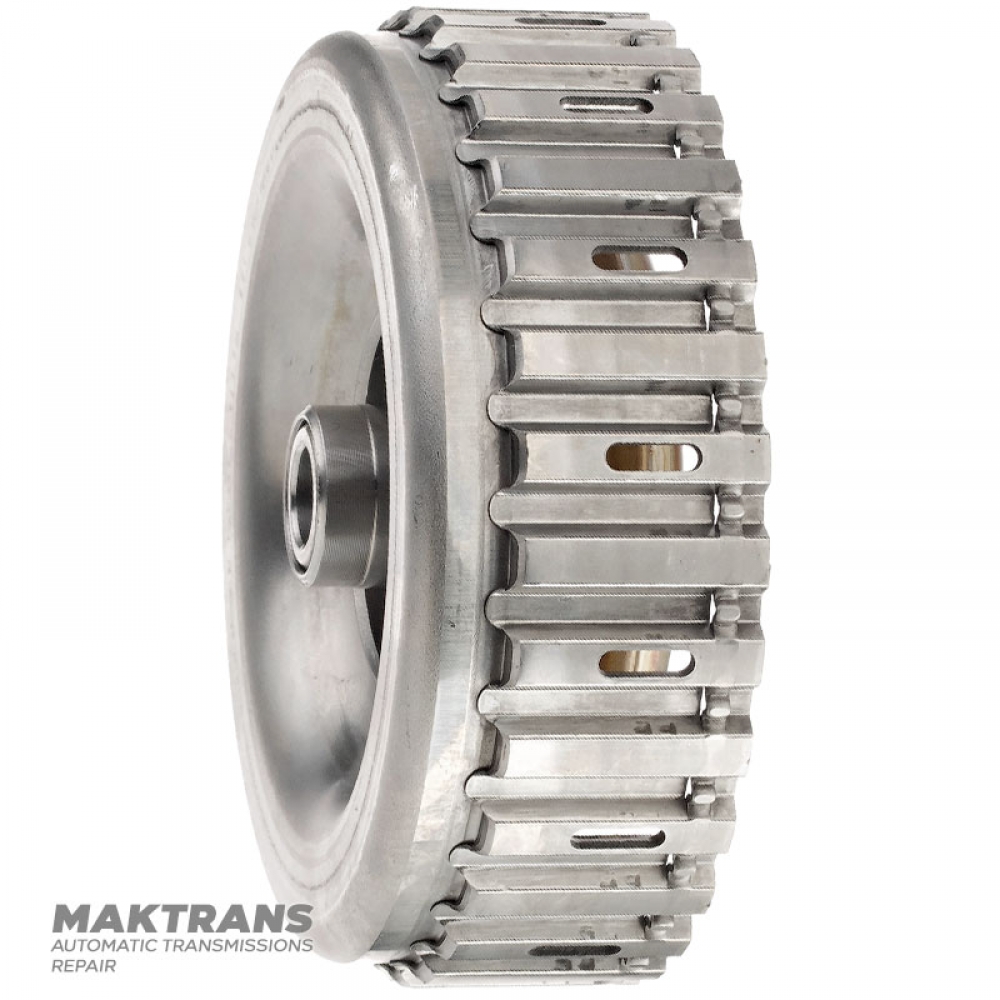

Drum DIRECT 3-4 Clutch:

• Overall height - 43 mm;
• Drum outer diameter - 125.50 mm;
• Number of splines on the inner side - 16 pcs.;
• Inner diameter under the hub - 47.35 mm;
• Height from piston to retaining ring - 19 mm;

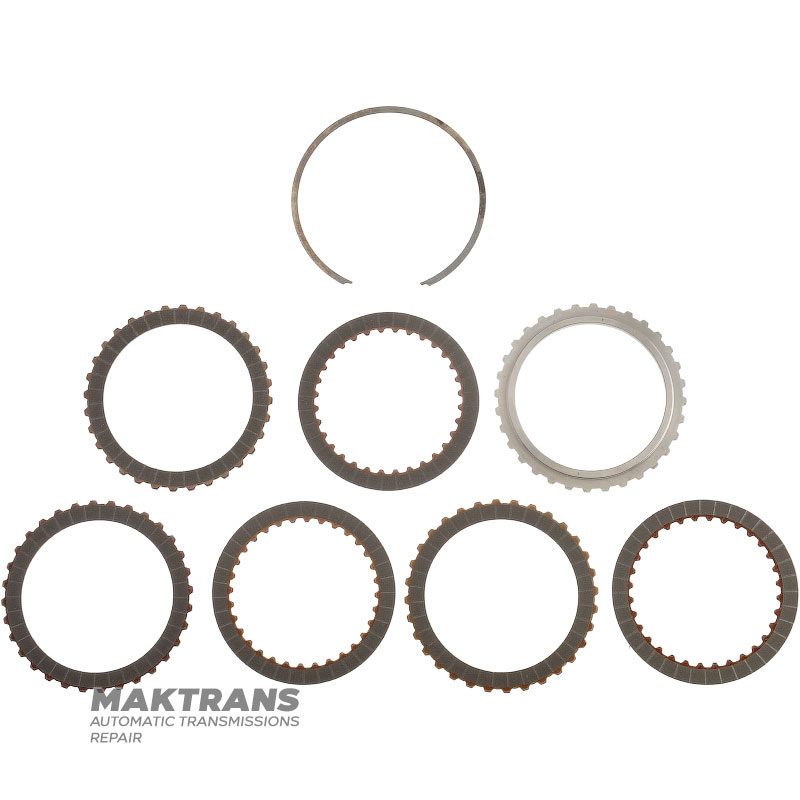

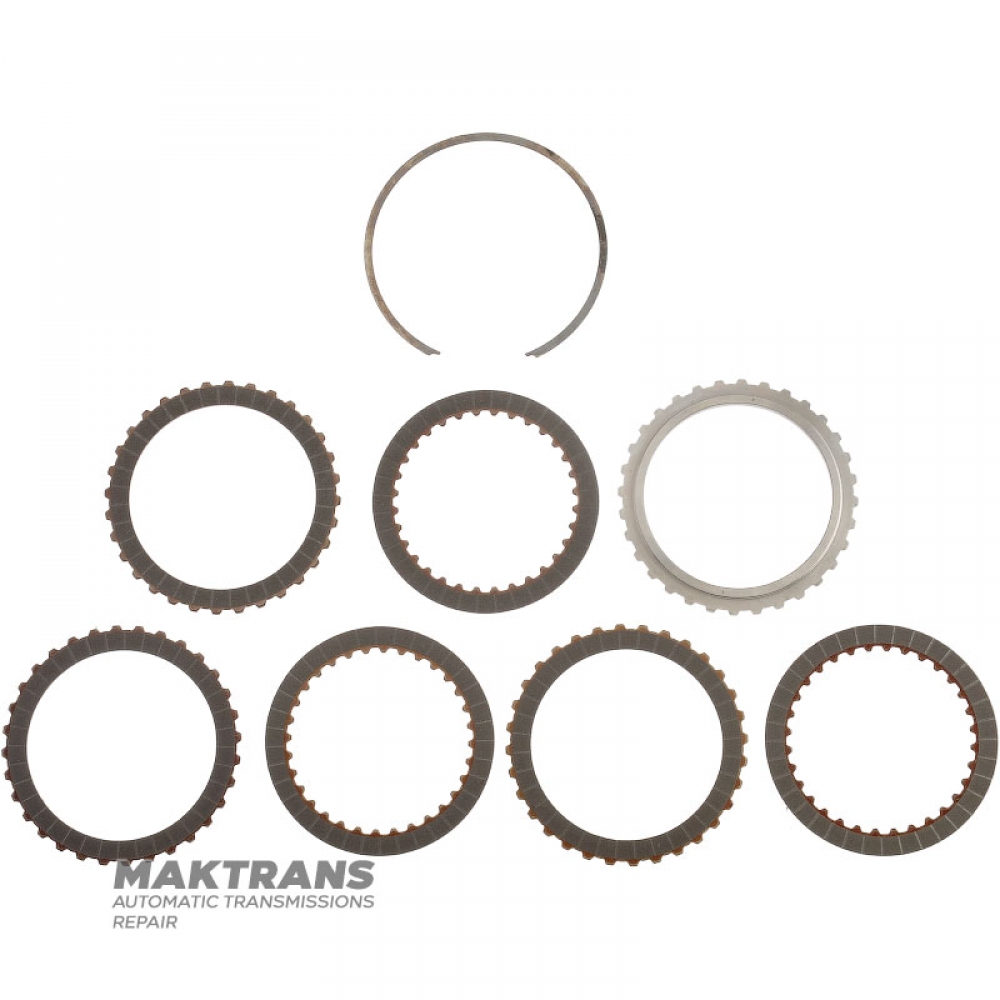

DIRECT 3-4 Clutch Steel and Friction Disc Set:

• Total thickness of the set - 19.80 mm;

Support disk:

• Thickness - 5.90 mm / 3.02 mm;
• Inner diameter - 94.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc (single-sided, internal teeth):

• Thickness - 2.50 mm;
• Outer diameter - 114.40 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

Friction disc (single-sided, external teeth):

• Thickness - 2.55 mm;
• Inner diameter - 95.05 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;
