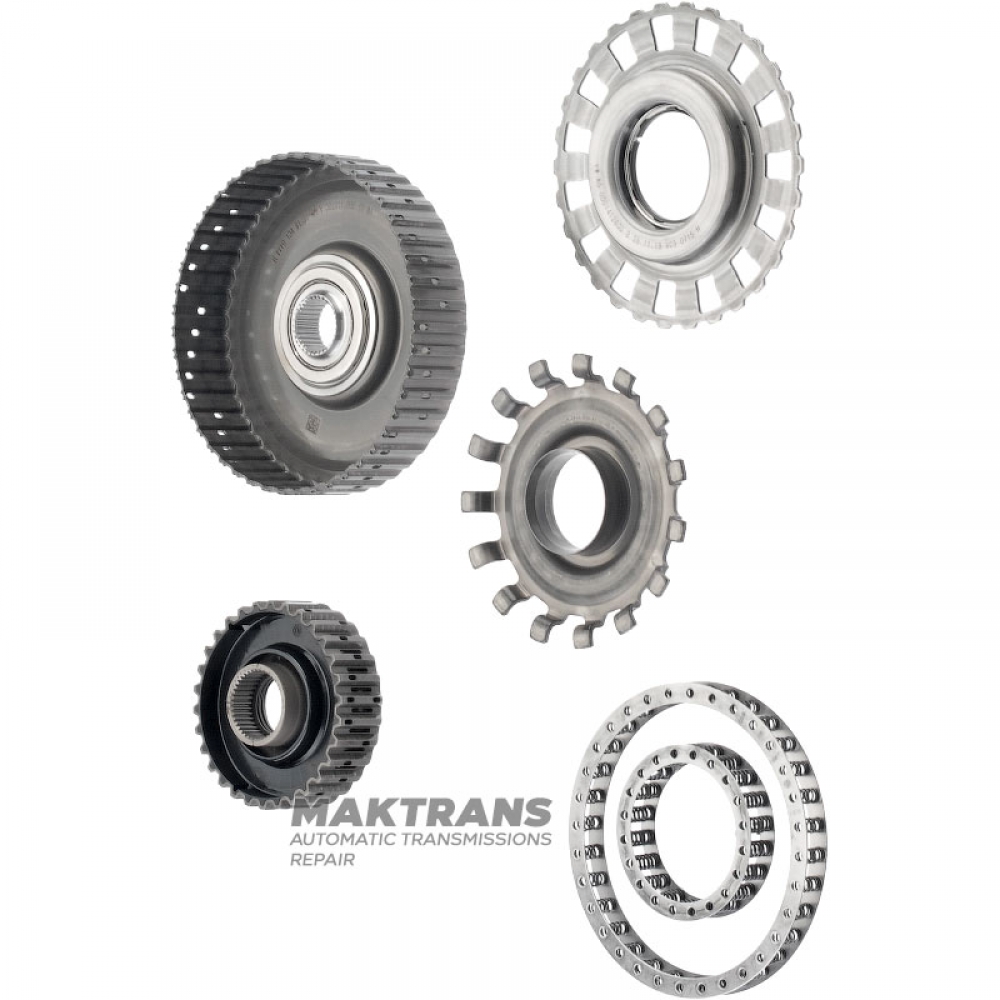

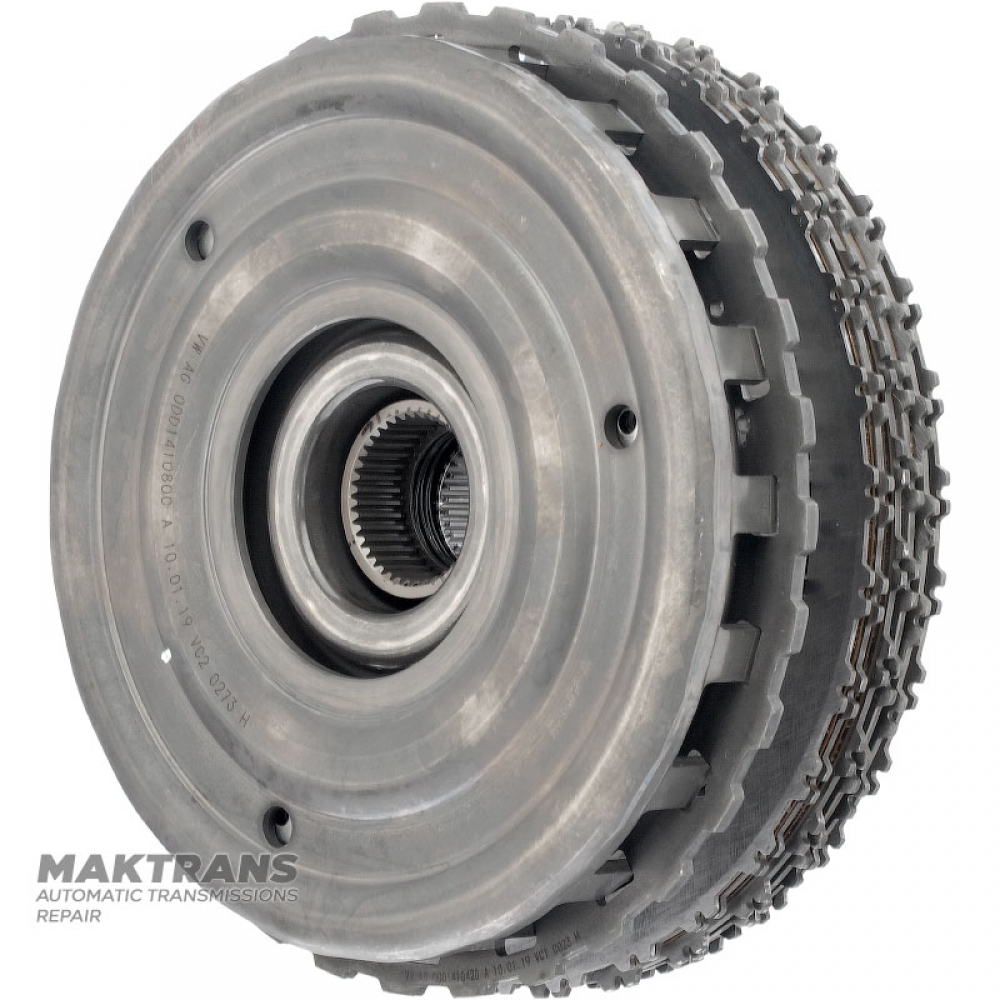

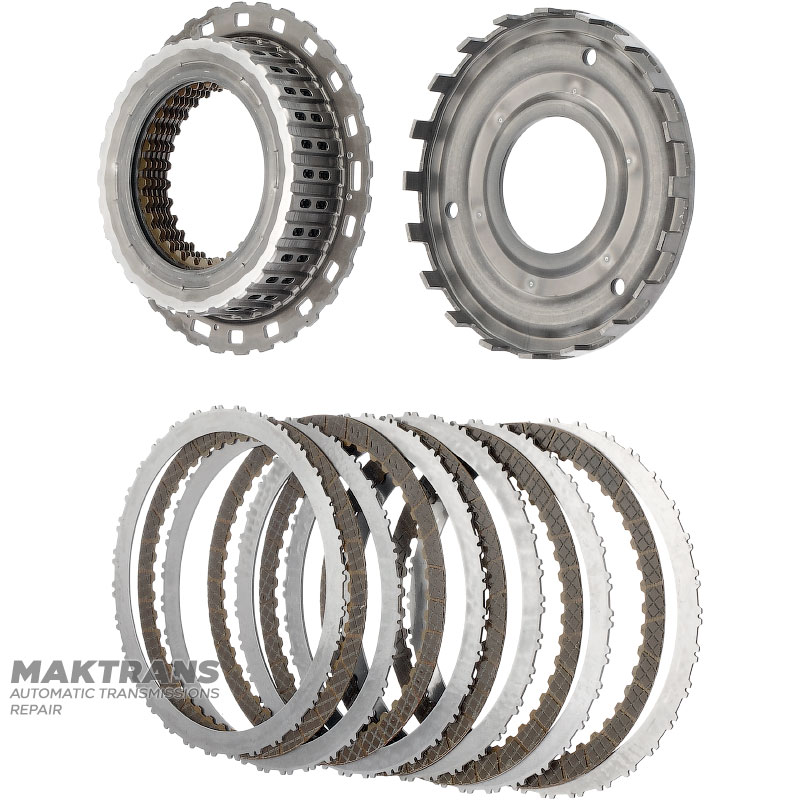

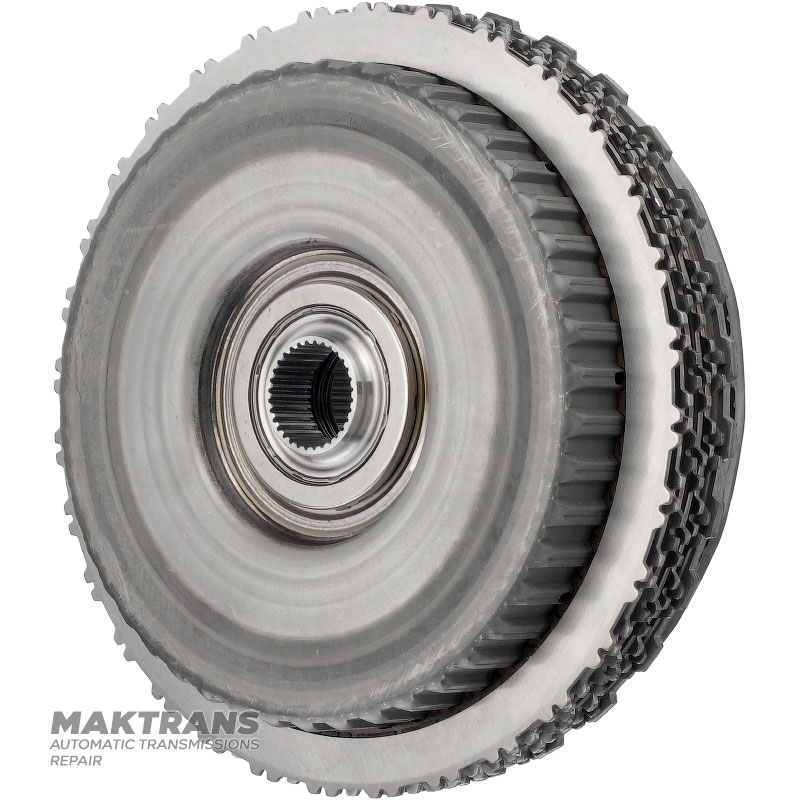

Double wet clutch VAG eHybrid 0DD DQ400 0DD141040D 0DD141280D 0DD141070C 0DD141042D 0DD141080C - K1 Clutch 5 friction discs (package thickness 20.40 mm) / K2 Clutch 6 friction discs (package thickness 24. 10 mm)

• Total height - 39 mm;
• Outer diameter - 163.50 mm;
• Number of splines - 32 pcs.;

• The total thickness of the set is 20.40 mm;

Steel disc:

• Thickness - 1.50 mm;
• Inner diameter - 165.85 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 2 pcs.;

Steel disc:

• Thickness - 1.70 mm;
• Inner diameter - 165.85 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 2 pcs.;

Steel disc:

• Thickness - 1.90 mm;
• Inner diameter - 165.85 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 2 pcs.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 189.30 mm;
• Number of teeth - 47 pcs.;
• Number of discs included - 5 pcs.;

• Total height - 39 mm;
• Outer diameter - 100.40 mm;
• Number of splines - 40 pcs.;

• The total thickness of the set is 24.10 mm;

Steel disc:

• Thickness - 1.50 mm;
• Inner diameter - 103.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 3 pcs.;

Steel disc:

• Thickness - 1.70 mm;
• Inner diameter - 103.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 2 pcs.;

Steel disc:

• Thickness - 1.90 mm;
• Inner diameter - 103.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 2 pcs.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 141.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 6 pcs.;
