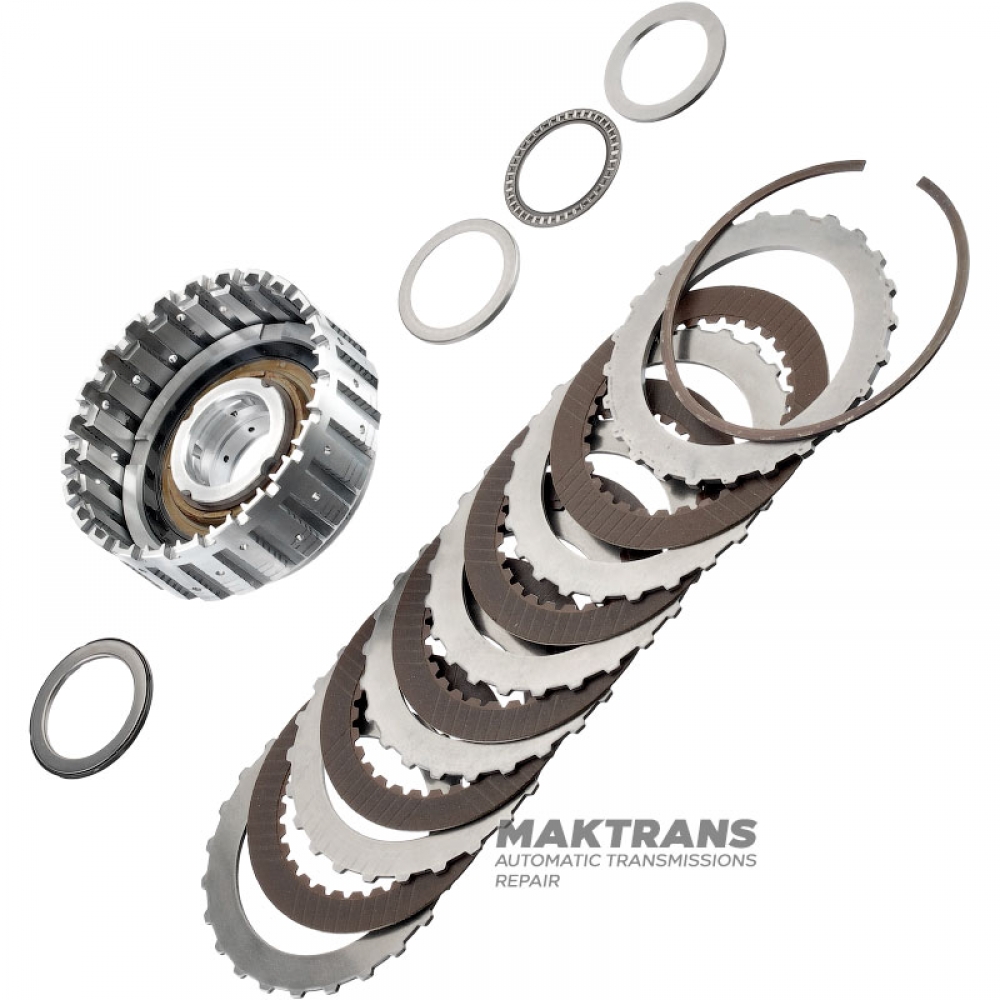

Drum (assembled with discs) HIGH / LOW REVERSE NISSAN RE5R05A RE7R01A / JATCO JR507A JR710E - drum height 67 mm, 5 friction discs (total thickness of the kit 24.15 mm)

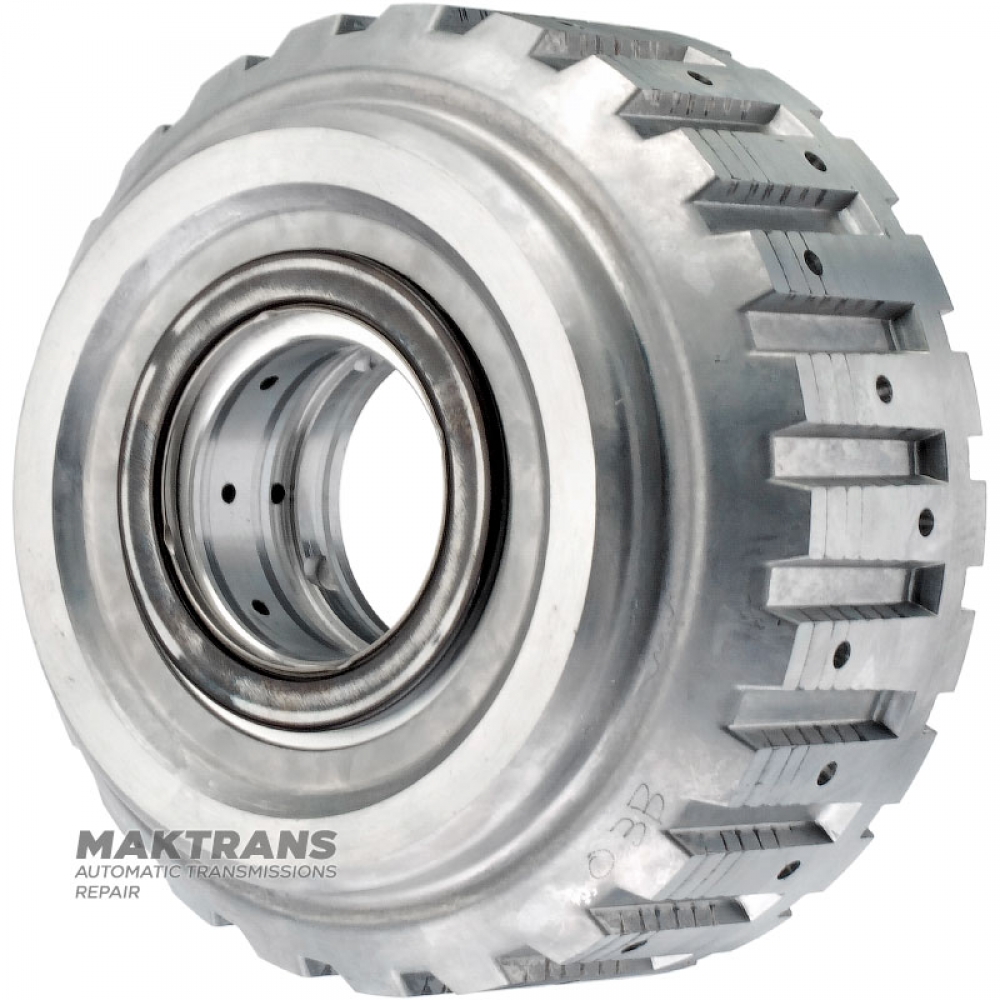

Drum:

• Overall height - 67 mm;
• Drum outer diameter - 138.85 mm;
• Inner diameter - 44.60 mm;
• Height from piston to retaining ring - 25 mm;

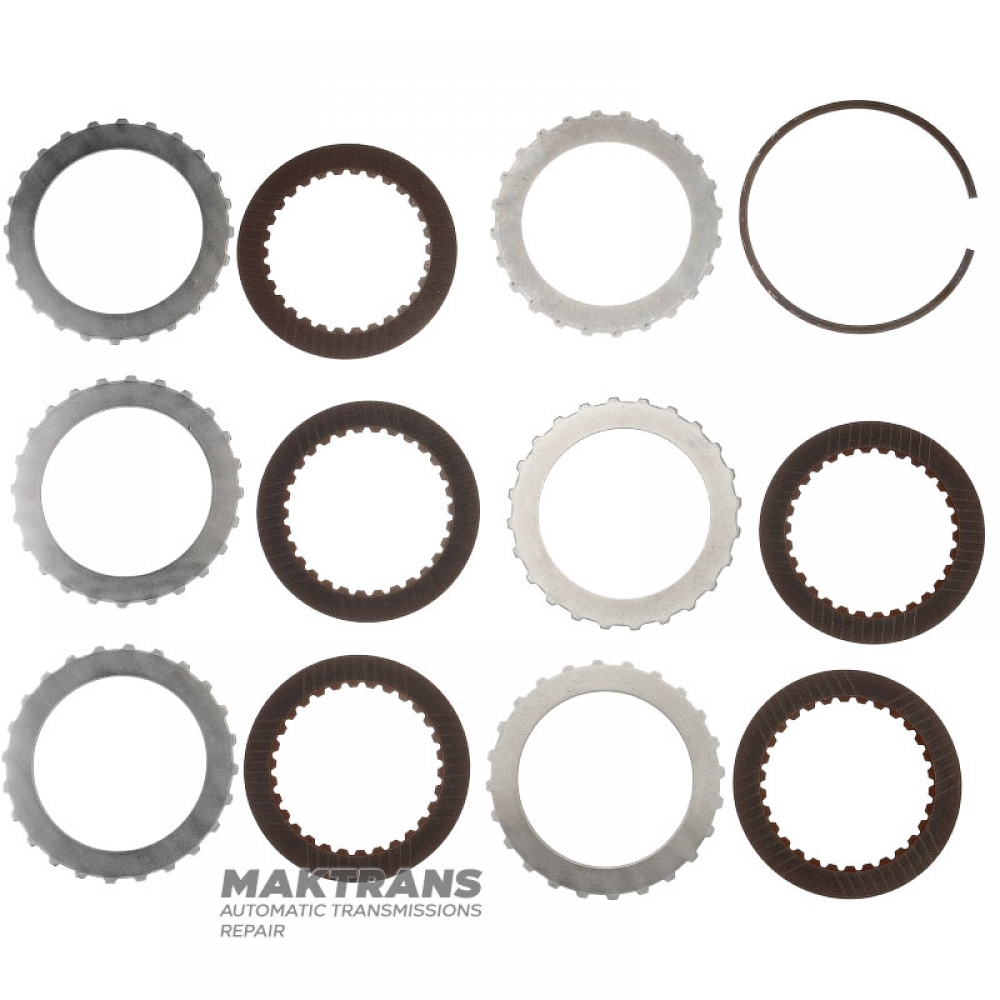

Set of steel and friction discs:

• The total thickness of the set is 24.15 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 95 mm;
• Number of teeth - 24 pcs.;
• Number of teeth in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 124.25 mm;
• Number of teeth - 30 pcs.;
• Number of teeth in the set - 5 pcs.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 95 mm;
• Number of teeth - 24 pcs.;
• Number of teeth in the set - 5 pcs.;
