Drum C2 Clutch / C3 Clutch TOYOTA / LEXUS A750E, A750F, A760E, A760F — C2 Clutch (5 friction discs, total kit thickness 23.45 mm) / C3 Clutch (5 friction discs, total kit thickness 22.05 mm)

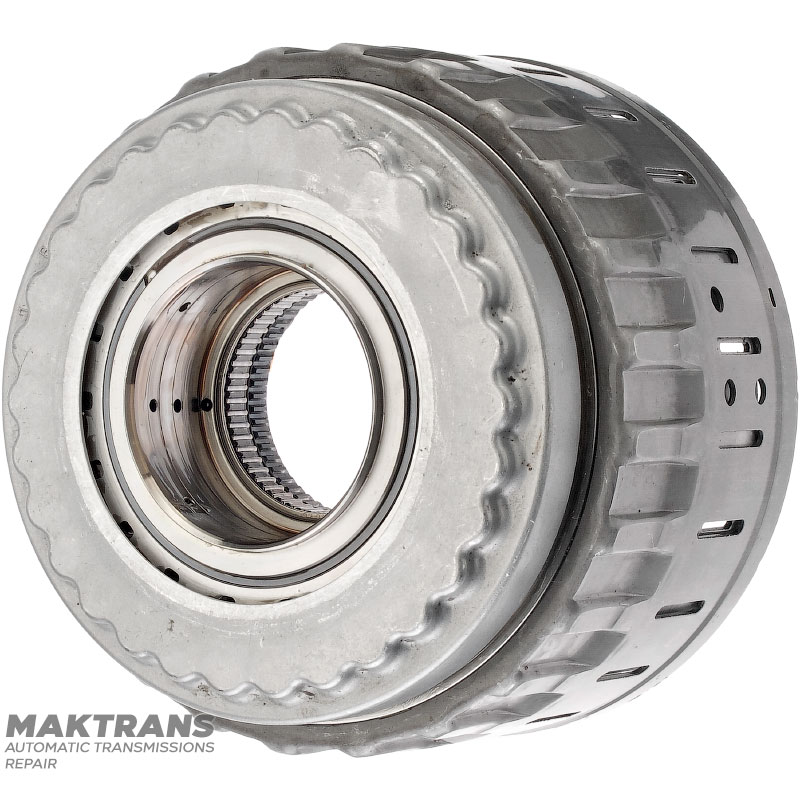

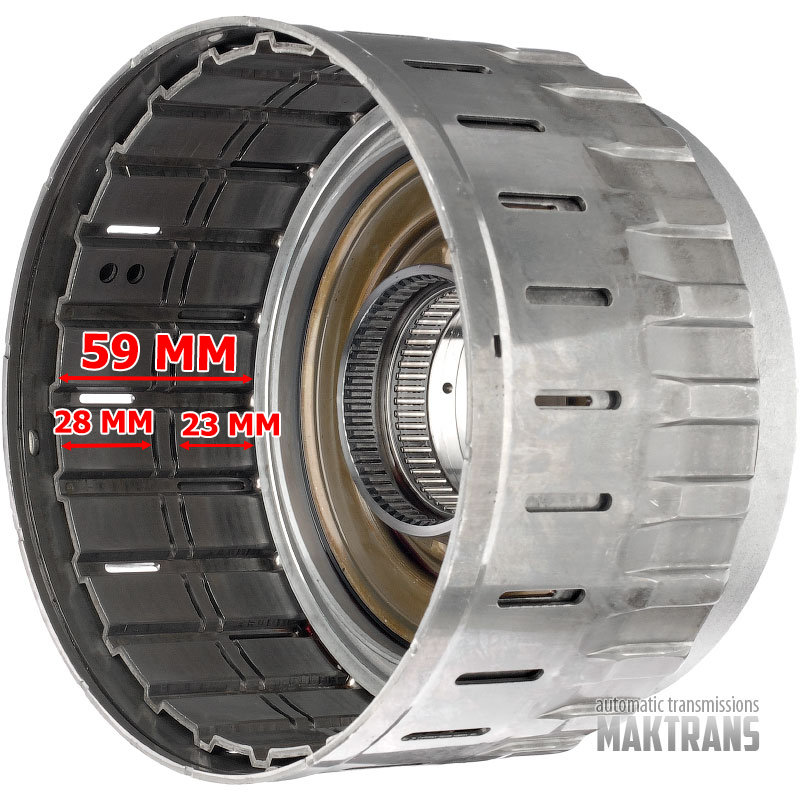

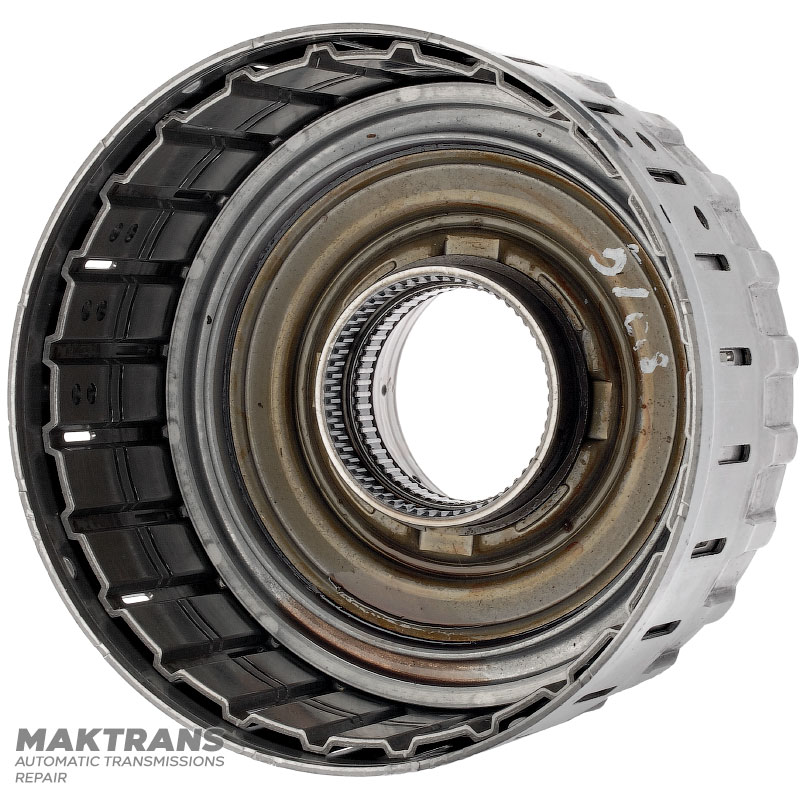

Drum:

• Overall height - 123 mm;
• Drum outer diameter - 180.25 mm;
• Number of splines on the inner side - 57 pcs.;
• Inner diameter under the drum hub - 67.59 mm;

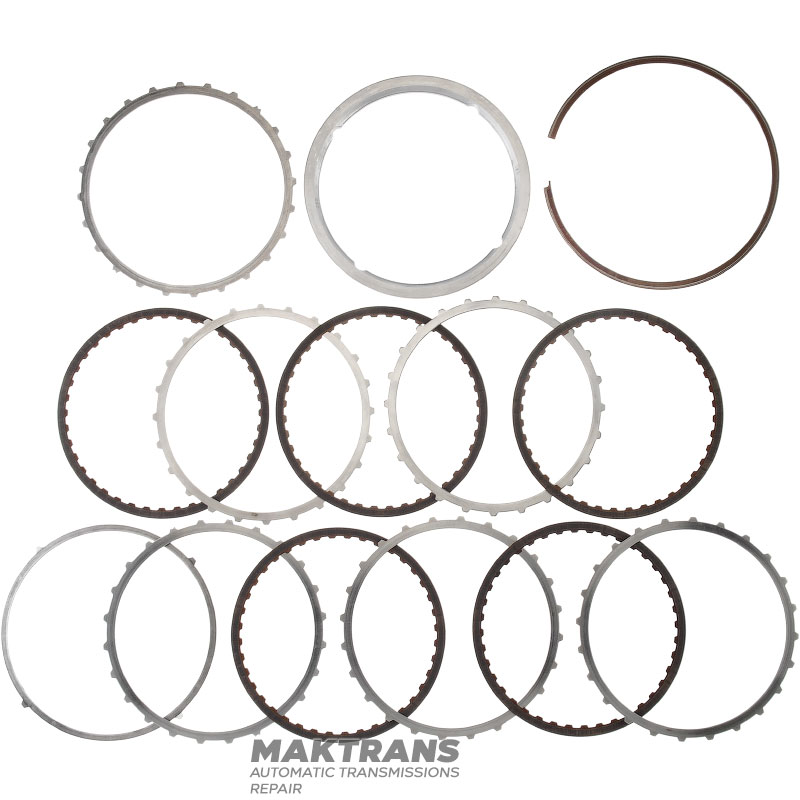

Steel and friction disc set C3 (Reverse):

• Total thickness of the set (without aluminum and spring disc) - 23.95 mm;

Aluminum support disc:

• Thickness - 9.60 mm;
• Outer diameter - 174.65 mm;
• Inner diameter - 149.20 mm;

Support disk:

• Thickness - 3.13 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.45 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 1.47 mm;
• Outer diameter - 161.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Pressure disc:

• Thickness - 3.04 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.48 mm;
• Inner diameter - 151.35 mm;
• Number of teeth - 4 pcs.;
• Number of discs in the set - 1 pc.;

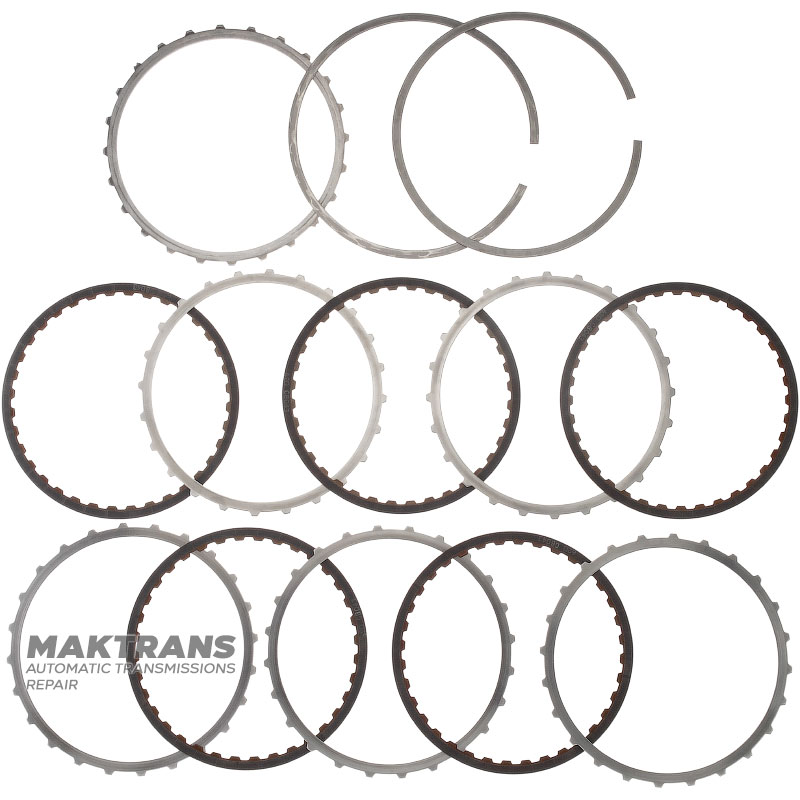

Set of steel and friction discs C2 (Direct):

• The total thickness of the set is 22.25 mm;

Support disk:

• Thickness - 3.45 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1..80 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 161.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;
