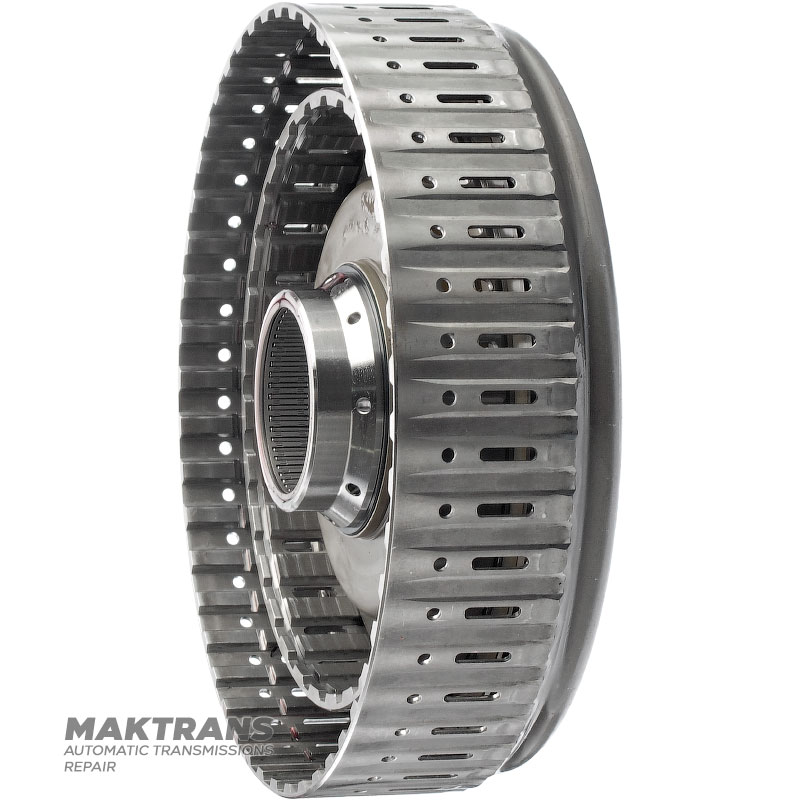

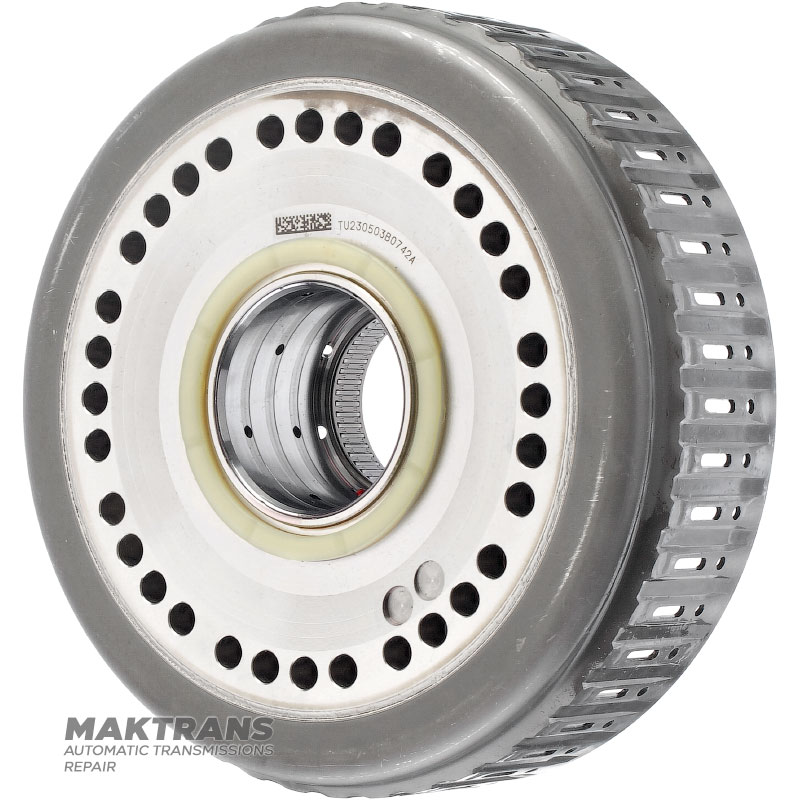

Drum C3 / C4 Clutch TOYOTA \ LEXUS UA81E UA81F 3461078010 – C3 Clutch (3 friction discs), C4 Clutch (3 friction discs)

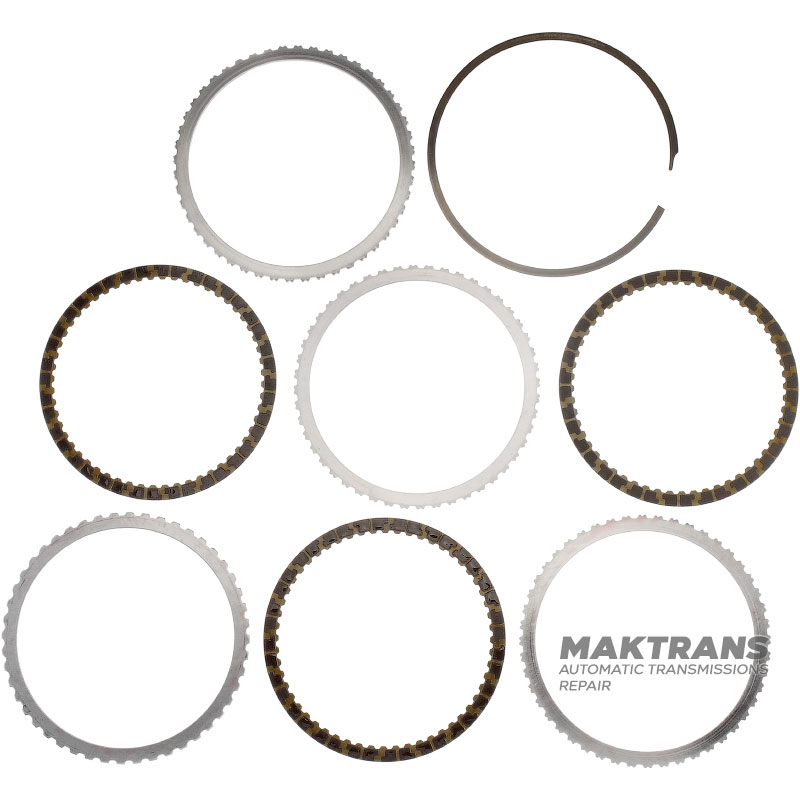

C3 Clutch:

• Height from piston to retaining ring - 16 mm;
• The total thickness of the set is 15.80 mm;

Support disk:

• Thickness - 4.20 mm;
• Inner diameter - 157.35 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 175.15 mm;
• Number of teeth - 56 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 157.25 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 2 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 157.25 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

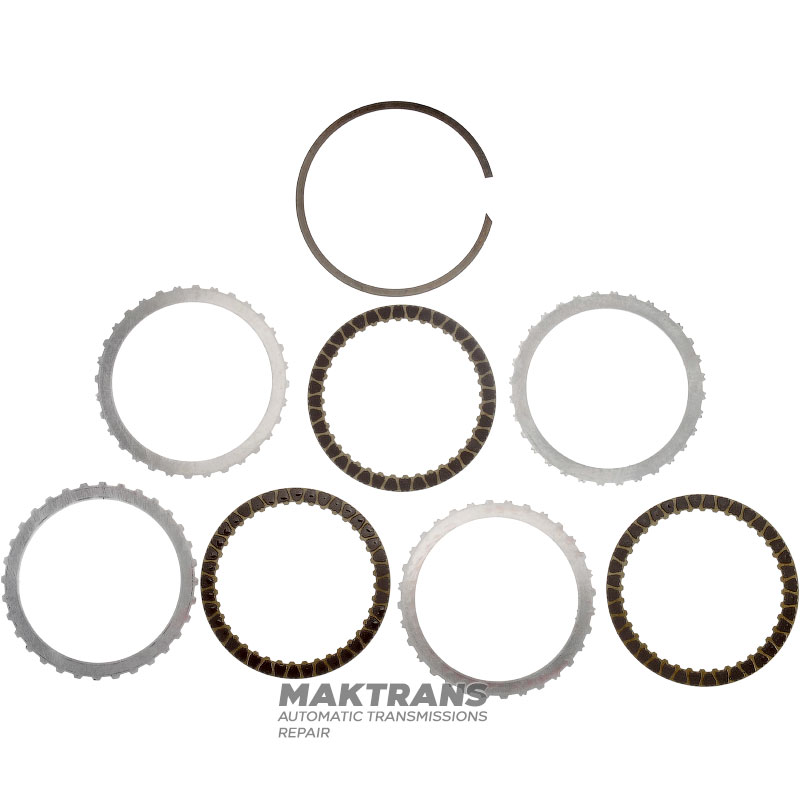

C4 Clutch:

• Height from piston to retaining ring - 17.50 mm;
• The total thickness of the set is 18.45 mm;

Support disk:

• Thickness - 4.25 mm;
• Inner diameter - 114.60 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.90 mm;
• Outer diameter - 134.95 mm;
• Number of teeth - 40 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 2.05 mm;
• Inner diameter - 114.55 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 114.60 mm;
• Number of teeth - 32 pcs.;
• Number of disks in the set - 1 pc.;
