Drum Direct Clutch A4LD 4R44E, 4R55E, 5R44E, 5R55E - 5 friction discs, 88GT-7D047-CA

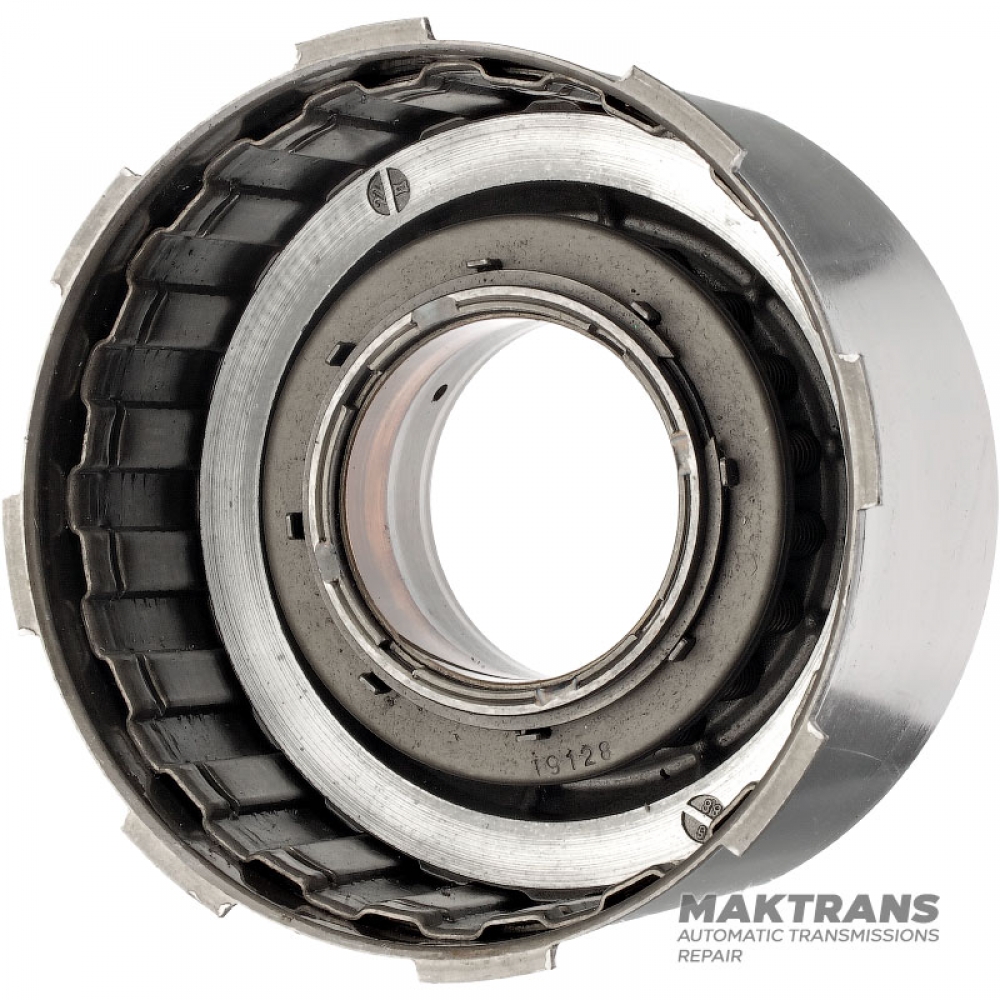

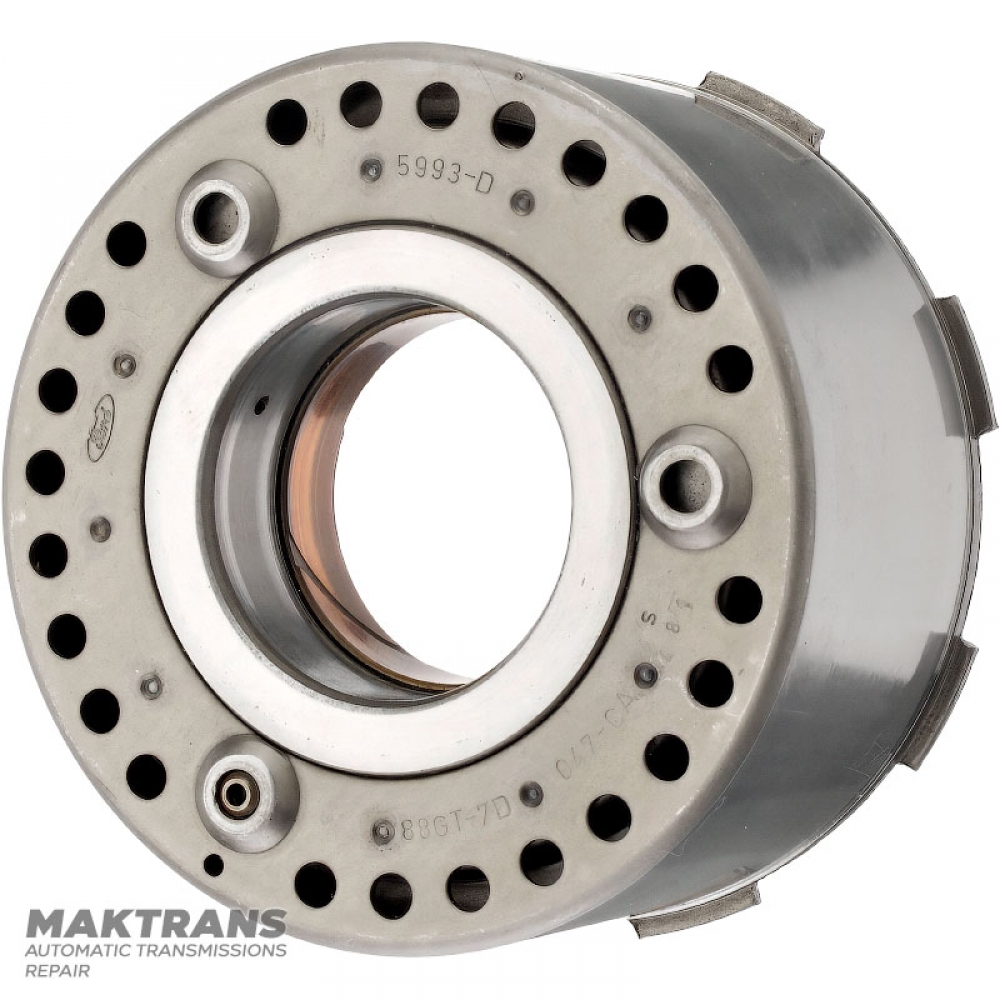

DIRECT Clutch Drum:

• Overall height - 74 mm;
• Number of teeth on the crown - 8 pcs.;
• Outer diameter of gear ring - 144.40 mm;
• Drum outer diameter - 136.60 mm;
• Inner diameter under the hub - 59.70 mm;
• Height from piston to retaining ring - 25 mm;

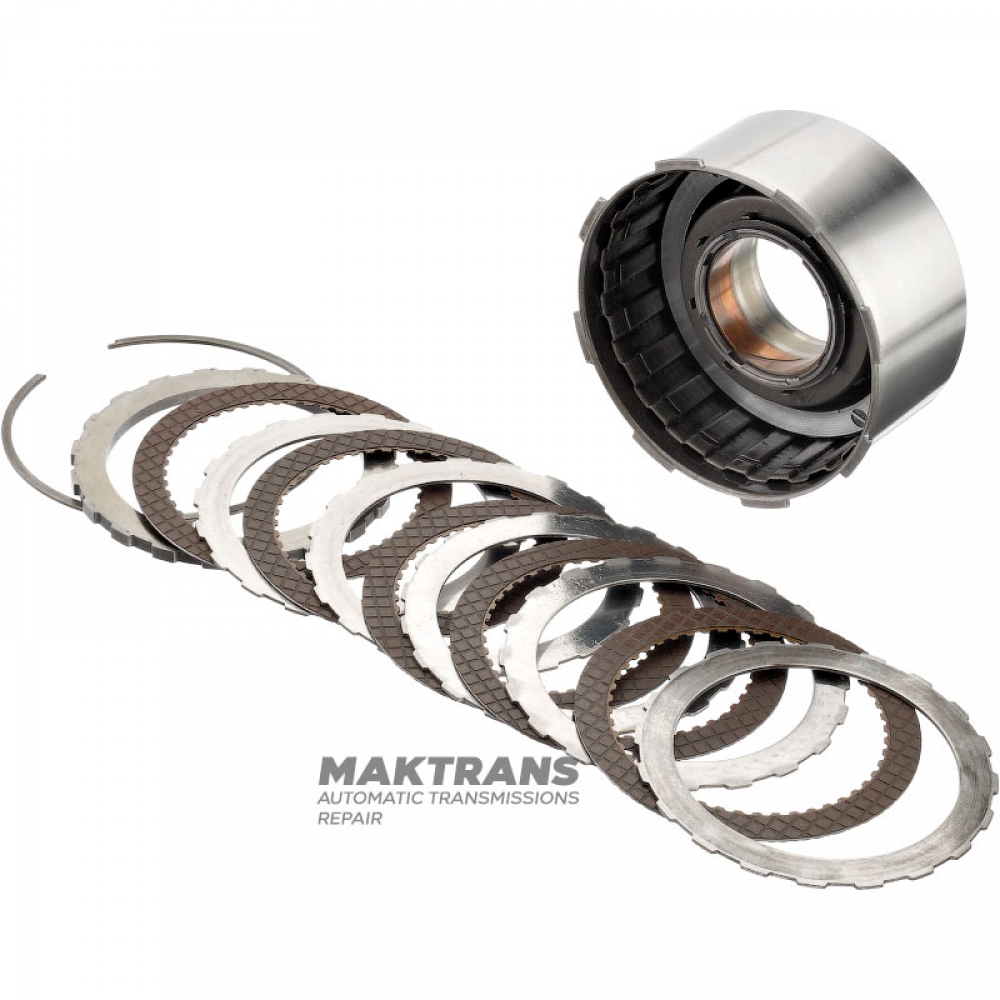

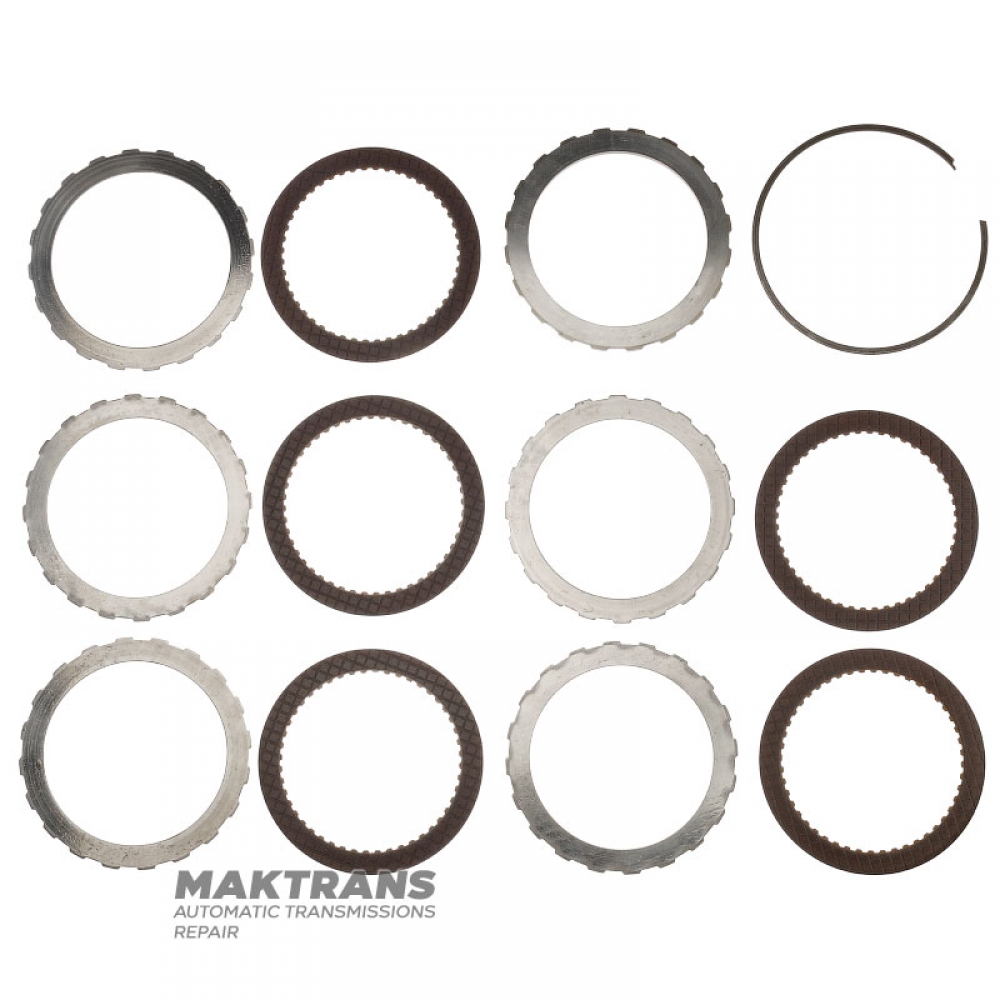

DIRECT Clutch Steel and Friction Disc Set:

• The total thickness of the set is 24.05 mm;

Support disk:

• Thickness - 5.55 mm;
• Inner diameter - 100.52 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.90 mm;
• Outer diameter - 124.20 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 100.52 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 5 pcs.;
