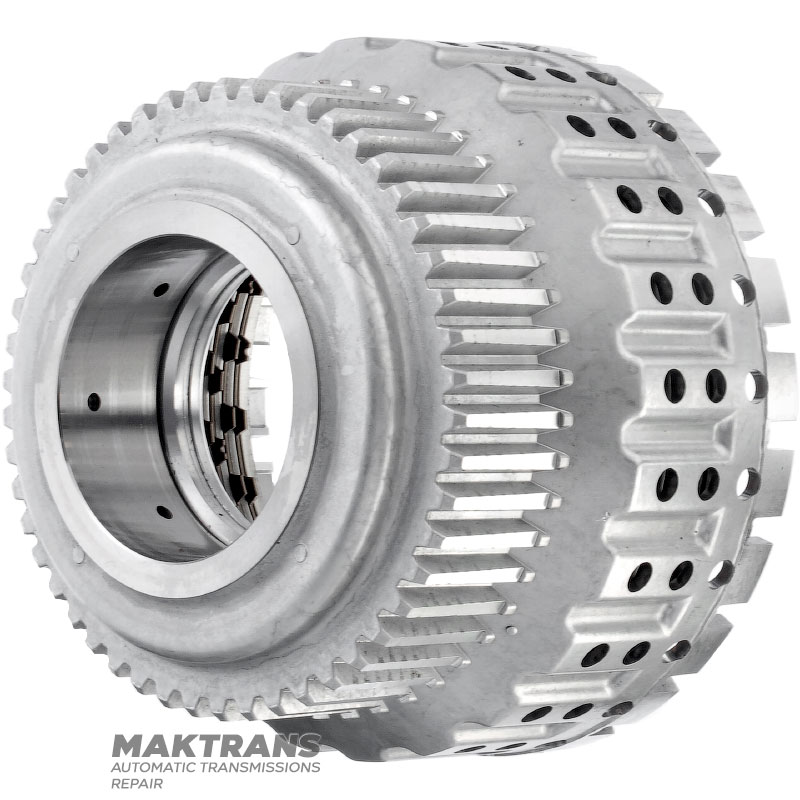

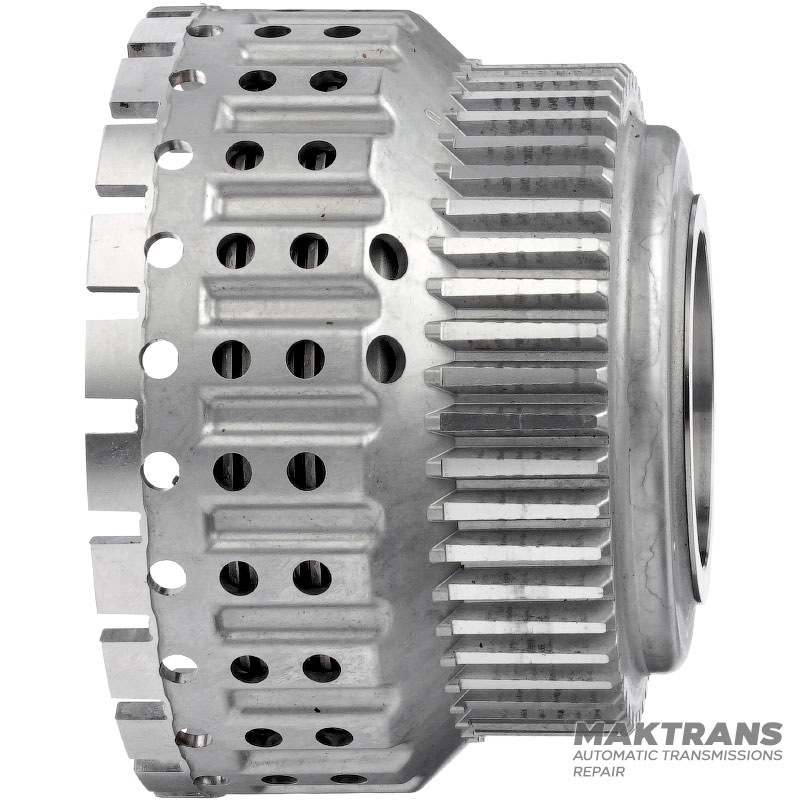

Drum DIRECT CLUTCH NISSAN (INFINITY) NISSAN (INFINITY) RE7R01A / JATCO JR710E JR711E 3150090X0B - 6 friction discs (24 teeth per disc), total thickness of the kit 29.45 mm

• Total height - 120 mm;
• Drum outer diameter - 177.40 mm;
• Inner diameter of the hub hole - 74.50 mm;
• Height from piston to retaining ring - 30 mm;

Reverse Brake Hub (B4):

• Hub outer diameter - 148.70 mm;
• Number of hub teeth - 50 pcs;
  Hub height 33 mm;

DIRECT CLUTCH steel and friction disc set:

• The total thickness of the set is 29.45 mm;

Pressure disc:

• Thickness - 3.90 mm;
• Inner diameter - 140.75 mm;
• Number of teeth - 24 pcs.;
• Number of disks in the set - 1 pc.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 158.50 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 140.75 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;
