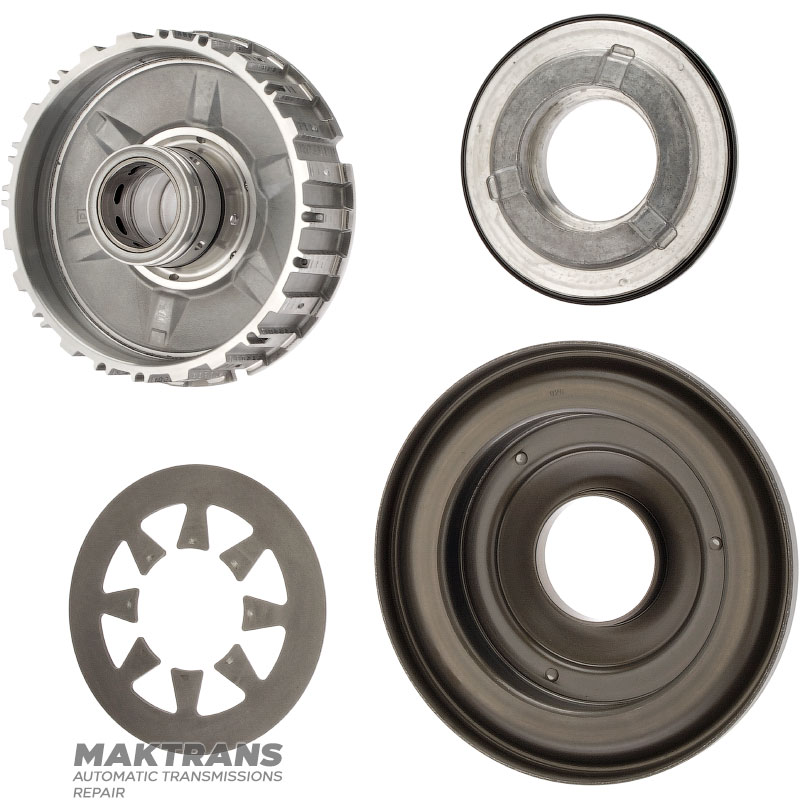

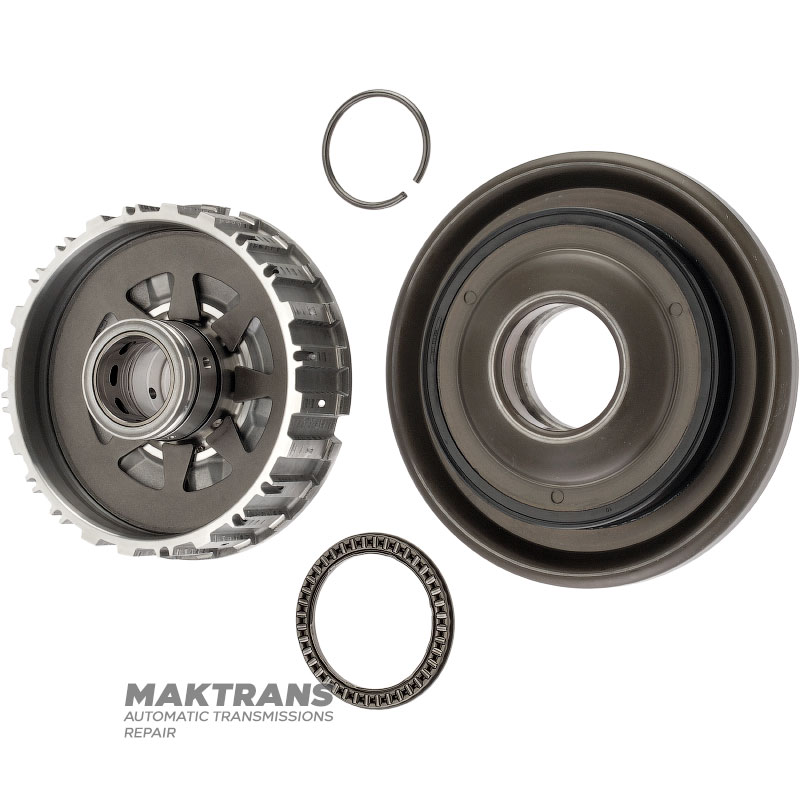

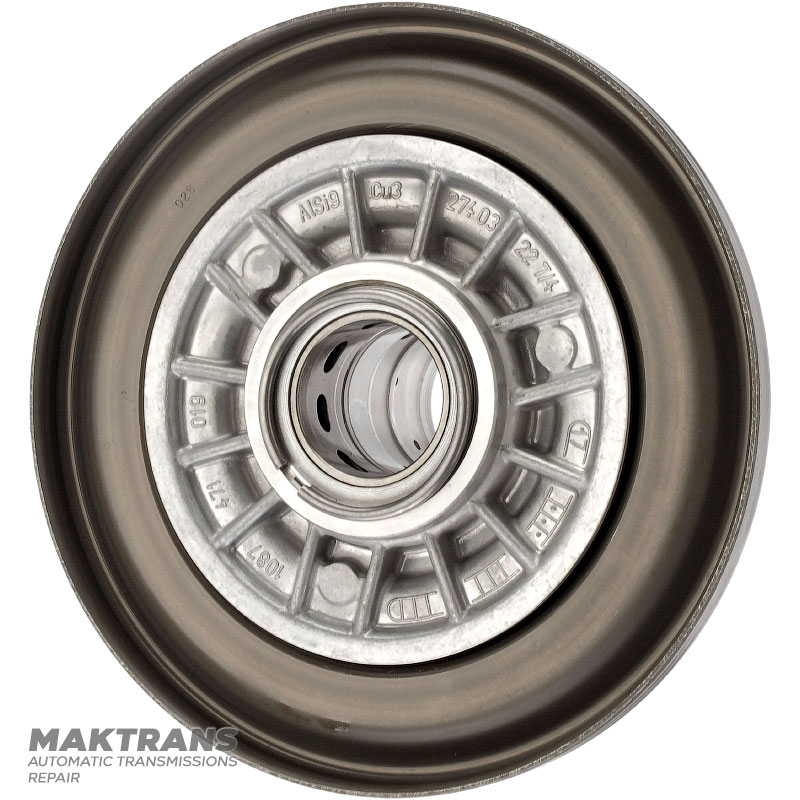

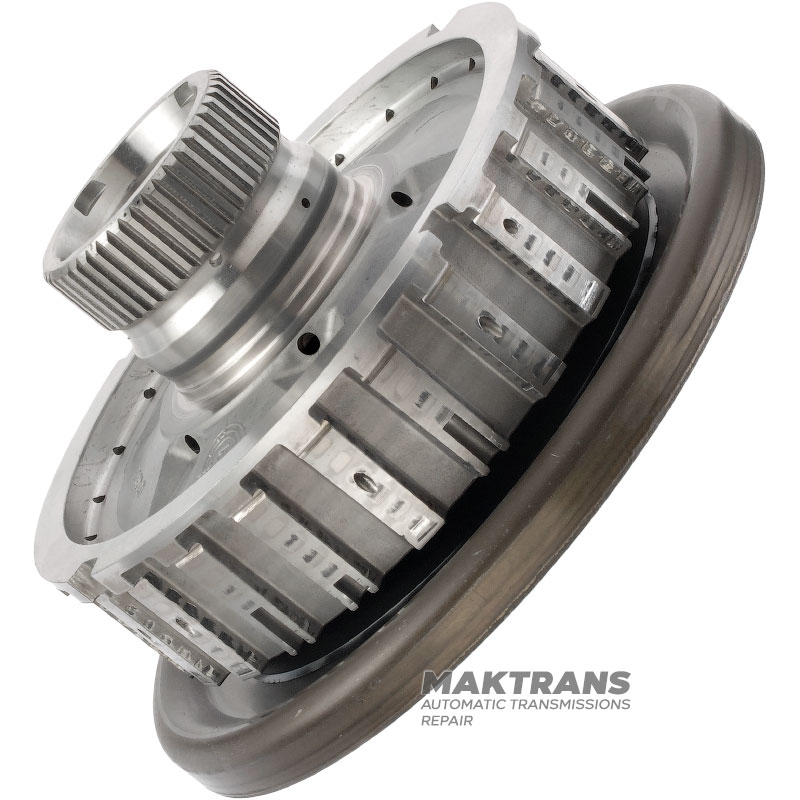

Drum E Clutch ZF 8HP70, 8HP75, 8HP55A, 8HP65A — 48 splines (for 5 friction discs) 1102471034, 1087471019, 0501333994

E Clutch Drum:

• Overall height - 79 mm;
• Inner diameter - 35.35 mm;
• Number of splines on the neck - 48 pcs.;
• The outer diameter of the splined part is 49.70 mm;
• Drum outer diameter - 135.35 mm;
• Part number - 1102471034;

Rubberized piston:

• Outer diameter - 160.10 mm;
• Inner diameter - 45.60 mm;
• The outer diameter of the rubberized part is 116.10 mm;
• Part number - 0501333994;

Centering piston:

• Overall height - 19 mm;
• Outer diameter - 106.35 mm;
• Inner diameter - 44.70 mm;

Return spring:

• Thickness - 1.85 mm;
• Outer diameter - 113.90 mm;
