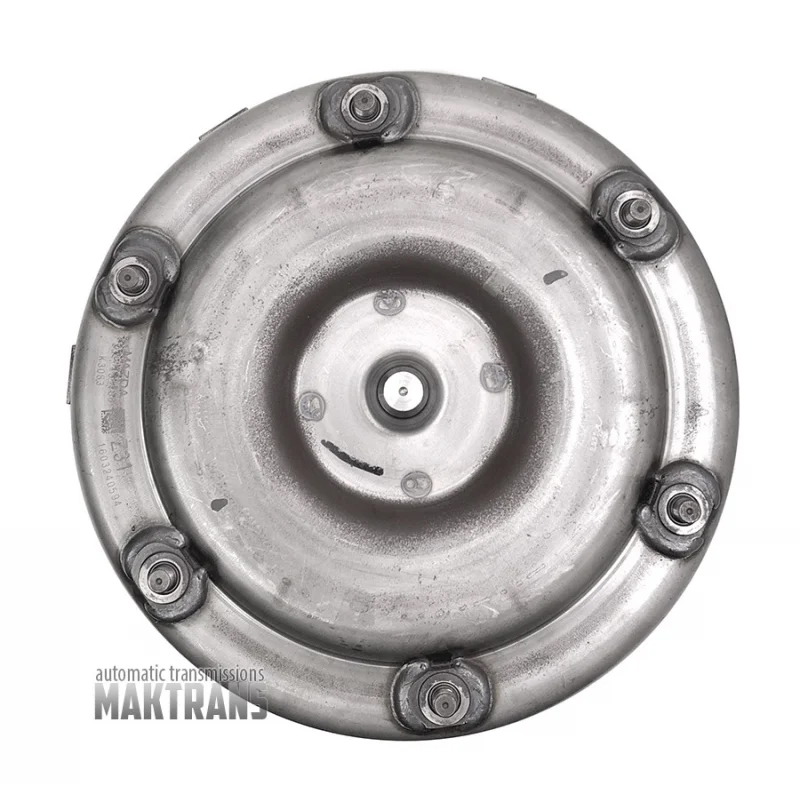

Torque converter (remanufactured) MAZDA FW6AEL GW6AEL FZ31 19100 — (pilot outer diameter 20.90 mm, housing outer diameter 286.50 mm]

Torque converter (remanufactured) MAZDA FW6AEL GW6AEL FZ31 19100 — (pilot outer diameter 20.90 mm, housing outer diameter 286.50 mm]
Torque converter (remanufactured) MAZDA FW6AEL GW6AEL FZ31 19100 — (pilot outer diameter 20.90 mm, housing outer diameter 286.50 mm]

Worldwide Shipping 🌎

Product Code:
MZD-FZ31-2090
Product model copied to clipboard
Brand
MAZDA
Availability: Out Of Stock
Weight (kg): 14.9
€359.10

Shipping Icon Shipping to United States from €210.49

Main Specifications
Condition (used, new): refurbished
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)
  • Total height - 102 mm;
  • The outer diameter of the case is 286.50 mm;
  • Neck height - 34 mm;
  • The outer diameter of the neck is 43.95 mm;
  • Number of turbine wheel splines - 21 pcs.;
  • Number of reactor wheel splines - 34 pcs.;
  • Pilot height - 23 mm;
  • The outer diameter of the pilot is 20.90 mm;
  • Number of fastening pins - 6 pcs.;
  • Radius from the center of the pilot to the center of the mounting pin - 123 mm;
  • The distance between the centers of the mounting studs is 123 mm;
