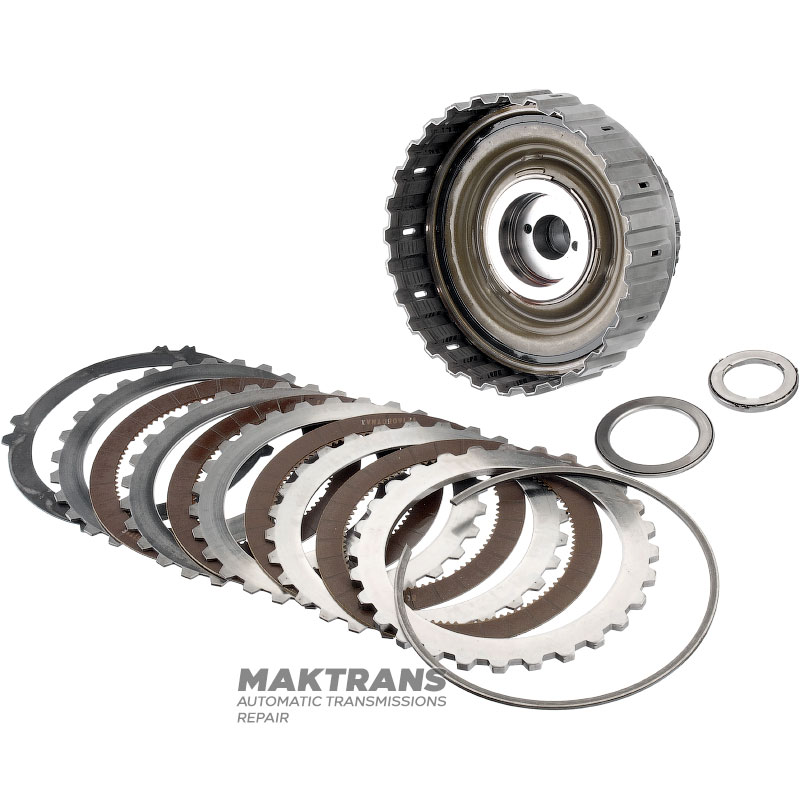

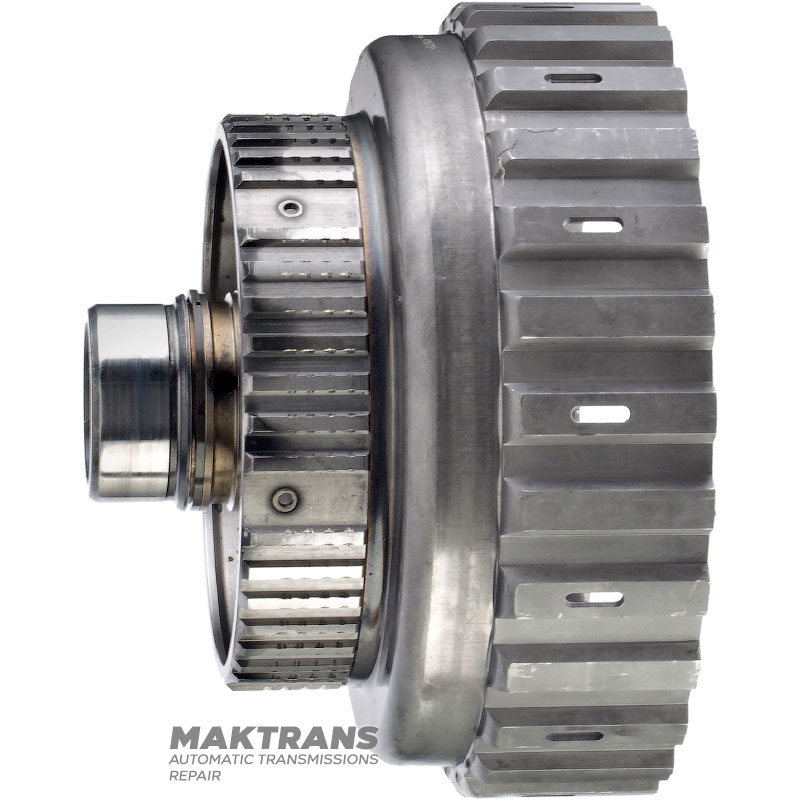

Drum FORWARD Clutch FORD 5R110W 3C3Z-7A360-SA - 4 friction discs, total thickness of the set 21.20 mm

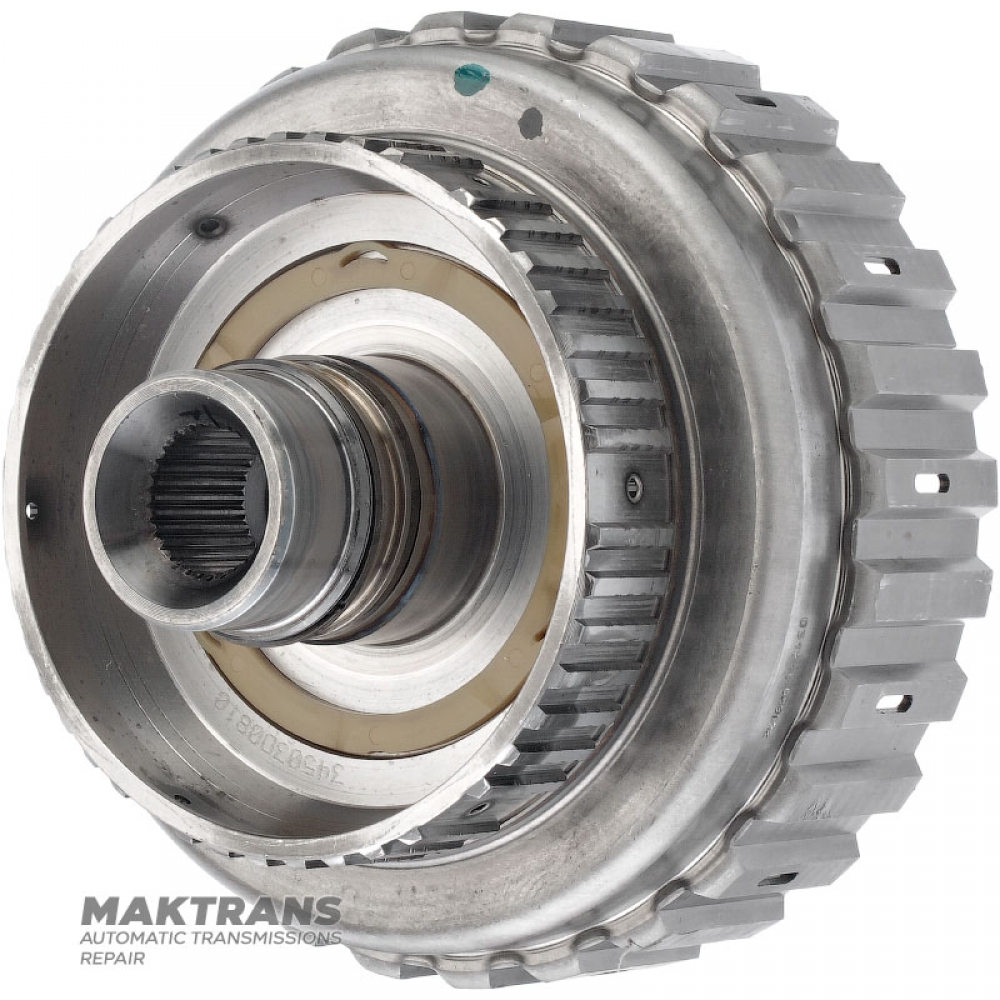

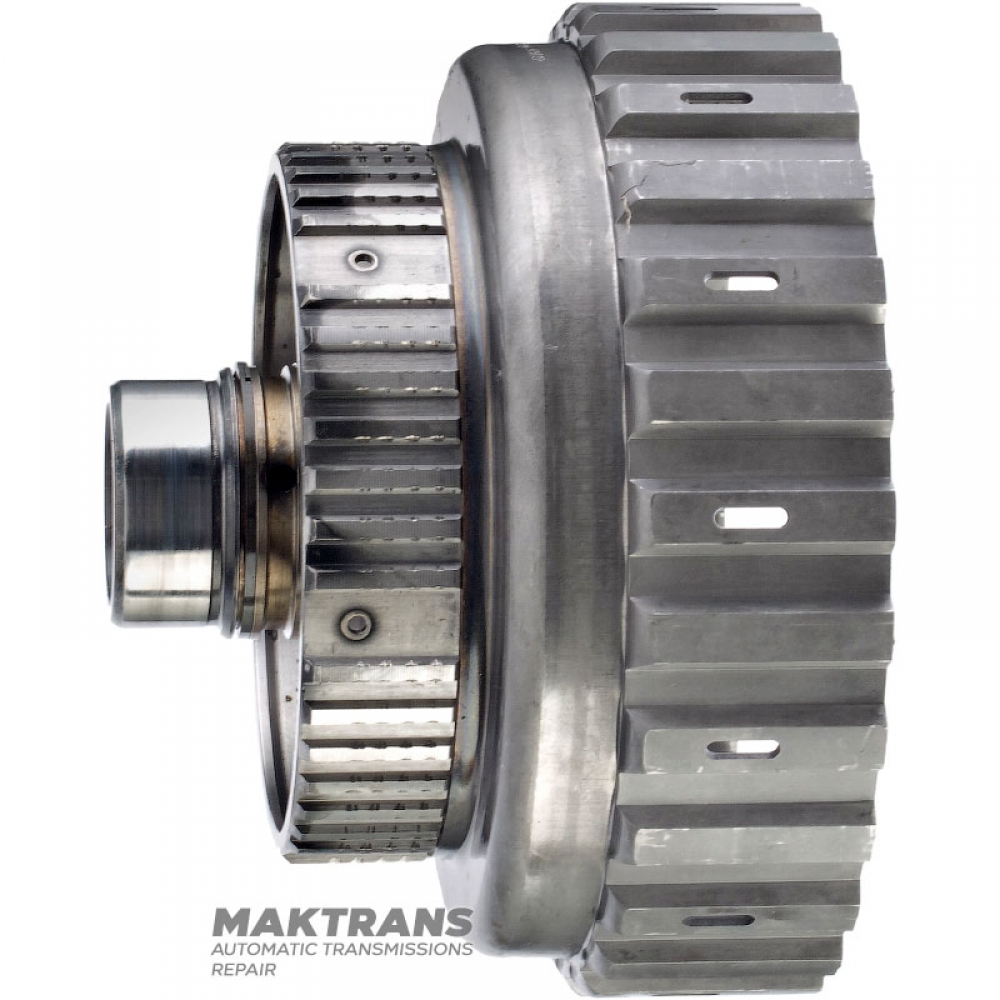

Drum FORWARD Clutch:

• Overall height - 124 mm;
• The outer diameter of the drum is 176 mm;
• Height from piston to retaining ring - 23 mm;
• The height of the DIRECT hub is 26 mm;
• The outer diameter of the DIRECT hub is 126.90 mm;
• Hub diameter with Teflon rings - 48.30 mm;
• Number of splines on the inner side - 30 pcs.;

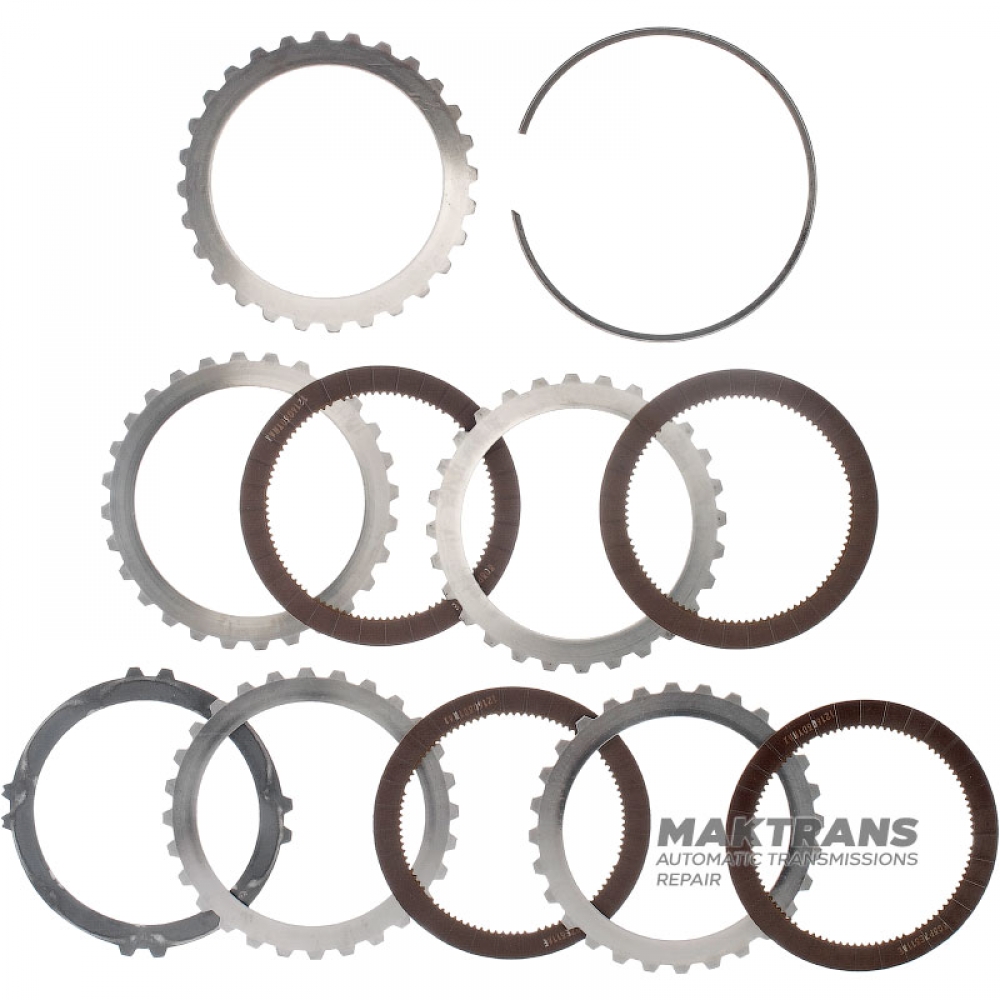

FORWARD Clutch steel and friction disc kit:

• Total thickness of the set - 21.20 mm;

Pressure disc:

• Thickness - 5.15 mm;
• Inner diameter - 130.25 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 159.10 mm;
• Number of teeth - 90 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 130.10 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 1.15 mm;
• Inner diameter - 130 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;
