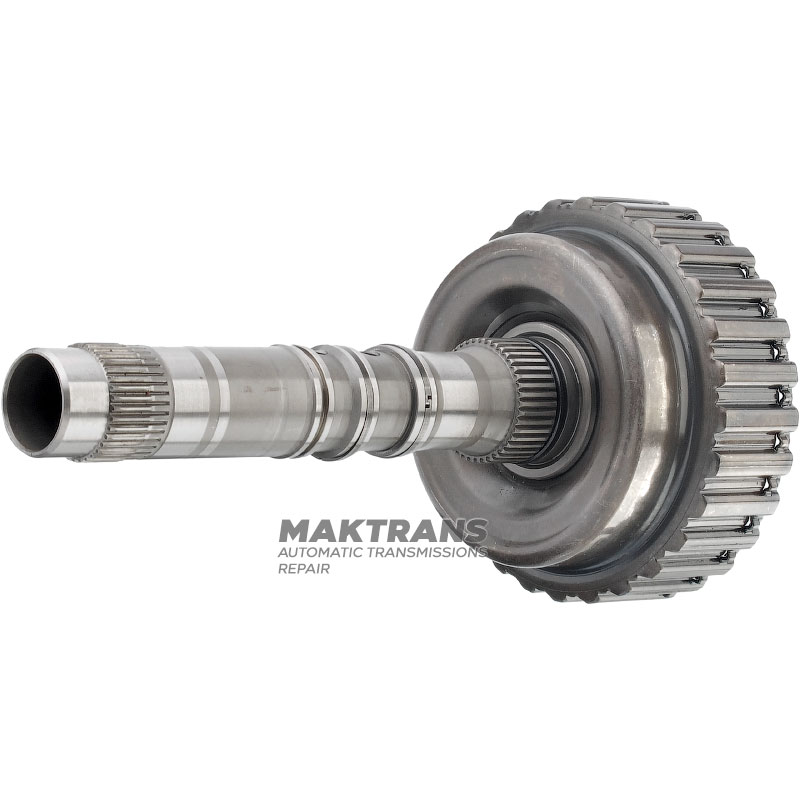

Drum K3 Clutch VAG 01M, 01N, 01P 01M323921EX - 14 single-sided friction discs (total thickness of the set 22.60 mm)

• Overall height - 229 mm;
• Without sleeve on the neck;

Number of splines on shaft:

• 36 splines - outer Ø 29.20 mm;
• 42 slots - outer Ø 34.05 mm;

• The outer diameter of the K3 Clutch drum is 113.35 mm;
• Height from piston to retaining ring - 26 mm;
• Pilot outer diameter (disc set side) - 10.95 mm;

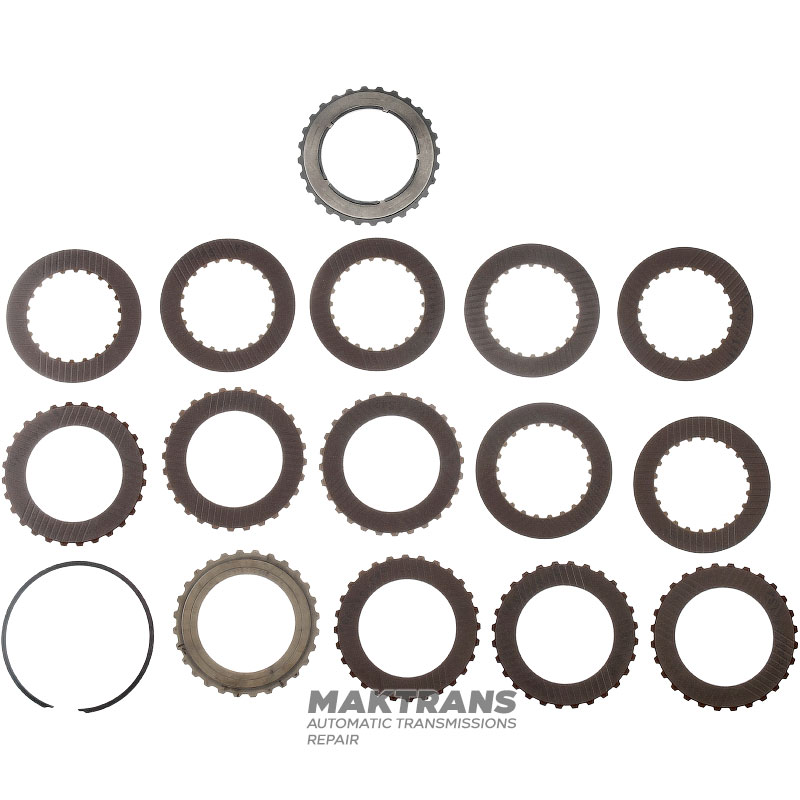

K3 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 22.60 mm;

Friction/pressure disc (single-sided, external teeth):

• Thickness - 5.75 mm / 4.40 mm;
• Inner diameter - 72.06 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc (single-sided, internal teeth):

• Thickness - 1.22 mm;
• Outer diameter - 103.05 mm;
• Number of teeth - 22 pcs.;
• Number of discs in the set - 7 pcs.;

Friction disc (single-sided, external teeth):

• Thickness - 1.22 mm;
• Inner diameter - 72.06 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 6 pcs.;

Pressure disc:

• Thickness - 2.02 mm;
• Inner diameter - 72 mm;
• Number of disks in the set - 1 pc.;
