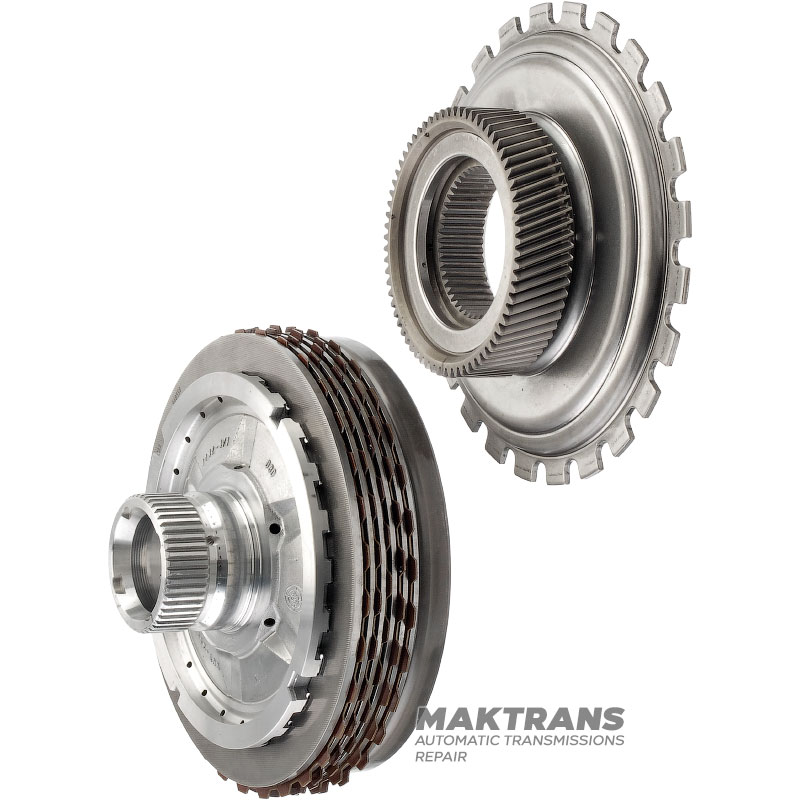

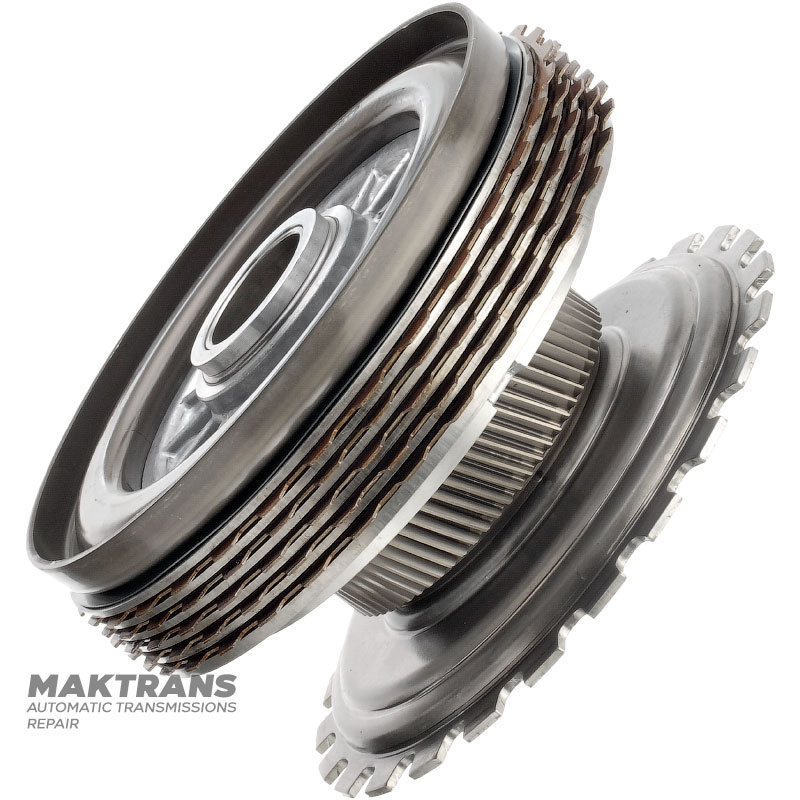

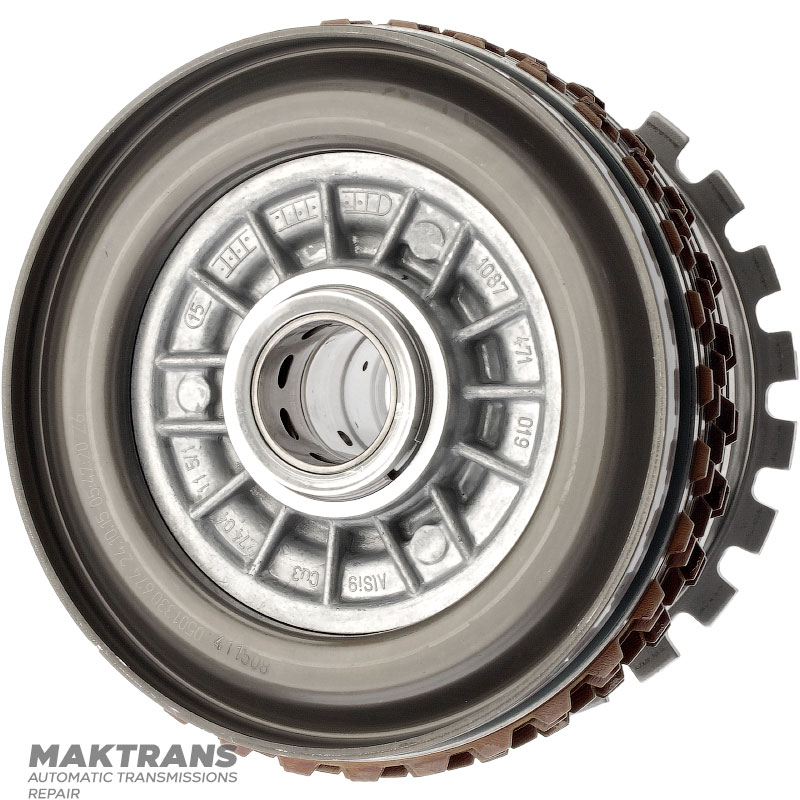

E Clutch Drum (includes #3 sun gear) ZF 8HP70, 8HP70X, 8HP75, 8HP76, 8HP65A - 48 splines, 1102-471-030, 1102471030

Aluminum drum:

• Number of splines - 48 pcs.;
• Outer diameter - 135.45 mm;
• Part number - 1102471030;
• Balance piston - 1087471019;

Rubberized piston:

• Dimensions - 160x46x31;
• Part number - 0501329150, 0501330674, 0501328074;

Sun gear #3:

• Overall height - 41 mm;
• Number of teeth on the gear - 69 pcs.;
• Sun gear outer diameter: 89.20mm;
• Number of splines on the inner side - 48 mm;
• Outer diameter of toothed flange - 161.70 mm;
