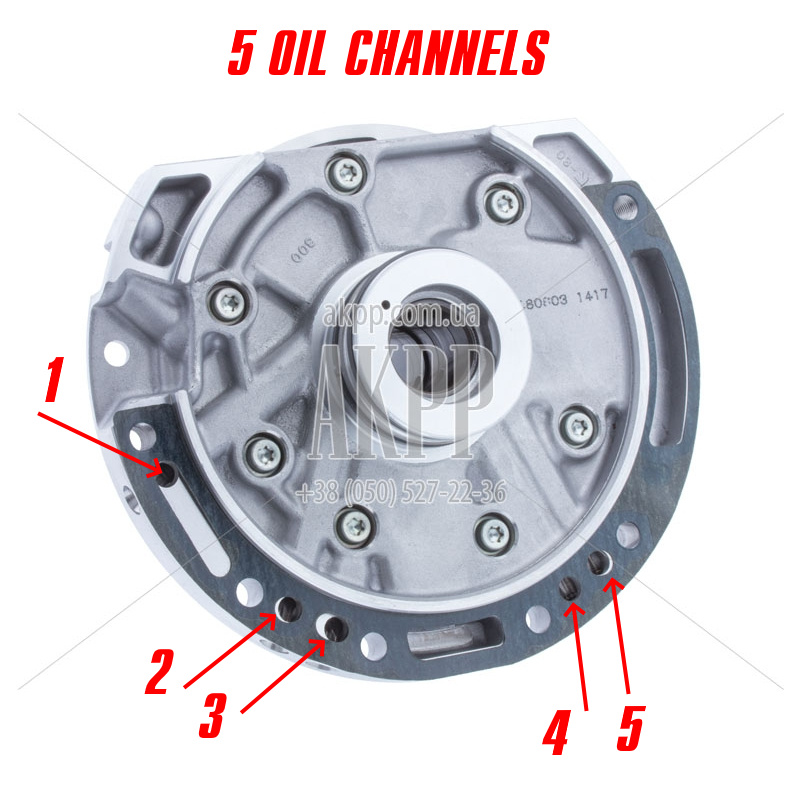

Oil pump F4A41 F4A42 96-up — MR593521, MD760348 (Mitsubishi type, 5 oil channels on the hub)

Oil pump hub:

• Overall height - 108 mm;

Front side:

• Stator height - 64 mm;
• Inner diameter of the sleeve - 22.50 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 31.20 mm;
• The outer diameter of the aluminum body is 200 mm;

Back side:

• Height - 27 mm;
• Hub outer diameter - 58.35 mm;

Oil pump gear housing:

• Height - 37 mm;
• Outer body diameter - 157.10 mm;
• Inner diameter of the sleeve - 43 mm;

Oil pump gears:

Pinion gear:

• Thickness - 12 mm;
• Inner diameter - 42.85 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 12 mm;
• Outer diameter - 91.20 mm;
• Number of teeth - 13 pcs.;

• Hyundai Elantra (2.0L), Sonata (L4 2.4L, 2.5L, 2.7L), Tiburon (L4 2.7L), Tucson (L4 2.0L, 2.7L), XG Grandeur (2.0L, 2.5L).
• Mitsubishi Eclipse (2.4L), Galant (2.4L), Lancer (2.0L), Mirage (1.5L, 1.8L), Outlander (L4 2.4L).
• Kia Optima (2.4L, 2.5L, 2.7L), Rondo (L4 2.4L), Sportage (2.0L, 2.7L).
• Chrysler Sebring (2.4L).
• Dodge Stratus (2.4L)

Tags: MR593521, 4611039000
