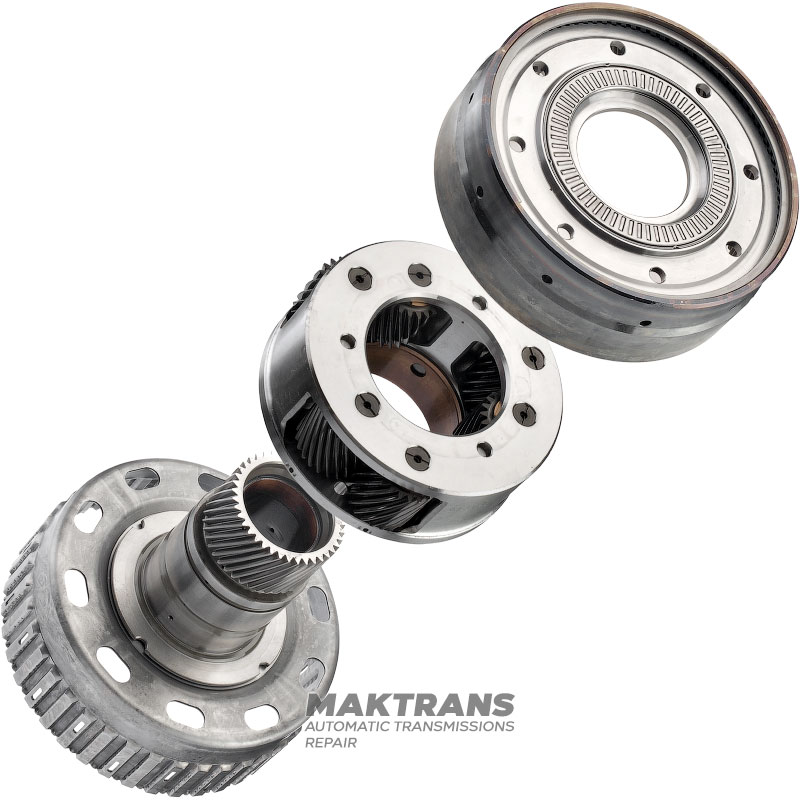

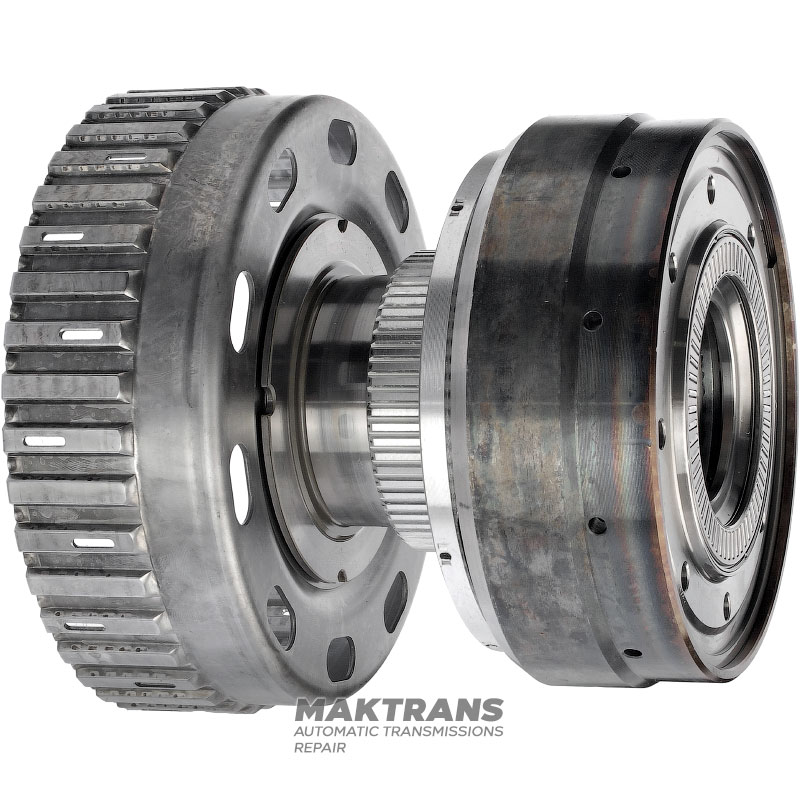

Front planetary gear TOYOTA A750 E/F 350490C010 3572060070 3574360050 - 3 satellites, internal (22 teeth) / 3 satellites, external (21 teeth), 91 teeth on ring gear

Planetary gear:

• Total height - 63 pcs.;
• Number of splines on the neck - 65 pcs.;
• The outer diameter of the splined part is 69.35 mm;
• Inner diameter of the sleeve - 57.35 mm;
• Outer body diameter - 113.80 mm;

Number of satellites:

• 3 satellites (external) - 21 pcs.;
• 3 satellites (internal) - 22 pcs.;

Ring gear:

• Overall height - 45 mm;
• Number of teeth - 91 pcs.;
• Gear outer diameter - 128.75 mm;
• Inner diameter of the hole - 45 mm;

Sun gear:

• Total height - 130 mm;
• Number of teeth on the gear - 40 pcs.;
• Gear outer diameter - 53.30 mm;
• Inner diameter of the sleeve - 35.85 mm;
• The outer diameter of the working part of the gear neck is 57.30 mm;
• Hub height - 49.50 mm;
• Hub outer diameter - 146.70 mm;
