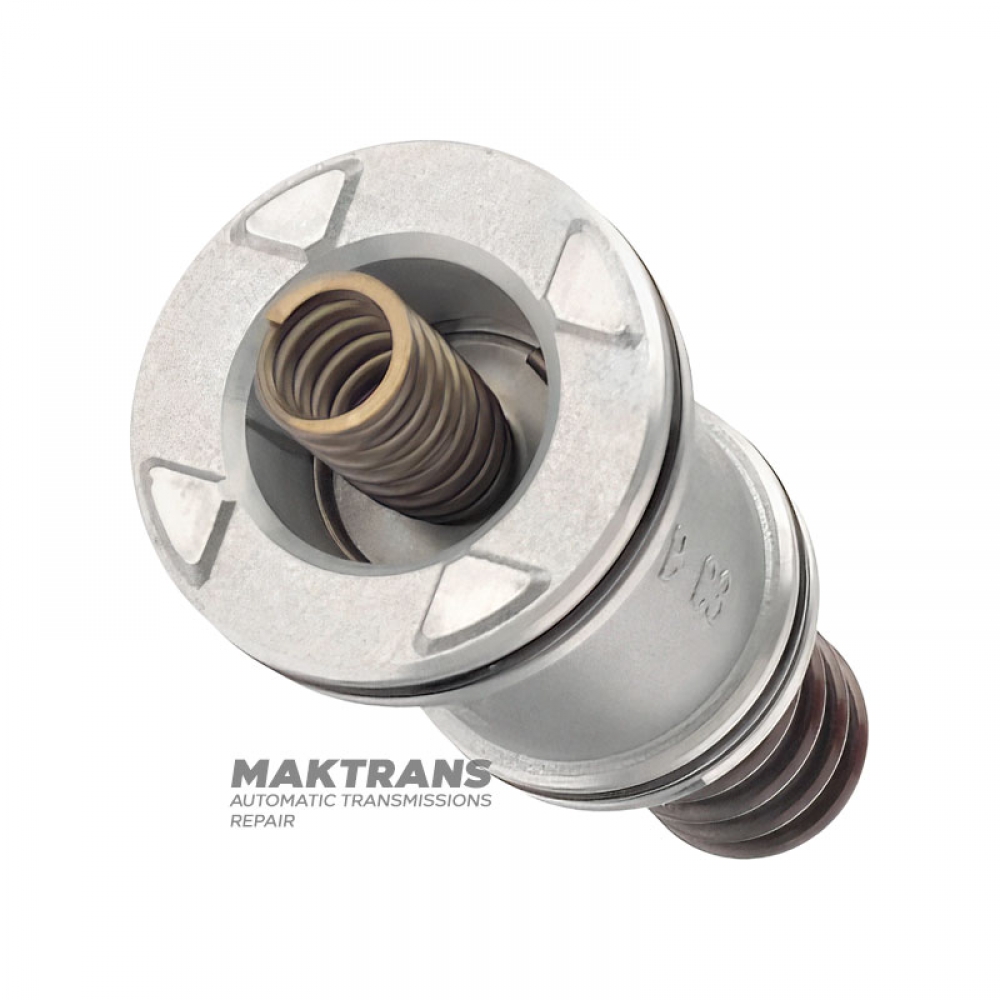

Hydroaccumulator housing (aluminum) C3 Clutch TOYOTA A750E, A750F, A760E, A760F — 3542650020, 9030134011, 9030126011

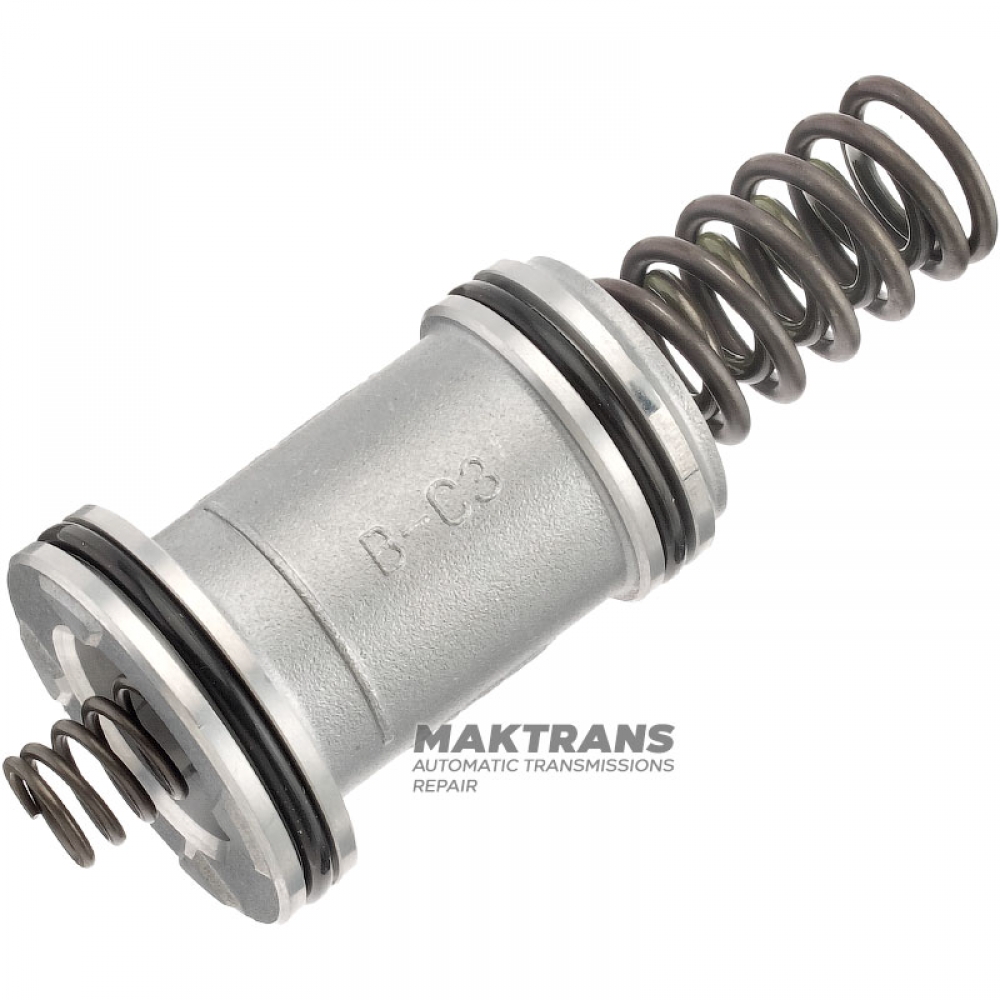

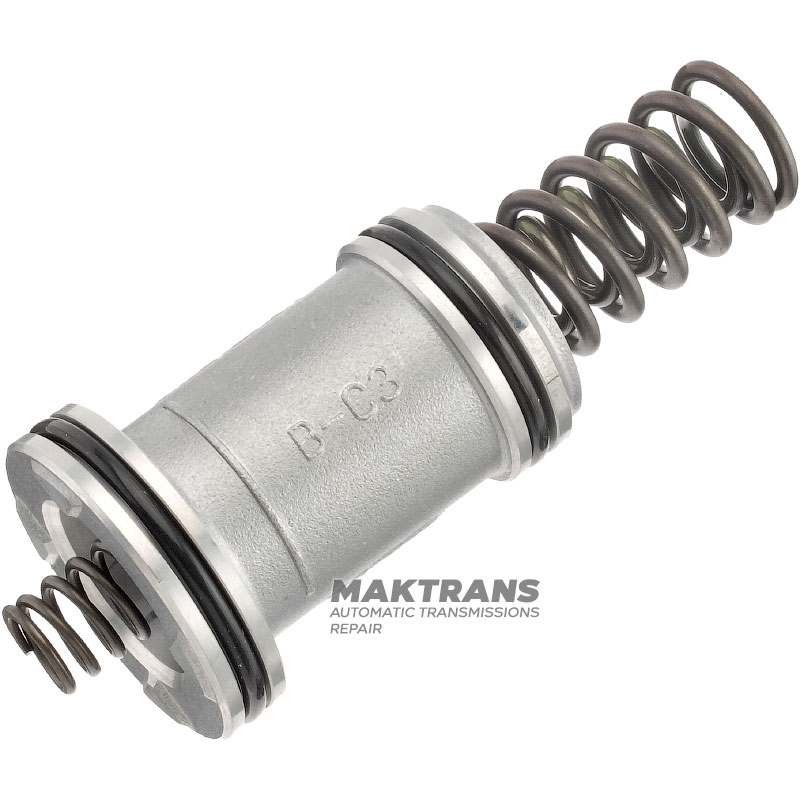

Piston:

• Height - 55 mm;
• Outer diameter - 39.45 mm / 31.90 mm;
• Marking on the body - B-C3;

Spring (installed in the piston body):

• Height - 24.50 mm;
• Spring outer diameter - 11.95 mm;
• Rod diameter - 1.50 mm;

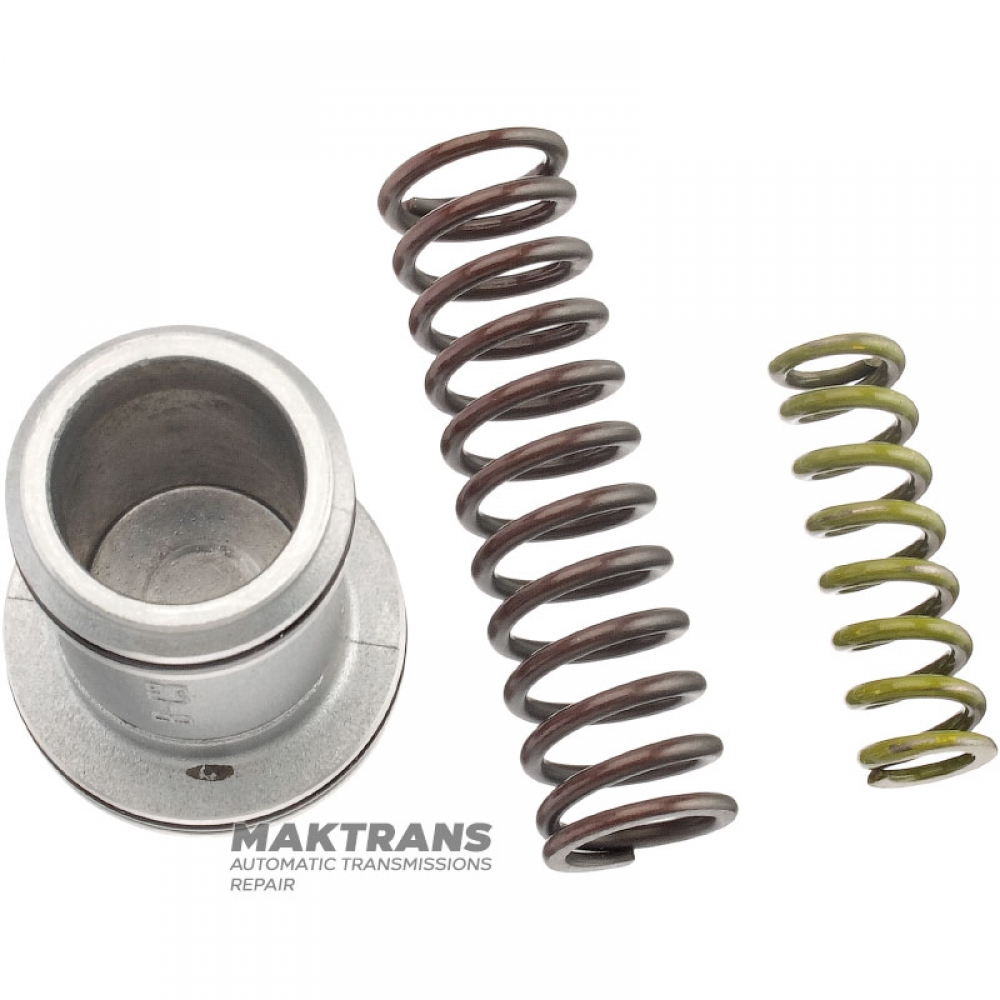

Springs (removable):


P1 (on the diagram):

• Length - 72.55 mm;
• Outer diameter - 20 mm;
• Rod diameter - 2.50 mm;

P2 (on the diagram):

• Length - 43.80 mm;
• Outer diameter - 14.10 mm;
• Rod diameter - 2.40 mm;
