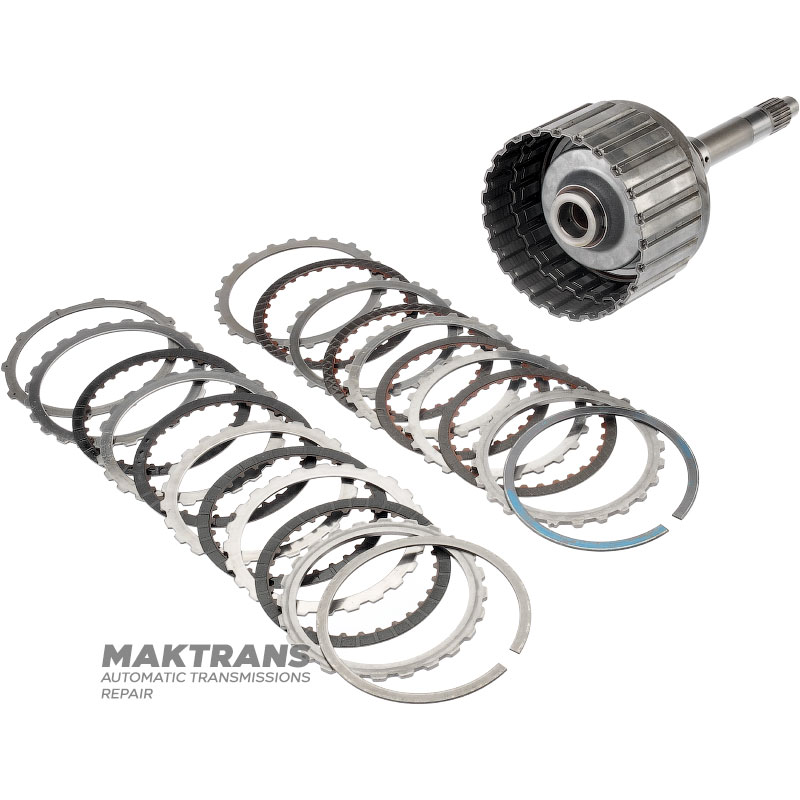

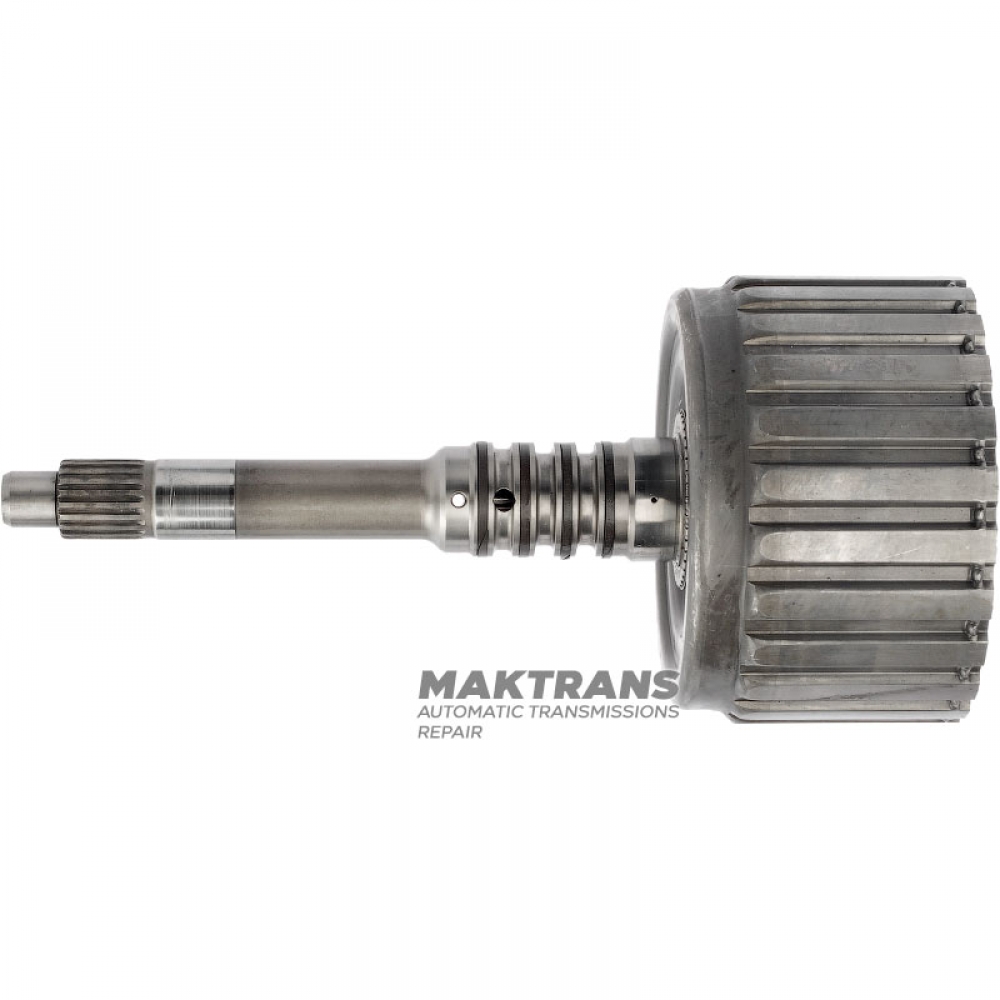

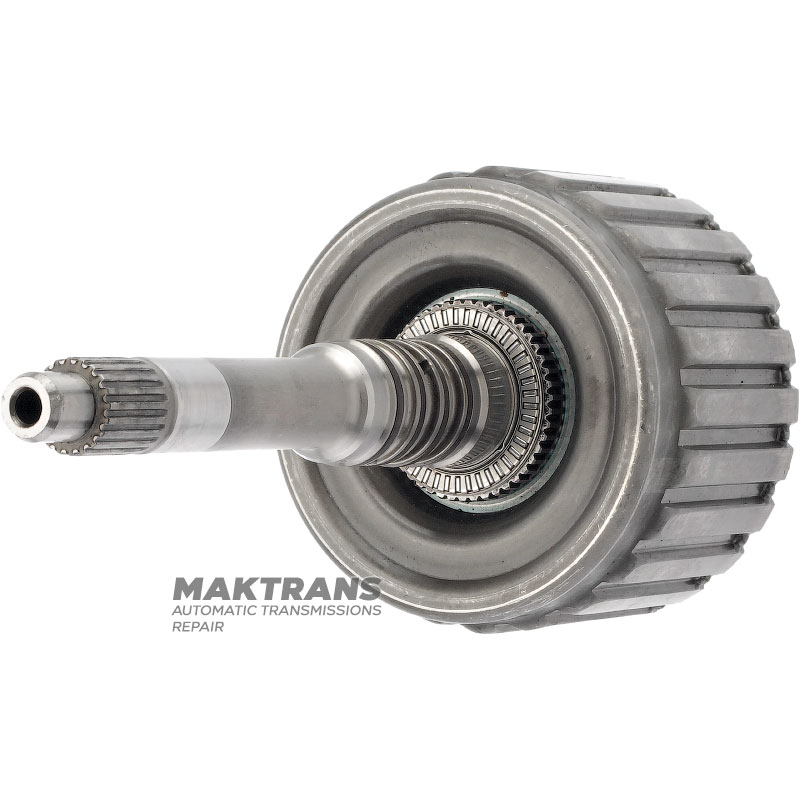

Input shaft, drum C1 / C4 Clutch TOYOTA A960E 3570122130 — C1 Clutch (4 friction discs) / C4 Clutch (4 friction discs)

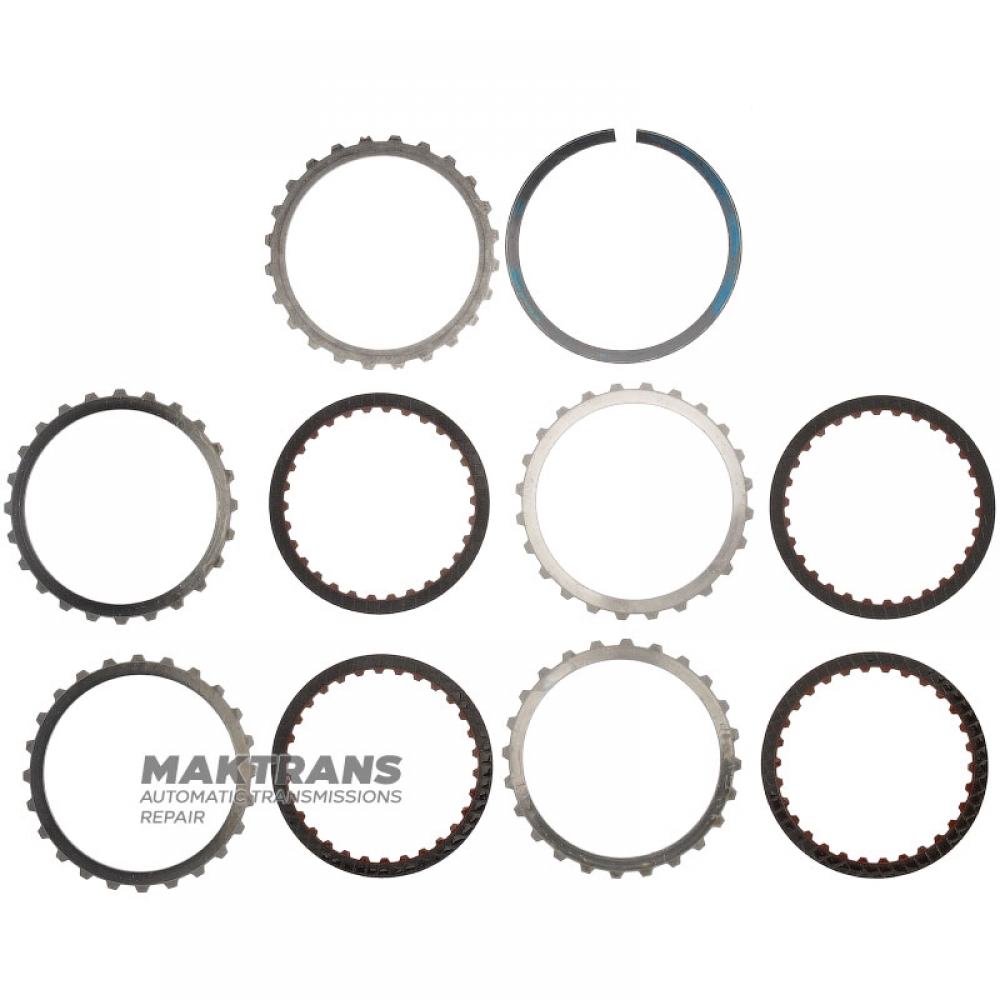

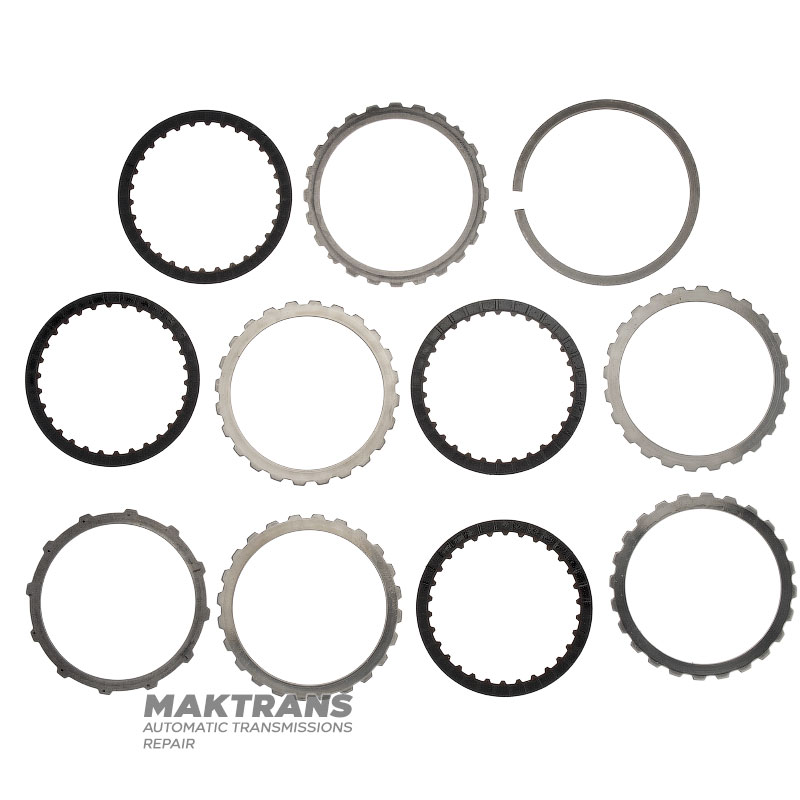

C1 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 16.50 mm;

Support disk:

• Thickness - 3.35 mm;
• Inner diameter - 93.85 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 107.90 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.82 mm;
• Inner diameter - 93.85 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 3 mm;
• Inner diameter - 106 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.65 mm;
• Inner diameter - 94.65 mm;
• Number of teeth - 12 pcs.;
• Number of disks in the set - 1 pc.;

• Total thickness of the set - 16.50 mm;

Support disk:

• Thickness - 3.35 mm;
• Inner diameter - 90.10 mm;
• Number of teeth - 24 pcs.;
• Number of disks in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 102.65 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 90.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 1.65 mm;
• Inner diameter - 94.65 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;
