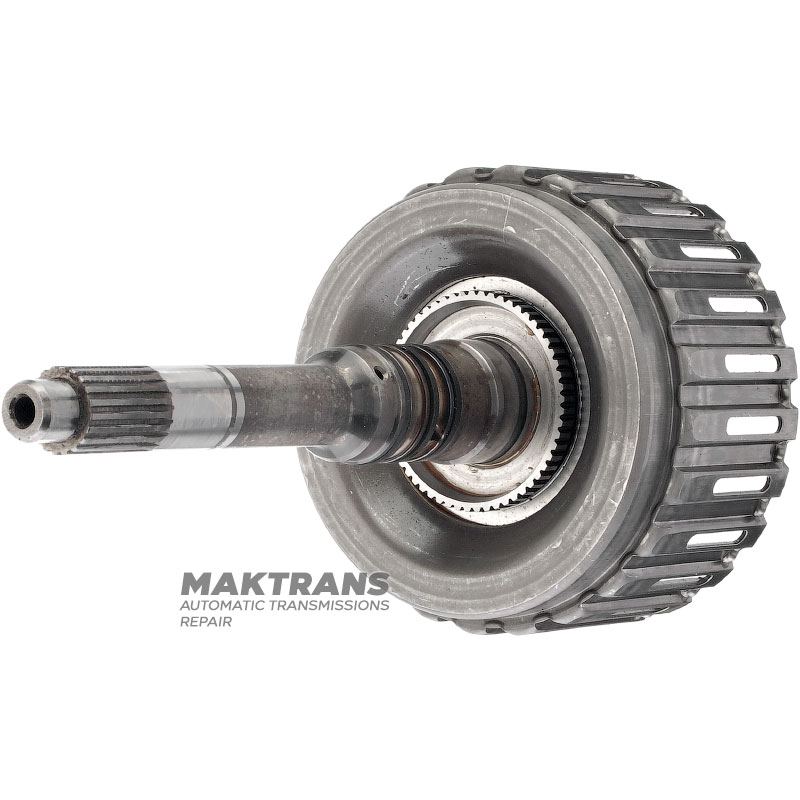

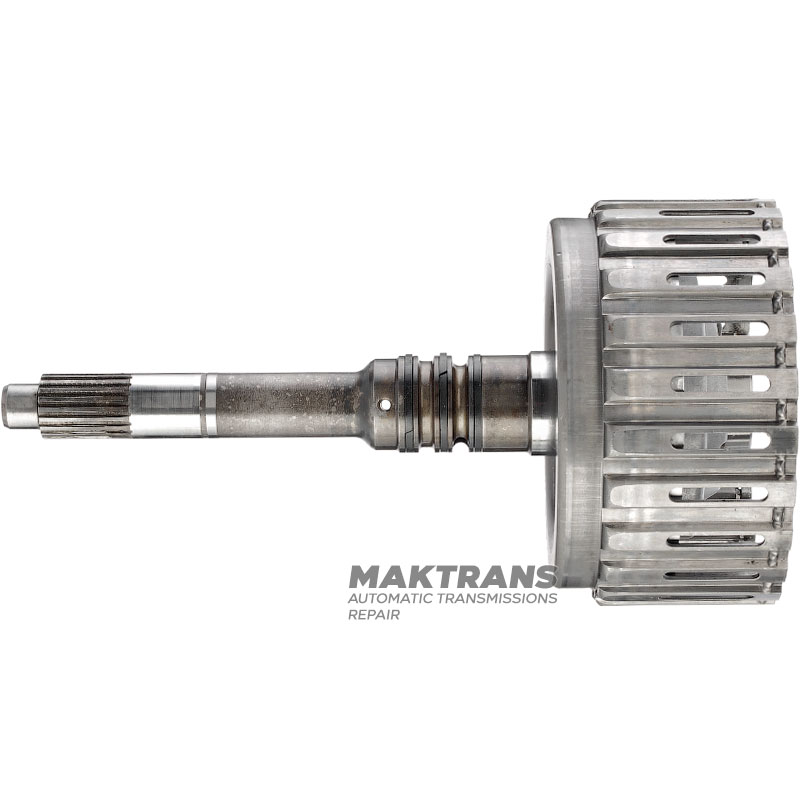

Input shaft, drum C1 / Forward Clutch (6 friction discs) TOYOTA A750 E/F — 357010C010 356340C010 356330C010

• Overall height - 248 mm;
• Number of splines on the shaft - 20 pcs.;
• The outer diameter of the splined part is 21.30 mm;

External diameters of the working parts of the shaft:

• 14.90 mm;
• 21.45 mm;
• 34.10 mm;

• Outer diameter over Teflon rings - 31.50 mm;
• Number of splines at the base of the shaft - 57 pcs.;
• Drum height - 72 mm;
• Drum outer diameter - 130.60 mm;
• Height from piston to retaining ring - 29 mm;

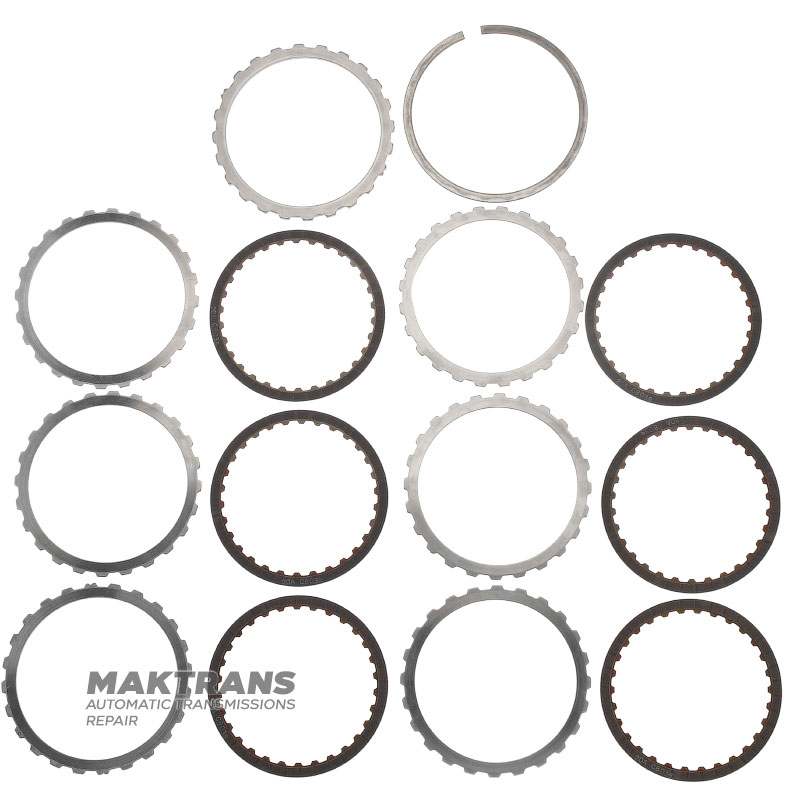

Forward Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 27.90 mm;

Support disk:

• Thickness - 3.45 mm;
• Inner diameter - 106 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.90 mm;
• Outer diameter - 119.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 106 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 3.02 mm;
• Inner diameter - 106 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;
