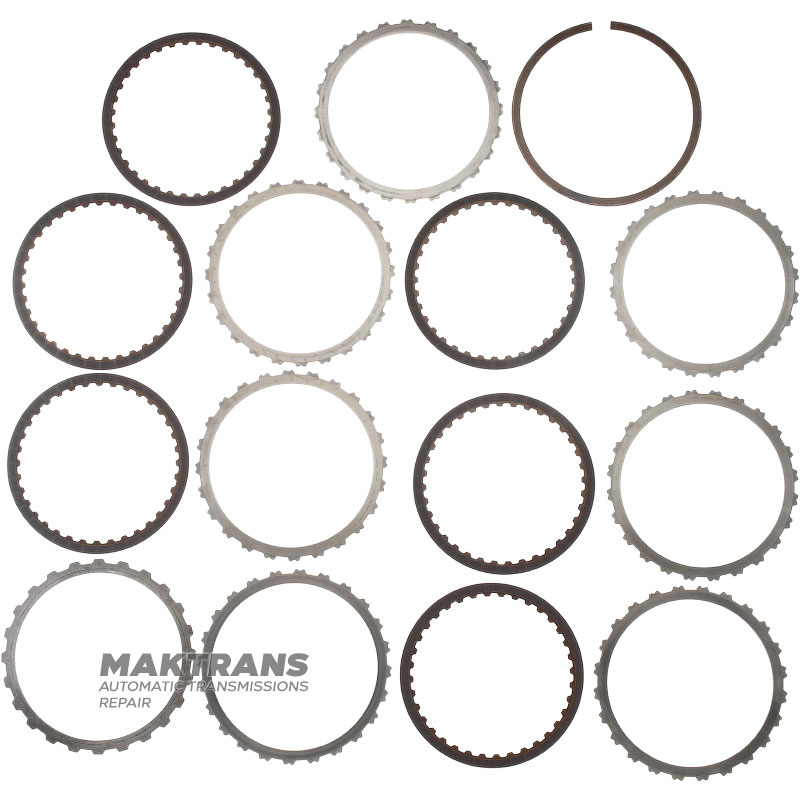

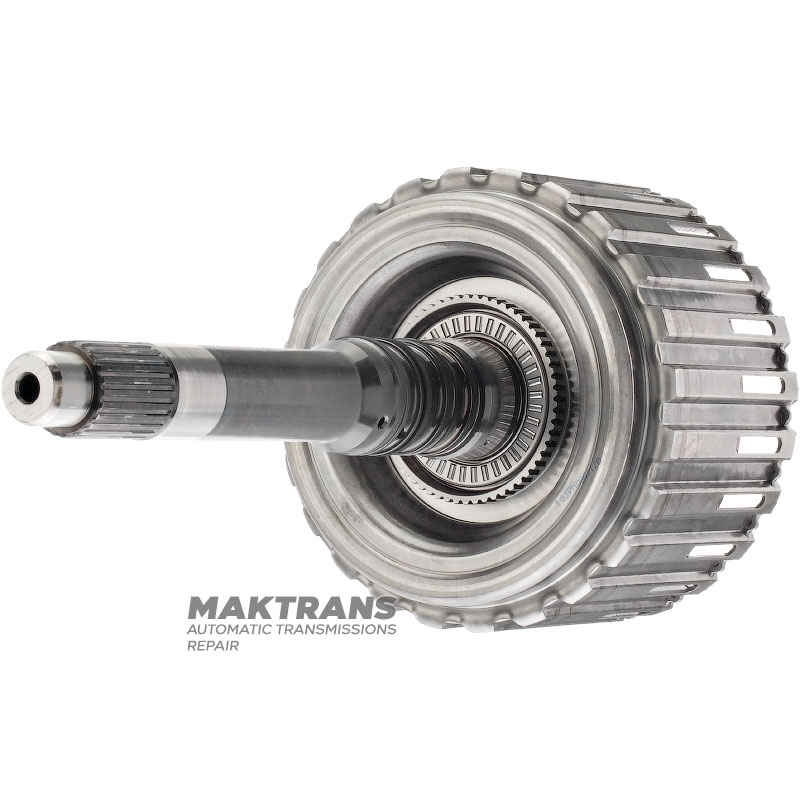

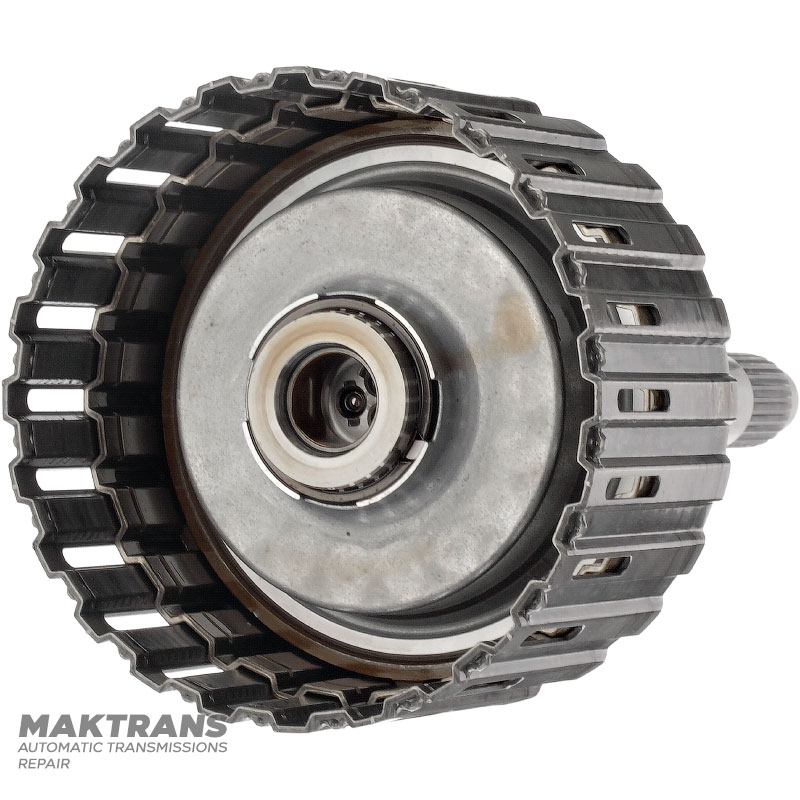

Input shaft, drum C4 / C1Clutch AB60E, AB60F 07-up - 357100C010, 3571060010 (C4 Clutch - 4 friction discs, C1 Clutch - 6 friction discs)

• The total thickness of the set is 17.05 mm;

Support disk:

• Thickness - 3.30 mm;
• Inner diameter - 108.65 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 121.90 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 108.65 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 2 pcs.;

• Total thickness of the set - 23.20 mm;

Support disk:

• Thickness - 3.20 mm;
• Inner diameter - 114 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 127.20 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 114.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 1.75 mm;
• Inner diameter - 114.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;
