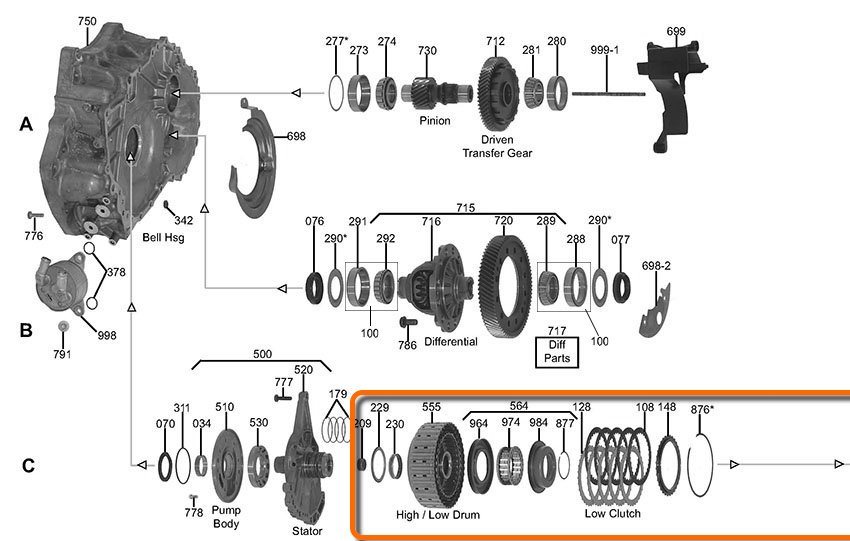

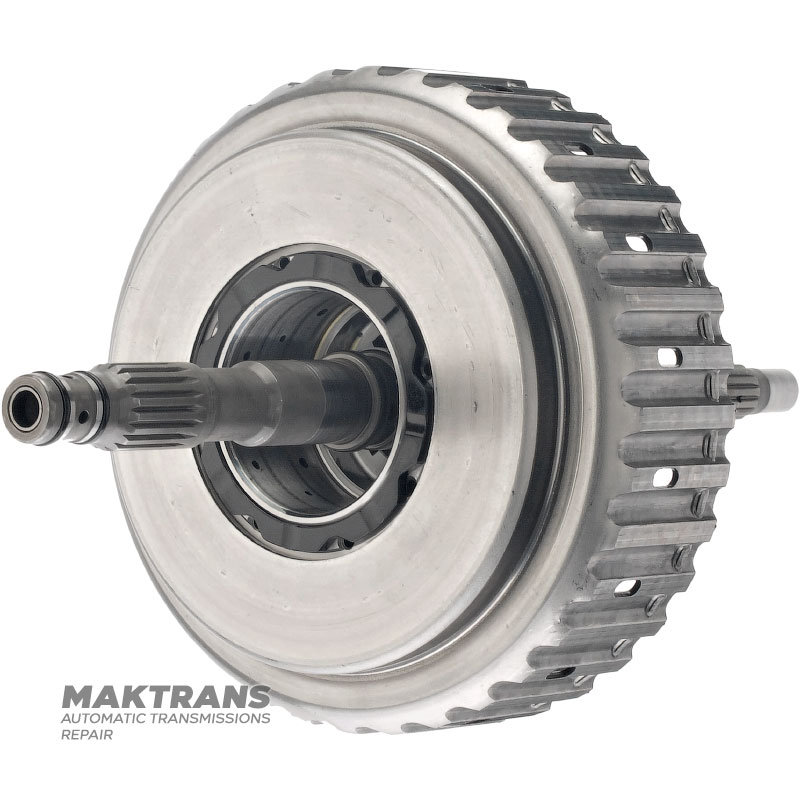

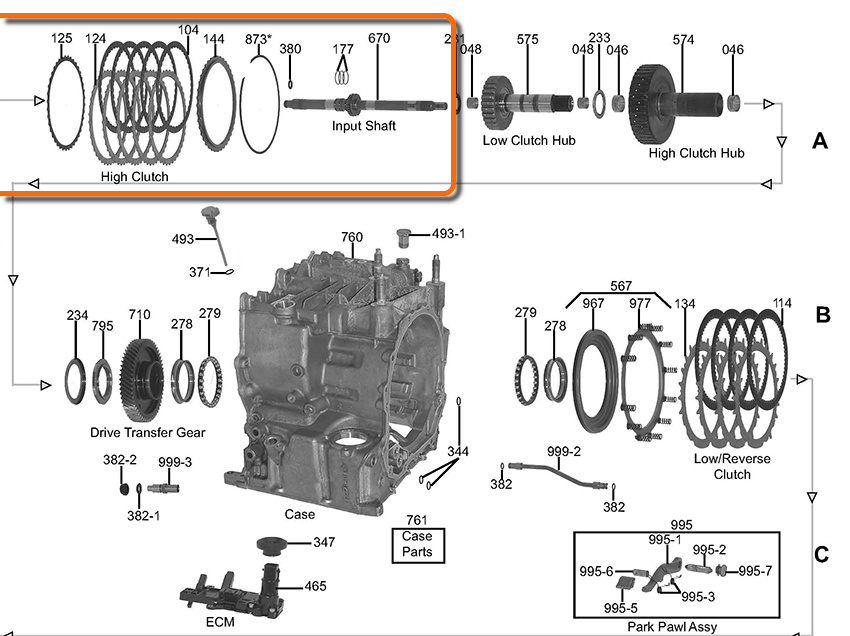

Input shaft, drum HIGH / LOW Clutch MAZDA CW6A-EL, EW6A-EL - total shaft length 308 mm, HIGH Clutch (3 friction discs), LOW Clutch (4 friction discs)

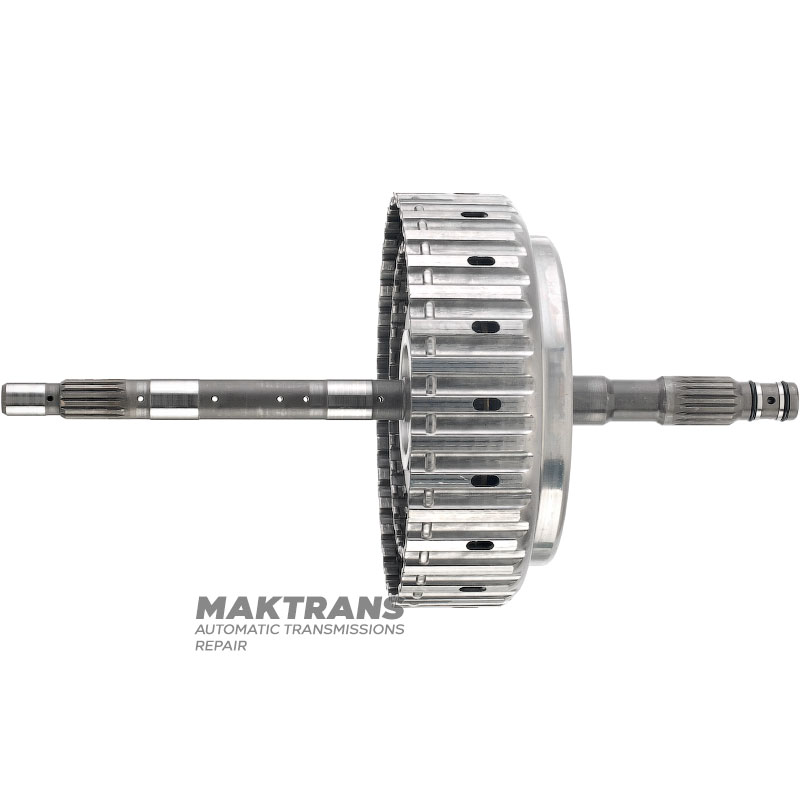

• Total shaft length - 308 mm;

Number of splines on shaft:

• 14 splines - outer Ø 15.60 mm;
• 18 splines - outer Ø 19.70 mm;

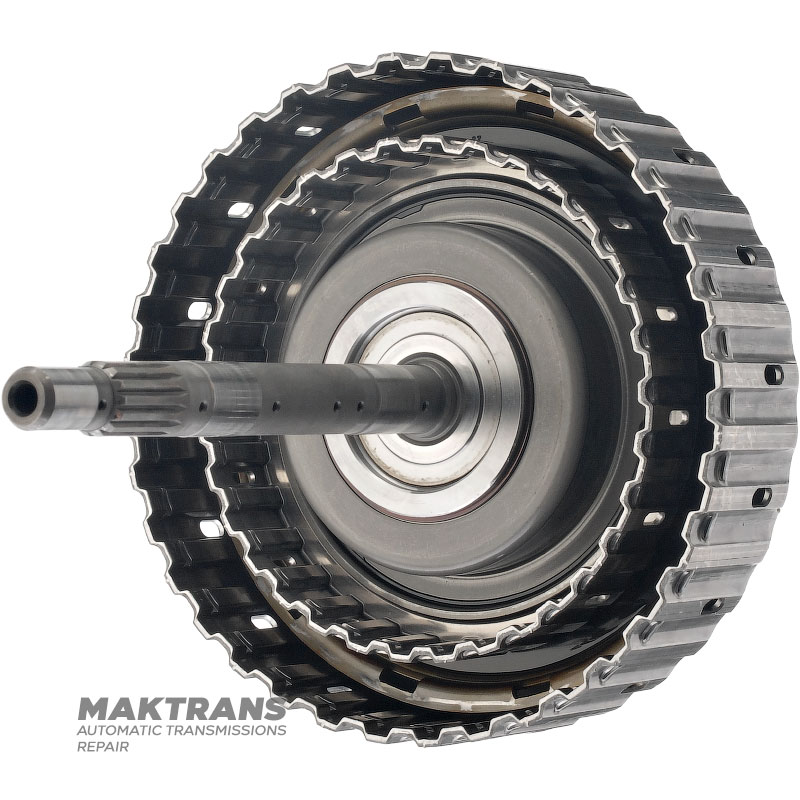

Drum HIGH/LOW Clutch:

• Height from piston to HIGH Clutch retaining ring - 18 mm;
• Height from piston to LOW Clutch retaining ring - 16 mm;

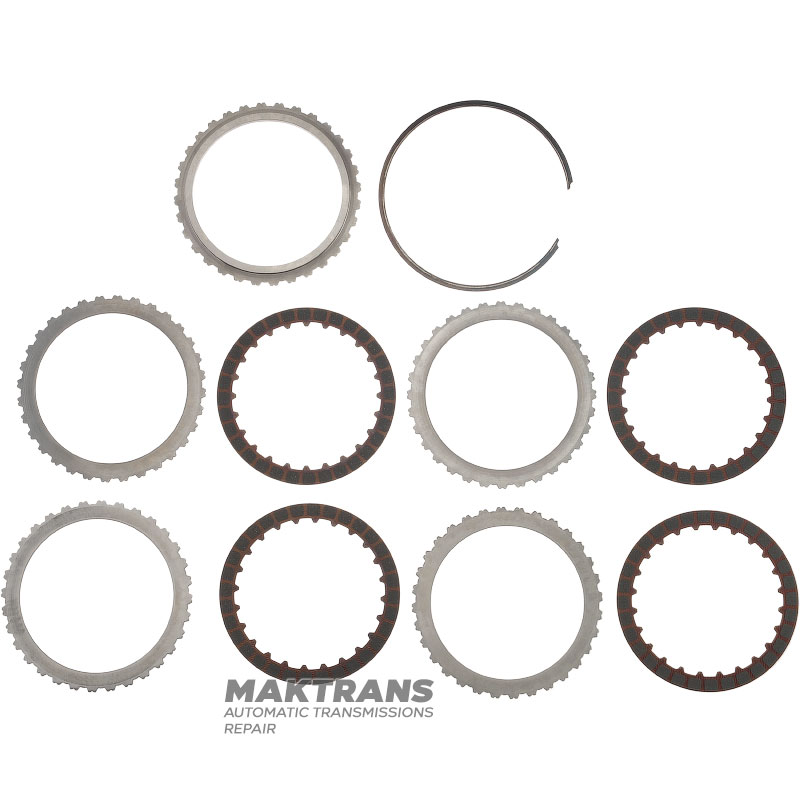

HIGH Clutch Steel and Friction Disc Set:

• Total thickness of the set - 19.80 mm;

Support disk:

• Thickness -
• Inner diameter -
• Number of teeth -
• Number of disks in the set -

Friction disc:

• Thickness -
• Outside diameter -
• Number of teeth -
• Number of disks in the set -

Steel disk:

• Thickness -
• Inner diameter -
• Number of teeth -
• Number of disks in the set -

LOW Clutch Steel and Friction Disc Set:

• Total thickness of the set - 19.80 mm;

Support disk:

• Thickness -
• Inner diameter -
• Number of teeth -
• Number of disks in the set -

Friction disc:

• Thickness -
• Outside diameter -
• Number of teeth -
• Number of disks in the set -

Steel disk:

• Thickness -
• Inner diameter -
• Number of teeth -
• Number of disks in the set -

Tags: FZ11-19-5GX, FZ11-19-571, FZ11-19-580, FZ11-19-578, FZ11-19-5K2, FZ11-19-334, FZ11-19-590, FZ11-19-5F2
