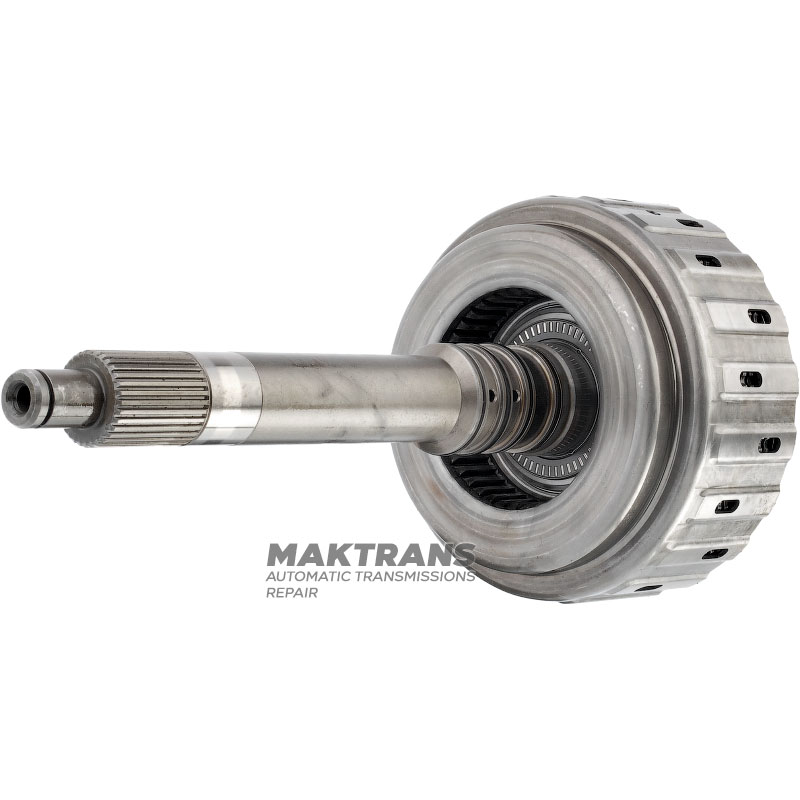

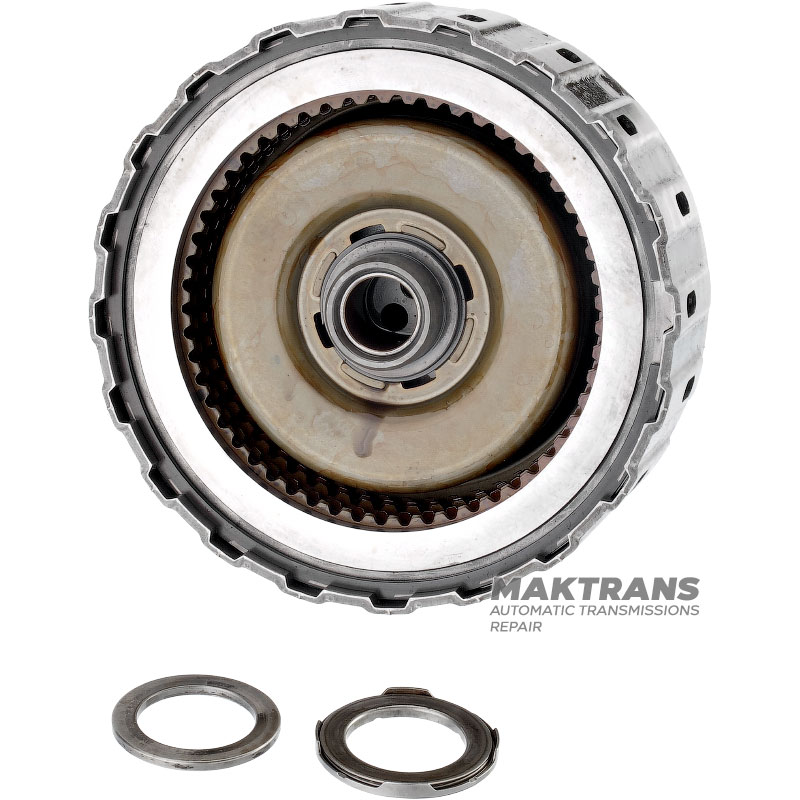

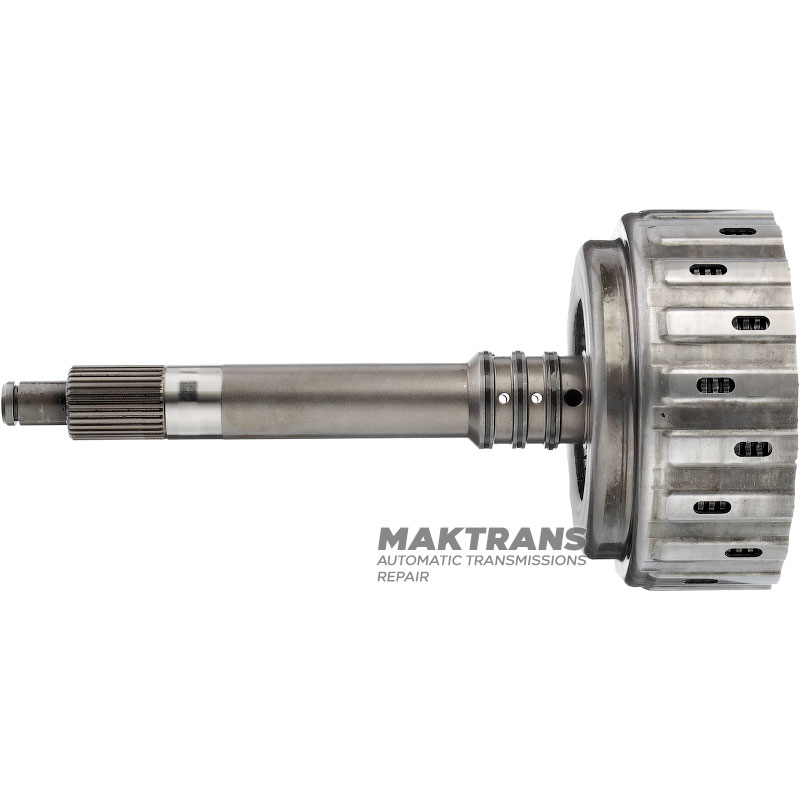

Input Shaft / Drum K1 Clutch AS68RC, AS69RC DODGE RAM 4500/ 5500 68281227AA - 7 Friction Discs

• Overall height - 326 mm;
• Number of splines on the shaft - 32 pcs.;
• The outer diameter of the splined part is 32.20 mm;
• Outer diameter over Teflon rings - 42.25 mm;
• Drum height - 80.45 mm;
• Drum outer diameter - 163.50 mm;
• Height from piston to retaining ring - 36 mm;
• Pilot height (central part of the drum) - 12 mm;

K1 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 34.65 mm;

Support disk:

• Thickness - 5 mm / 3.45 mm;
• Inner diameter - 120.10 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.05 mm;
• Outer diameter - 151.75 mm;
• Number of teeth - 54 pcs.;
• Number of teeth in the set - 7 pcs.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 120.20 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 7 pcs.;
