Main Specifications
Condition (used, new):
used and inspected
Type:

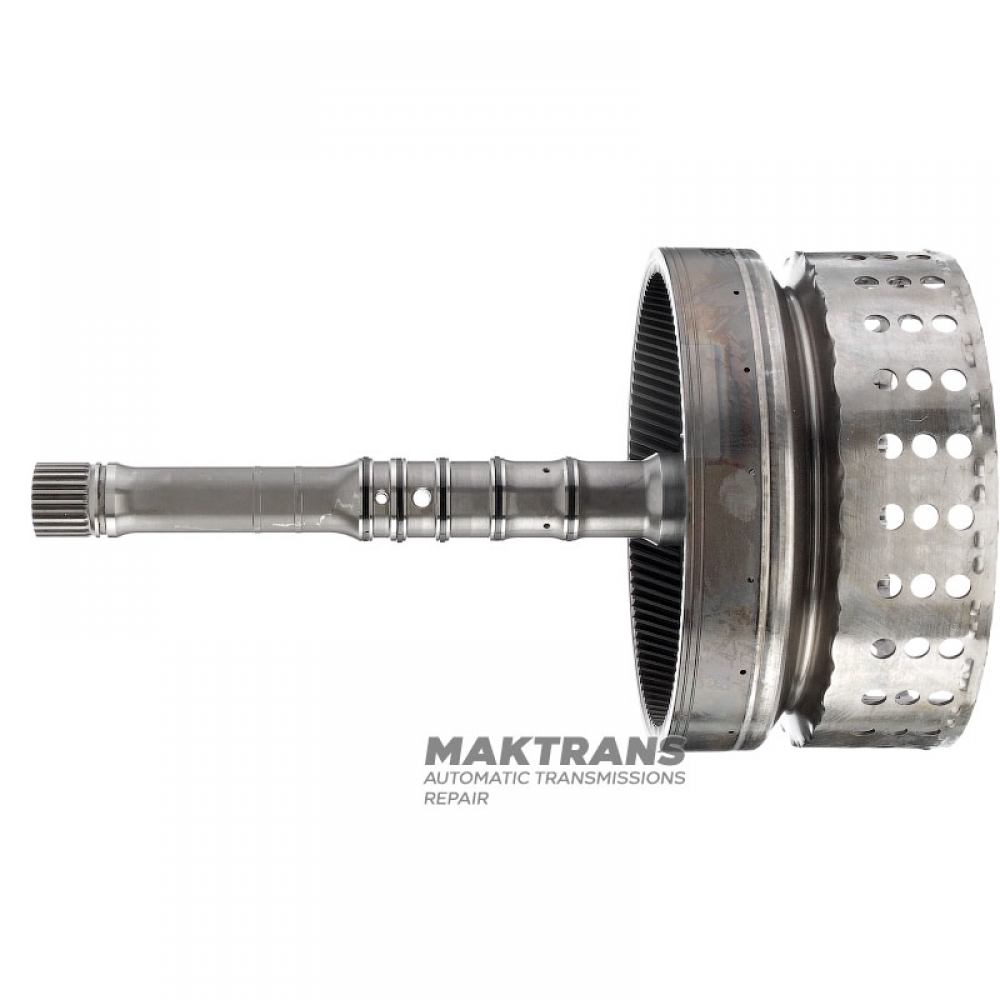

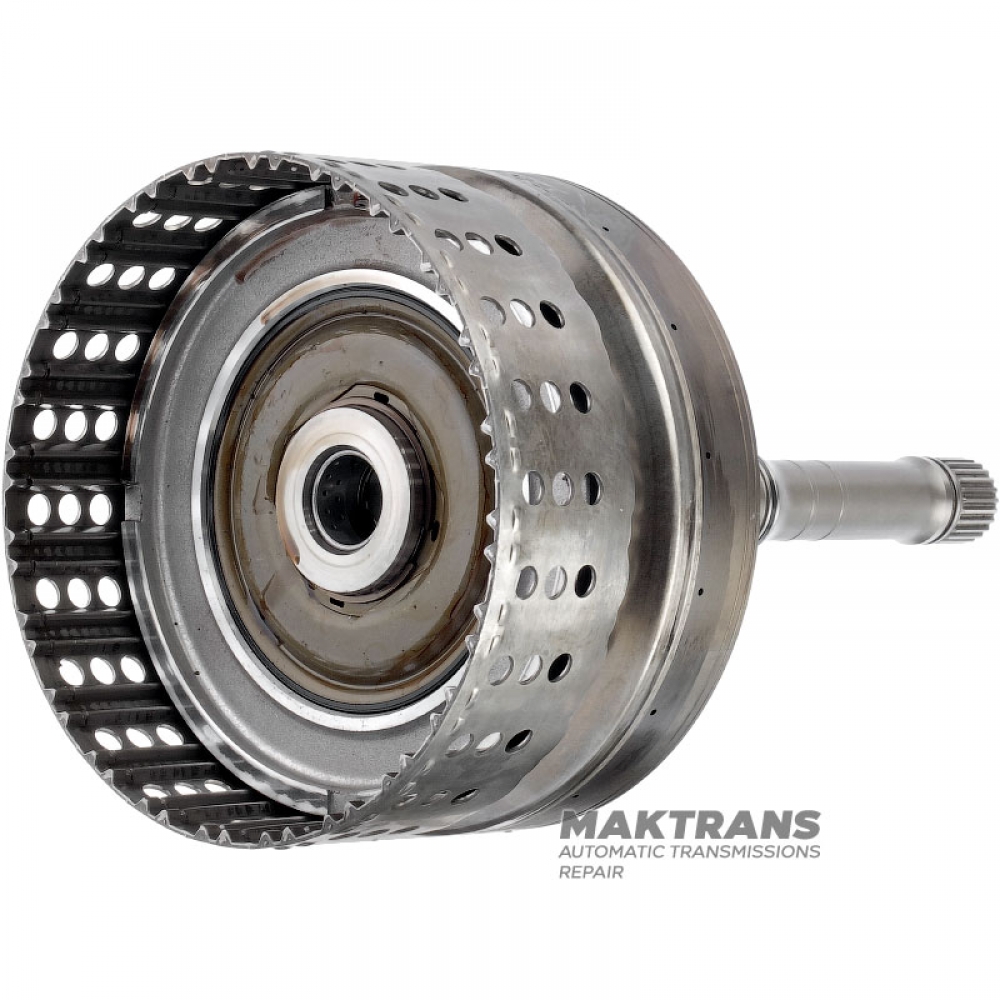

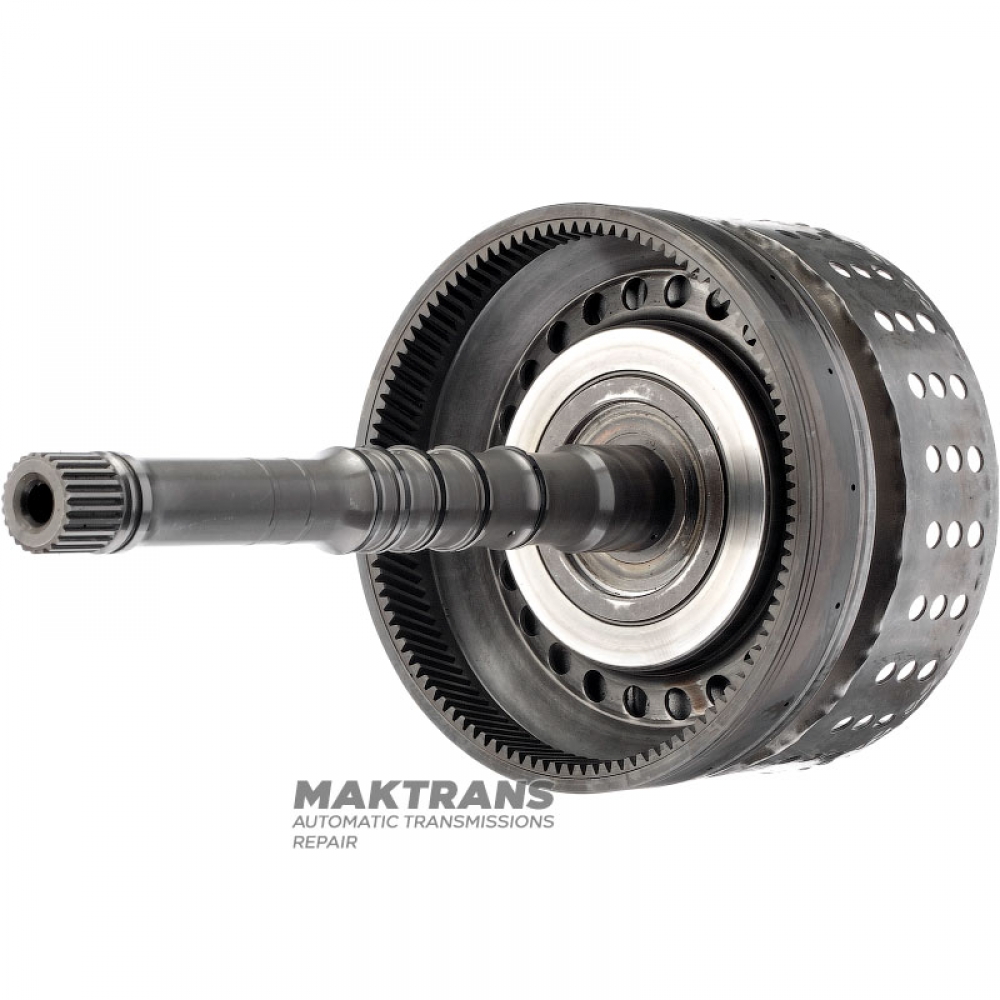

Input shaft / K1 Clutch
Equipment level:
without a set of disks
Length (mm):
311
Number of friction plates:
for 6 friction discs
If you order more than 1 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 1 pcs. |
  |
| Ukraine | 3 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Overall length - 311 mm;
- Shaft length - 243 mm;
- Number of splines on the shaft - 24 pcs.;
- The length of the splined part of the shaft is 18 mm;
- Outer diameter over Teflon rings - 29.30 mm;
- The diameter of the shaft at the base of the K1 Clutch drum is 32.25 mm;
- Number of teeth on the ring gear - 105 pcs.;
- Gear outer diameter - 173.95 mm;
- Height from piston to retaining ring K1 Clutch - 30 mm;
***K1 Clutch Drum for 6-Disc Friction Set.
