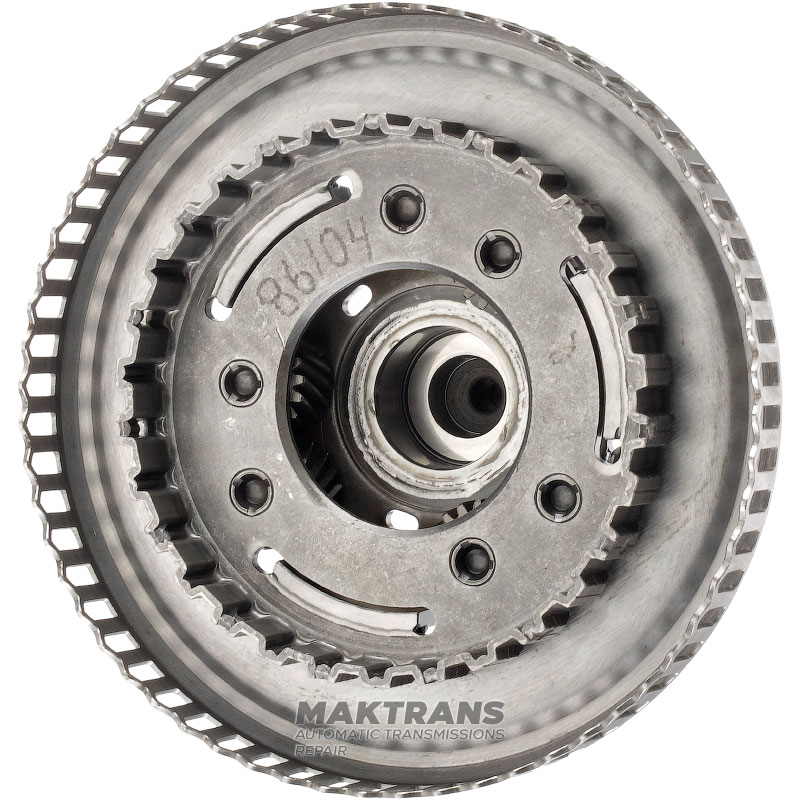

Input Shaft, Planetary Gear ZF CVT CFT23 - Ford Focus C-Max 2003

• Overall height - 172 mm;
• Number of splines - 27 pcs.;
• The outer diameter of the splined part is 21.95 mm;
• The outer diameter of the working part is 22.45 mm;
• The outer diameter of the speed sensor crown is 162.40 mm;

Number of satellites:

• 3 satellites (ring gear satellites) - 18 teeth.;
• 3 satellites (sun gear satellites) - 19 teeth;
