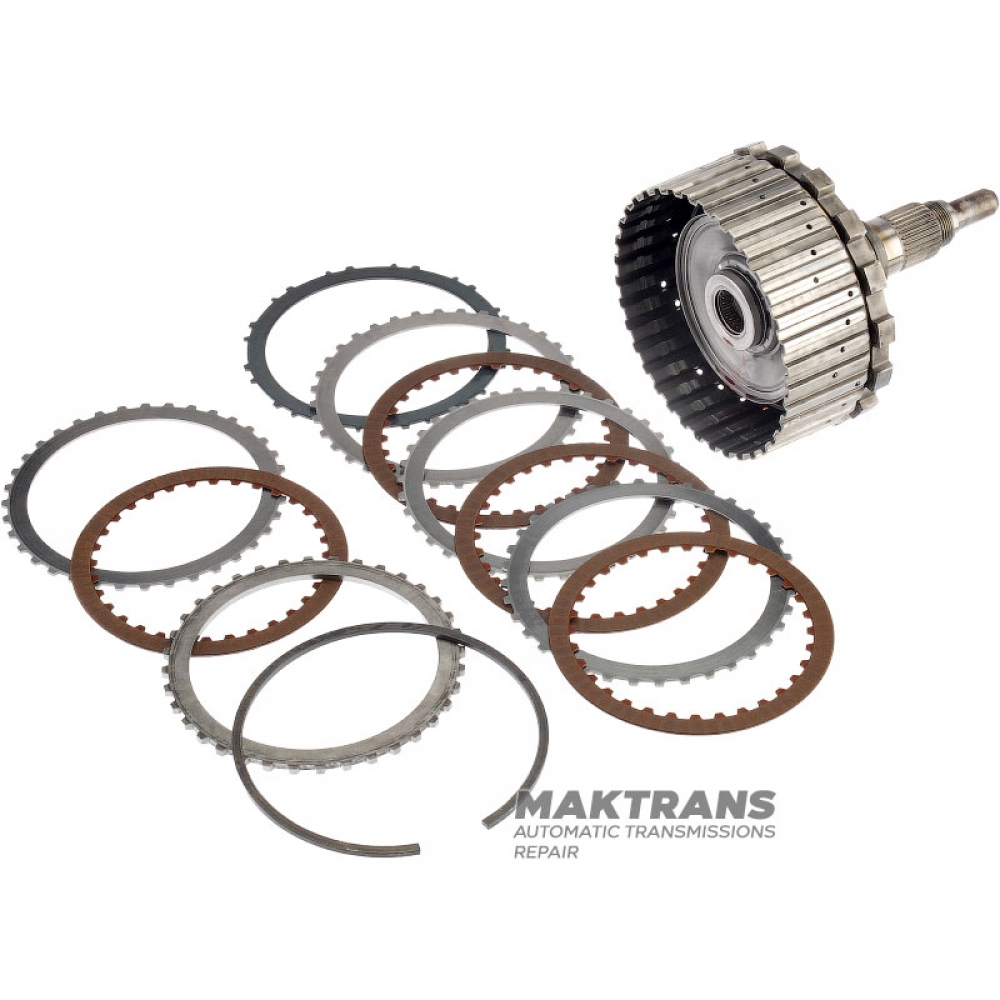

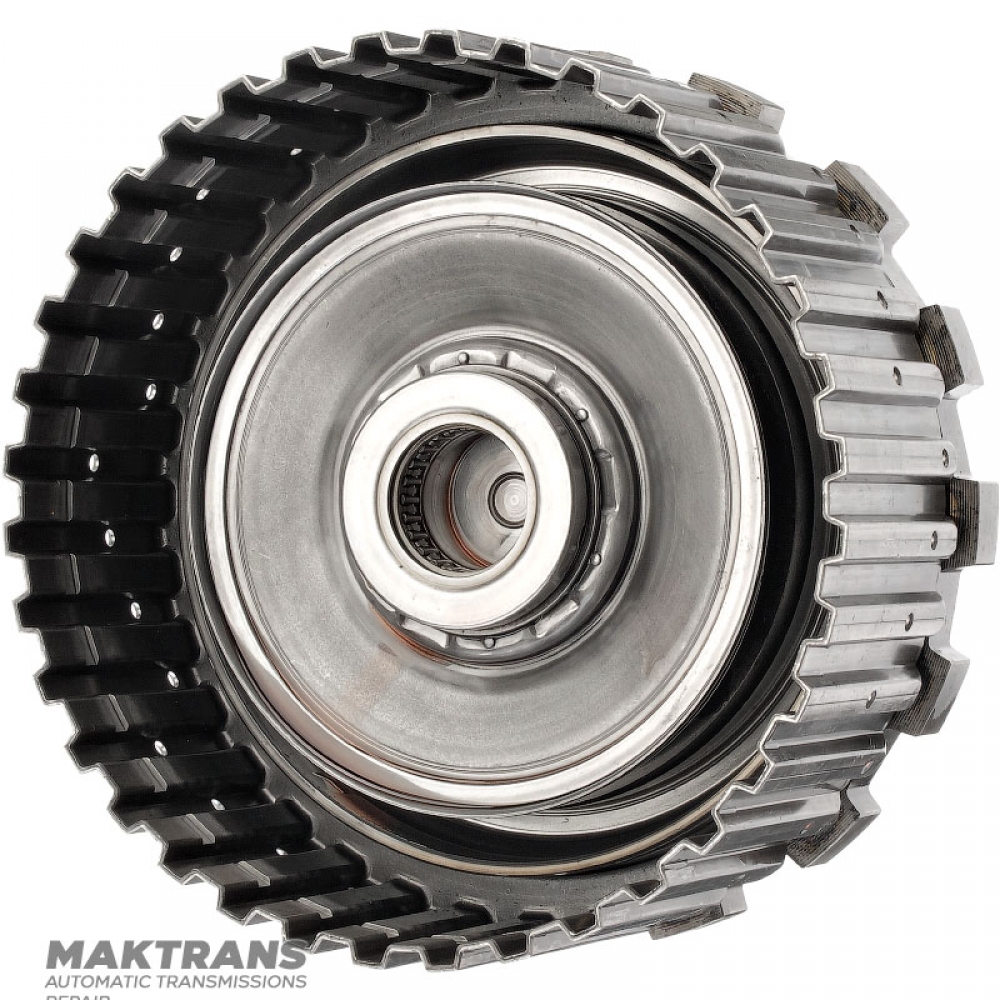

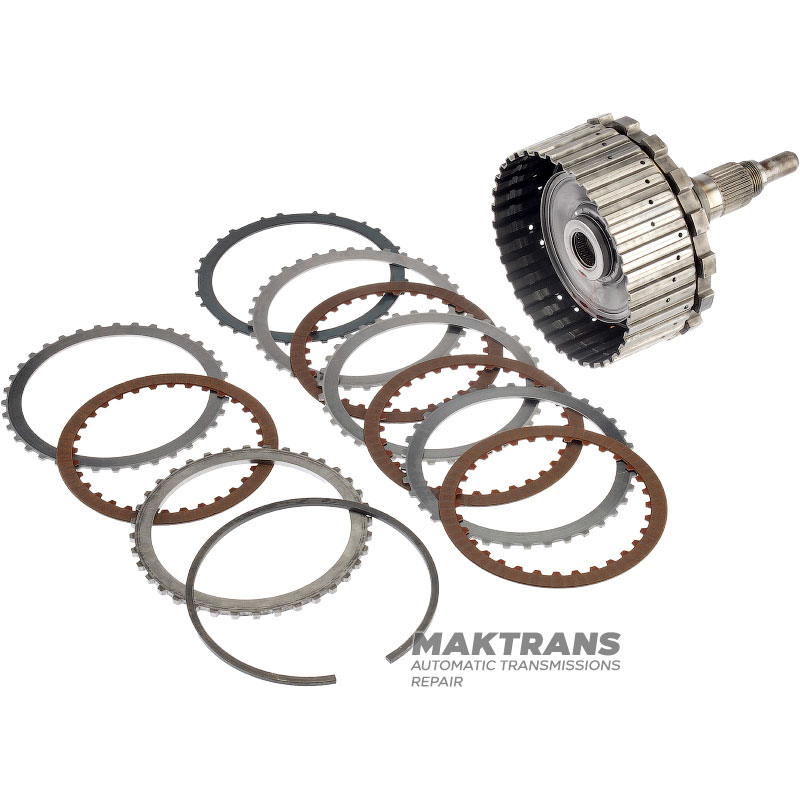

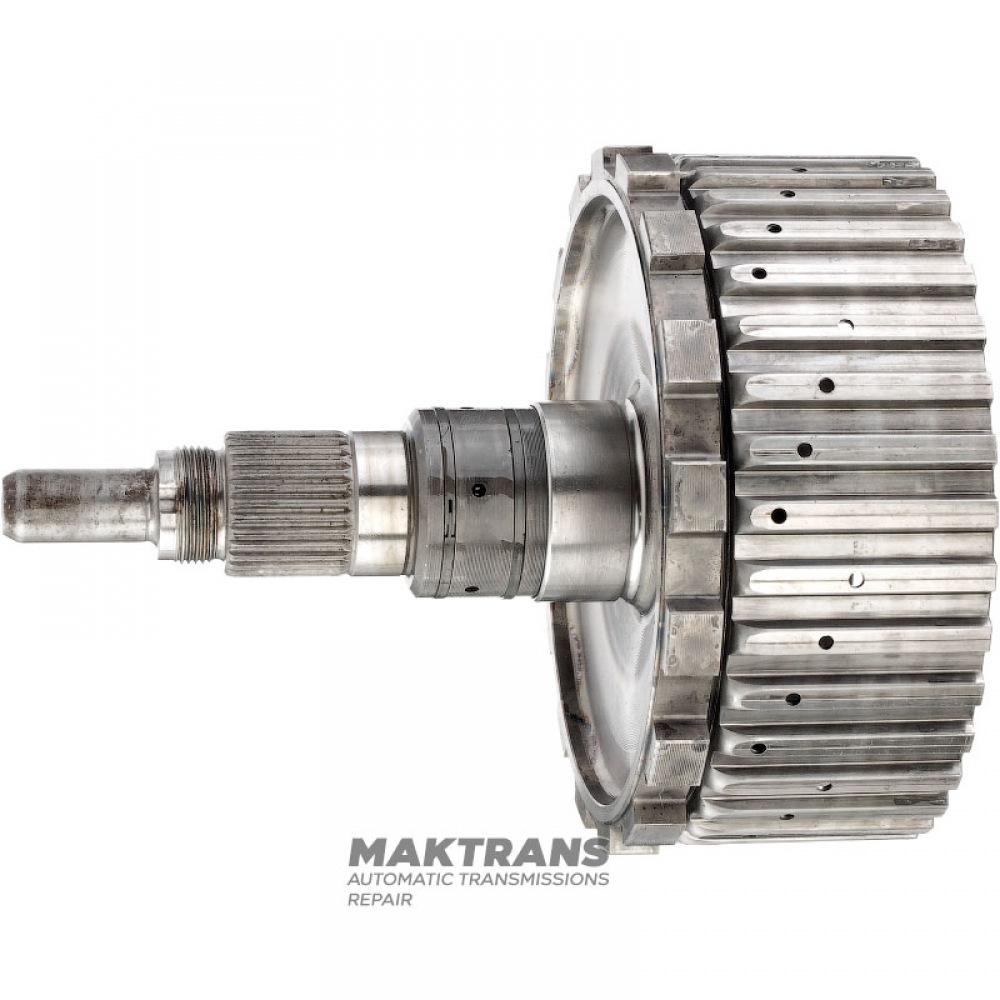

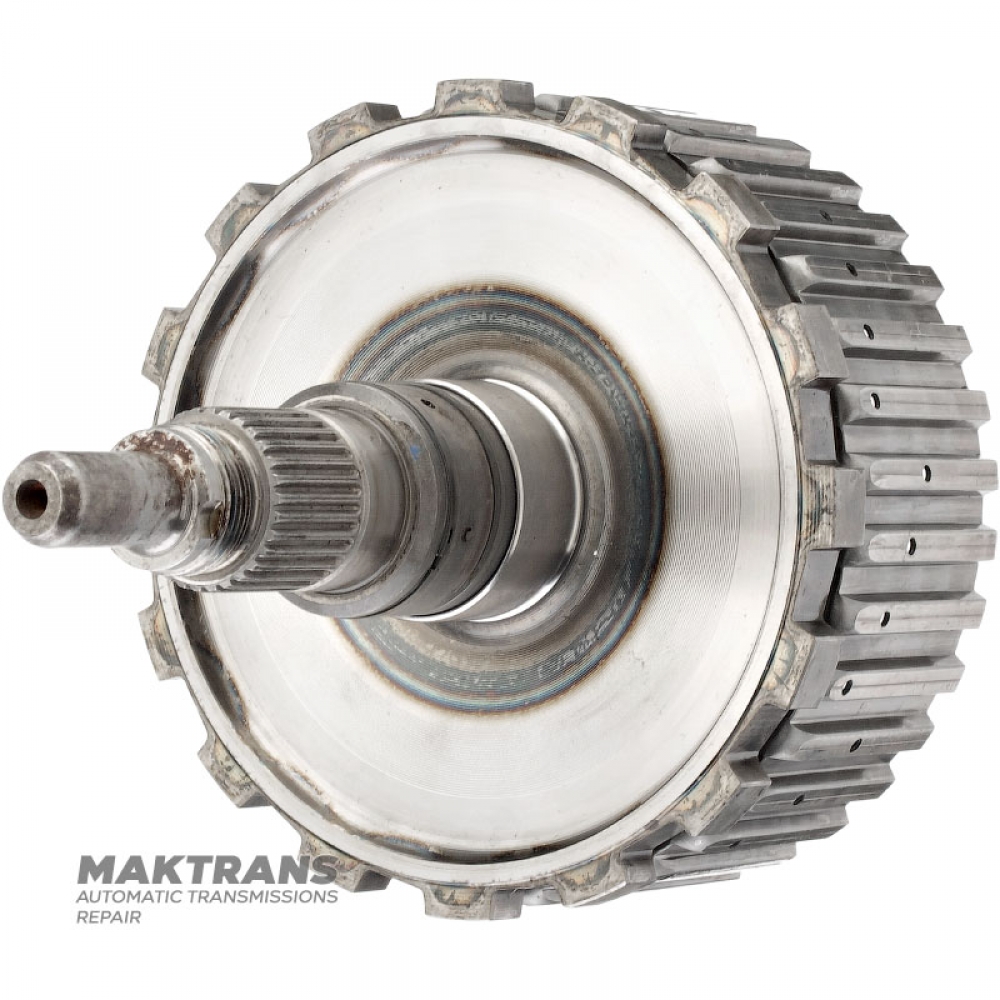

K27 Clutch Drum and Output Shaft (2WD) Mercedes-Benz 725.0 - Overall Height 198mm, 30 Splines (OD 31.65mm), 4 Friction Discs (Total Kit Thickness 20.05mm)

• Overall height - 198 mm;
• Length of output shaft from base - 138 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 31.65 mm;
• Height from piston to retaining ring - 23 mm;

Parking gear:

• Number of teeth - 16 pcs.;
• Outer diameter - 153.85 mm;

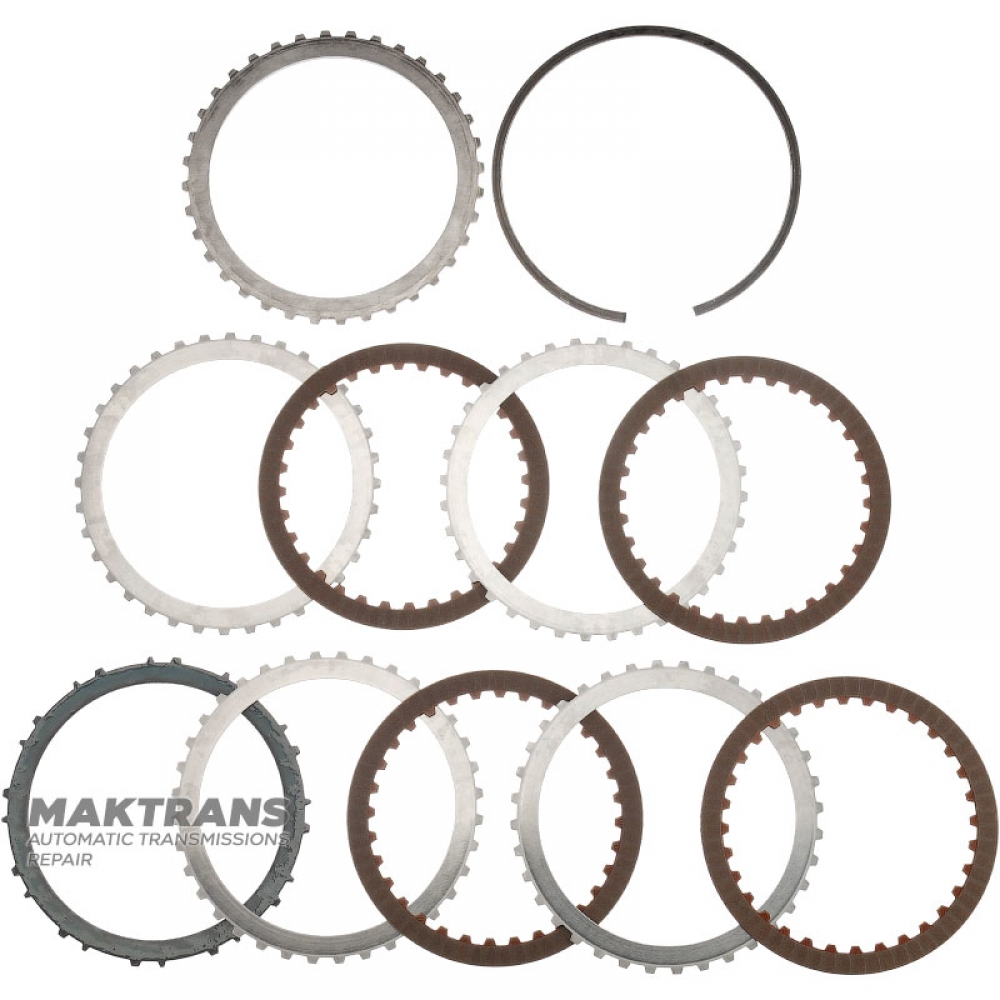

K27 Clutch Steel and Friction Disc Set:

• Total thickness - 20.05 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 120.30 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.15 mm;
• Outer diameter - 139.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 120.15 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 1.75 mm;
• Inner diameter - 120.40 mm;
