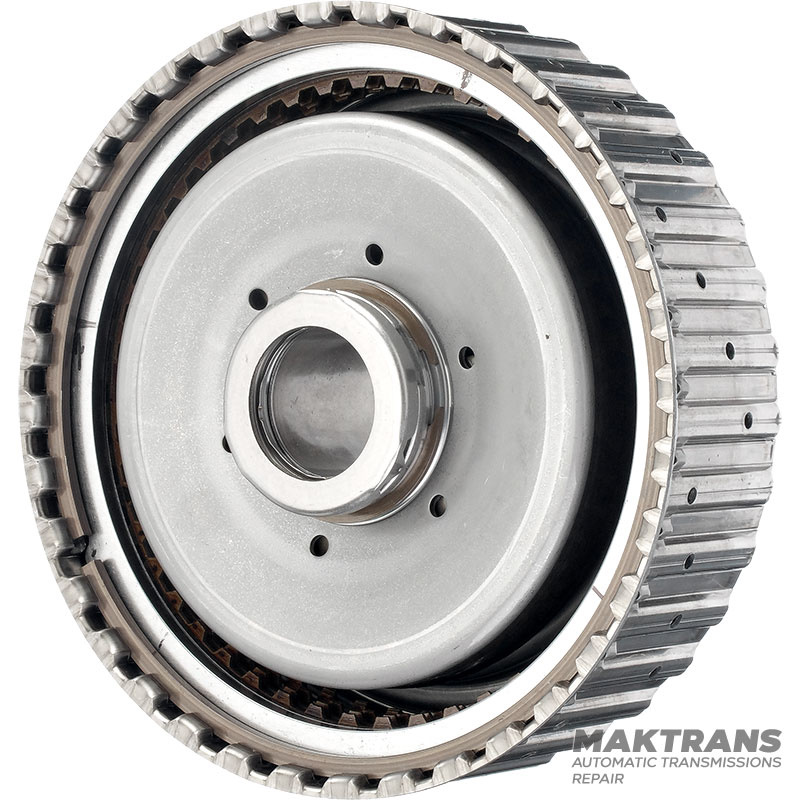

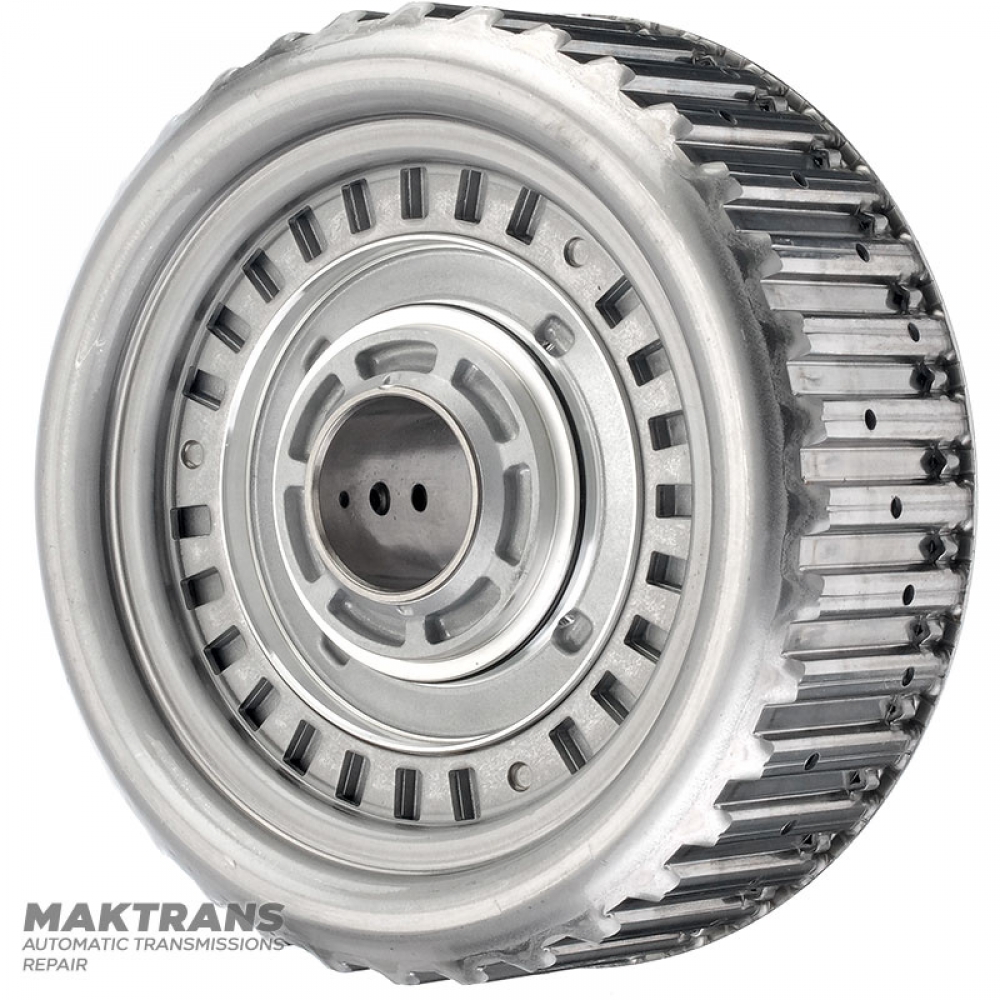

K38 Clutch Drum Assembly Mercedes-Benz 725.0 - 5 Friction Discs

Drum:

• Overall height - 61 mm;
• Drum outer diameter - 177.25 mm;
• Height from piston to retaining ring - 30 mm;

Set of steel and friction discs:

Pressure disc:

• Thickness - 5 mm;
• Inner diameter - 149.50 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.95 mm;
• Outer diameter - 166.50 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.95 mm;
• Inner diameter - 149.45 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 1.20 mm;
• Inner diameter - 149.65 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;
