Set of steel and friction discs C1 (1-2-7-8-R) Clucth GM 8L90 / [4 friction discs, total thickness of the set 20.15 mm]

• The total thickness of the set is 20.15 mm;

Thrust plate:

• Thickness - 4.70 mm;
• Inner diameter - 166.45 mm;
• Number of teeth - 28 pcs.;
• Number of plates - 1 piece;

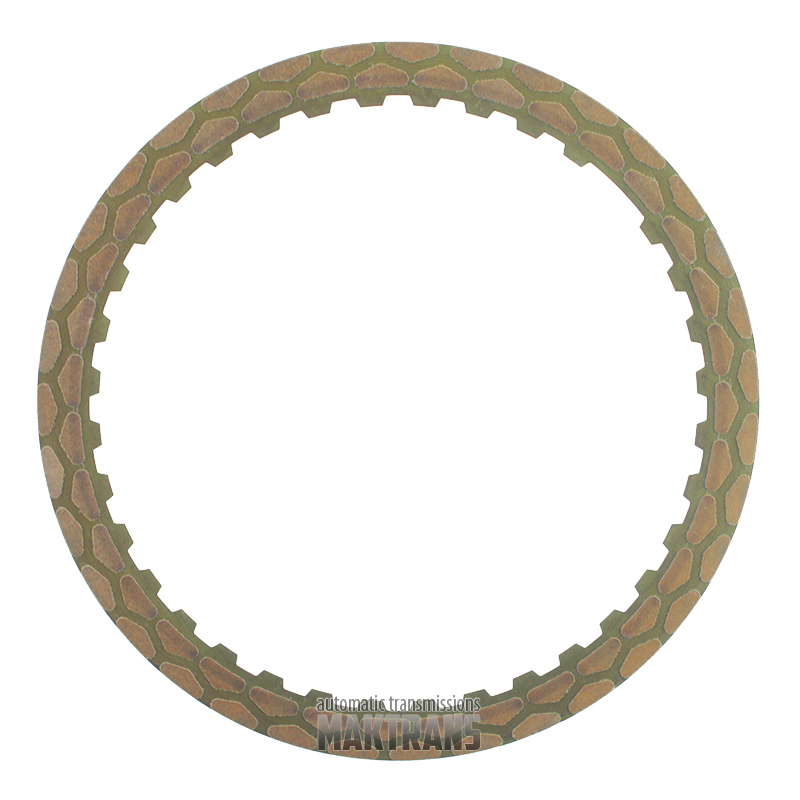

Friction plate:

• Thickness - 1.60 mm;
• Outer diameter - 193.85 mm;
• Number of teeth - 35 pcs.;
• Number of plates - 4 pcs.;

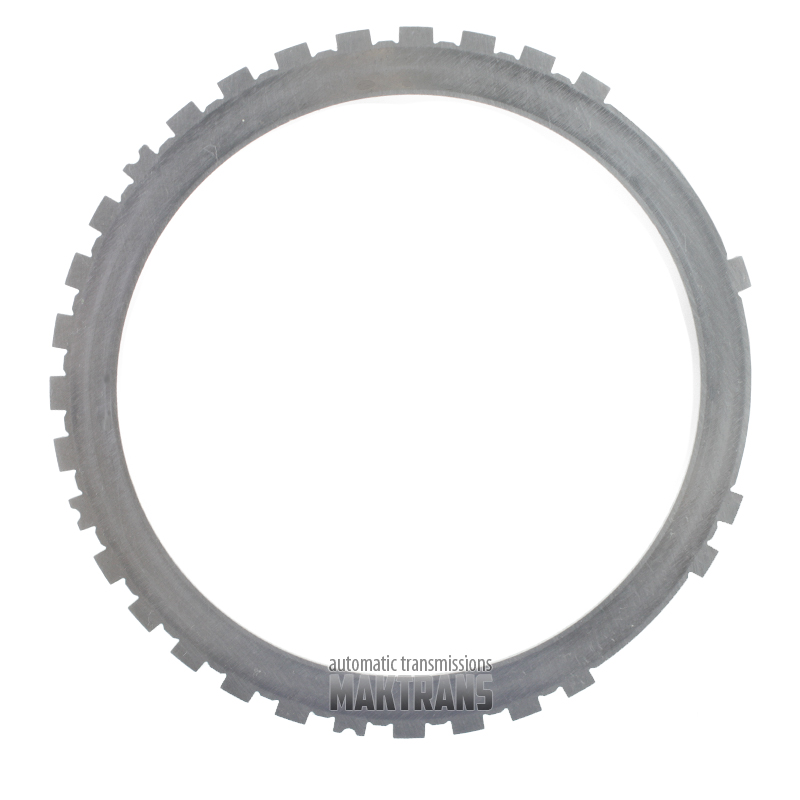

Steel plate:

• Thickness - 2.20 mm;
• Inner diameter - 166.75 mm;
• Number of teeth -28 pcs.;
• Number of plates - 3 pcs.;

Pressure plate:

• Thickness - 2.95 mm;
• Inner diameter - 166.75 mm;
• Number of teeth -28 pcs.;
• Number of plates - 1 piece;

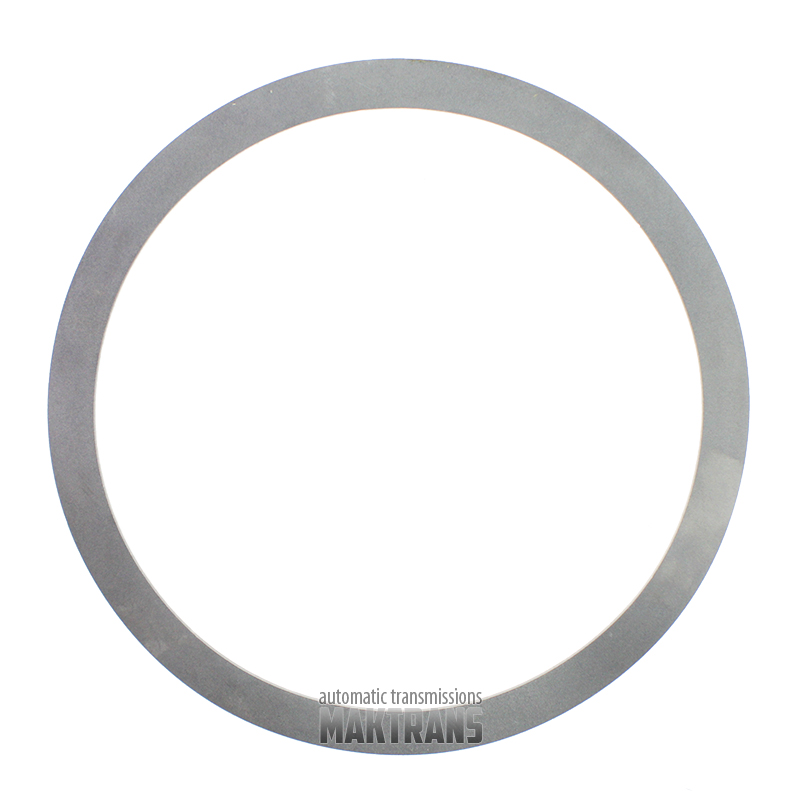

Spring plate:

• Thickness - 2.05 mm;
• Inner diameter - 170 mm;
• Outer diameter - 197.30 mm;
• Number of teeth - 1 pc.;
