Low Clutch Drum JATCO JF405E 4543002711 - 6 friction discs (total thickness of the kit 22.20 mm)

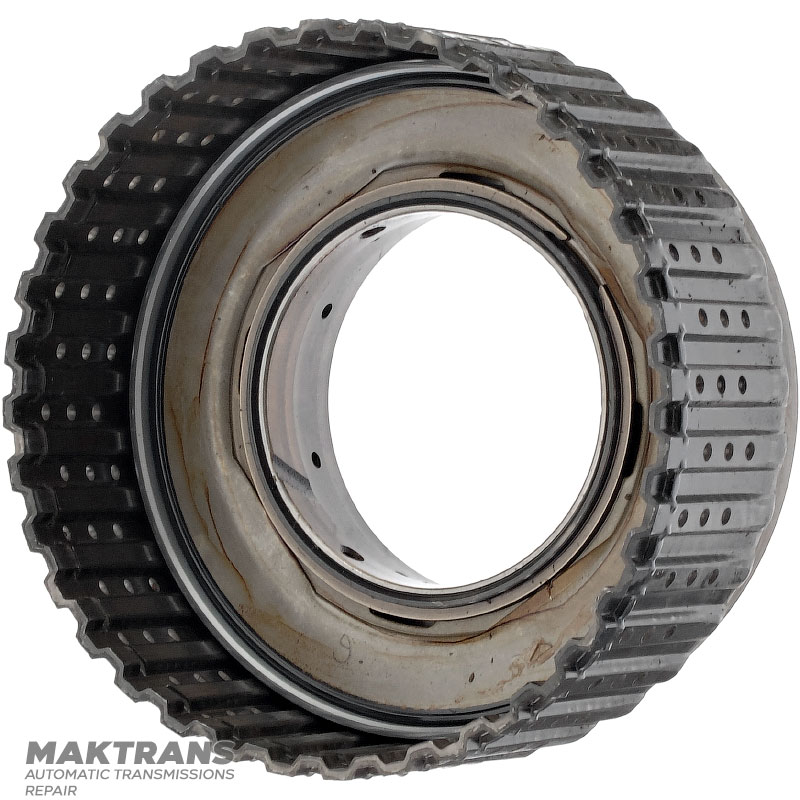

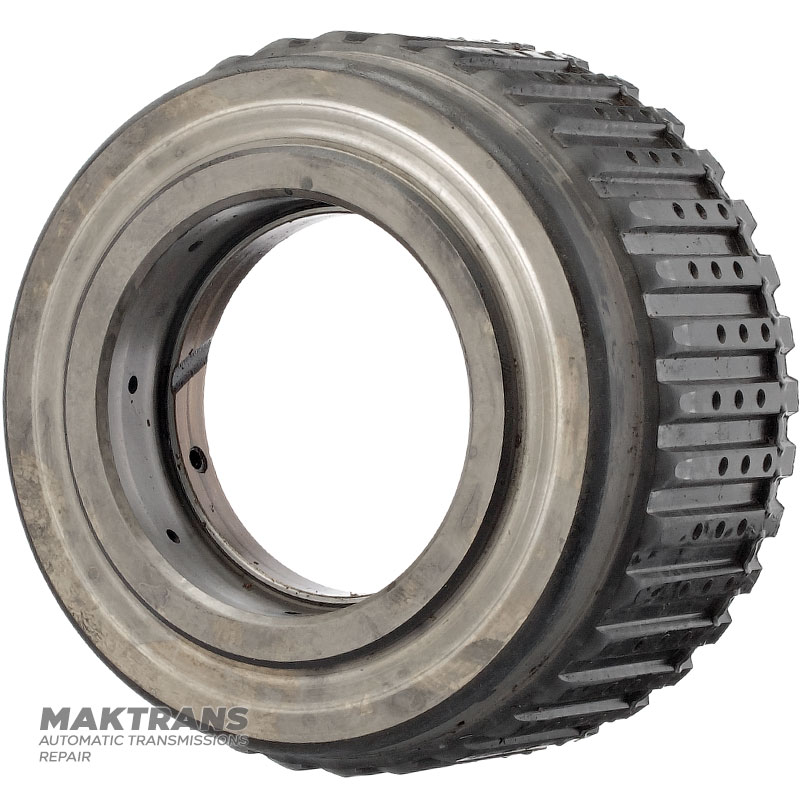

LOW Clutch Drum:

• Overall height - 63 mm;
• Drum outer diameter - 119.25 mm;
• Inner diameter under the hub - 65.40 mm;
• Inner diameter of the sleeve - 60.60 mm;
• Height from piston to retaining ring - 25 mm;

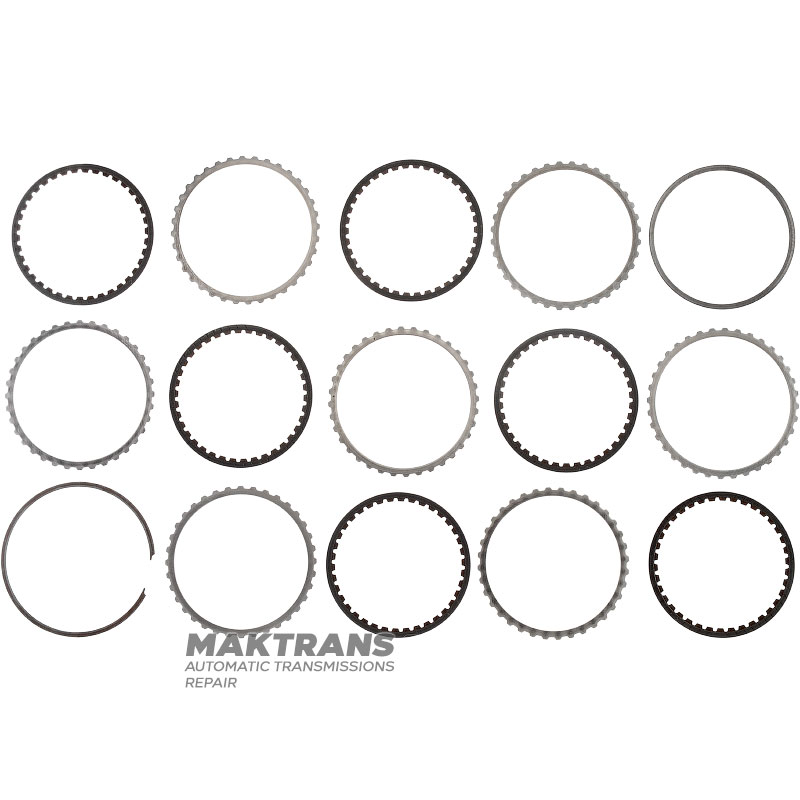

LOW Clutch Steel and Friction Disc Set:

• The total thickness of the set is 22.20 mm;

Support disk:

• Thickness - 4.57 mm;
• Inner diameter - 101.05 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 109.60 mm;
• Number of teeth - 38 pcs.;
• Number of teeth in the set - 6 pcs.;

Steel disk:

• Thickness - 1.45 mm;
• Inner diameter - 100.90 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 0.95 mm;
• Inner diameter - 101.95 mm;
• Outer diameter - 110.55 mm.;
• Number of discs in the set - 1 pc.;
