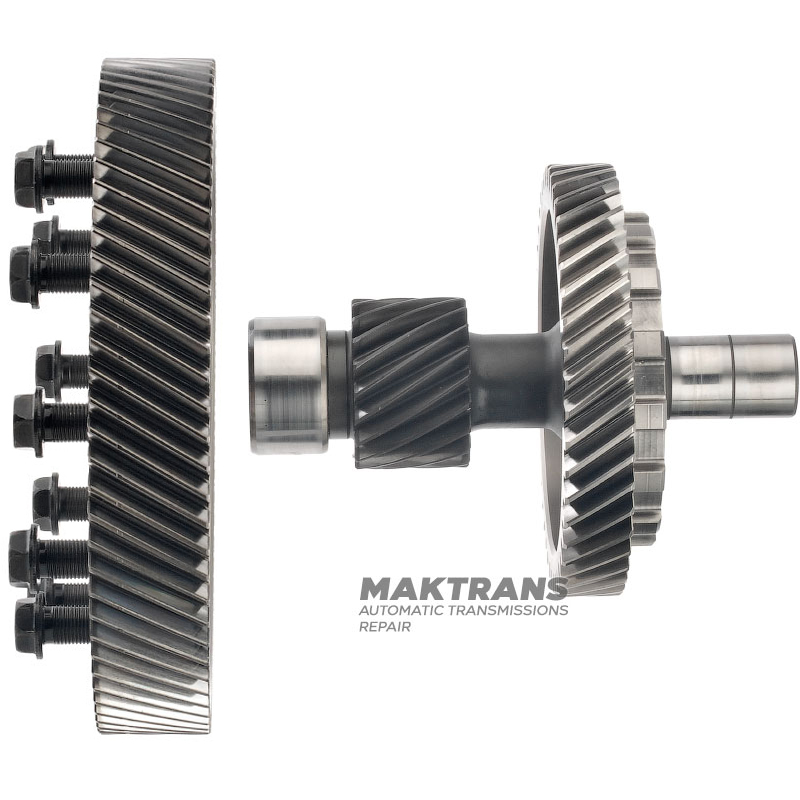

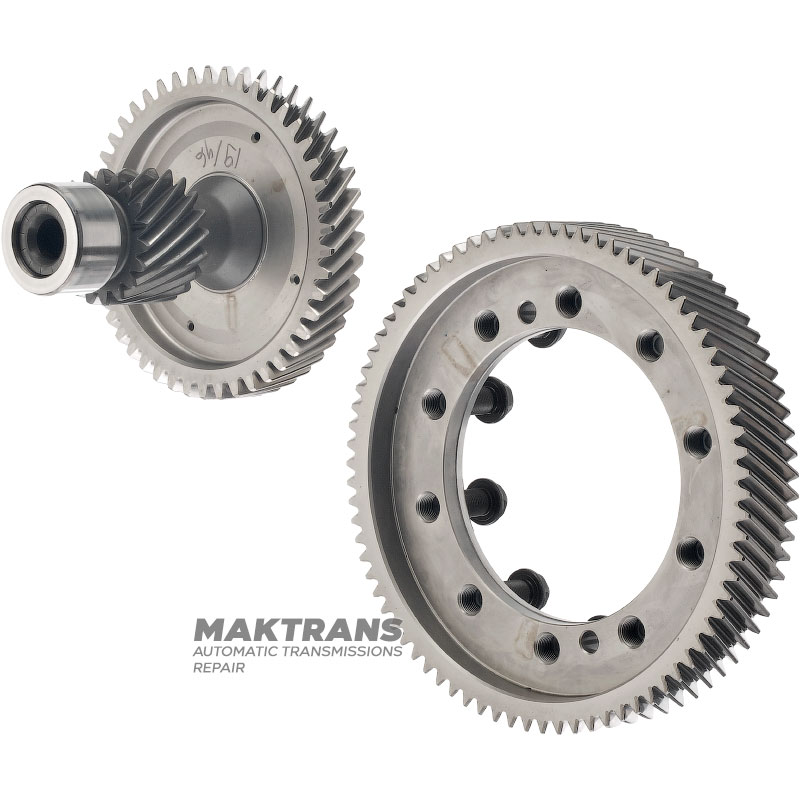

Main pair (78-19 teeth) of differential MAZDA CW6A-EL, EW6A-EL — intermediate shaft 19 teeth (outer Ø 50.30 mm), 46 teeth (outer Ø 127.35 mm), differential ring gear 78 teeth (outer Ø 186.65 mm)

Intermediate shaft:

• Total height - 160 mm;
• Bearing race outer diameters - 41 mm / 25 mm;

Pinion:

• Number of teeth - 19 pcs.;
• Outer diameter - 50.30 mm;
• Gear width - 33.90 mm;

Driven gear:

• Number of teeth - 46 pcs.;
• Outer diameter - 127.30 mm;
• Gear width - 19.50 mm;

Parking gear:

• Number of teeth - 15 pcs.;
• Outer diameter - 98.75 mm;

Helical differential gear:

• Gear width - 30.70 mm;
• Number of teeth - 78 pcs.;
• Outer diameter - 186.65 mm;
• Inner diameter - 108.05 mm;
• Number of mounting holes - 10 pcs.;

Tags: FZE5-19-671, FZ55-19-671, FZA1-19-5R0, FZ01-19-5R0C, FZE519671, FZ5519671, FZA1195R0, FZ01195R0C
