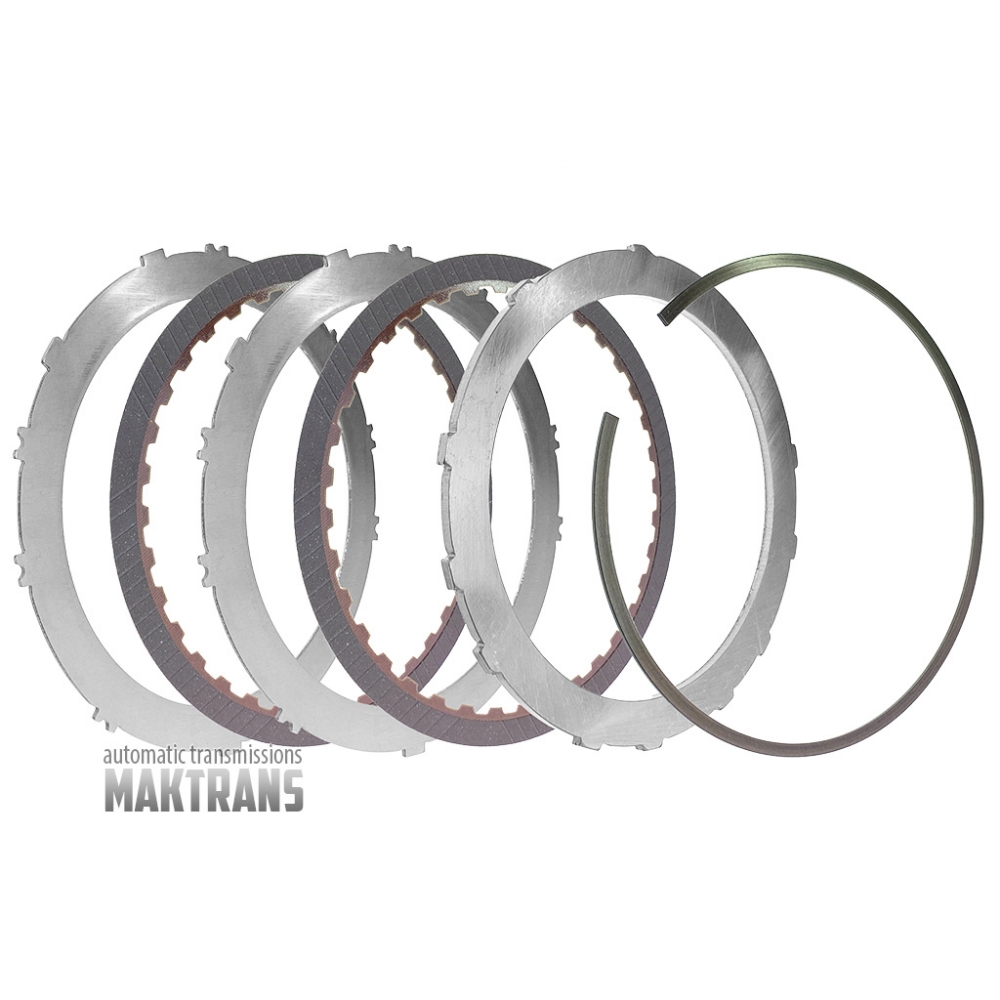

B1 Brake Steel and Friction Disc Kit | 3166290X00 3166690X0C 3166597X00 316651XJ0A

• The total thickness of the kit is 12.40 mm;

Support disk:

• Thickness - 4.95mm;
• Inner diameter - 166.15 mm;
• Number of teeth - 11 pcs;
• The number of discs in the set - 1 piece;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 186 mm;
• Number of teeth - 36 pcs;
• The number of disks in the set - 2 pcs;

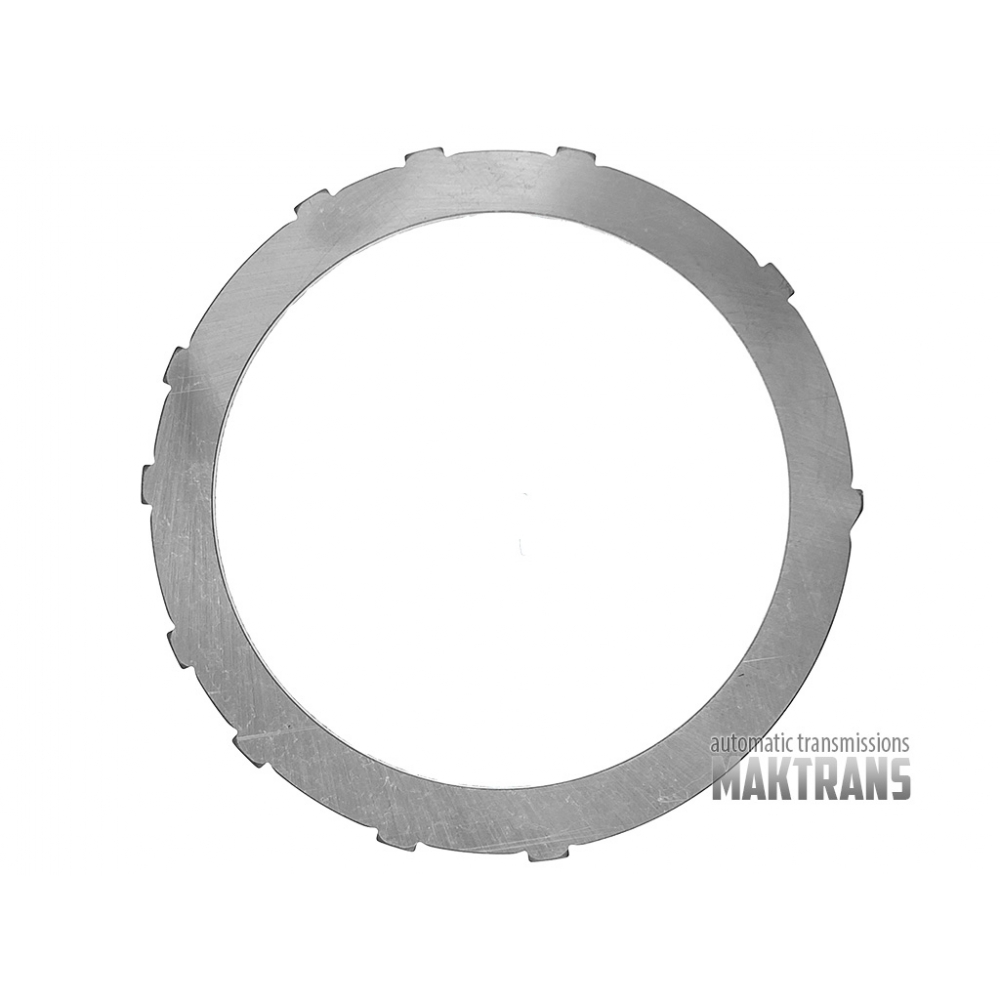

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 166.15 mm;
• Number of teeth - 11 pcs;
• The number of discs in the set - 1 pc;

Clamping disc:

• Thickness - 2.35mm;
• Inner diameter - 166.15 mm;
• Number of teeth - 11 pcs;
• The number of discs in the set - 1 piece;
