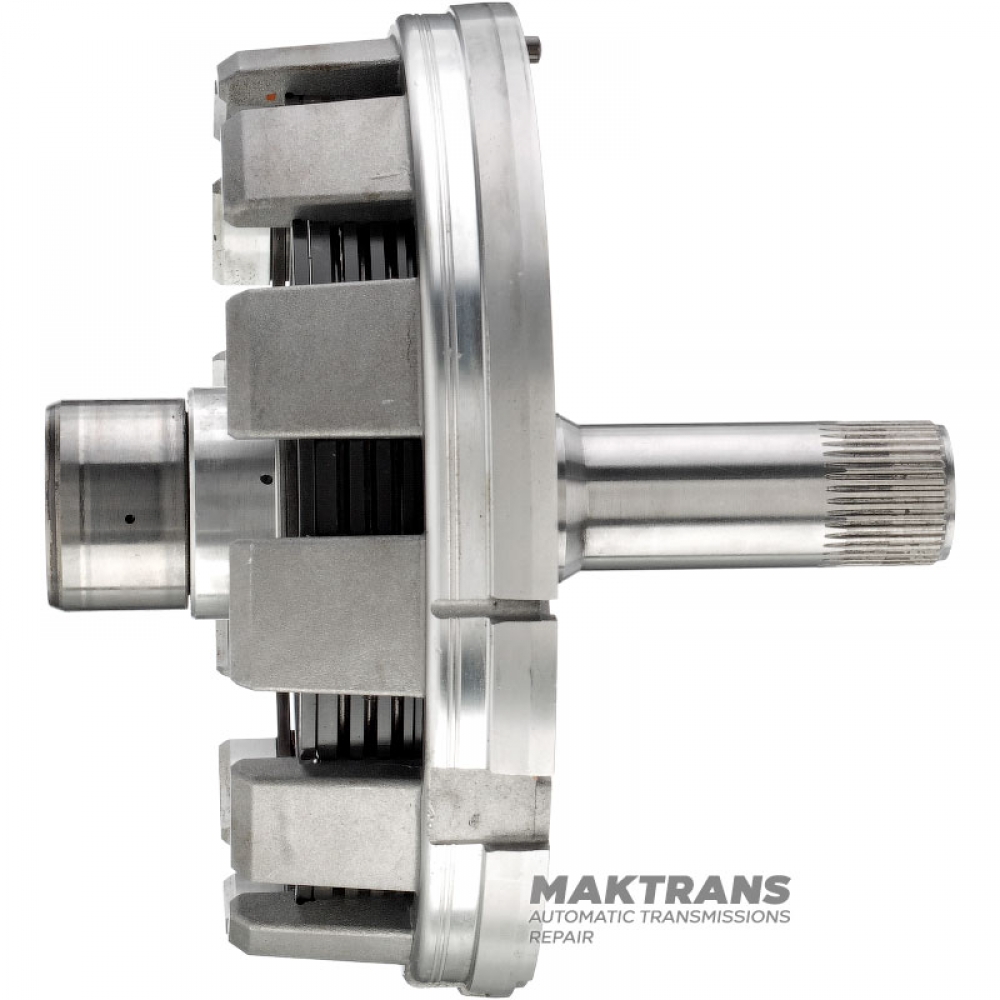

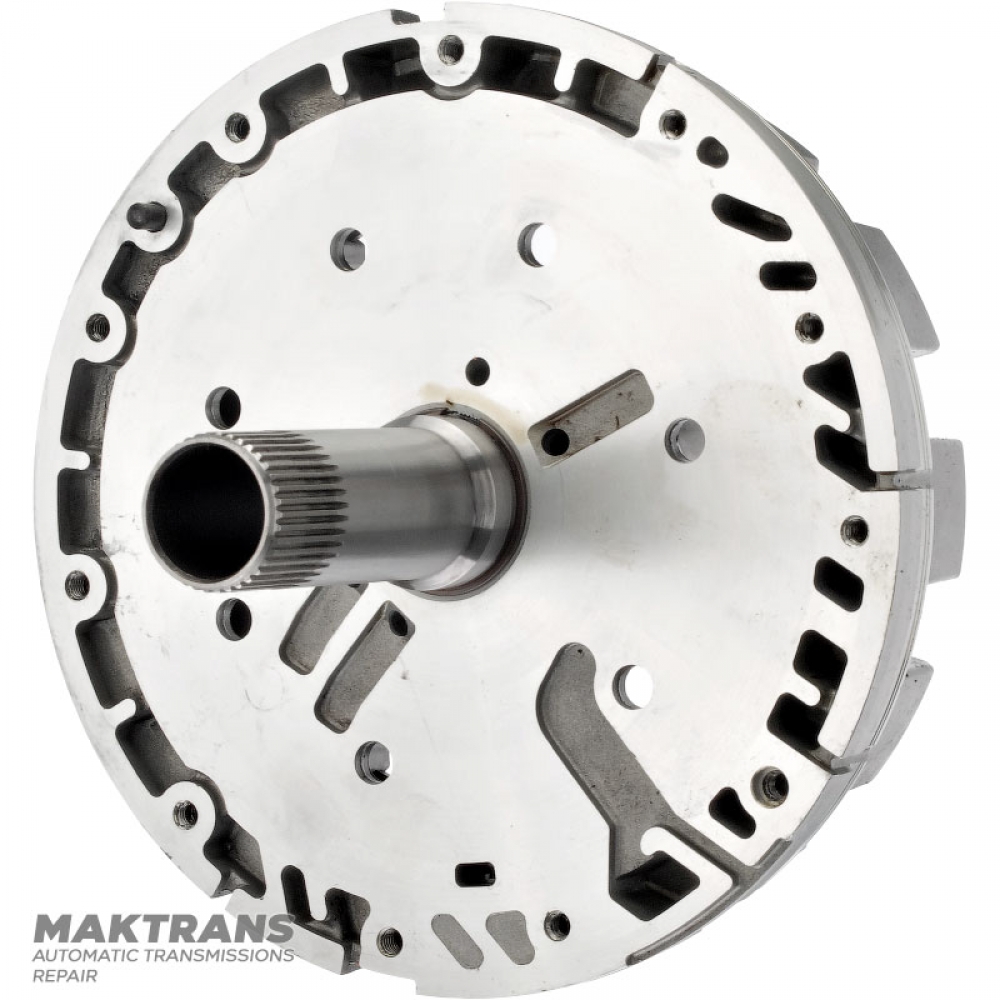

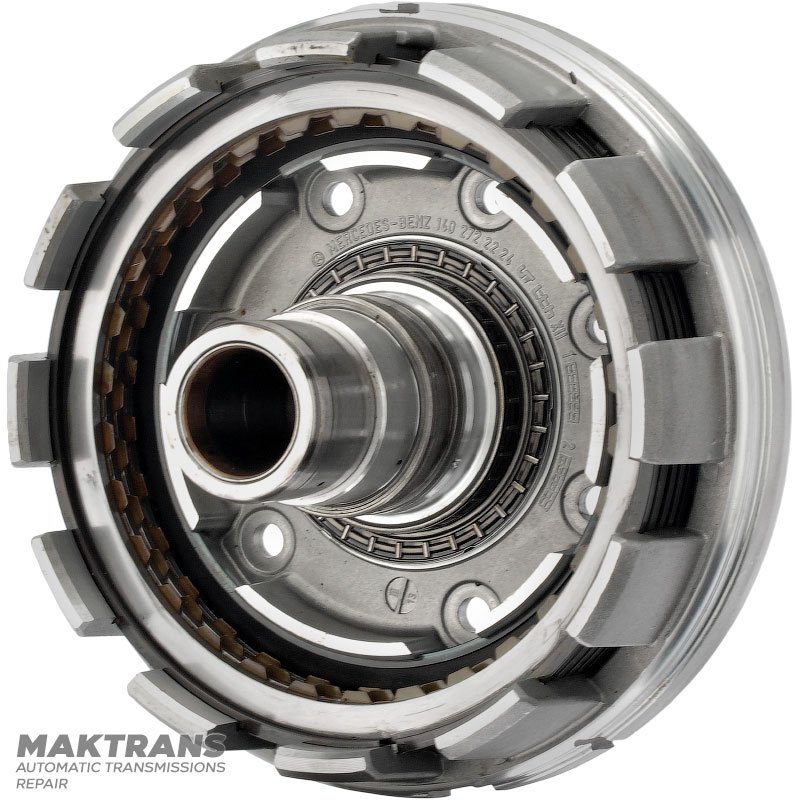

Oil pump hub (stator), drum B1 Brak Mercedes-Benz 722.6 - 3 double-sided friction discs (total thickness of the set 17.95 mm), R1402722224, A1402722224

Oil pump hub:

• Overall height - 192 mm;
• Height from piston to retaining ring B1 Brake - 21 mm;
  Outer body diameter - 211.95 mm;

Front side:

• Stator height - 95 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 31.70 mm;

Back side:

• Overall height - 92 mm;
• Inner diameter of the sleeve - 31.60 mm;
• Outer diameter of the working part - 45.30 mm;
• Outer diameter over Teflon rings - 57.40 mm;

B1 Brake Steel and Friction Disc Set:


• Total thickness of the set is 20.65 mm. (without spring disc);

Support disk:

• Thickness - 4 mm;
• Inner diameter - 153.75 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc ( double-sided ):

• Thickness - 2.20 mm;
• Outer diameter - 172.75 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2.80 mm;
• Inner diameter - 153.60 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 153.60 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;
